SuperServer AS -4126GS-NBR-LCC

DatasheetShare IconShare

DP AMD 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required)

Integrated Board: H14DSG-OD
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Healthcare
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Climate and Weather Modeling
  • Finance & Economics

Key Features

  1. *Complete liquid-cooled rack integration is required for purchase
  2. Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with Liquid Cooling

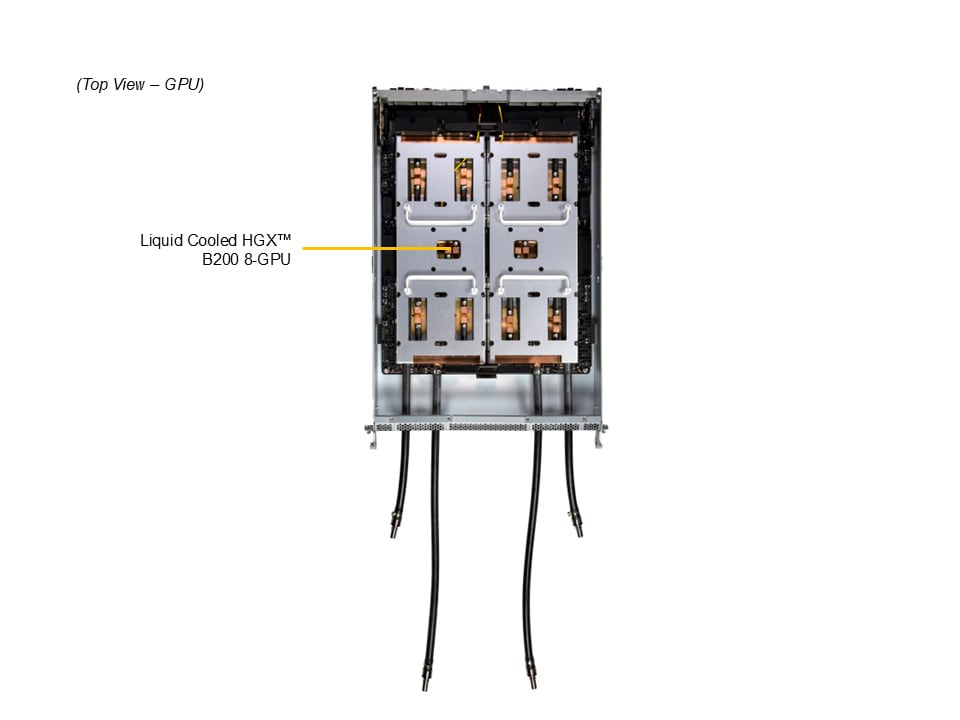

  3. Support for up to 8 onboard SXM GPU accelerator cards with Liquid Cooling
  4. Up to 24 DIMMs supporting up to 9TB DDR5-6400 in 1DPC
  5. 2 RJ45 10GbE
  6. Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
  7. Up to 8 front hot-swap 2.5" NVMe
...
...
Get Pricing
AS-4126GS-NBR-LCC
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -4126GS-NBR-LCC
A+ Server AS -4126GS-NBR-LCC-G1 Gold Series version with pre-configured components
Motherboard
Super H14DSG-OD
Processor
CPU
Core Count
  • Up to 192C/384T; Up to 384MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® with NVSwitch™
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 9TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 9TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-GP403TS-R000NP
Dimensions and Weight
Height
  • 6.85" (174 mm)
Width
  • 17.6" (449 mm)
Depth
  • 35.25" (895.35 mm)
Package
  • 16.14" (H) x 50.39" (W) x 28.7" (D)
Weight
  • Gross Weight: 140 lbs (63.5 kg)
  • Net Weight: 80 lbs (53 kg)
Available Color
  • Silver
Front Panel
LED
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Buttons
  • Power On/Off
  • UID/ Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 NVMe slots (M-key 22110(default))
Drive Bays / Storage
Drive Bays Configuration
M.2
  • 2 M.2 NVMe slots (M-key)
System Cooling
Fans
  • 5x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
4x 6600W
4x 6600W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.3 mm
Input5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz
+12VMax: 130A / Min: 0A (200Vac-207.9Vac)
Max: 130A / Min: 0A (208Vac-219.9Vac)
Max: 130A / Min: 0A (220Vac-229.9Vac)
Max: 130A / Min: 0A (230Vac-238.9Vac)
Max: 130A / Min: 0A (239Vac-240Vac)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads

BIOS Downloads

Click the button to download the latest BIOS for this product. If you are looking for an older-revision BIOS, please contact our technical support.

* Please do not download / upgrade the BIOS/Firmware UNLESS your system has a BIOS/Firmware-related issue. Flashing the wrong BIOS/Firmware can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS/Firmware update.

BMC Firmware Downloads

Click the button to download the latest BMC firmware for this product. If you are looking for an older-revision BIOS, please contact our technical support.

* Please do not download / upgrade the BMC/Firmware UNLESS your system has a BMC/Firmware-related issue. Flashing the wrong BMC/Firmware can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BMC/Firmware update.

Drivers & Utilities

In order to locate a driver/utility, please select your Operating System and Device Type below: (for OS supported, please refer to OS Compatibility)

Motherboard-related FAQs

Check out FAQs related to H14DSG-OD.

Product Specifications

Check out the specifications webpage for AS -4126GS-NBR-LCC.

Go to Spec
Parts List
Optional Parts List
Part Number Qty Description
8x Power Supply optional parts PWS-3K06G-2R • 2 AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
8x SATA optional sets CBL-GNZ2-1221MTS4 1 GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHS
MCP-220-00147-0B • 5 Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
Side expention sets AOM-DP801-PCIE-P 1 NIC Riser board(After Mid-Plane) for Delta-Next GPU System,RoHS
AOM-DP801-SW-P 1 NIC adaptor board with PLX switch for Delta-Next GPU system,RoHS
CBL-PWEX-1142B-40 1 MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
CBL-MCIO-1255M5 • 4 MCIO x8 (STR to STR),55CM,30AWG,RoHS
Optional Parts List
8x Power Supply optional parts
Part NumberPWS-3K06G-2R •
Qty2
DescriptionAC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
8x SATA optional sets
Part NumberCBL-GNZ2-1221MTS4MCP-220-00147-0B •
Qty15
DescriptionGenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHSBlack gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
Side expention sets
Part NumberAOM-DP801-PCIE-PAOM-DP801-SW-PCBL-PWEX-1142B-40CBL-MCIO-1255M5 •
Qty1114
DescriptionNIC Riser board(After Mid-Plane) for Delta-Next GPU System,RoHSNIC adaptor board with PLX switch for Delta-Next GPU system,RoHSMicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHSMCIO x8 (STR to STR),55CM,30AWG,RoHS
