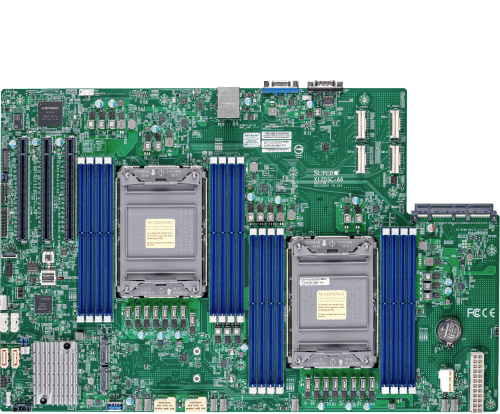

X12DSC-A6

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz, DDR4-3200MHz
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots
  4. 3 PCIe 4.0 x16
    M.2 Form Factor: 22110
  5. AIOM slot
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DSC-A6
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 14.8" x 10.9" (37.59cm x 27.69cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket Socket P+ (LGA-4189 ) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
  • Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 4 SATA3 ports; RAID 0,1,5,10
Network Controllers
  • N/A
Expansion Slots
PCIe
  • 3 PCIe 4.0 x16
M.2
  • M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1
  • Form Factor: 22110
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM
Power Configurations
  • ACPI / ACPM Power Management
PC Health Monitoring
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Parts List

X12DSC-A6 (For SuperServer Only)
