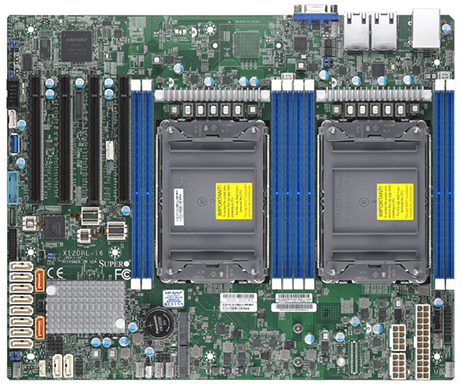

X12DPL-i6

Print
X12DPL-i6
12" x 10"

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
  4. 4 PCIe 4.0 x16
    M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2280/22110, 2280
    M.2 Key: M-Key
  5. Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with Intel® i210 Gigabit Ethernet Controller
  7. 1 VGA port
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DPL-i6
Physical Stats
Form Factor
  • ATX
Dimension
  • 12.23" x 10" (31.06cm x 25.4cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s
Memory Type
  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
DIMM Sizes
  • 256GB
  • LRDIMM: 256GB
  • RDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 4 PCIe 4.0 x16
M.2
  • M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4
  • Form Factor: 2280/22110, 2280
  • Key: M-Key, M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
System Management Software
  • IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
Power Configurations
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
  • Overheat LED indication
Other Features
  • UID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Chassis
SCLA26E1C4-R609LP
(Heatsink1 :SNK-P0078AP4 )
SCLA25TQC-R609LP
(Heatsink1 :SNK-P0078AP4 )
SC825MBTQC-R802LPB
(Heatsink1 :SNK-P0078AP4 )
SCLA26AC12-R920LP1
(Heatsink1 :SNK-P0078AP4 )
SCLA26AC12-R1K03LP1
SC835TQC-R802B
(Heatsink1 :SNK-P0078AP4 )
SC732I-668B
(Heatsink1 :SNK-P0078AP4 )
SC842TQC-668B
(Heatsink1 :SNK-P0078AP4 )
SC842TQC-903B
(Heatsink1 :SNK-P0078AP4 )
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X12DPL-i6
