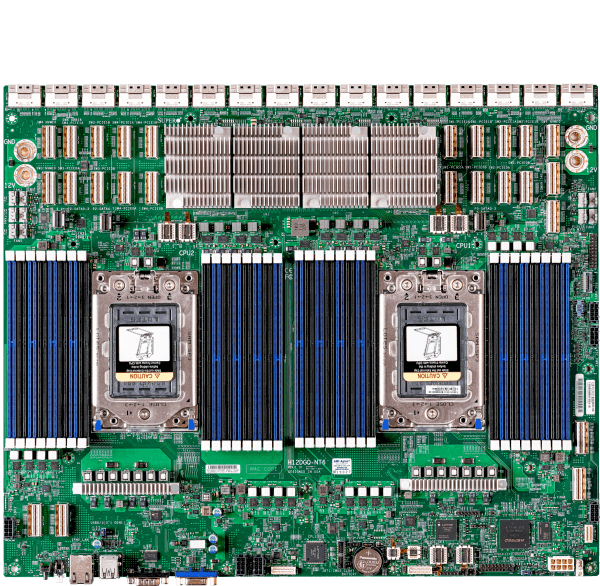

H12DGQ-NT6

H12DGQ-NT6
GPU Serverboard

Key Features


  1. AMD EPYC™ 7002 series (Rome) Processors, AMD EPYC™ 7003 series (Milan) Processors
  2. System on Chip
  3. 8 TB ECC Registered, DDR4-3200MHz SDRAM in 32 DIMMs
  4. 8 PCIe 4.0 x16 via SlimSAS x8 from PLX for GPU
    8 PCIe 4.0 x16 via SlimSAS x8 from PLX for Riser
    2 PCIe 4.0 x16 vis SlimSAS x8 from CPU for Riser or AIOM
  5. 12 SATA3 (6Gbps) ports via 3 SlimSAS x4 ports ; 10 NVMe ports via 5 SlimSAS x8 ports
  6. 1 Realtek RTL8211F PHY (dedicated IPMI)
  7. ASPEED AST2600 BMC graphics
...
...

Optimized Servers


AS -4124GQ-TNMI (in 4U) AS -4124GQ-TNMI (in 5U) AS -4124GQ-TNMI
Specifications Resources Parts List
Specifications
Product SKUs
MBD-H12DGQ-NT6
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17.32" x 14.29" (43.99cm x 36.29cm)
Processor
CPU
Core
  • Up to 64/128
System Memory
Memory Capacity
  • 32 DIMM slots
  • 8TB ECC Registered SDRAM, DDR4-3200MT/s
Memory Type
  • 3200 MT/s ECC DDR4 SDRAM
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • SDRAM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • 12 SATA (6 Gbps) ports
Network Controllers
  • N/A
Input / Output
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
Expansion Slots
PCIe
  • 16 PCIe 4.0 x8 SlimSAS to GPU,
  • 16 PCIe 4.0 x8 SlimSAS to Riser,
  • 4 PCIe 4.0 x8 SlimSAS to AIOM/Riser
System BIOS
BIOS Type
  • AMI 256MB Flash EEPROM
Management
Software
PC Health Monitoring
Voltage
  • VBAT, System temperature, Monitors CPU voltages, Memory temperature, Memory, CPU temperature, CPU, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • System level control
  • Fan speed control
Other Features
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
