SuperServer SSG-136R-4MU32JBF

DatasheetShare IconShare

1U front-loading all-flash storage box with 32 hot-swap 2.5" NVMe bays and PCIe 4.0

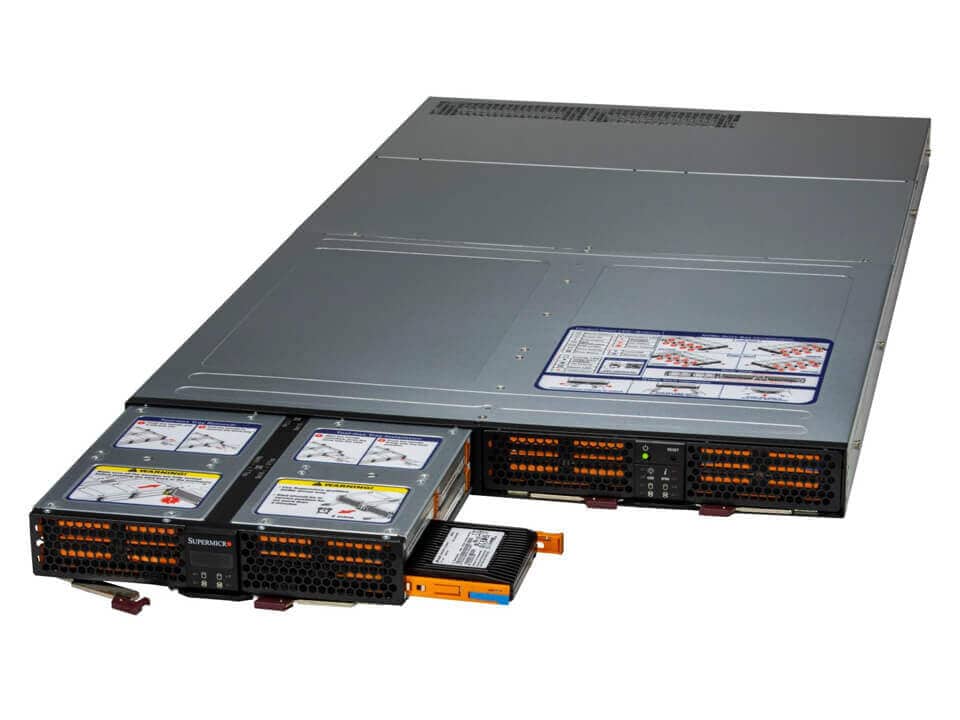

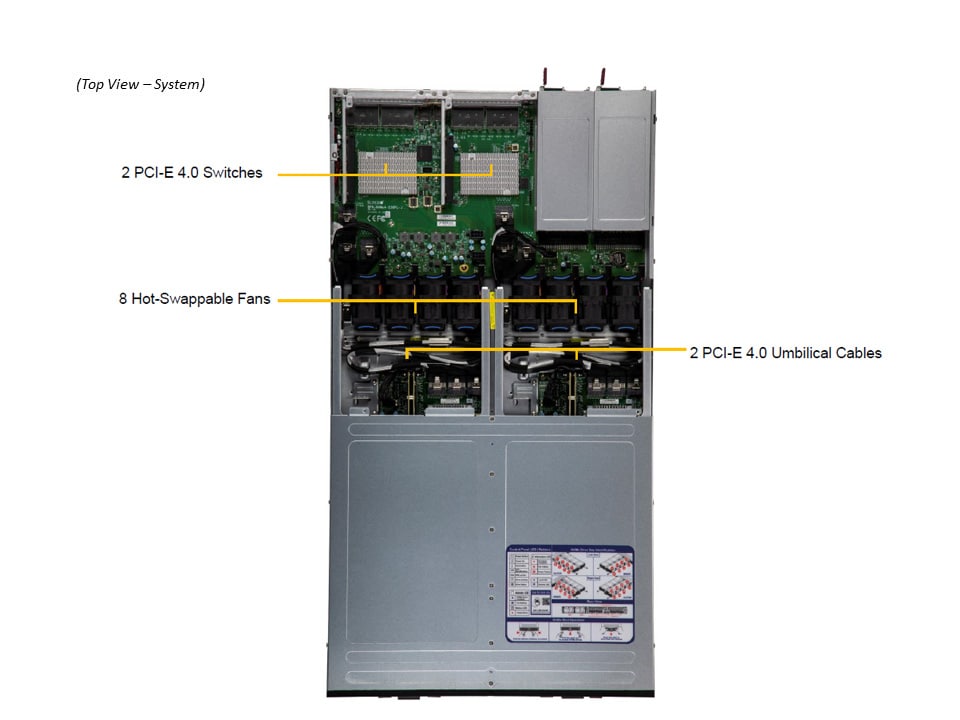

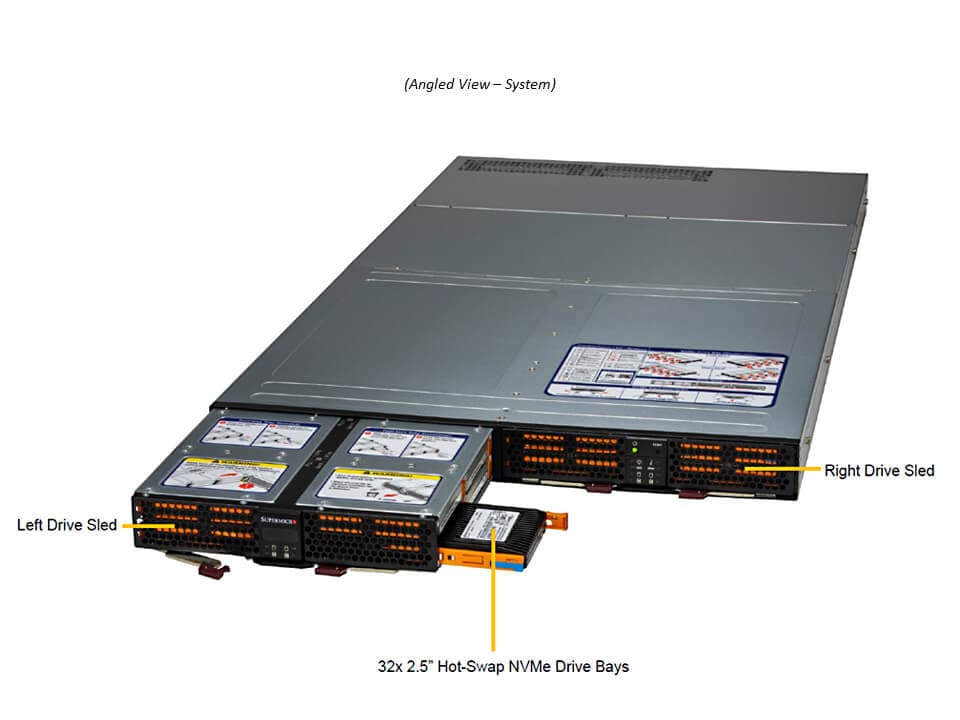

SSG-136R-4MU32JBF Main SSG-136R-4MU32JBF Angle SSG-136R-4MU32JBF Top SSG-136R-4MU32JBF Front SSG-136R-4MU32JBF Rear

Key Features

  1. IPMI management with dedicated LAN
  2. 32x hot-swap U.2/U.3 NVMe drive bays
  3. 1000W Redundant Power Supplies
  4. 4 PCIe Gen4 rear IO ports
    2 PCIe Gen4 x16 slots
  5. Qualified SAS HBA / controller: AOC-SLG4-4X4T-O - JBOF, PCIe Gen 4 x16 NVMe retimer (see supported host systems below):
    SYS-120U-TNR, SYS-610U-TNR, SYS-220U-TNR, SYS-620U-TNR, SYS-220U-MTNR
    SYS-111C-NR, SYS-521C-NR, SSG-521E-E1CR24H, SSG-521E-E1CR24L
    AS -1024US-TRT, AS -1124US-TNRP, AS -2024US-TRT, AS -2124US-TNRP
    AS -1115HS-TNR, AS -2015HS-TNR, AS -2115HS-TNR
...
...
SSG-136R-4MU32JBF
Specifications Free Remote Testing Parts List
Specifications
Product SKUs
SuperServer SSG-136R-4MU32JBF
Motherboard
Super BPN-NVME4-136PL-J
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE Dedicated BMC LAN ports
Management
Software
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136TS-R000JNP-U2
Dimensions and Weight
Height
  • 1.71" (43.6 mm)
Width
  • 17.26" (438.4 mm)
Depth
  • 31.95" (811.7 mm)
Package
  • 8.375" (H) x 24" (W) x 48.5" (D)
Weight
  • Gross Weight: 65 lbs (29.5 kg)
  • Net Weight: 49 lbs (22.2 kg)
Available Color
  • Silver

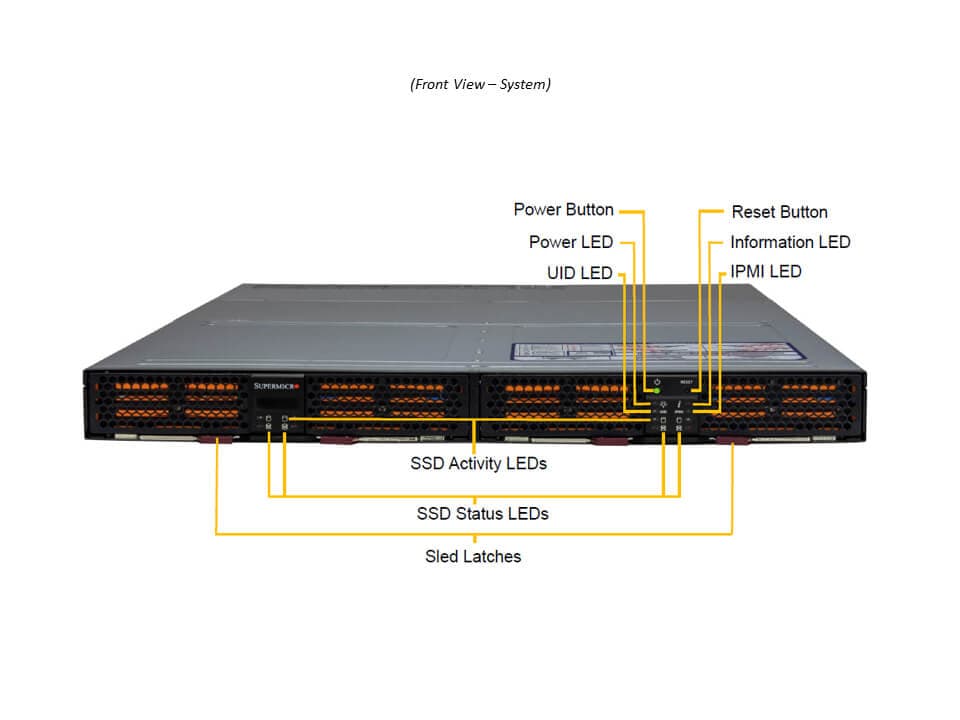

Front Panel
LED
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
System Cooling
Fans
  • 8 Heavy Duty 4cm Fan(s)
Power Supply
2x 1000W
2x 1000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Input800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12VMax: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-BPN-NVME4-136PL-J

CSE-136TS-R000JNP-U2 		1

1 		Super BPN-NVME4-136PL-J Motherboard

1U Chassis
Backplane BPN-NVME4-136NB-L 2 JBOF LHS drive backplane for 1U PCIe Gen4 JBOF SSG-136R-
BPN-NVME4-136NB-R 2 JBOF RHS drive backplane for 1U PCIe Gen4 JBOF SSG-136R-
BPN-NVME4-136PL 2 PCIe Switch midplane for 1U PCIe Gen4 JBOF SSG-136R-4MU3
BPN-NVME4-136PL-J 1 Control board for 1U PCIe Gen4 JBOF SSG-136R-4MU32JB sys
Cable CBL-SAST-1012 4 SLIMLINE SAS, INT, 76.6,73.8,79.2 CM,with PN RWHHW-A018 CBL
CBL-OTHR-1042 4 SC136 SW/BPN FPC cable (20-pin, 5cm),RoHS
CBL-PWCD-0579 2 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Riser Card RSC-XR-6G4 2 1U RHS Storage riser card with one PCIe 4.0 X16 slots,H
*Power Supply PWS-1K04A-1R 2 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
*Fan FAN-0188L4 8 40x40x56 mm, 23.3K-20.3K RPM, Hot-swappable Counter-rotating
*Drive Tray(s) MCP-220-00149-06 32 2.5-in Tool-less NVMe Drive Tray with orange rails (SC136)
*Rail Set MCP-290-11809-0N 1 Rail set, Quick/Quick, Auto Latch, travel 609.1mm Short Version, RACK POST=26.5, 1U 17.2 SC118GQE 1U 4xGPU
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Add-on-Card AOC-SLG4-4X4T - PCIe Gen 4 x16 NVMe retimer, external MiniSAS HD connection,RoHS
Cable CBL-SAST-1035-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS
CBL-SAST-1036-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M
CBL-SAST-1037-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,28AWG,RoHS
Motherboard X12DPU-6 - Compatible motherboards
TPM AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-BPN-NVME4-136PL-J CSE-136TS-R000JNP-U2
Qty1 1
DescriptionSuper BPN-NVME4-136PL-J Motherboard 1U Chassis
Backplane
Part NumberBPN-NVME4-136NB-LBPN-NVME4-136NB-RBPN-NVME4-136PLBPN-NVME4-136PL-J
Qty2221
DescriptionJBOF LHS drive backplane for 1U PCIe Gen4 JBOF SSG-136R-JBOF RHS drive backplane for 1U PCIe Gen4 JBOF SSG-136R-PCIe Switch midplane for 1U PCIe Gen4 JBOF SSG-136R-4MU3Control board for 1U PCIe Gen4 JBOF SSG-136R-4MU32JB sys
Cable
Part NumberCBL-SAST-1012CBL-OTHR-1042CBL-PWCD-0579
Qty442
DescriptionSLIMLINE SAS, INT, 76.6,73.8,79.2 CM,with PN RWHHW-A018 CBLSC136 SW/BPN FPC cable (20-pin, 5cm),RoHSPower Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Riser Card
Part NumberRSC-XR-6G4
Qty2
Description1U RHS Storage riser card with one PCIe 4.0 X16 slots,H
*Power Supply
Part NumberPWS-1K04A-1R
Qty2
Description1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
*Fan
Part NumberFAN-0188L4
Qty8
Description40x40x56 mm, 23.3K-20.3K RPM, Hot-swappable Counter-rotating
*Drive Tray(s)
Part NumberMCP-220-00149-06
Qty32
Description2.5-in Tool-less NVMe Drive Tray with orange rails (SC136)
*Rail Set
Part NumberMCP-290-11809-0N
Qty1
DescriptionRail set, Quick/Quick, Auto Latch, travel 609.1mm Short Version, RACK POST=26.5, 1U 17.2 SC118GQE 1U 4xGPU
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Add-on-Card
Part NumberAOC-SLG4-4X4T
Qty-
DescriptionPCIe Gen 4 x16 NVMe retimer, external MiniSAS HD connection,RoHS
Cable
Part NumberCBL-SAST-1035-1CBL-SAST-1036-1CBL-SAST-1037-1
Qty---
DescriptionMINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHSMINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2MMINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,28AWG,RoHS
Motherboard
Part NumberX12DPU-6
Qty-
DescriptionCompatible motherboards
TPM
Part NumberAOM-TPM-9670V-O •
Qty1
DescriptionTPM 2.0, vertical form factor, provisioned for server
