SuperServer SSG-121E-NE3X12R (Complete System Only)

1U front-loading all-flash storage server with 8 E3.S NVMe drives and 4 E3.S 2T CXL bays

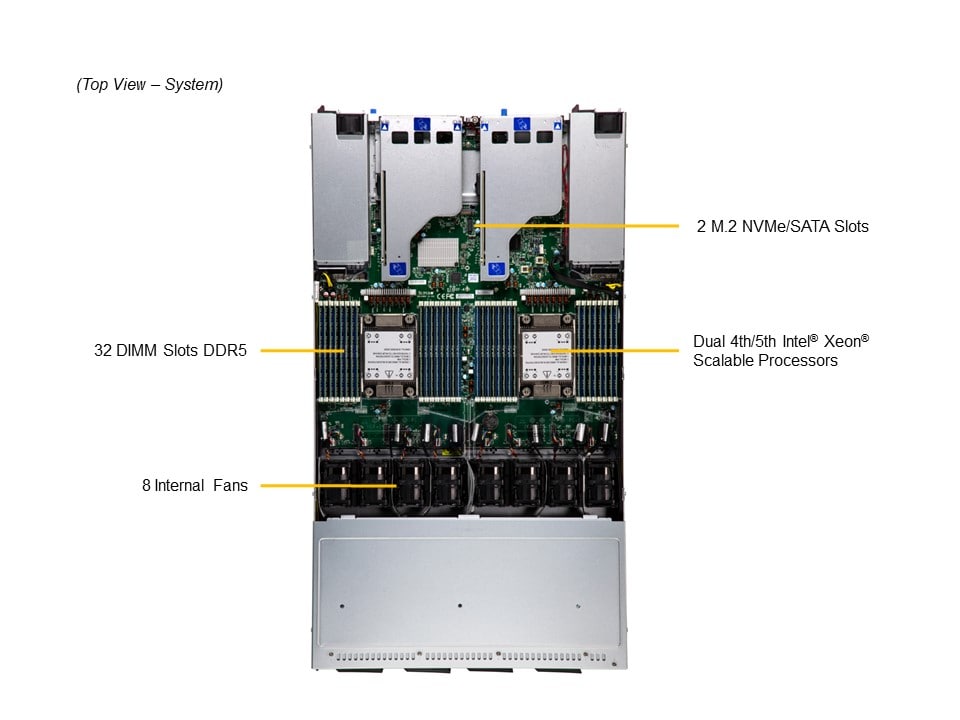

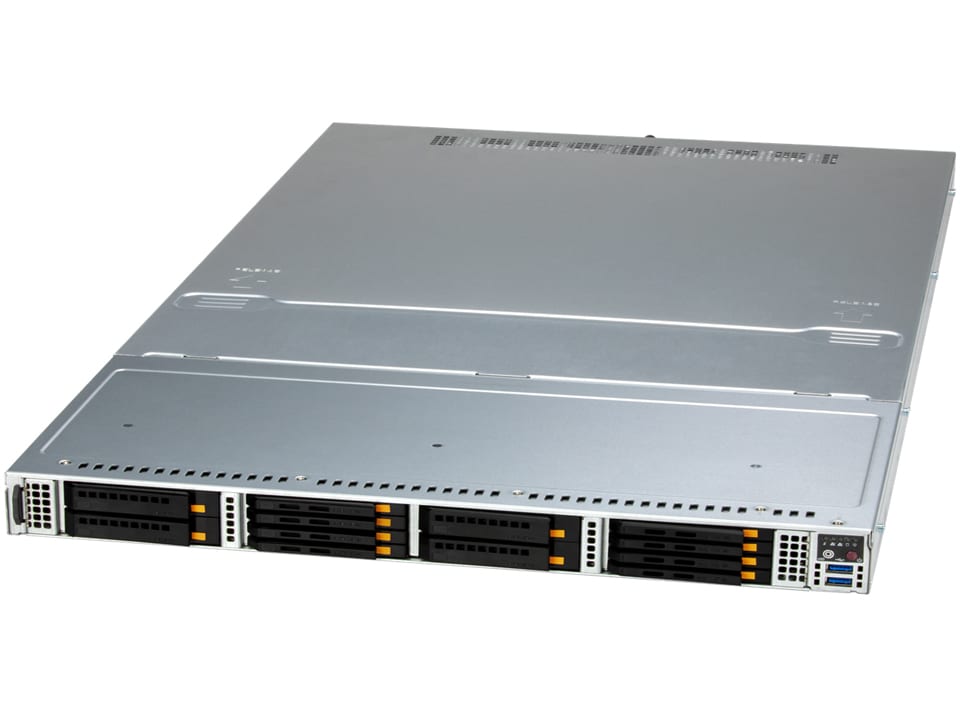

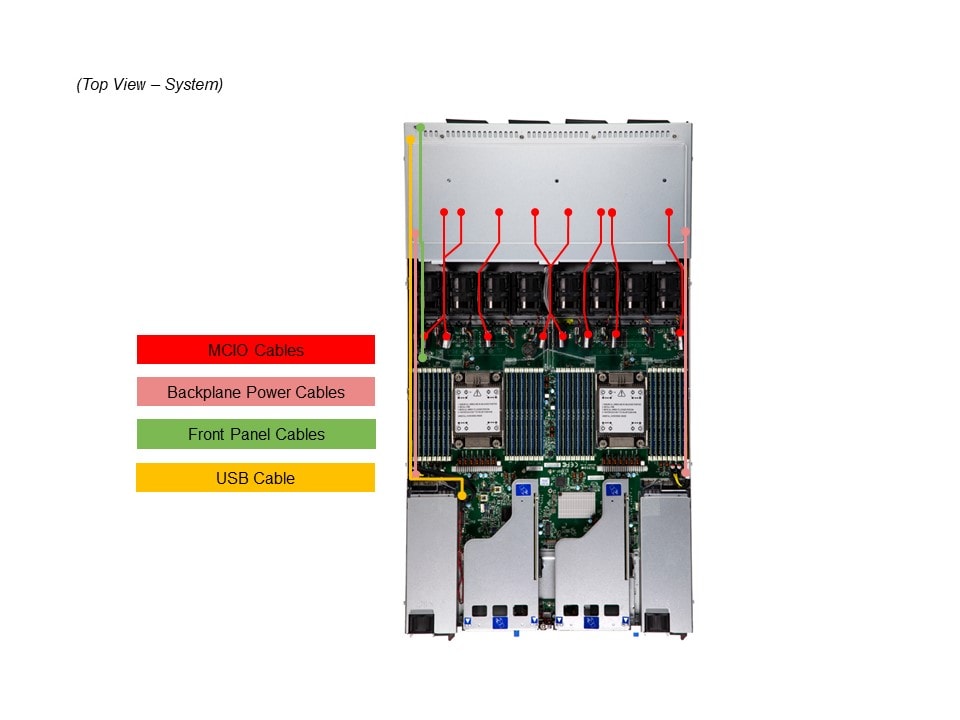

SSG-121E-NE3X12R Main SSG-121E-NE3X12R Angle SSG-121E-NE3X12R Top SSG-121E-NE3X12R Top1 SSG-121E-NE3X12R Front SSG-121E-NE3X12R Rear
Integrated Board: X13DSF-A
Learn more

Key Applications

  • Software-defined Storage
  • In-Memory Computing
  • Data Intensive HPC
  • Private & Hybrid Cloud
  • NVMe Over Fabrics Solution

Key Features

  1. Dual Socket E (LGA-4677) 5th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-4800 ECC memory
  3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
  4. 8x hot-swap E3.S (1T) NVMe drive bays, 4x E3.S(2T) CXL bays
  5. Redundant Titanium 1600W Power Supplies
...
...
SSG-121E-NE3X12R
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-121E-NE3X12R
Motherboard
Super X13DSF-A
Processor
CPU
  • Dual processor(s)
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-126E32-R1K62P
Dimensions and Weight
Height
  • 1.7" (43.6 mm)
Width
  • 17.2" (438.4 mm)
Depth
  • 30.4" (773.25 mm)
Package
  • 7.87" (H) x 23.81" (W) x 40.55" (D)
Weight
  • Gross Weight: 68.74 lbs (31.2 kg)
  • Net Weight: 48 lbs (21.8 kg)
Available Color
  • Silver

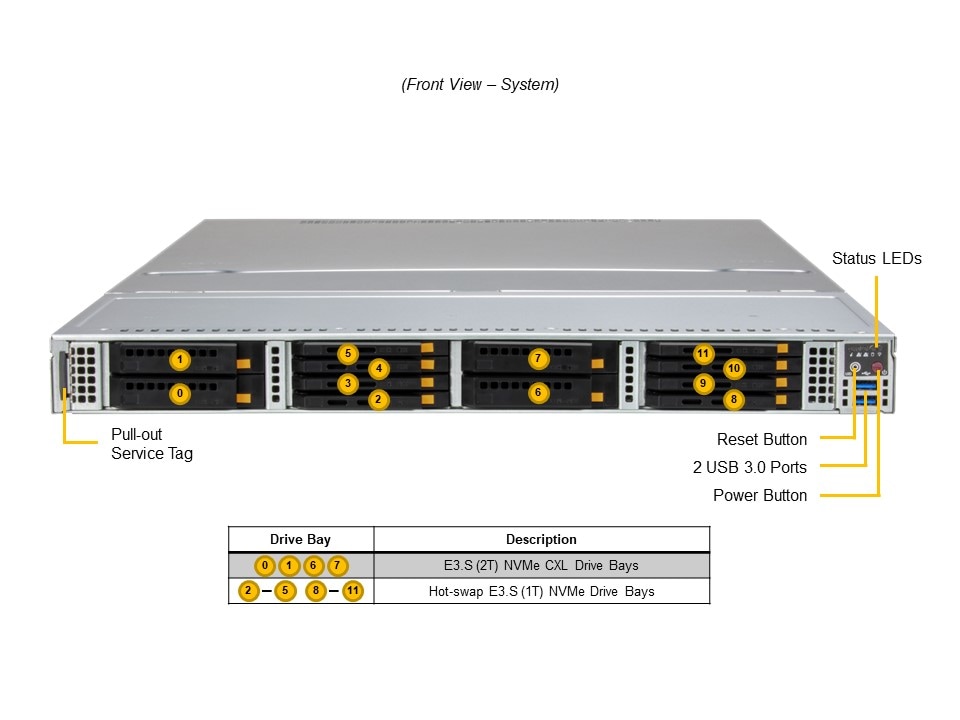

Front Panel
LED
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)
Buttons
  • Power On/Off

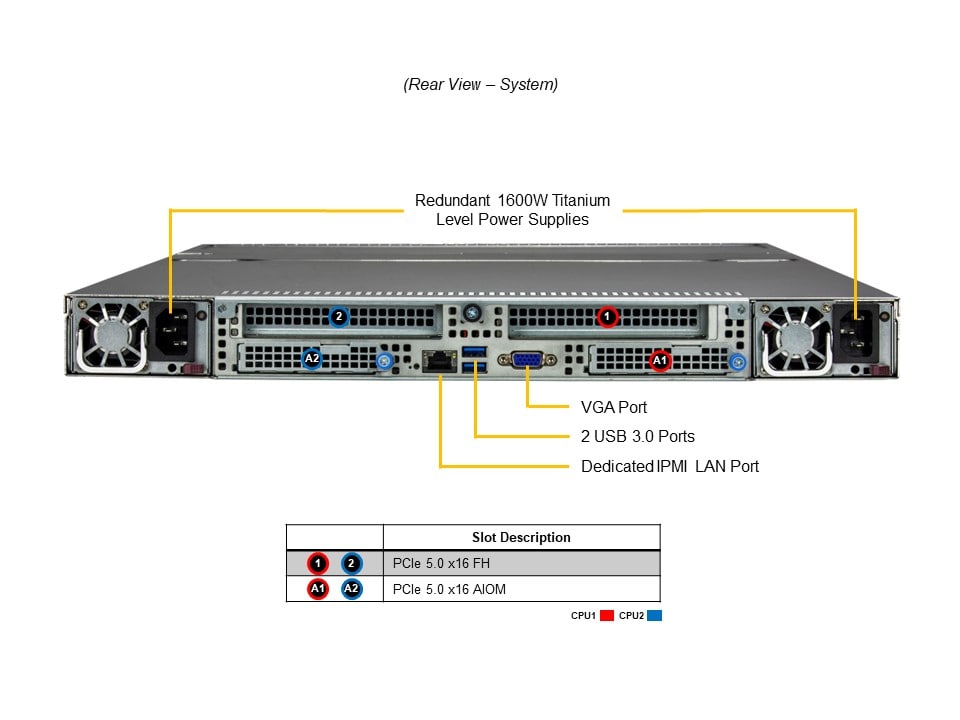

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 8 front hot-swap E3.S 1T NVMe drive bays
    • 4 front fixed E3.S 2T CXL Type 3 drive bays
  • View NVMe Options
M.2
System Cooling
Fans
  • 8 Heavy Duty 4cm Fan(s)
Power Supply
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 8% to 95% ()
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
TPM AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-O 1 TPM 2.0, vertical form factor, provisioned for server

Storage SuperServer SSG-121E-NE3X12R (Complete System Only ) New
