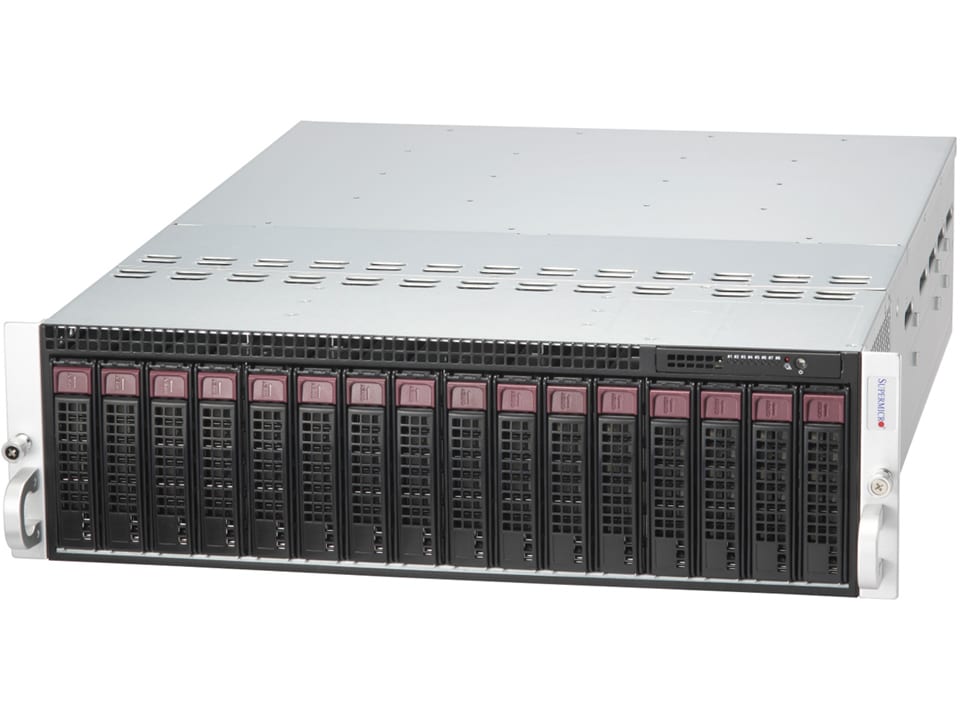

Key Applications
Key Features
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.
Schedule Access| Standard Parts (Parts Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis |
MBD-X13SCD-F CSE-938NH-R2K20BP2 |
8 1 |
Super X13SCD-F Motherboard 3U Chassis |
| Add-on Card / Module | AOM-BPN-938NH-P | 1 | AOM-BPN-938NH, Backplane module for 8-node Microcloud system |
| AOM-LAN-MC8-P | 1 | AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy | |
| AOM-PDB-PT938-LSG-P | 1 | AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H | |
| AOM-PDB-PT938-RSG-P | 1 | AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H | |
| Cable | CBL-0218L | 1 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB |
| CBL-PWCD-0578-1 OR | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS | |
| CBL-PWCD-0578-IS | PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS | ||
| CBL-0355L | 2 | RJ45 C5E 2ft Green With Cover | |
| CBL-0458L | 1 | 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG | |
| CBL-CDAT-0662 | 1 | 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1 | |
| Riser Card | RSC-S-6G5 | 8 | 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H |
| Software | SFT-OOB-LIC | 8 | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P1041V | 8 | 1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series |
| Fan | FAN-0213L4 OR | 4 | 80x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie |
| FAN-0194L4 | 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie | ||
| *Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm |
| *Drive Tray(s) | MCP-220-00094-0B | 16 | Black gen 6.5 hot-swap 3.5 inch HDD Tray |
| *Control Board | MCP-280-93801-0B | 1 | Control panel module |
| *Rail Set | MCP-290-00057-0N | 1 | Rail set, quick/quick, default for 4U 17.2" W |
| *Air Shroud | MCP-310-93805-0B | 16 | Mylar air shroud for 2-DIMMs (quick install on DIMM latch) |
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Cable | CBL-SAST-1230T4S1-100 | 1 | For AOC-S3908L-H8iR-16DD |
| Drive Tray(s) | MCP-220-93801-0B | 1~16 | Black gen 6 hot-swap 3.5-to-2.5 HDD tray |
| MCP-220-00158-0B | 1~16 | Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray | |
| Global Services & Support | OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service | |
| GPU | GPU-IATS-M75 | 1 | Intel GPU Arctic Sound ATS-M75 PCIE Gen4 x16, RoHS |
| GPU-NVA2-NC | 1 | NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC | |
| GPU-NVL4 | 1 | NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w | |
| GPU-NVQT1000 | 1 | NVIDIA PNY Quadro T1000 4GB GDDR6 PCIe 3.0-ActiveCooling | |
| GPU-NVTT4 | 1 | NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0, Passive Cooling | |
| GPU Air Shroud | MCP-310-93807-0B | 1 | Mylar air shroud for GPU on MicroCloud 938NH, RoHS |
| Network Card(s) - Micro LP | AOC-CGP-I2 | 1 | 2-ports GbE RJ45 Intel i350, Gen2 x4, MicroLP |
| AOC-CTG-b2T-O | 1 | 2-ports MicroLP 10G RJ45, based on Broadcom BCM57416 | |
| AOC-CTG-I2S | 1 | 2-ports 10GbE SFP+ and 2-ports USB 2.0 Intel 82599ES, Gen2 x8, MicroLP | |
| AOC-CTGS-i2T-O | 1 | 2-ports 10GbE RJ45 Intel X550, Gen3 x4, MicroLP | |
| Network Card(s) - PCIe | AOC-S100GC-i2C-O | 1 | 2-ports 100GbE with QSFP28 based on Intel E810-CAM2, RoHS |
| AOC-S25GC-i2S-O | 1 | 2-ports 25Gb SFP28 Intel E810-XXVAM2 Gen 4.0 | |
| Software | SFT-DCMS-Single | - | DataCenter Management Package (per node license) |
| Storage Controller Card(s) | AOC-S3908L-H8IR-16DD-O | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS |
| AOC-SLG4-2H8M2-O | 1 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP, RoHS | |
| Part Number | MBD-X13SCD-F | CSE-938NH-R2K20BP2 |
| Qty | 8 | 1 |
| Description | Super X13SCD-F Motherboard | 3U Chassis |
| Part Number | AOM-BPN-938NH-P | AOM-LAN-MC8-P | AOM-PDB-PT938-LSG-P | AOM-PDB-PT938-RSG-P |
| Qty | 1 | 1 | 1 | 1 |
| Description | AOM-BPN-938NH, Backplane module for 8-node Microcloud system | AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy | AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H | AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H |
| Part Number | CBL-0218L | CBL-PWCD-0578-1 OR | CBL-PWCD-0578-IS | CBL-0355L | CBL-0458L | CBL-CDAT-0662 |
| Qty | 1 | 2 | - | 2 | 1 | 1 |
| Description | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS | PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS | RJ45 C5E 2ft Green With Cover | 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG | 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1 |
| Part Number | RSC-S-6G5 |
| Qty | 8 |
| Description | 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H |
| Part Number | SFT-OOB-LIC |
| Qty | 8 |
| Description | License key for enabling OOB BIOS management |
| Part Number | SNK-P1041V |
| Qty | 8 |
| Description | 1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series |
| Part Number | FAN-0213L4 OR | FAN-0194L4 |
| Qty | 4 | - |
| Description | 80x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie | 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie |
| Part Number | PWS-2K20A-1R |
| Qty | 2 |
| Description | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm |
| Part Number | MCP-220-00094-0B |
| Qty | 16 |
| Description | Black gen 6.5 hot-swap 3.5 inch HDD Tray |
| Part Number | MCP-280-93801-0B |
| Qty | 1 |
| Description | Control panel module |
| Part Number | MCP-290-00057-0N |
| Qty | 1 |
| Description | Rail set, quick/quick, default for 4U 17.2" W |
| Part Number | MCP-310-93805-0B |
| Qty | 16 |
| Description | Mylar air shroud for 2-DIMMs (quick install on DIMM latch) |
Notes:
| Part Number | CBL-SAST-1230T4S1-100 |
| Qty | 1 |
| Description | For AOC-S3908L-H8iR-16DD |
| Part Number | MCP-220-93801-0B | MCP-220-00158-0B |
| Qty | 1~16 | 1~16 |
| Description | Black gen 6 hot-swap 3.5-to-2.5 HDD tray | Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray |
| Part Number | OSNBD3/2/1 | OS4HR3/2/1 |
| Qty | - | - |
| Description | 3/2/1-year onsite NBD service | 3/2/1-year onsite 24x7x4 service |
| Part Number | GPU-IATS-M75 | GPU-NVA2-NC | GPU-NVL4 | GPU-NVQT1000 | GPU-NVTT4 |
| Qty | 1 | 1 | 1 | 1 | 1 |
| Description | Intel GPU Arctic Sound ATS-M75 PCIE Gen4 x16, RoHS | NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC | NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w | NVIDIA PNY Quadro T1000 4GB GDDR6 PCIe 3.0-ActiveCooling | NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0, Passive Cooling |
| Part Number | MCP-310-93807-0B |
| Qty | 1 |
| Description | Mylar air shroud for GPU on MicroCloud 938NH, RoHS |
| Part Number | AOC-CGP-I2 | AOC-CTG-b2T-O | AOC-CTG-I2S | AOC-CTGS-i2T-O |
| Qty | 1 | 1 | 1 | 1 |
| Description | 2-ports GbE RJ45 Intel i350, Gen2 x4, MicroLP | 2-ports MicroLP 10G RJ45, based on Broadcom BCM57416 | 2-ports 10GbE SFP+ and 2-ports USB 2.0 Intel 82599ES, Gen2 x8, MicroLP | 2-ports 10GbE RJ45 Intel X550, Gen3 x4, MicroLP |
| Part Number | AOC-S100GC-i2C-O | AOC-S25GC-i2S-O |
| Qty | 1 | 1 |
| Description | 2-ports 100GbE with QSFP28 based on Intel E810-CAM2, RoHS | 2-ports 25Gb SFP28 Intel E810-XXVAM2 Gen 4.0 |
| Part Number | SFT-DCMS-Single |
| Qty | - |
| Description | DataCenter Management Package (per node license) |
| Part Number | AOC-S3908L-H8IR-16DD-O | AOC-SLG4-2H8M2-O |
| Qty | 1 | 1 |
| Description | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP, RoHS |
