SuperServer SYS-621P-TRT

DatasheetShare IconShare

2U Mainstream with 6 PCIe 5.0 slots and dual 10GbE LAN

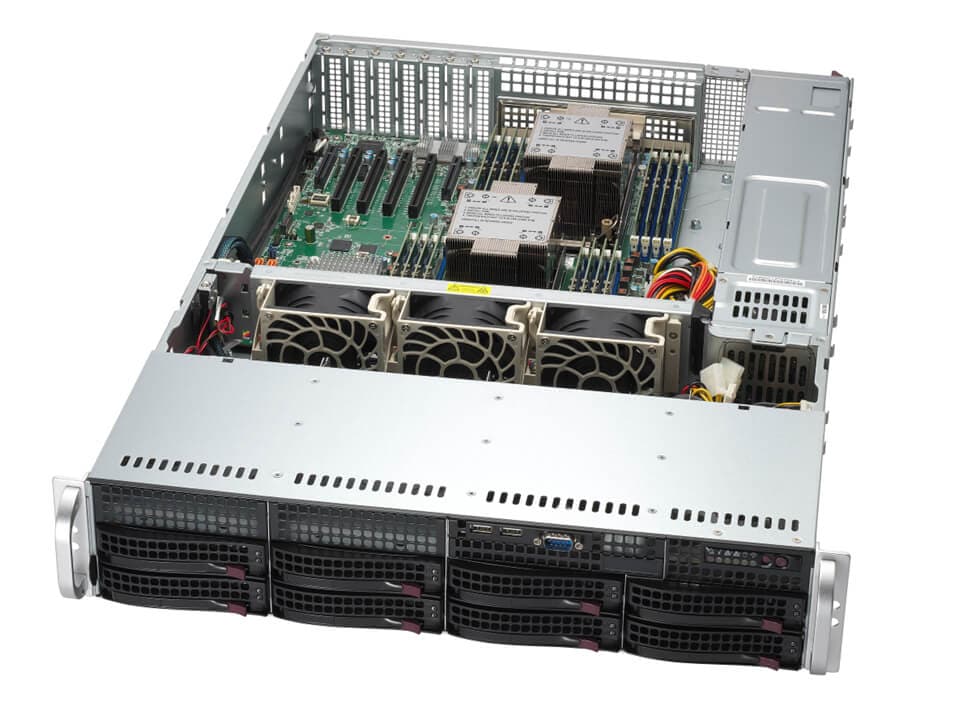

SYS-621P-TRT Main SYS-621P-TRT Angle SYS-621P-TRT Top SYS-621P-TRT Front SYS-621P-TRT Rear
Integrated Board: X13DEI-T
Learn more

Key Applications

  • Virtualization
  • Enterprise Server
  • Application and data serving
  • Compute Intensive Applications

Key Features

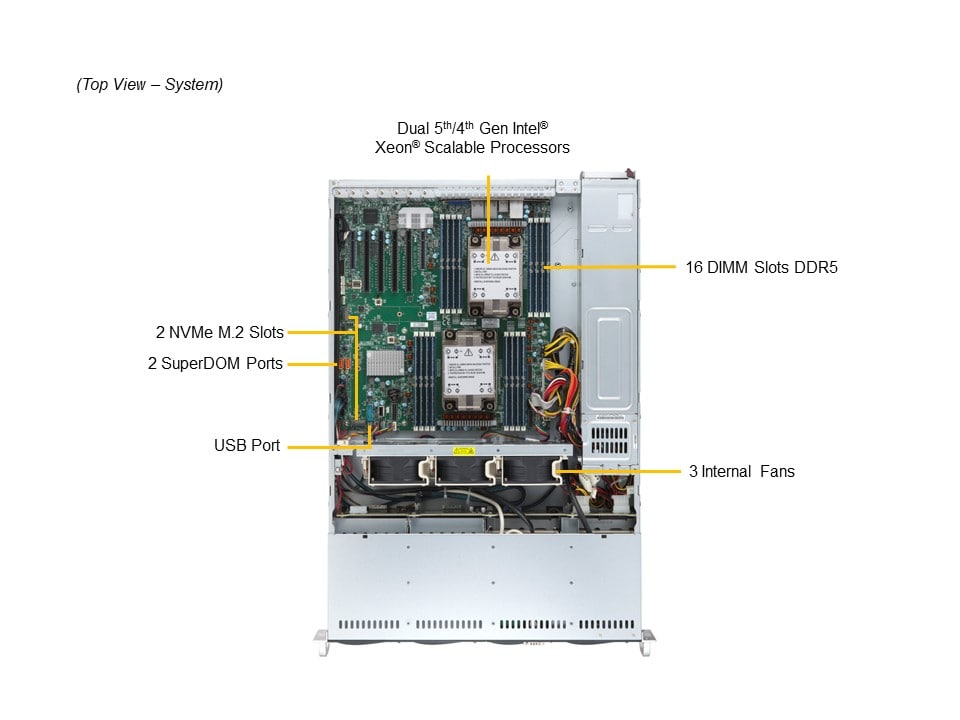

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
  4. 1200W Redundant Titanium level Power Supplies
...
...
SYS-621P-TRT
Specifications Free Remote Testing Parts List
Specifications
Product SKUs
SuperServer SYS-621P-TRT
Motherboard
Super X13DEI-T
Processor
CPU
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN

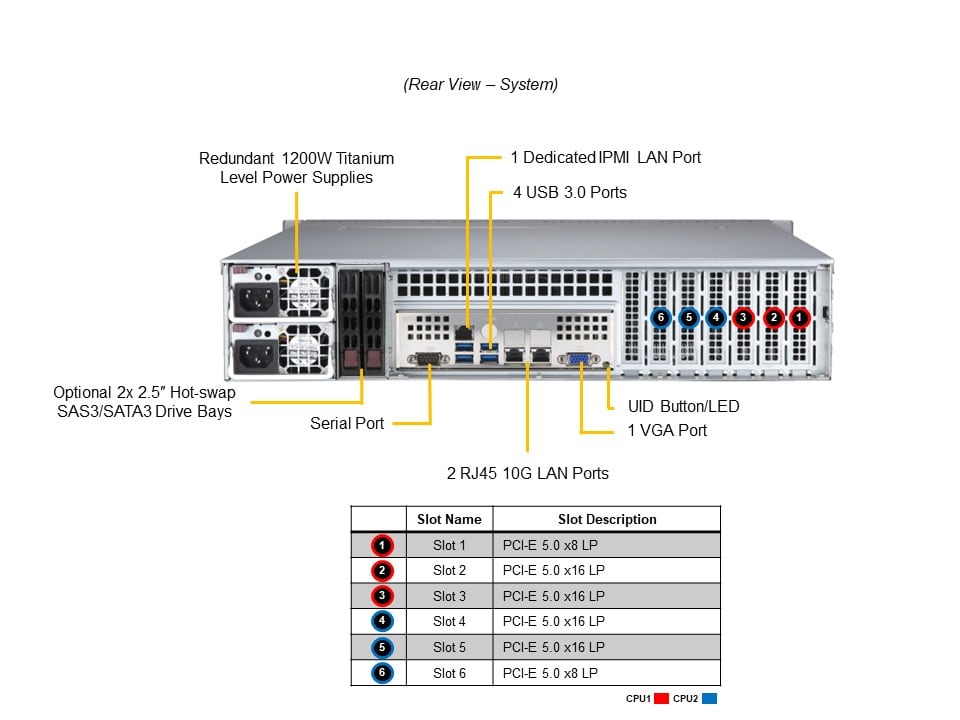

  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Front)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays

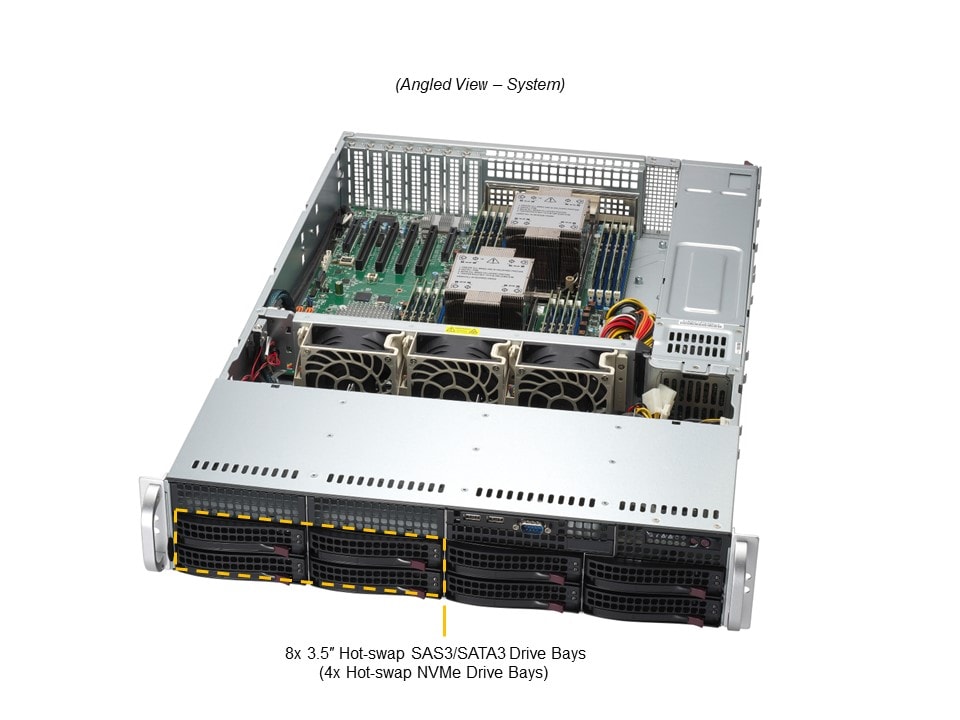

    • 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • 3 middle 8cm Fan(s)
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEI-T

CSE-825BTS-R1K23LPP1 		1

1 		Super X13DEI-T Motherboard

2U Chassis
Backplane BPN-SAS4-825A-N4 1 8-Port 3.5" Hybrid Backplane supports 4xSAS4/SATA3/NVMe5
Cable CBL-CDAT-0845-48 1 I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG,RoHS
CBL-SAST-1261-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5" HDD tray
MCP-220-82502-0B 2 Black fixed 3.5\" HDD tray or FDD dummy tray
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes
Manual MNL-2567-QRG 1 621P-TR(T) Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT825-S8824 1 SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
*Peripheral Drive MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Management Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Optional 2x fixed SATA drive Kit 2x CBL-0044L+CBL-0082L+2x MCP-110-82501-0N 1 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
Optional 2U Cable Management Arm Kit 1 x MCP-120-82503-0N+1 x MCP-290-00073-0N 1 2U Cable Management Arm Kit
Optional 2x Rear hotswap SATA drive Kit 1x MCP-220-82616-0N 1 The rear MCP-220-82616-0N can only support 2x 2.5 inch SATA drives with related 2x 7pin SATA cable
Optional 3.5 to 2.5 drive tray 1x MCP-220-00043-0N 1 Black 3.5-to-2.5 drive tray, Red tab (For SATA/SAS),
Optional 8-ports SAS Raid controller kit 1x AOC-S3908L-H8IR-16DD-O 1 Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
Optional CacheVaults Kit 1xBTR-CVPM05+1x MCP-240-00203-0N 1 CacheVault for Broadcom 3908/3916 with Supercap and PCI bracekt
Optional Front Hot-Swap NVMe Kit 1xCBL-MCIO-1260M5+2xMCP-220-00043-0N for 2 U.2 NVMe Drives 1 NVMe Kit for front hot-swap NVMe . Max. 4 NVMe support
Optional Front Slim ODD Kit 1xDVM-TEAC-DVD-SBT5+1x MCP-220-81502-0N 1 BLACK TEAC SLIM DVD SATA DRIVE
Optional MCC CPU Carrier 1x SKT-1424L-001B-FXC 1 CPU Carrier for Intel Socket-E ( LGA4677) E1B MCC CPU
Optional Trusted Platform Module 1 x AOM-TPM-9672V-O 1 SPI capable vertical TPM 2.0
1x AOM-TPM-9672V-FIPS-O 1 AOM-TPM-9672V-FIPS TPM 2.0 support FIPS
Optional XCC CPU Carrier 1x SKT-1333L-0000-FXC 1 CPU Carrier for Intel Socket-E ( LGA4677) E1A XCC CPU
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-X13DEI-T CSE-825BTS-R1K23LPP1
Qty1 1
DescriptionSuper X13DEI-T Motherboard 2U Chassis
Backplane
Part NumberBPN-SAS4-825A-N4
Qty1
Description8-Port 3.5" Hybrid Backplane supports 4xSAS4/SATA3/NVMe5
Cable
Part NumberCBL-CDAT-0845-48CBL-SAST-1261-100CBL-0071LCBL-PWCD-0160-ISCBL-PWEX-1078
Qty11123
DescriptionI2C,1x4F,PH2.5 to PH1.25,48cm,26AWG,RoHSSlimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 OROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LFPWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACHPWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Drive Tray(s)
Part NumberMCP-220-00007-01MCP-220-00023-01MCP-220-00075-0BMCP-220-82502-0BMCP-290-82607-0N
Qty11821
DescriptionBlack USB/COM port tray for SC825, 836Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836Black gen 5.5 hot-swap 3.5" HDD trayBlack fixed 3.5\" HDD tray or FDD dummy tray826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
Parts
Part NumberMCP-260-00042-3N
Qty1
DescriptionSTD I/O shield for X13 server MB with venting holes
Manual
Part NumberMNL-2567-QRG
Qty1
Description621P-TR(T) Quick Reference Guide
Software
Part NumberSFT-OOB-LIC
Qty1
DescriptionLicense key for enabling OOB BIOS management
Heatsink / Retention
Part NumberSNK-P0088P
Qty2
Description2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Power Supply
Part NumberPWS-1K23A-1R
Qty2
DescriptionAC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor
Part NumberPDB-PT825-S8824
Qty1
DescriptionSC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
*Fan
Part NumberFAN-0206L4
Qty3
Description80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel
Part NumberFPB-FP836-D
Qty1
DescriptionFront control board Dual color LED(FP836-D)forSC823M,825,825
*Rear Window
Part NumberMCP-240-82608-0N
Qty1
Description216B/826B LP rear window,RoHS/REACH,PBF
*Peripheral Drive
Part NumberMCP-290-00007-01
Qty1
DescriptionBlack DVD dummy cover for SC825, 836
*Rail Set
Part NumberMCP-290-00053-0NMCP-290-00060-0N
Qty11
DescriptionRail set, quick/quick, default for 2,3U 17.2"WThreaded rail adapter default for round hole rack
*Air Shroud
Part NumberMCP-310-29001-0N
Qty1
DescriptionSC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Management Software
Part NumberSFT-DCMS-Single
Qty1
DescriptionDataCenter Management Package (per node license)
Optional 2x fixed SATA drive Kit
Part Number2x CBL-0044L+CBL-0082L+2x MCP-110-82501-0N
Qty1
Description1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
Optional 2U Cable Management Arm Kit
Part Number1 x MCP-120-82503-0N+1 x MCP-290-00073-0N
Qty1
Description2U Cable Management Arm Kit
Optional 2x Rear hotswap SATA drive Kit
Part Number1x MCP-220-82616-0N
Qty1
DescriptionThe rear MCP-220-82616-0N can only support 2x 2.5 inch SATA drives with related 2x 7pin SATA cable
Optional 3.5 to 2.5 drive tray
Part Number1x MCP-220-00043-0N
Qty1
DescriptionBlack 3.5-to-2.5 drive tray, Red tab (For SATA/SAS),
Optional 8-ports SAS Raid controller kit
Part Number1x AOC-S3908L-H8IR-16DD-O
Qty1
DescriptionStandard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
Optional CacheVaults Kit
Part Number1xBTR-CVPM05+1x MCP-240-00203-0N
Qty1
DescriptionCacheVault for Broadcom 3908/3916 with Supercap and PCI bracekt
Optional Front Hot-Swap NVMe Kit
Part Number1xCBL-MCIO-1260M5+2xMCP-220-00043-0N for 2 U.2 NVMe Drives
Qty1
DescriptionNVMe Kit for front hot-swap NVMe . Max. 4 NVMe support
Optional Front Slim ODD Kit
Part Number1xDVM-TEAC-DVD-SBT5+1x MCP-220-81502-0N
Qty1
DescriptionBLACK TEAC SLIM DVD SATA DRIVE
Optional MCC CPU Carrier
Part Number1x SKT-1424L-001B-FXC
Qty1
DescriptionCPU Carrier for Intel Socket-E ( LGA4677) E1B MCC CPU
Optional Trusted Platform Module
Part Number1 x AOM-TPM-9672V-O1x AOM-TPM-9672V-FIPS-O
Qty11
DescriptionSPI capable vertical TPM 2.0AOM-TPM-9672V-FIPS TPM 2.0 support FIPS
Optional XCC CPU Carrier
Part Number1x SKT-1333L-0000-FXC
Qty1
DescriptionCPU Carrier for Intel Socket-E ( LGA4677) E1A XCC CPU
