SuperServer SYS-E403-13E-FRN2T (Complete System Only)

X13 2.5U Box PC with Intel 5th / 4th Gen Intel Xeon Scalable processor and support for 3 PCIe 5.0 x16 (FHFL) slots and 2 10GbE LAN

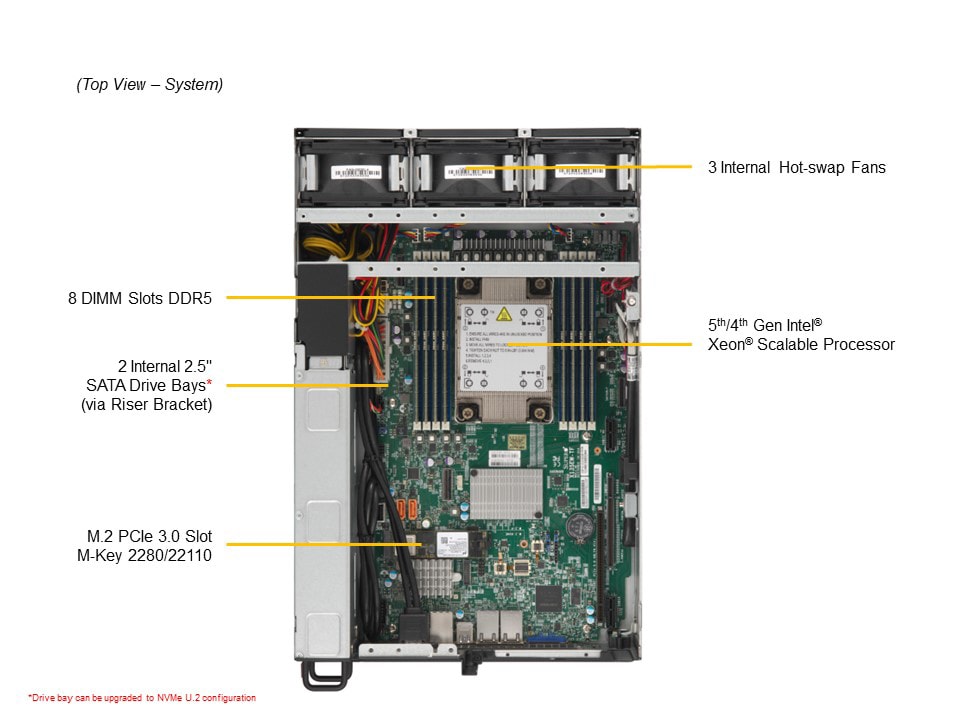

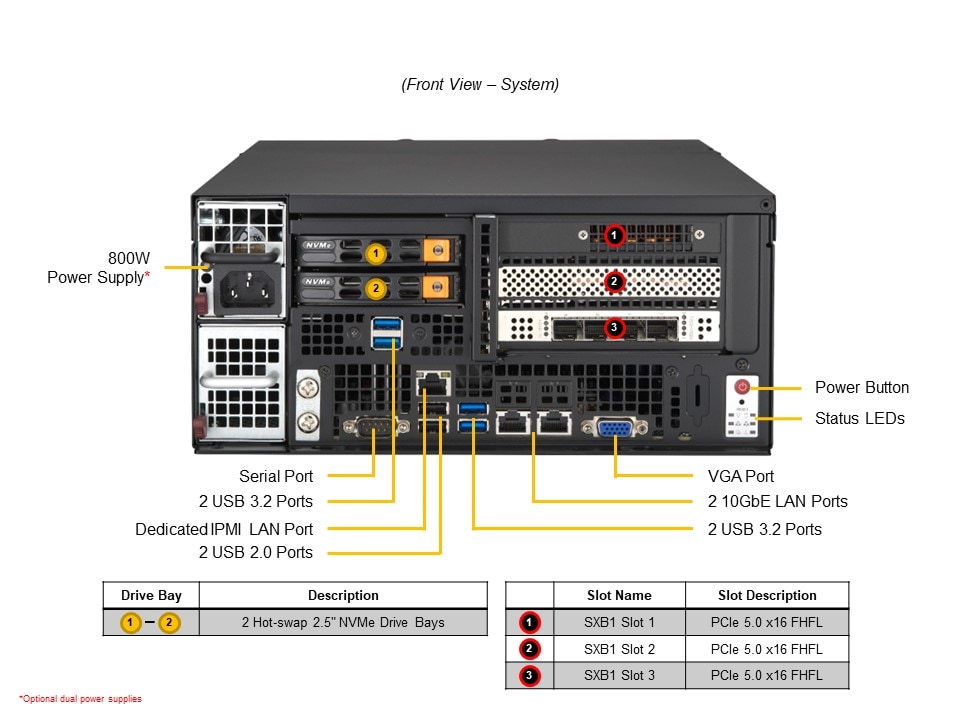

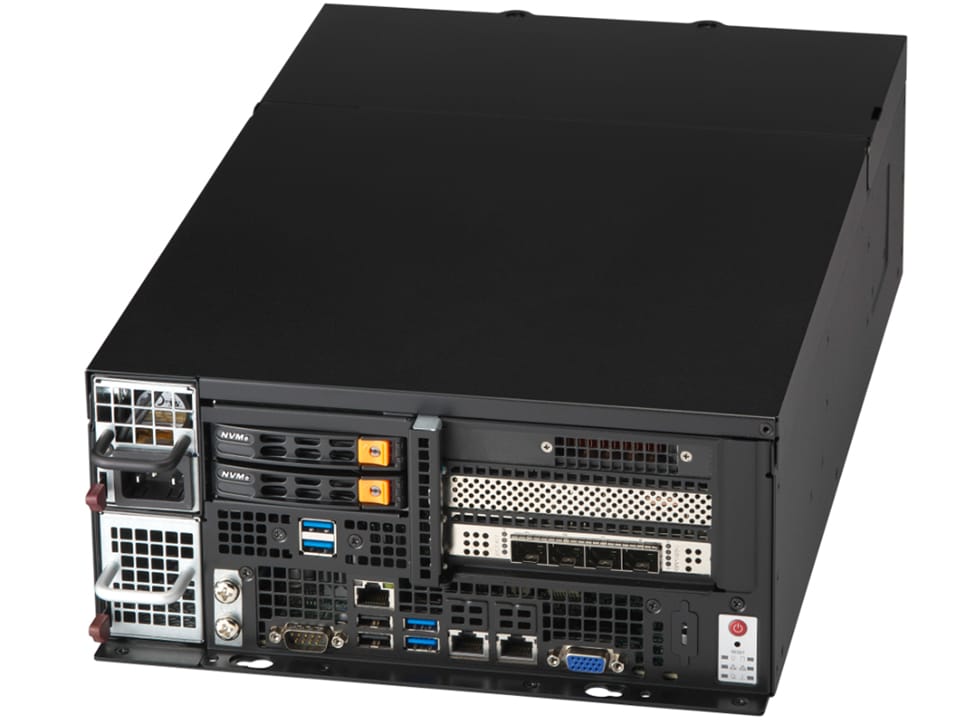

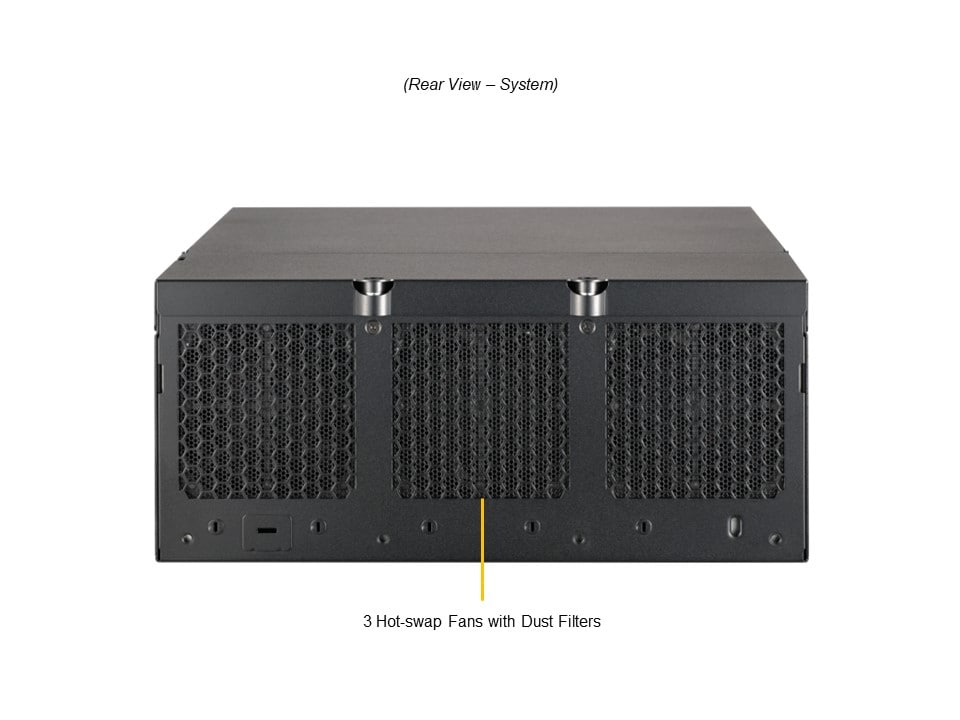

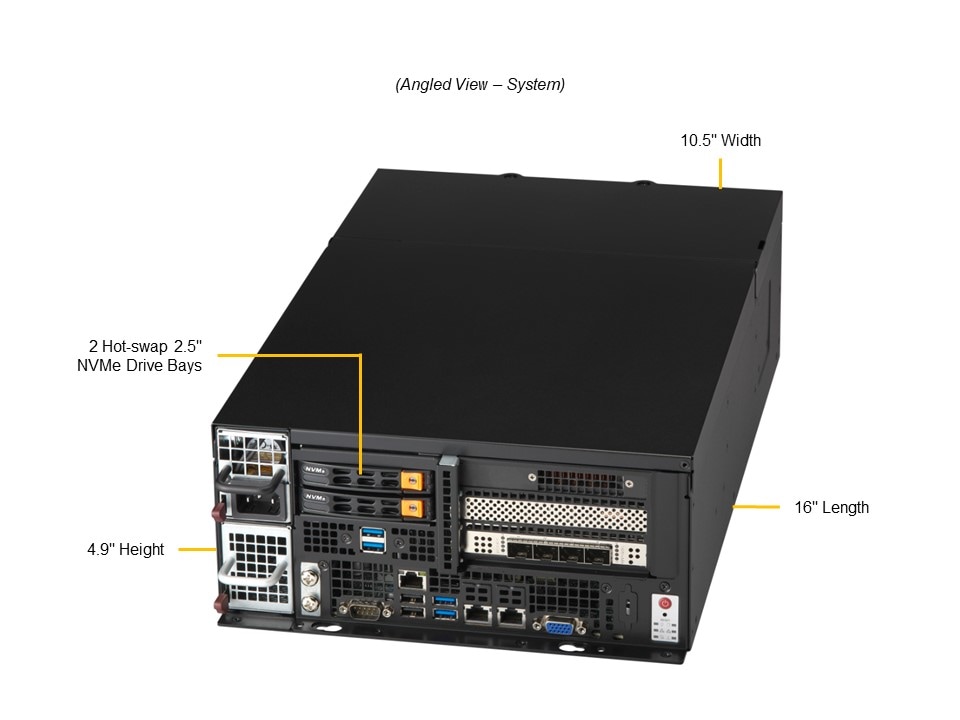

SYS-E403-13E-FRN2T Main SYS-E403-13E-FRN2T Angle SYS-E403-13E-FRN2T Top SYS-E403-13E-FRN2T Front SYS-E403-13E-FRN2T Rear
Integrated Board: X13SEW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing (MEC)
  • Universal Customer Premise Equipment (uCPE)
  • Industrial Automation
  • Artificial Intelligence (AI) on Edge
  • Machine Learning (ML)
  • Smart Retail/Medical Expert Systems

Key Features

  1. Support 5th and 4th Gen Intel® Xeon® Scalable processors
  2. Up to 8 DIMMs and total 2TB 3DS ECC DDR5-5600 RDIMM
  3. 3x PCIe5.0 x16 slot
  4. 2x 10 Gigabit Ethernet Ports
  5. Up to 4x 2.5" U.2 NVMe drive(2 Hot-swap, Optional 2 fixed)
...
...
SYS-E403-13E-FRN2T
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-E403-13E-FRN2T
Motherboard
Super X13SEW-TF
Processor
CPU
Core Count
  • Up to 32C/64T; Up to 60MB Cache
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X550-AT2
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
USB
  • 2 USB 2.0 Type-A ports(rear)
  • 4 USB 3.2 Gen1 Type-A ports(Rear)
Video
  • 1 VGA port(Rear)
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
Chassis
Form Factor
  • Fan-based Embedded
Model
  • CSE-E403BiF-000NDBP2
Dimensions and Weight
Height
  • 4.62" (117.348 mm)
Width
  • 10.5" (266.7 mm)
Depth
  • 16" (406.4 mm)
Package
  • 10.4" (H) x 16.4" (W) x 26" (D)
Weight
  • Gross Weight: 24.5 lbs (10.95 kg)
  • Net Weight: 18.5 lbs (8.16 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • reset status
  • System information
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 2 front hot-swap 2.5" NVMe drive bays
    • 2 internal fixed 2.5" SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 3x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s)
Power Supply
1x 800W
1x 800W Redundant Platinum Level (94%) power supply
Dimension (WxHxL)54.5 x 40.25 x 220 mm
AC Input100-127Vac
750W: 100-127Vac / 50-60Hz
200-240Vac
800W: 200-240Vac / 50-60Hz
230-240Vdc
800W: 230-240Vdc / 50-60Hz
+12VMax: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 62.5A / Min: 0A (100Vac-127Vac)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
For internal U.2 drive cable CBL-MCIO-1245U2Y-E • 1 MCIO x8 to 2x SFF-8639/U.2+Pwr,45cm,G5,RoHS
Nvdia GPU rear-support bracket MCP-120-82906-0N 1 GPU bracket for SC829U,219U, Right (nVidia)
