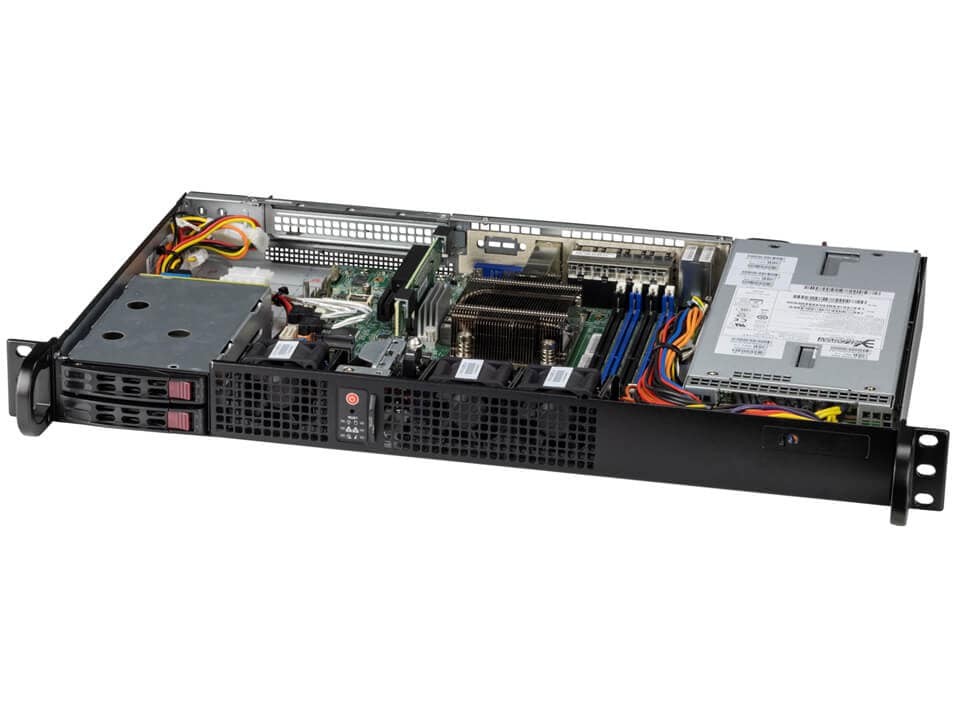

SuperServer SYS-110A-24C-RN10SP

DatasheetShare IconShare

Intel Atom Snow Ridge P5000 24-Core with embedded QAT, 300W redundant PWS, 1U edge platform

Integrated Board: A3SSV-24C-SPLN10F
Learn more

Key Applications

  • 1U Short-Depth Edge Server
  • Network Appliance & Security
  • SD-WAN and vCPE / uCPE
  • Hyper Converged Infrastructure

Key Features

  1. Intel®  Atom® Snow Ridge P5362 24-Core with embedded QAT support
  2. 1x PCIe 3.0 x8 expansion for AOC
  3. 2 Hot-swap 2.5" SATA3 drive bays
  4. 3x 40x28mm 4-PIN PWM fans
  5. Cost Effective 1U Short-Depth Chassis with Redundant 300 PSU
    • M.2 selections (M.2 M-Key for SSD, B-Key for WAN or 4G-LTE module, Ekey for WiFi )
    • TPM Onboard and header both, IPMI with OOB support
...
...
SYS-110A-24C-RN10SP
Specifications Free Remote Testing Parts List
Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer SYS-110A-24C-RN10SP
Motherboard
Super A3SSV-24C-SPLN10F
Processor
CPU
  • Single FCBGA-2106
  • Intel® Atom® Snow Ridge P5362
Note
  • Supports up to 83W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® P5362
Network Connectivity
  • 4 RJ45 1GBASE-T with Intel® I350-AM4
  • 4 RJ45 1GBASE-T with Marvell® 88E1543
  • 2 SFP28 25GbE with Intel® P5000 SoC
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 SFP28 25 GbE LAN ports
  • 8 RJ45 1 GbE LAN ports
USB
  • 2 Type-A ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB UEFI
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ATX Power connector
  • +12V DC Power Input
  • CPU thermal trip support for processor protection
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Fan speed control, Dual Cooling Zone
  • Support 3-pin fans (w/o speed control)
  • 3 fans with tachometer status monitoring, Status monitoring for speed control
Temperature
  • CPU thermal trip support
  • Thermal Control for 3 Fan Connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-506TS-R000NP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 9.8" (249 mm)
Package
  • 6.1" (H) x 25.8" (W) x 18.3" (D)
Weight
  • Gross Weight: 12 lbs (5.44 kg)
  • Net Weight: 8 lbs (3.63 kg)
Available Color
  • Black
Front Panel
LED
  • HDD Status
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • Reset On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 front hot-swap 2.5" SAS/SATA drive bays
M.2
  • 1 M.2 SATA slot (M-key 2242/2280/22110; USB 2.0)
  • 1 M.2 SATA slot (B-key 2242/2280/3042; USB 2.0)
  • 1 M.2 SATA slot (E-key 2230; USB 2.0)
  • View M.2 Options
System Cooling
Fans
  • 3x 4-PIN PWM 40x28mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
1x 300W
1x 300W Redundant Gold Level (90%) power supply
Dimension (WxHxL)106 x 40.5 x 220 mm
Input300W: 100-240Vac / 50-60Hz
Certification  Gold Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-A3SSV-24C-SPLN10F

CSE-506TS-R000NP 		1

1 		Super A3SSV-24C-SPLN10F Motherboard

1U Chassis
Backplane BPN-SAS3-826TQ-B2B 1 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
Cable CBL-0234L 1 Y CABLE FOR 4-PIN HDD
CBL-SAST-0538 2 7pin SATA (STR to RA),29cm,PBF
CBL-PWCD-0260-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-PWEX-1097-15 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,15CM
CBL-PWEX-1098F-10 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF,FFC,10CM
Rear Window MCP-240-00091-0N 1 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Parts MCP-260-00135-0B 1 1U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket
MCP-260-00100-0B 1 1U I/O Shield
Air Shroud MCP-310-50601-0B 1 Mylar air shroud for SC506 with A3SSV-24C-SPLN10F
Manual MNL-2278-QRG 1 110A-16C/24C-RN10SP Quick Reference Guide
Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8
*Fan FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
*Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,
FPB-TB826 1 16 pin Cable Adaptor Board for SC826
*Drive Tray(s) MCP-220-00147-0B 2 Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
*Fan Holder MCP-320-81302-0B 3 Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
TPM security module AOM-TPM-9671V-O 1 SPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-A3SSV-24C-SPLN10F CSE-506TS-R000NP
Qty1 1
DescriptionSuper A3SSV-24C-SPLN10F Motherboard 1U Chassis
Backplane
Part NumberBPN-SAS3-826TQ-B2B
Qty1
Description2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
Cable
Part NumberCBL-0234LCBL-SAST-0538CBL-PWCD-0260-ISCBL-PWEX-1097-15CBL-PWEX-1098F-10
Qty12211
DescriptionY CABLE FOR 4-PIN HDD7pin SATA (STR to RA),29cm,PBFPWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACHCBL,FRONT CNTL,16 TO 16 PIN,Ribbon,15CM16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF,FFC,10CM
Rear Window
Part NumberMCP-240-00091-0N
Qty1
Description1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Parts
Part NumberMCP-260-00135-0BMCP-260-00100-0B
Qty11
Description1U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket1U I/O Shield
Air Shroud
Part NumberMCP-310-50601-0B
Qty1
DescriptionMylar air shroud for SC506 with A3SSV-24C-SPLN10F
Manual
Part NumberMNL-2278-QRG
Qty1
Description110A-16C/24C-RN10SP Quick Reference Guide
Riser Card
Part NumberRSC-RR1U-E8
Qty1
DescriptionRSC-RR1U-E8
*Fan
Part NumberFAN-0065L4
Qty3
Description4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
*Front Panel
Part NumberFPB-FP826-DFPB-TB826
Qty11
DescriptionFront control board Dual color LED(FP826-D)forSC826,213,216,16 pin Cable Adaptor Board for SC826
*Drive Tray(s)
Part NumberMCP-220-00147-0B
Qty2
DescriptionBlack gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
*Fan Holder
Part NumberMCP-320-81302-0B
Qty3
DescriptionOptional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
TPM security module
Part NumberAOM-TPM-9671V-O
Qty1
DescriptionSPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor
