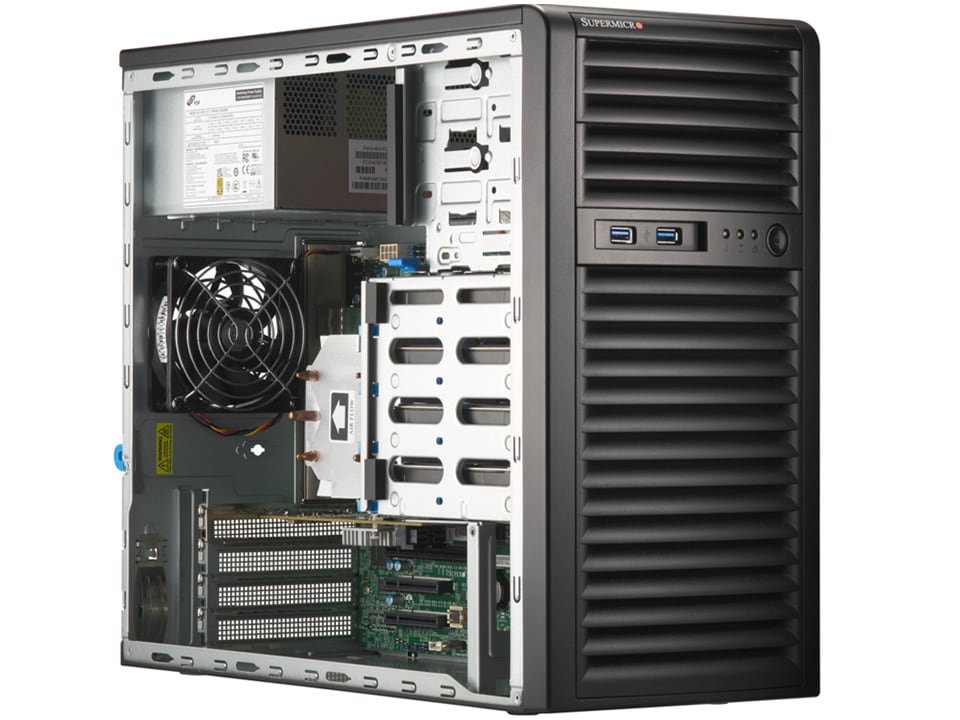

SuperServer SYS-531R-I

DatasheetShare IconShare

UP mid tower with 4 internal 3.5" SATA drive bays and PCIe 5.0

Integrated Board: X13SCL-F
Learn more

Key Applications

  • Storage, application and centralized data backup system Applications
  • IPMI for remote management
  • Entry-Level Server for SOHO and SMB

Key Features

  1. Supports Intel® Xeon® E-2400 Series Processors
  2. PCIe 5.0 Support
  3. Dual LAN ports, GbE and dedicated IPMI LAN port
  4. 9cm PWM quiet exhaust fan and optional front intake fan
  5. 400W 80PLUS Gold Power Supply
...
...
SYS-531R-I
Specifications Free Remote Testing Parts List
Specifications
Product SKUs
SuperWorkstation SYS-531R-I
Motherboard
Super X13SCL-F
Processor
CPU
  • Single processor(s)
  • Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C262
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210
  • View AOC Options
Input / Output
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • mini-tower
Model
Dimensions and Weight
Height
  • 14.25" (362 mm)
Width
  • 7.25" (184 mm)
Depth
  • 16.75" (425 mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Gross Weight: 20 lbs (9.07 kg)
  • Net Weight: 16 lbs (7.26 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Buttons
  • Power On/Off button
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x8 FHFL slots
    • 1 PCIe 4.0 x4 FHFL slot
    • 1 PCIe 4.0 x4 FHHL slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
Peripheral Bays
  • 2 5.25" bays
System Cooling
Fans
  • 1x 90mm Fan(s)
Power Supply
1x 400W
1x 400W Gold Level (90%) power supply
Dimension (WxHxL)150 x 86 x 140 mm
Input100-240Vac
400W: 100-240Vac / 50-60Hz
+12VMax: 12.62A / Min: 0.05A (100Vac-240Vac)
Max: 12.62A / Min: 0A (100Vac-240Vac)
5V SBMax: 2.23A / Min: 0A
Output Type24pin ATX
Certification  Gold Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SCL-F

CSE-731I-404B 		1

1 		Super X13SCL-F Motherboard

mini-tower Chassis
Cable CBL-0044L 4 7pin SATA (STR to STR), 57.5cm, Flat, PBF
CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
CBL-CUSB-1007 1 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
MCP-110-00033-0N 2 Binding Head Screw (with teeth) #632*4.5L
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-C0156L 1 M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
*Power Supply PWS-404-PQ 1 PS2 400W Multi-output High Efficiency 80PLUS Gold Power
*Fan FAN-0108L4 1 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
*Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-0624 • 1 70cm SATA Cable S-S 30AWG
CBL-0082L • 1 Y SPLIT SATA POWER ADAPTER, PB FREE
DVD Kit DVM-TEAC-DVDRW24-HBT 1 BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
Fan FAN-0113L4 1 80X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0086AP4 • 1 High Performance CPU Heatsink for LGA1700
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-X13SCL-F CSE-731I-404B
Qty1 1
DescriptionSuper X13SCL-F Motherboard mini-tower Chassis
Cable
Part NumberCBL-0044LCBL-PWCD-0260-ISCBL-0084LCBL-CUSB-1007
Qty4111
Description7pin SATA (STR to STR), 57.5cm, Flat, PBFPWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
Parts
Part NumberMCP-260-00042-0NMCP-110-00033-0N
Qty12
DescriptionSTD I/O shield for X9 socket R server MB with Gasket.Binding Head Screw (with teeth) #632*4.5L
Software
Part NumberSFT-OOB-LIC
Qty1
DescriptionLicense key for enabling OOB BIOS management
Heatsink / Retention
Part NumberSNK-C0156L
Qty1
DescriptionM.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
*Power Supply
Part NumberPWS-404-PQ
Qty1
DescriptionPS2 400W Multi-output High Efficiency 80PLUS Gold Power
*Fan
Part NumberFAN-0108L4
Qty1
Description92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
*Drive Tray(s)
Part NumberMCP-220-73101-0B
Qty4
DescriptionSC731 Tool-less Internal 3.5inch HDD Tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Cable
Part NumberCBL-SAST-0624 •CBL-0082L •
Qty11
Description70cm SATA Cable S-S 30AWGY SPLIT SATA POWER ADAPTER, PB FREE
DVD Kit
Part NumberDVM-TEAC-DVDRW24-HBT
Qty1
DescriptionBLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
Fan
Part NumberFAN-0113L4
Qty1
Description80X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
HDD Converter
Part NumberMCP-220-73102-0N •
Qty1
Description2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink
Part NumberSNK-P0086AP4 •
Qty1
DescriptionHigh Performance CPU Heatsink for LGA1700
Mobile Rack
Part NumberCSE-M14TQC
Qty1
DescriptionSAS3/SATA mobile rack for 4x 2.5" drives
