Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.
Schedule Access| Standard Parts (Parts Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis |
MBD-X12DPi-NT6 CSV-826BTS-R1K23LPBP2 |
1 1 |

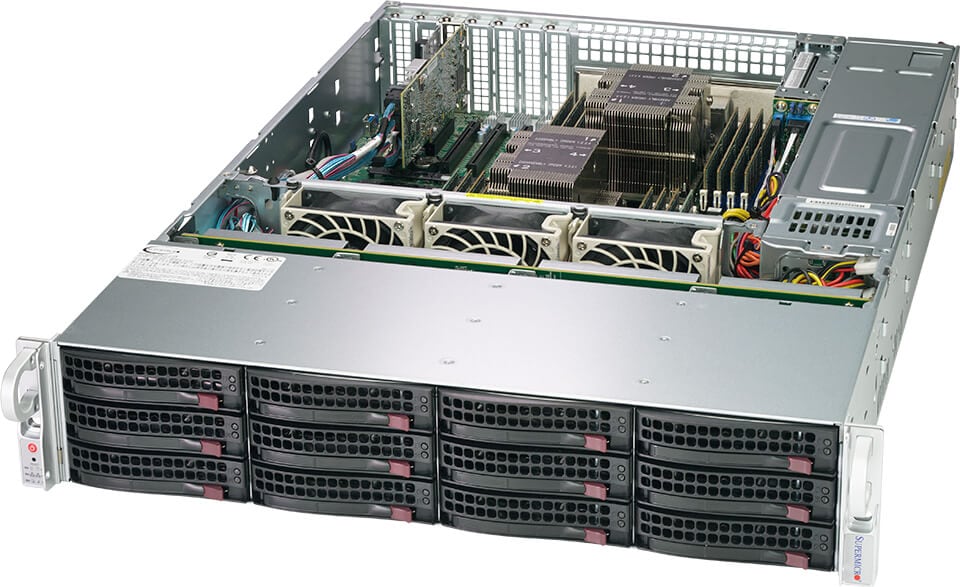

Super X12DPi-NT6 Motherboard 2U Chassis |
| Add-on Card / Module | AOC-S3916L-H16IR-32DD-O | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS |
| Backplane | BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 |
| CBL-SAST-1249-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM, | |
| CBL-SAST-1281-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, | |
| CBL-CDAT-0921-85 | 1 | I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | |
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |

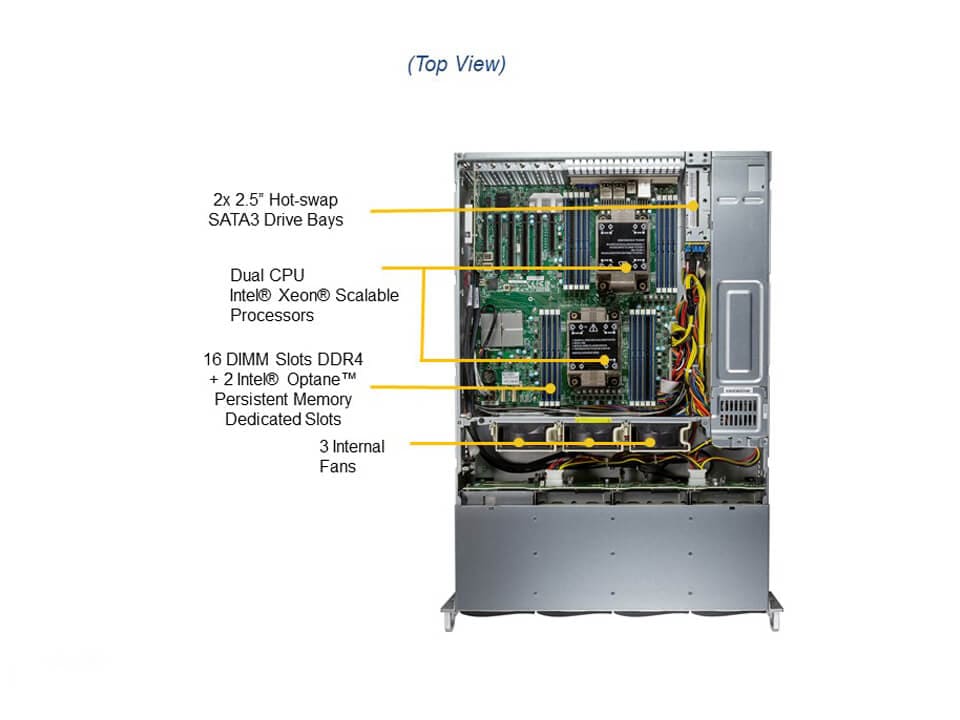

| Heatsink / Retention | SNK-P0078P | 1 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms |
| SNK-P0078PC | 1 | 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms | |

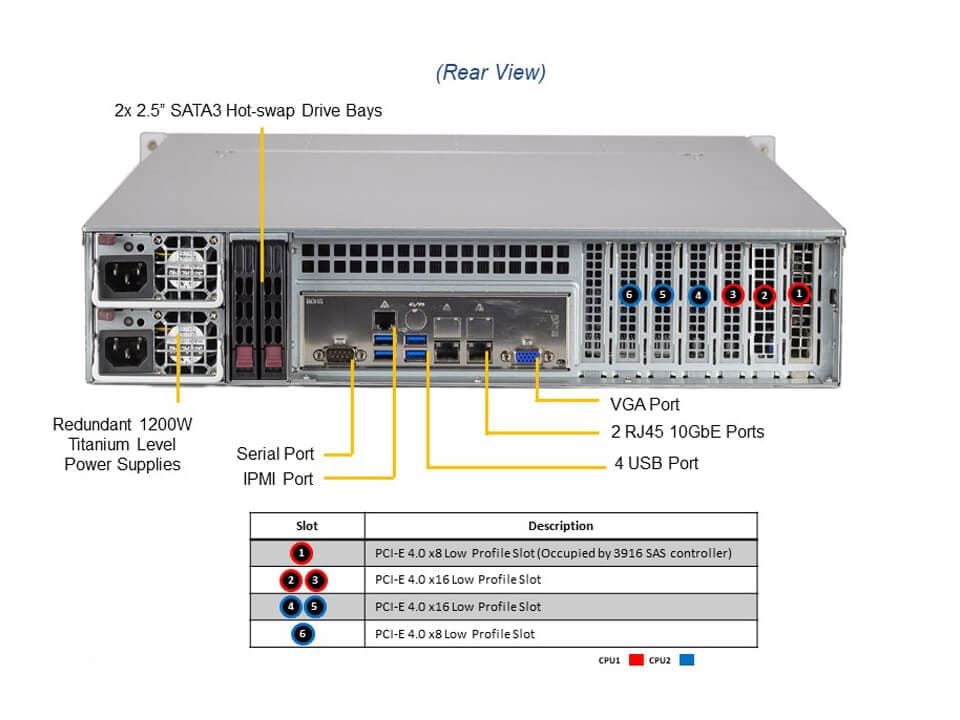

| *Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH |
| *Power Distributor | PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 |

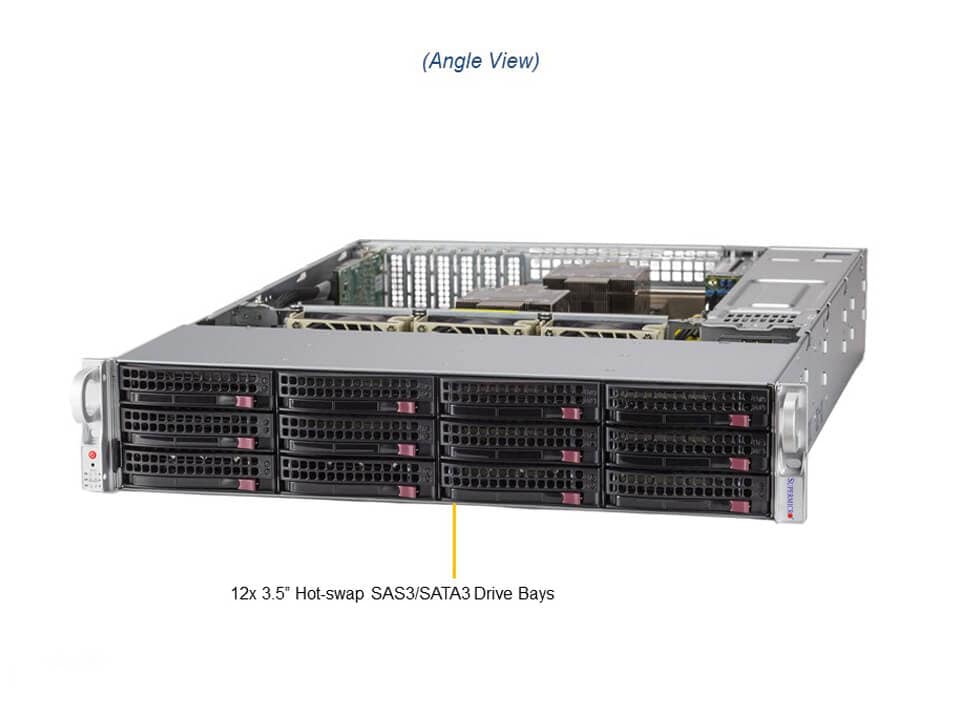

| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
| *Fan | FAN-0166L4 OR | 3 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) |
| FAN-0206L4 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | ||
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| 3916 Cache Protection | BKT-BBU-BRACKET-05 or MCP-240-00203-0N • |
1 | Remote Mounting Bracket for LSI BBUs, can hold 2x BTR-CVPM05 |
| BTR-CVPM05 • |
1 or 2 | Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender | |
| Bezel | MCP-210-82601-0B • |
- | Black Front Bezel for 826 chassis |
| Converter Tray | MCP-220-00043-0N • |
- | Black hot-swap gen 4 3.5 to 2.5 HDD tray |
| IPASS Cable | CBL-SAST-0388L-02 • |
- | 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB |
| Network Cards | AOC-S40G-I2Q | - | Standard LP 2-port 40GbE controller, Intel Fortville XL710 |
| More | - | AOC Compatibility Matrix (Select Storage & Generation) | |
| AOC-SGP-I2 | - | Standard LP 2-port GbE, Intel 82575 | |
| AOC-S25G-M2S | - | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | |
| NVMe Support | CBL-SAST-1248-85 | 2 | [NR] Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM,RoHS |
| MCP-220-00116-0B • |
4 | Black gen-5.5 tool-less 3.5-to-2.5 NVME converter drive tray,RoHS/REACH | |
| Power Cord | CBL-PWCD-0579-1 | - | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V |
| CBL-PWCD-0300-IS | - | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | |
| CBL-PWCD-0579 | - | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | |
| Rear 3808 SAS Support | AOC-S3808L-L8IT-O | 1 | 3808 SAS Controller |
| CBL-SAST-1270-100 | 1 | SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS | |
| Rear 3908 SAS Support | AOC-S3908L-H8IR-16DD-O • |
1 | 3908 SAS Controller |
| CBL-SAST-1270-100 | 1 | SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS | |
| Toolless Converter Tray | MCP-220-00118-0B • |
- | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
| TPM | AOM-TPM-9670V-O • |
1 | TPM 2.0, vertical form factor, provisioned for server |
| AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server | |
| Part Number | MBD-X12DPi-NT6 | CSV-826BTS-R1K23LPBP2 |
| Qty | 1 | 1 |
| Description | Super X12DPi-NT6 Motherboard | 2U Chassis |
| Part Number | AOC-S3916L-H16IR-32DD-O |
| Qty | 1 |
| Description | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS |
| Part Number | BPN-SAS3-LA26A-N12 |
| Qty | 1 |
| Description | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor |
| Part Number | CBL-CDAT-0728 | CBL-SAST-1249-100 | CBL-SAST-1281-100 | CBL-CDAT-0921-85 | CBL-PWCD-0160-IS | CBL-PWEX-1069 |
| Qty | 1 | 1 | 1 | 1 | 2 | 3 |
| Description | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM, | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, | I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS |
| Part Number | MCP-260-00042-0N |
| Qty | 1 |
| Description | STD I/O shield for X9 socket R server MB with Gasket. |
| Part Number | SFT-OOB-LIC |
| Qty | 1 |
| Description | License key for enabling OOB BIOS management |
| Part Number | SNK-P0078P | SNK-P0078PC |
| Qty | 1 | 1 |
| Description | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms |
| Part Number | PWS-1K23A-1R |
| Qty | 2 |
| Description | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH |
| Part Number | PDB-PT826-8824 |
| Qty | 1 |
| Description | PDB with longer 24pin for SC826B |
| Part Number | FPB-TB826-T |
| Qty | 1 |
| Description | Chassis transfer board for SC826 |
| Part Number | MCP-220-00075-0B |
| Qty | 12 |
| Description | Black gen 5.5 hot-swap 3.5" HDD tray |
| Part Number | MCP-240-82608-0N |
| Qty | 1 |
| Description | 216B/826B LP rear window,RoHS/REACH,PBF |
| Part Number | MCP-290-00053-0N | MCP-290-00060-0N |
| Qty | 1 | 1 |
| Description | Rail set, quick/quick, default for 2,3U 17.2"W | Threaded rail adapter default for round hole rack |
| Part Number | MCP-310-29001-0N |
| Qty | 1 |
| Description | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
| Part Number | FAN-0166L4 OR | FAN-0206L4 |
| Qty | 3 | - |
| Description | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
Notes:
| Part Number | BKT-BBU-BRACKET-05 or MCP-240-00203-0N • | BTR-CVPM05 • |
| Qty | 1 | 1 or 2 |
| Description | Remote Mounting Bracket for LSI BBUs, can hold 2x BTR-CVPM05 | Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender |
| Part Number | MCP-210-82601-0B • |
| Qty | - |
| Description | Black Front Bezel for 826 chassis |
| Part Number | MCP-220-00043-0N • |
| Qty | - |
| Description | Black hot-swap gen 4 3.5 to 2.5 HDD tray |
| Part Number | CBL-SAST-0388L-02 • |
| Qty | - |
| Description | 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB |
| Part Number | AOC-S40G-I2Q | More | AOC-SGP-I2 | AOC-S25G-M2S |
| Qty | - | - | - | - |
| Description | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | AOC Compatibility Matrix (Select Storage & Generation) | Standard LP 2-port GbE, Intel 82575 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN |
| Part Number | CBL-SAST-1248-85 | MCP-220-00116-0B • |
| Qty | 2 | 4 |
| Description | [NR] Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM,RoHS | Black gen-5.5 tool-less 3.5-to-2.5 NVME converter drive tray,RoHS/REACH |
| Part Number | CBL-PWCD-0579-1 | CBL-PWCD-0300-IS | CBL-PWCD-0579 |
| Qty | - | - | - |
| Description | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V |
| Part Number | AOC-S3808L-L8IT-O | CBL-SAST-1270-100 |
| Qty | 1 | 1 |
| Description | 3808 SAS Controller | SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS |
| Part Number | AOC-S3908L-H8IR-16DD-O • | CBL-SAST-1270-100 |
| Qty | 1 | 1 |
| Description | 3908 SAS Controller | SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS |
| Part Number | MCP-220-00118-0B • |
| Qty | - |
| Description | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
| Part Number | AOM-TPM-9670V-O • | AOM-TPM-9671V-O |
| Qty | 1 | 1 |
| Description | TPM 2.0, vertical form factor, provisioned for server | TPM 1.2, vertical form factor, provisioned for server |
