SuperServer E300-9A-8CN10P

  Products  Systems   Embedded/IoT   [ E300-9A-8CN10P ]




Integrated Board
A2SDV-8C-LN10PF

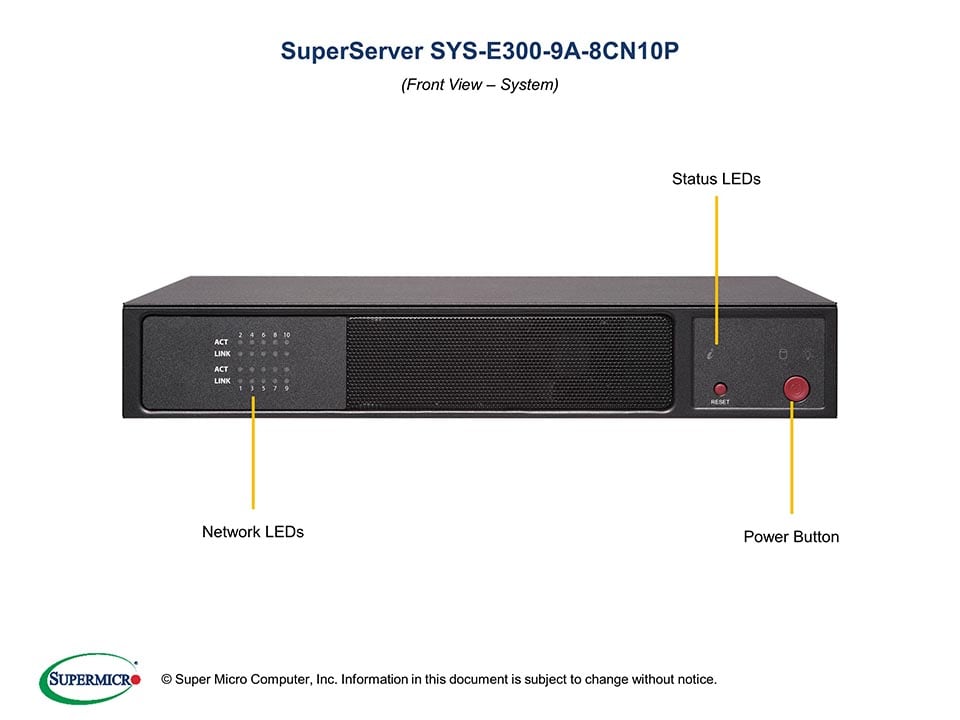

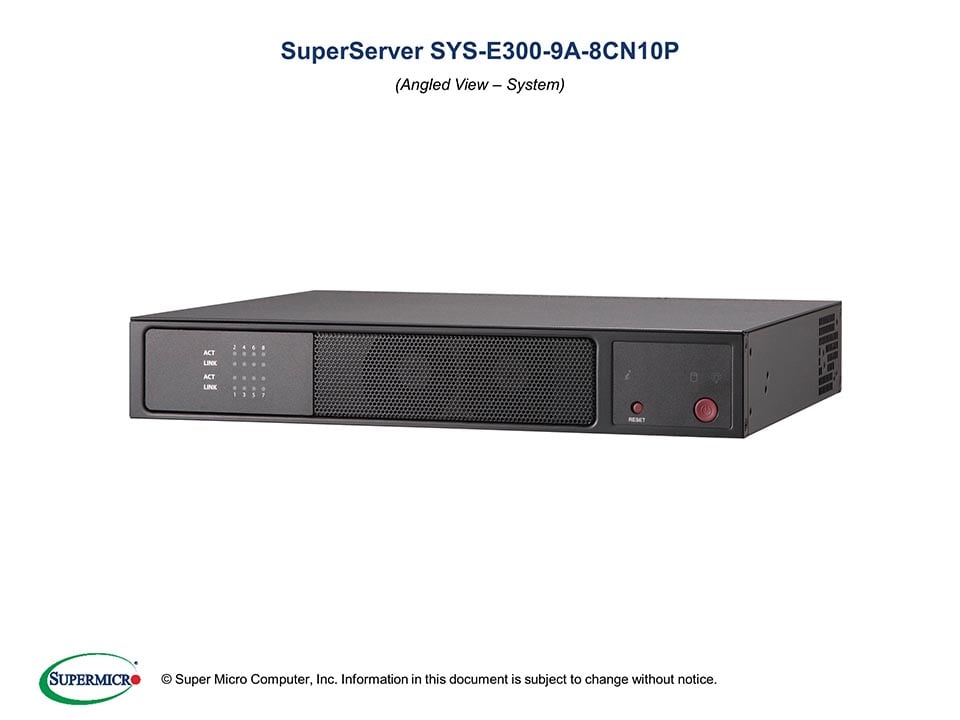

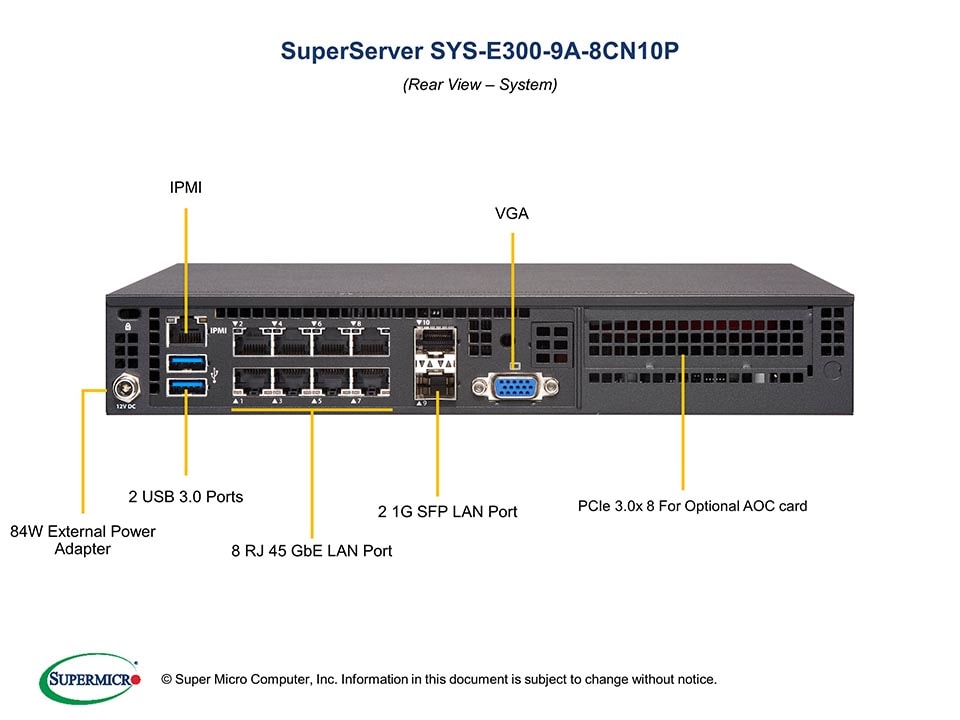

Views: | Angled View | Front View | Rear View |
| Rackmount Kit |

 Key Features
  - Virtual-CPE White Box Solution
  - Network Security Appliance
  - Embedded IoT Gateway
  - Networking Edge Device

1. Intel® Atom® processor C3758,
    Single socket FCBGA 1310
2. System on Chip
3. 1 Fixed 2.5" drive bay
    when AOC area is not occupied
4. Up to 256GB registered ECC,
    up to 64GB unbuf. ECC/non-ECC,
    DDR4-2400MHz, in 4 DIMM slots
5. 1 PCI-E 3.0 x4 AOC slot (LP)
6. 8 GbE and 2 1G SFP LAN ports
7. 2 USB 3.0, 1 M.2 B Key 3042/2280,
    1 M.2 M Key 2242/2280
8. 1 VGA via BMC
9. 1x 40mm chassis fan, passive
    CPU heat sink
10. 84W DC power adapter


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals   Drive Options

Product SKUs
SYS-E300-9A-8CN10P
  • SuperServer E300-9A-8CN10P (Black)

Motherboard

Super A2SDV-8C-LN10PF

Processor/Cache
CPU
  • Intel® Atom® processor C3758
  • 8 Cores, 2.2GHz
  • CPU TDP support 25W
  • FCBGA 1310

System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 256GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
  • Quad LAN with Intel® C3000 SoC
  • Quad LAN with Intel® Ethernet Controller I350-AM4
  • Dual LAN with Intel® I210-IS 1G SFP
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 8 RJ45 Gigabit Ethernet LAN ports
  • 2 1G SFP LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
TPM
  • TPM 2.0 header
Chassis
Form Factor
  • Mini-1U
Model
  • CSE-E300-LED+

Dimensions
Width
  • 10.43" (264.8mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x4 AOC slot (LP) when SSD is not populated

Drive Bays / Storage
Internal
  • 1 Fixed 2.5" drive bay when AOC area is not occupied
M.2
  • 2 M.2 Key
  • Interface: PCI-E 3.0 x2
  • Form Factor: B Key 3042/2280
  • Form Factor: M Key 2242/2280

System Cooling
Fans
  • 1x 40mm chassis fan

Power Supply
84W DC power adapter

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • CPU thermal trip support for processor protection
  • Power-on mode for AC power recovery

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-A2SDV-8C-LN10PF
CSE-E300-LED+ 		1
1		 Super A2SDV-8C-LN10PF Motherboard
Embedded Server BOX for Mini-ITX 1U w/o PWS
Cooling Fan FAN-0065L4 1 40x28mm 13K RPM 4-PIN PWM FAN
Power Adapter MCP-250-10137-0N 1 84W DC Power Adapter
I/O Shield MCP-260-30002-1B 1 CSE-E300-LED+ I/O shield for A2SDV-4C/8C-LN10PF
Optional Parts List
  Part Number Qty Description
Rackmount Kit MCP-290-30002-0B - CSE-E300 Rackmount kit (150W/180W adapter supported)
Riser Card Bracket MCP-240-30002-0N - CSE-E300 Riser Card Bracket
Hide Parts List
