SuperServer SYS-740P-TRT

4U tower server with 10G LAN for office and enterprise applications

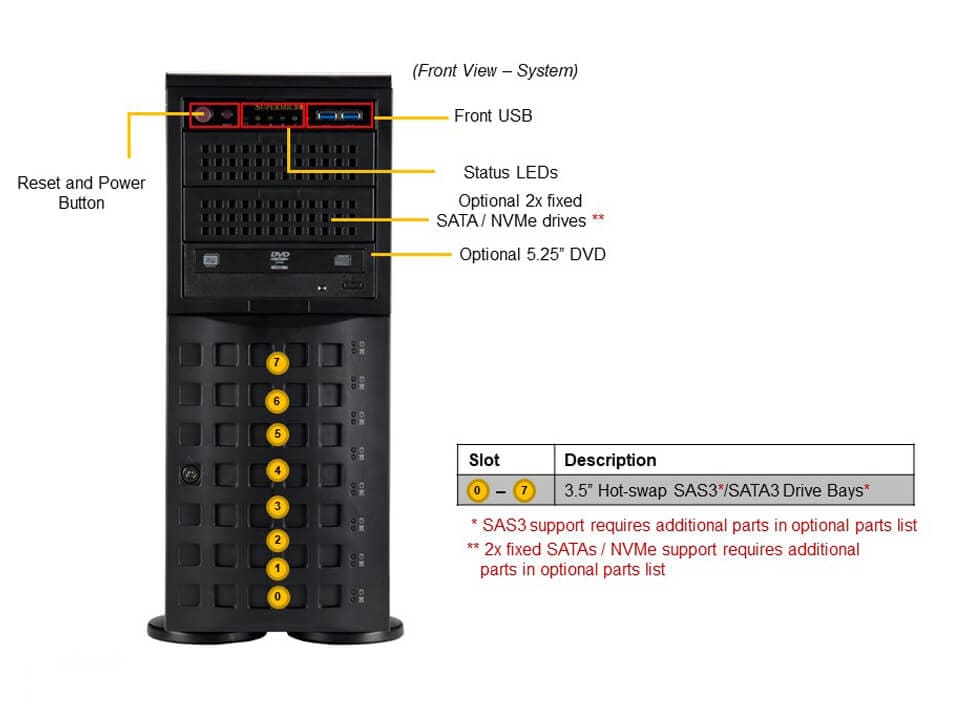

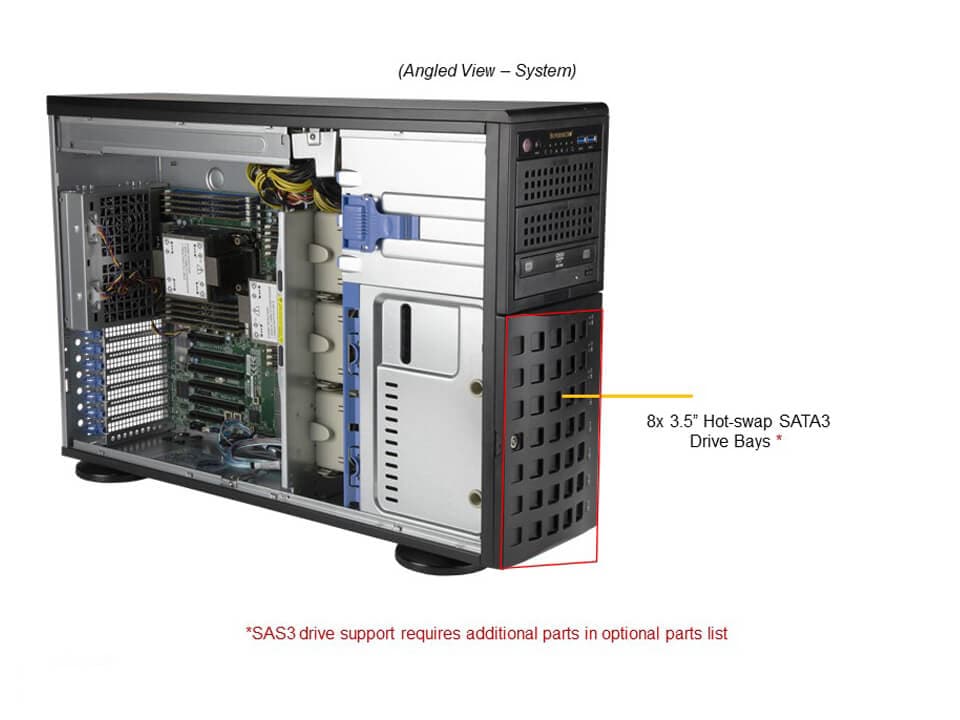

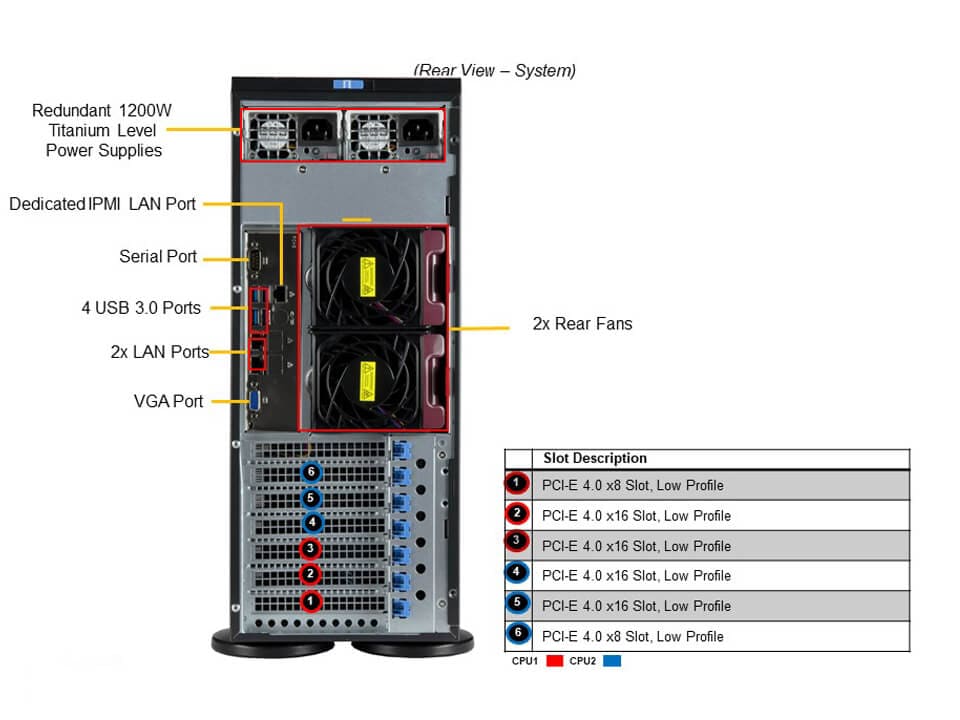

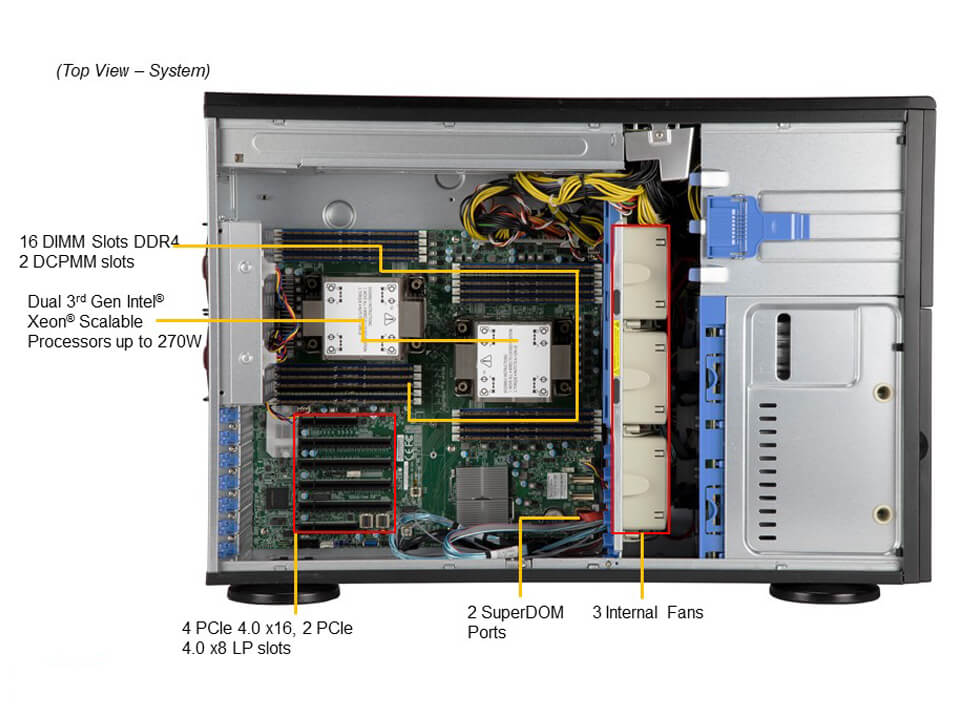

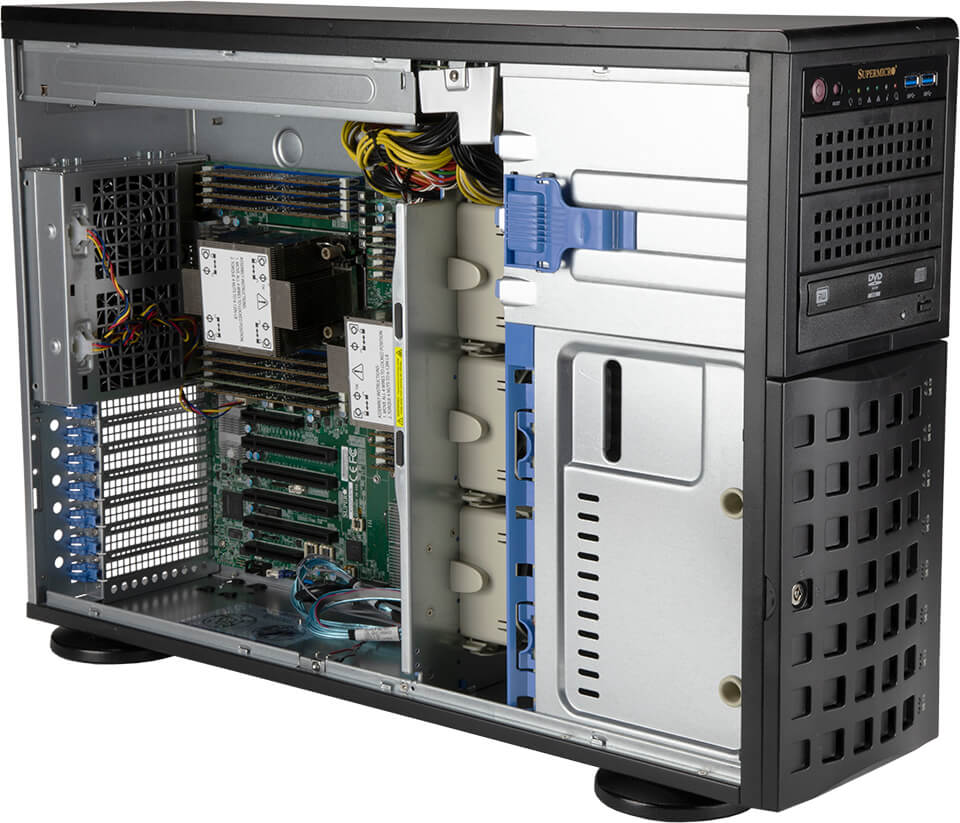

SYS-740P-TRT Main SYS-740P-TRT Angle SYS-740P-TRT Front SYS-740P-TRT Rear SYS-740P-TRT Side
Integrated Board: X12DPi-NT6
Learn more

Key Applications

  • Enterprise Server
  • Application and data serving
  • Model analysis
  • Compute Intensive Applications
  • Office environment

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
  3. 4 PCIe 4.0 x16 Full Height (FH);
    2 PCIe 4.0 x8  Full Height (FH)
  4. Dual  10GBase-T LAN with Intel® X550 Ethernet Controller
  5. Three 80mm high-performance 9.4K RPM Hot-swappable Middle Cooling Fans;Two 80mm 9.4K RPM Rear Exhaust Fans;1 air shroud
  6. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc, Whisper-Quiet
  7. 1 rear VGA, 1 Type A port, 1 COM Port (rear) and 6 USB ports (2 front USB 3.0 and 4 rear USB 3.0)
...
...
SYS-740P-TRT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-740P-TRT
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Tower/4U
Model
  • CSE-745BTS-R1K23BP
Dimensions and Weight
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Package
  • 24.6" (H) x 14" (W) x 31.3" (D)
Weight
  • Gross Weight: 73.5 lbs (33.9 kg)
  • Net Weight: 56 lbs (25.9 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
  • Option A: Total 10 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
    • 2 front fixed 3.5" NVMe*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
Peripheral Bays
  • 1 5.25" DVD bay (optional)
System Cooling
Fans
  • 3 middle Fan(s)
  • 2 rear Fan(s)
Power Supply
1x 1200W
1x 1200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPi-NT6

CSE-745BTS-R1K23BP 		1

1 		Super X12DPi-NT6 Motherboard

Tower/4U Chassis
Backplane BPN-SAS3-743A 1 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane fo
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color
Manual MNL-2242-QRG 1 SYS-740P-TR(T) Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
Cable CBL-SAST-0508-01 OR 2 Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
CBL-SAST-0508-02 Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CBL-0216L 3 4 TO 4 PIN FAN POWER CABLE, 210MM
CBL-0471L 1 USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
*Power Supply PWS-1K23A-SQ 2 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
*Power Distributor PDB-PT747-4648 1 POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
*Fan FAN-0180L4 2 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
FAN-0182L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
*Drive Tray(s) MCP-220-00193-0N 8 SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
*Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
BTR kit for AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR with SYS-740P-TRT use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR 1 SuperCap and mounting bracket used for SAS raid controllers AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR
BTR kit forAOC-S3908L-H8IR-16DD-P orAOC-S3916L-H16IR-32DD with SYS-740P-TRT use BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 with AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD 1 SuperCap and mounting bracket used for SAS raid controllers AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD
Optional Gen3 8-ports SAS Raid controller kit for SYS-740P-TRT add 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01 1 Convert 8x hotswap SATA drives to SAS drives
Optional Gen4 8-ports SAS Raid AOC kit for SYS-740P-TRT (backplane is Gen3) add 1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100 1 Convert 8x hotswap SATA drives to SAS drives
Optional Mounting Rails CSE-PT26L-B 1 4U Chassis Rail Kits SC743,745, w/ 2pcs Black Chassis Ears
Optional parts needed to support 2x fixed NVMe drives 1x MCP-220-00160-0N (Dual 2.5" Drive BKT) and 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) 1 1x MCP-220-00160-0N can support 2x NVMe fixed drives in 1x 5.25 inch drive bay and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
Optional parts needed to support 2x fixed SATA drives 1x MCP-220-00160-0N (Dual 2.5" Drive BKT), 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat), 1x CBL-0234L (Y CABLE FOR 4-PIN HDD) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG) 1 1x MCP-220-00160-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay, 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives

Mainstream SuperServer SYS-740P-TRT

Certain products may not be available in your region
