SuperServer SYS-220P-C9RT

2U Mainstream with 8 hot-swap SAS + 8 SATA bays and 5 PCIe 4.0 slots

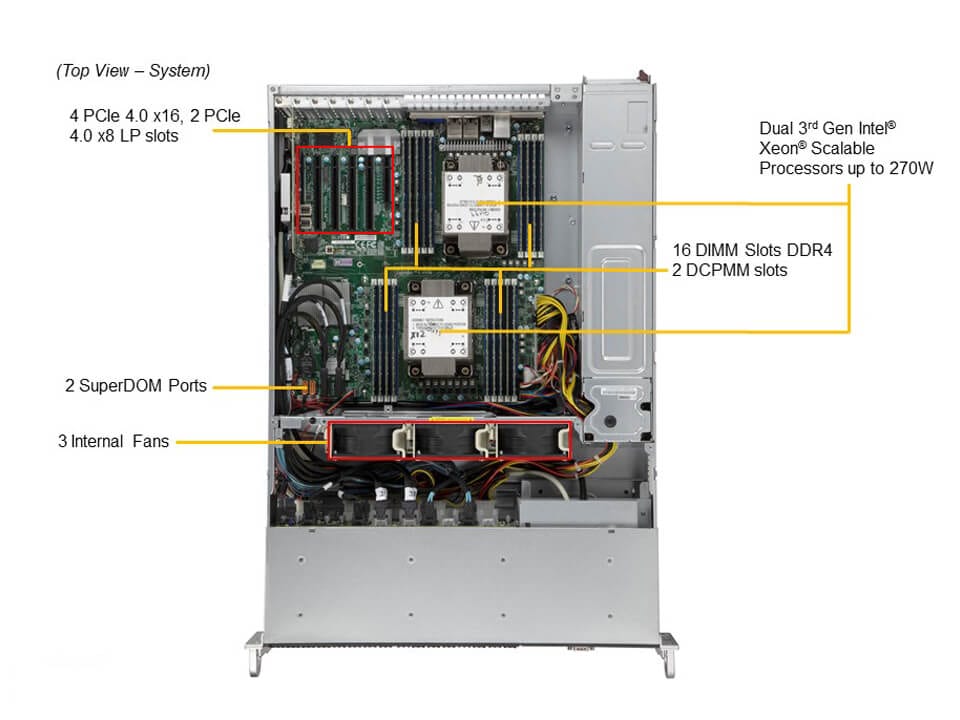

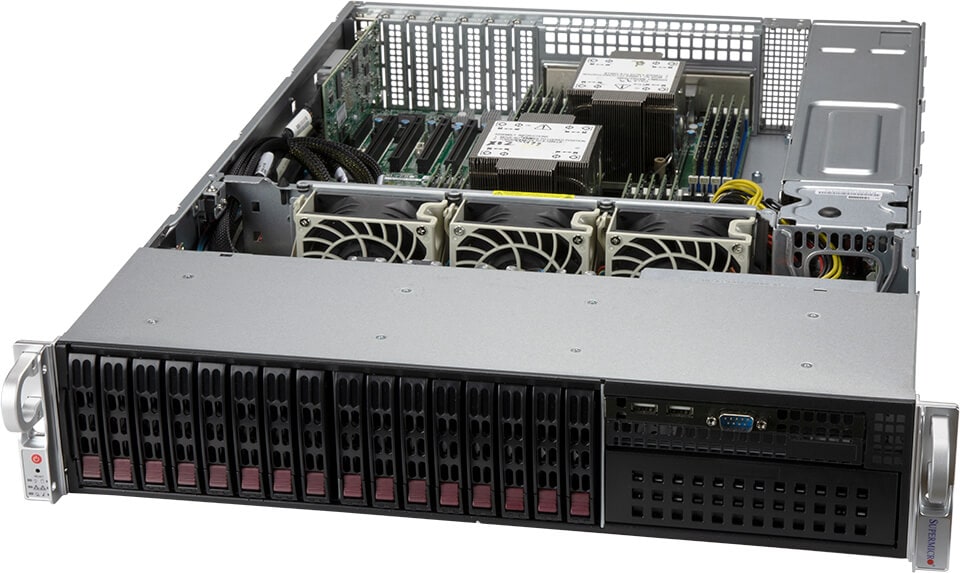

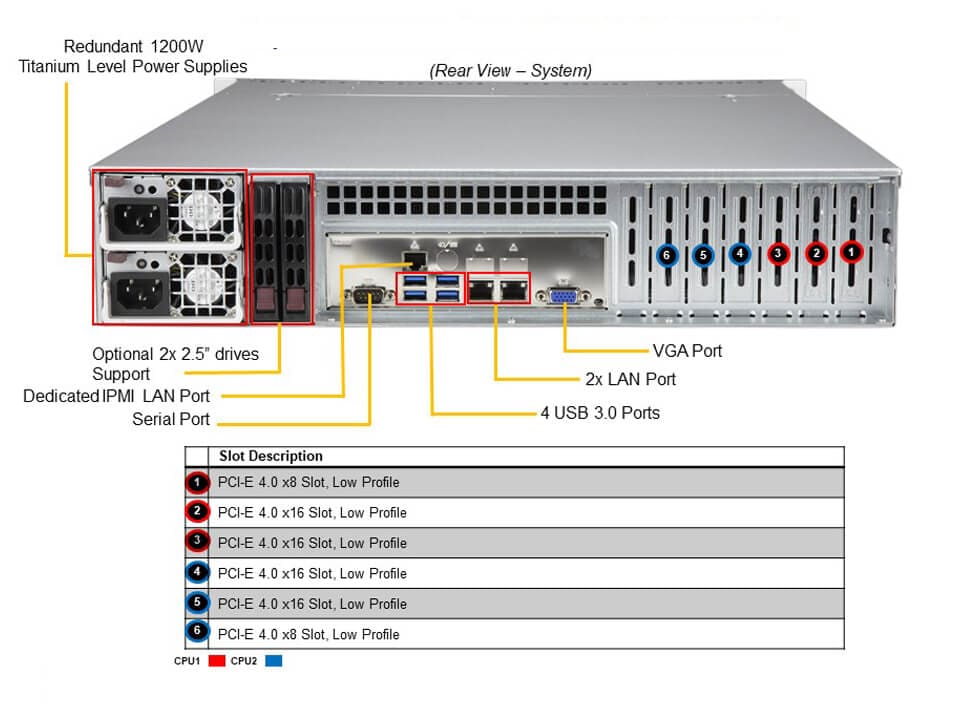

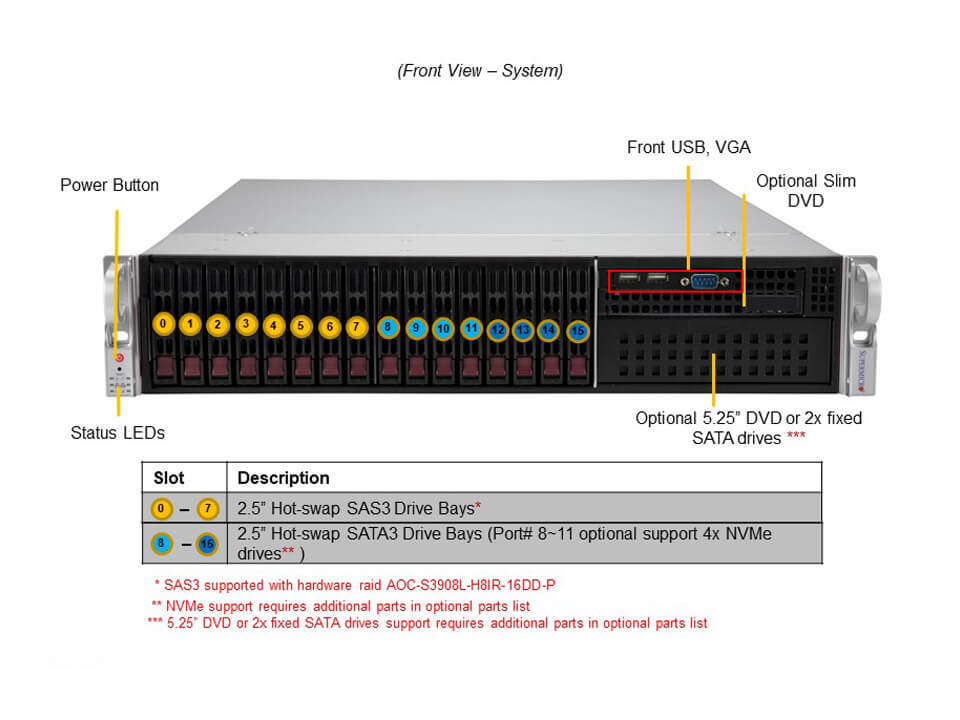

SYS-220P-C9RT Main SYS-220P-C9RT Angle SYS-220P-C9RT Top SYS-220P-C9RT Front SYS-220P-C9RT Rear
Integrated Board: X12DPi-NT6
Learn more

Key Applications

  • High Performance Computing
  • Enterprise Server
  • Data Center Optimized
  • Database Processing and High Density Storage
  • Application-Optimized Solutions

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
  3. 4 PCIe 4.0 x16 Low Profile (LP);
    1 PCIe 4.0 x8 Low Profile (LP);
    * PCIe slot#1 is populated with 1x AOC-S3908L-H8IR-16DD-P to support 8x SAS drives
  4. Dual  10GBase-T LAN with Intel® X550 Ethernet Controller
  5. 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control;1 air shroud
  6. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
  7. 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)
...
...
SYS-220P-C9RT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-220P-C9RT
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-213BTS-R1K23LPBP3-1
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 24.8" (630 mm)
Package
  • 11" (H) x 29" (W) x 38.7" (D)
Weight
  • Gross Weight: 63 lbs (28.8 kg)
  • Net Weight: 38 lbs (17.4 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 16 bays
    • 8 front hot-swap 2.5" SAS drive bays
    • 4 front hot-swap 2.5" SATA drive bays
    • 4 front hot-swap 2.5" NVMe*/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • View Drive Options
M.2
Peripheral Bays
  • 1 5.25" DVD bay (optional)
System Cooling
Fans
  • 3 heavy duty fans with optimal fan speed control
Power Supply
1x 1200W
1x 1200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPi-NT6

CSE-213BTS-R1K23LPBP3-1 		1

1 		Super X12DPi-NT6 Motherboard

2U Chassis
Add-on Card / Module AOC-S3908L-H8IR-16DD-P 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS
Backplane BPN-SAS3-213A-N8 1 2U 16-port 2.5" backplane, 8 ports for SAS3/SATA3, and 8
Cable CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
CBL-SAST-0508-01 OR 2 Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
CBL-SAST-0508-02 Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1069 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
MCP-220-00009-01 1 Black 5.25"; drive tray w/o rail (square pattern)
MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
MCP-220-00047-0B 16 Black gen 3rd hot-swap 2.5inch HDD tray
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Manual MNL-2243-QRG 1 SYS-220P-C9R(T) Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT829-S8824 1 PDB with 23pairs input connectors for SC829B216B
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,
FPB-TB826 1 16 pin Cable Adaptor Board for SC826
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
*Peripheral Drive MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
BTR kit for AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD with SYS-220P-C9RT 1x  BTR-TFM8G-LSICVM02 and 1x  BKT-BBU-BRACKET-05 with AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD 1 SuperCap and mounting bracket used for SAS raid controllers
BTR kit for AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD with SYS-220P-C9RT 1x BTR-CVPM05 and 1x  BKT-BBU-BRACKET-05 with AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD 1 SuperCap and mounting bracket used for SAS raid controllers
BTR kit for Broadcom/LSI AOC-SAS3-9361-16I with SYS-220P-C9RT 1x BTR-TFM4G-LSI00418 and 1x  BKT-BBU-BRACKET-05 used with Broadcom/LSI AOC-SAS3-9361-16I 1 SuperCap and mounting bracket used for SAS raid controllers
Optional Gen3 16-ports SAS Raid controller kit for SYS-220P-C9RT AOC-SAS3-9361-16I and 4x CBL-SAST-0593-01 or 4x CBL-SAST-0531-01 1 to use one raid controller to support all 16 drives bays, the default AOC-S3908L-H8IR-16DD-P raid controller is not used
Optional Gen4 16-ports SAS Raid controller kit for SYS-220P-C9RT 1xAOC-S3916L-H16IR-32DD and 2x CBL-SAST-1264-100 1 to use one raid controller to support all 16 drives bays, the default AOC-S3908L-H8IR-16DD-P raid controller is not used
Optional Gen3 8-ports SAS Raid controller kit for SYS-220P-C9RT AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01 1 to convert system SATA ports# 8~15 to SAS drive support; There are two raid controllers in the system and each raid controller supports 8x SAS drives
Optional parts needed to support 2x fixed NVMe drives 1x MCP-220-00160-0N (Dual 2.5" Drive BKT) and 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) 1 1x MCP-220-00160-0N can support 2x NVMe fixed drives in 1x 5.25 inch drive bay and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
Optional parts needed to support 2x fixed SATA drives 1x MCP-220-00160-0N (Dual 2.5" Drive BKT), 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat), 1x CBL-0234L (Y CABLE FOR 4-PIN HDD) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG) 1 1x MCP-220-00160-0N can support 2x 2.5 inch  fixed drives in 1x 5.25 inch drive bay, 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
Optional parts needed to support 2x Rear hotswap SATA drives 1x MCP-220-82616-0N, (2.5x2 Hot-swap 12G rear HDD kit w/ fail LED for 216B/826B/41) and 1x CBL-SAST-0388L-02, 30AWG Ipass to 4SATA (90/90/70/70CM W/ 90CM SB); 1 1x CBL-SAST-0388L-02 has 4 SATA ports, but the rear drive kit MCP-220-82616-0N can only support 2x 2.5 inch SATA drives, so two SATA ports are lost as a result
Optional parts needed to support 4x hotswap NVMe drives 2x CBL-SAST-0821-1 (SLIMLINE x8 (LE) to 2x Oculink x4, 46/50CM,85 OHM,RoHS) 1 1x CBL-SAST-0821-1 can support 2x 2.5 inch hotswap NMVe drives, system can support Max. 4x  NMVe drives (hotswap and fixed combined) only
Optional  Gen4 8-ports SAS Raid controller kit for SYS-220P-C9RT 1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100 1 add the second AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100, there are two raid controllers in the system for all 16 drives and each raid controller supports 8x SAS drives
