SuperServer SYS-E403-12P-FN2T

X13 2.5U Box PC with Intel 3th Gen Intel Xeon Scalable processor and support for 3 PCIe 4.0 x16 (FHFL) slots and 2 10GBase-T LAN

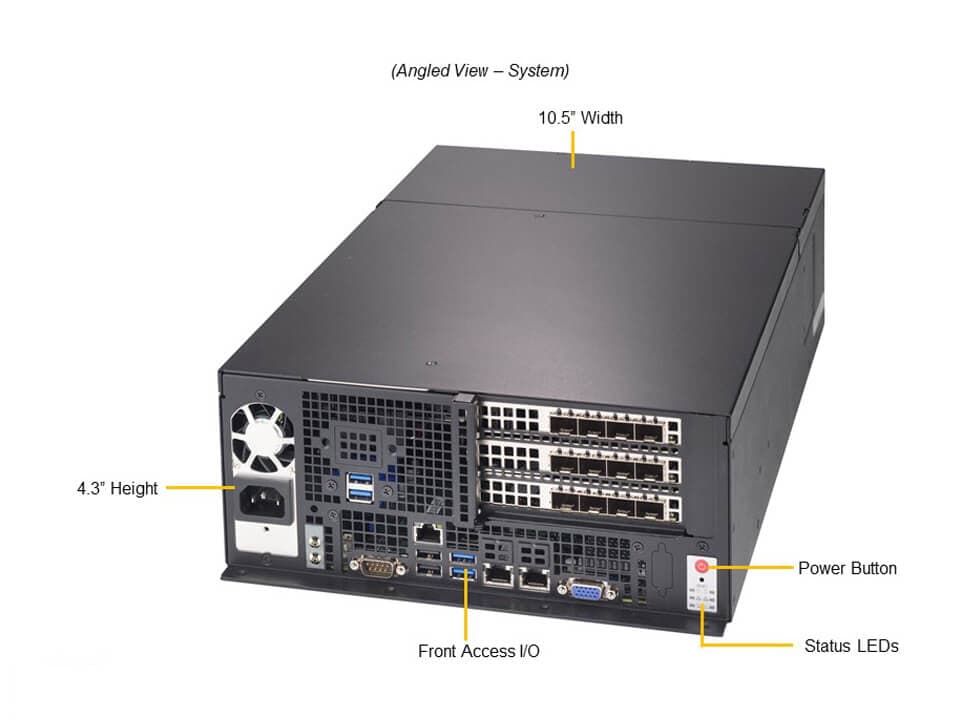

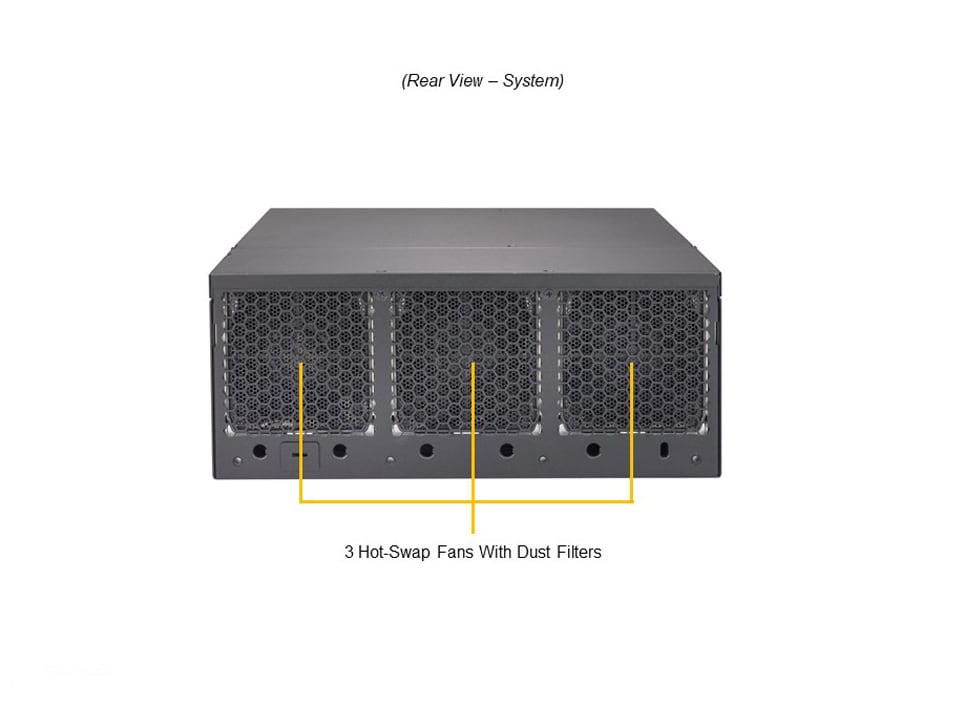

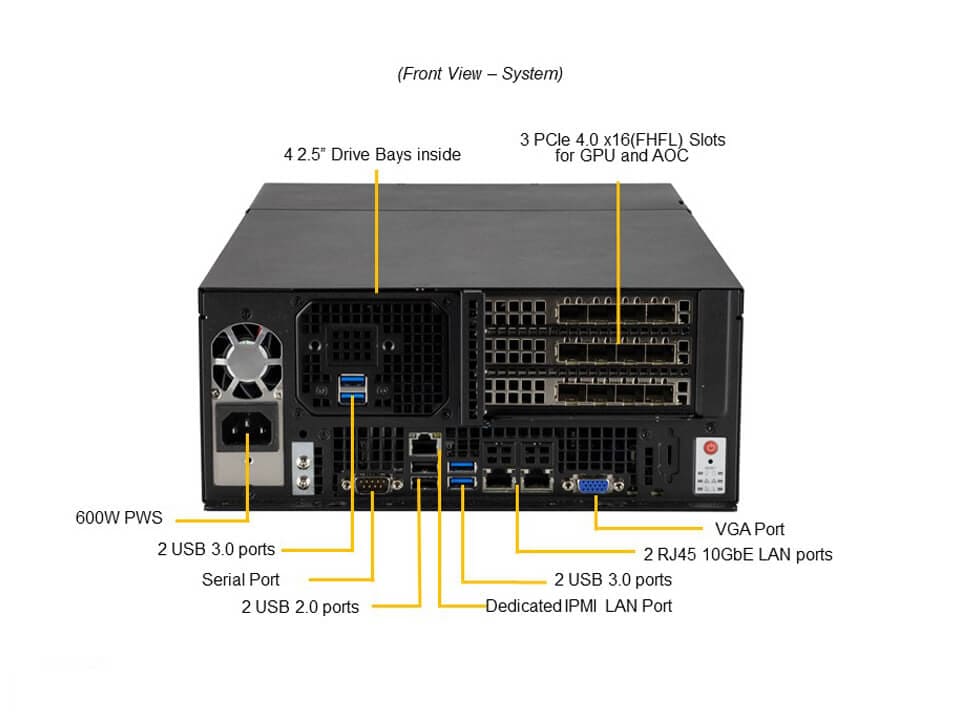

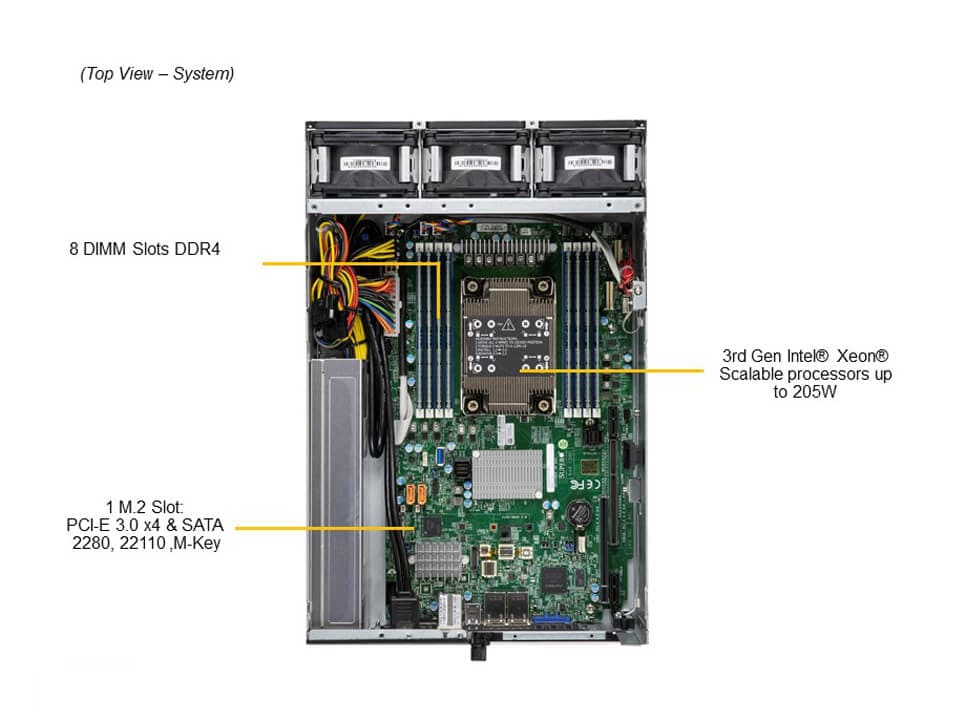

SYS-E403-12P-FN2T Main SYS-E403-12P-FN2T Angle SYS-E403-12P-FN2T Top SYS-E403-12P-FN2T Front SYS-E403-12P-FN2T Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing (MEC)
  • Universal Customer Premise Equipment (uCPE)
  • Network Function Virtualization (NFV)
  • Artificial Intelligence (AI) on Edge, Machine Learning (ML)
  • Industrial Automation, Retail, Smart Medical Expert Systems

Key Features

  1. Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores
  2. 3x PCIe4.0 x16 slot
  3. 2x 10 Gigabit Ethernet Ports
  4. 4x 2.5" Internal Drive Bays
  5. 4x USB 3.0, 2x USB 2.0
...
...
SYS-E403-12P-FN2T
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-E403-12P-FN2T
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports (Intel® X550-AT2)
USB
  • 2 USB 2.0 Type-A ports(rear)
  • 4 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • Riser Card audio detection support
  • SMBIOS 3.0 or later
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
Chassis
Form Factor
  • Fan-based Embedded
Model
  • CSE-E403iF-000NBP
Dimensions and Weight
Height
  • 4.3" (109 mm)
Width
  • 10.5" (267 mm)
Depth
  • 16" (406 mm)
Package
  • 10.4" (H) x 16.4" (W) x 26" (D)
Weight
  • Gross Weight: 24 lbs (10.89 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Overheat status
  • Power status
  • reset status
  • System information
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 3 heavy duty fans with optimal fan speed control(In server) 80x80x38mm Fan(s)
Power Supply
1x 680W
1x 680W Gold Level (92%) power supply
Dimension (WxHxL)100 x 40 x 220 mm
Input600W: 100-140Vac / 50-60Hz
600W: 100-240Vac
680W: 180-240Vac / 50-60Hz
+12VMax: 49A / Min: 1A (100Vac-140Vac)
Max: 56A / Min: 1A (180Vac-240Vac)
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPW-TF

CSE-E403iF-000NBP 		1

1 		Super X12SPW-TF Motherboard

Fan-based Embedded Chassis
Cable CBL-0082L 2 Y SPLIT SATA POWER ADAPTER, PB FREE
CBL-CUSB-0832 1 USB 3.0(F) Type A 2x to USB3.0 20pin,73CM,30AWG,RoHS
CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-SAST-0616 1 Internal Mini SAS HD to 4 SATA 50CM, S, w/50cm SB
CBL-SAST-1207LP1-85 2 SlimSAS x8 STR to SlimSASLP x8 STR,20CM,LnRvs,85Ohm,RoHS
CBL-0156L 1 ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
Fan FAN-0200L4 3 80x80x38 mm, 13.5K RPM Cooling Fan for CSE-E403IF, RoHS
Parts MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
MCP-260-00144-0B 1 1U I/O Shield for X11SDW with EMI Gasket, Black
Air Shroud MCP-310-40304-0B 1 Mylar air shroud for X12SPW in CSE-E403iF,Black
Manual MNL-2455-QRG 1 E403-12P-FN2T Quick Reference Guide
Power Supply PWS-601-1H 1 1U 600/680W MULTI OUTPUT PWS 80+ GOLD
Riser Card RSC-W2R-666G4 1 2U RHS WIO Riser card with threePCI-E4.0X16Slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 1 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,
FPB-TB826 1 16 pin Cable Adaptor Board for SC826
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
