Key Features
Multi-Access Edge Computing (MEC)
Universal Customer Premise
Equipment (uCPE)
Network Function Virtualization
(NFV)
Edge Computing, Vehicle to
Everything Application
(C-V2X / V2X)
1. Intel® Xeon® D-2173IT Processor,
14 Cores, 28 Threads, 1.7 GHz, 70W
2. Up to 512GB ECC LRDIMM,
up to 256GB reg. ECC RDIMM
DDR4-2133Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 or
2 PCI-E 3.0 x8 +
1 PCI-E 3.0 x16 (FHFL) slots
4. 4 Internal 2.5" drive bays
5. M.2: 1 M-Key 2280/22110,
1 E-Key 2230, 1 B-Key, 3042
6. 9 GbE (one for Ethernet management),
2x 10GbE, 2x 10G SFP+, and
1 Dedicated IPMI LAN port
7. 2 USB 3.0, 2 USB 2.0, 1 COM
via RJ45, VGA via BMC
8. 600W Multi-output
Gold Level Power Supply
|
|
|
 |
|
|
|
|
| |
 | | SYS-E403-9D-14C-FN13TP |
- SuperServer E403-9D-14C-FN13TP (Black)
|
| | |
|
Super X11SDW-14C-TP13F |
| |
|

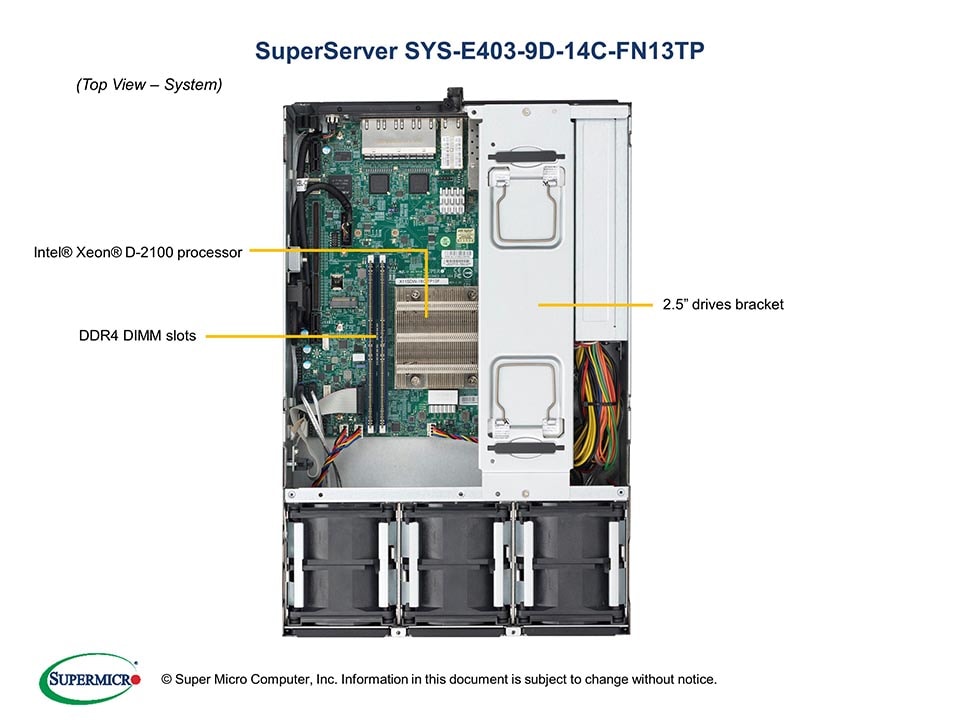

| CPU |
- Intel® Xeon® processor D-2173IT,
CPU TDP support 70W
|
| Cores / Cache |
|
| |
|
| Memory Capacity |
- Up to 512GB DDR4 ECC LRDIMM
- Up to 256GB DDR4 ECC RDIMM
- 4 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 L/RDIMM
- Operating speed up to 2133MHz
|
| DIMM Sizes |
|
| Memory Voltage |
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) ports via SoC controller
|
| Network Controllers |
- Dual 10G SFP+ via SoC
- Dual 10GBase-T via Intel X557
- 8x 1GbE with Intel I350-AM4
- Single 1GbE with Intel I210
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
- VGA via Aspeed AST2500 BMC
|
| |
|
| SATA |
- 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
|

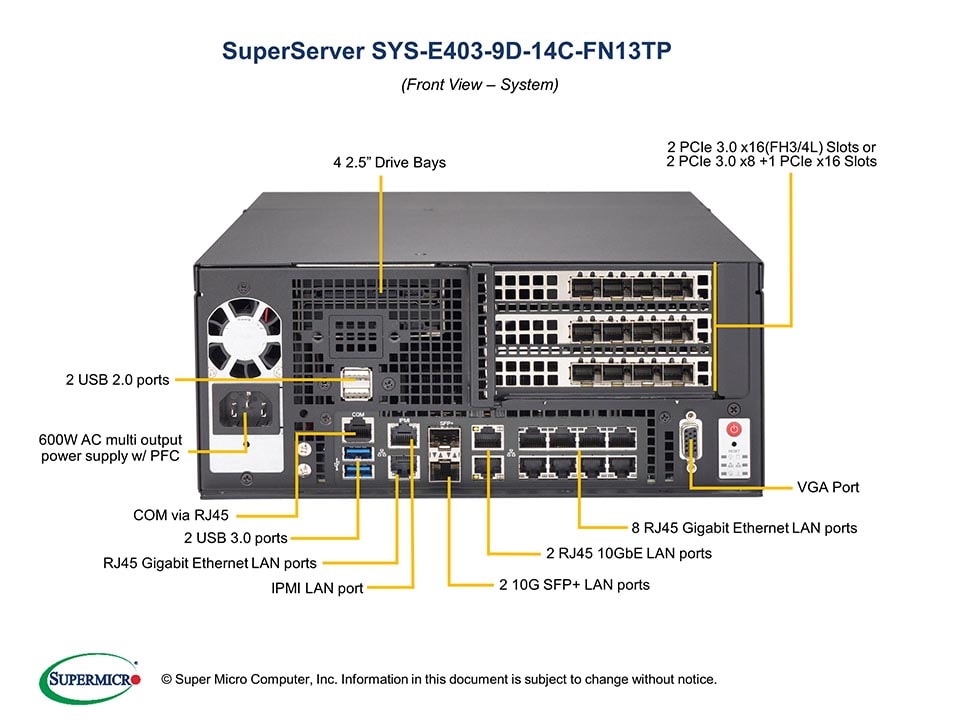

| LAN |
- 9 RJ45 Gigabit Ethernet LAN ports
- 2 RJ45 10GbE LAN ports
- 2 10G SFP+ LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 2 USB 3.0 ports (front)
- 2 USB 2.0 ports (front)
|
| Video |
|
| Serial Port / Header |
|
| |
|
| BIOS Type |
- 128Mb SPI Flash with AMI BIOS
|
| |
|
| Software |
|
|
|
| |

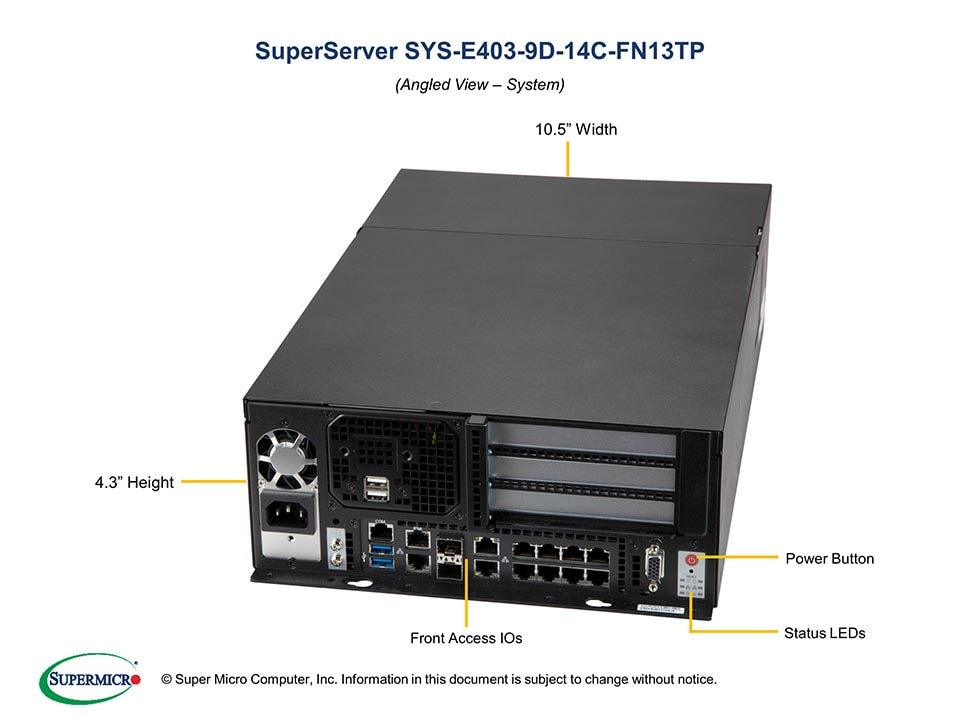

| | Form Factor |
|
| Model |
|
| | |
| | Height |
|
| Width |
|
| Depth |
|
| Weight |
- Gross Weight: 23 lbs (10.43 kg)
- Net Weight: 17 lbs (7.7 kg)
|
| Available Colors |
|
| | |
| | Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- Network activity LEDs
- System Information LED
|
| |
|
| PCI-Express |
- 2 PCI-E 3.0 x16 (FHFL) slots or
- 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FHFL) slots
|
| M.2 |
- 1 M.2 M-Key , 2280/22110
- 1 M.2 E-Key , 2230
- 1 M.2 B-Key , 3042
|
| | |
| | Internal |
- 4 Internal 2.5" drive bays
|
| | |

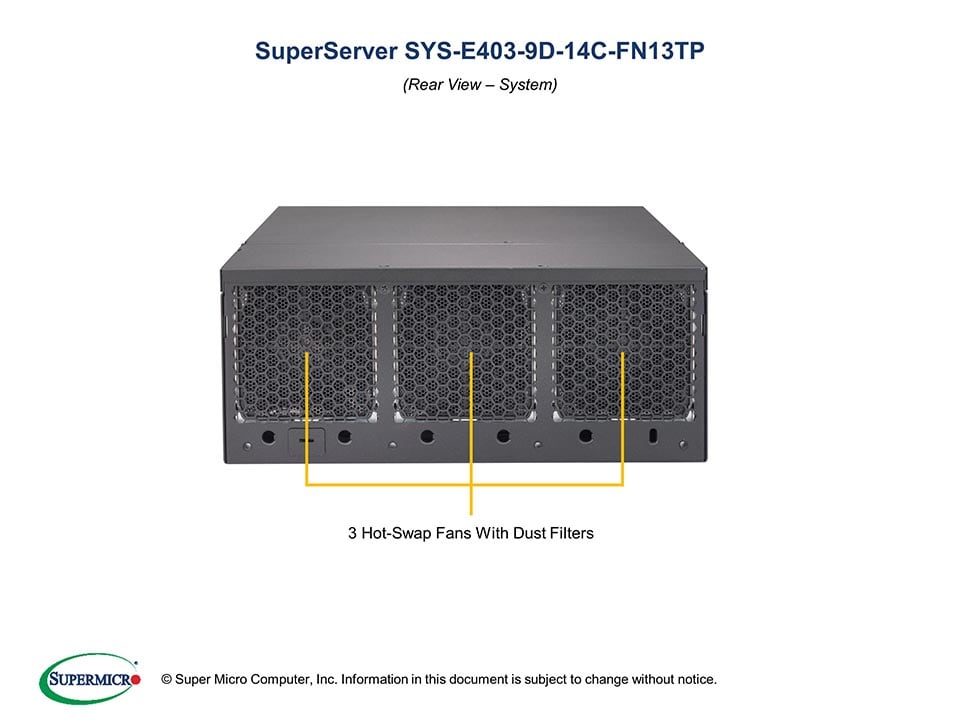

| | Fans |
- 3x 80x80mm PWM redundant fans
|
| | |
| | 600W AC multi output power supply w/ PFC |
| AC Voltage |
- 100-240 V, 50-60 Hz, 7.5-3.1 Amp
|
| +5V |
|
| +5V standby |
|
| +12V |
|
| +3.3V |
|
| Certification |
Gold Certified
[ Test Report ]
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
0°C ~ 50°C (32°F ~ 122°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X11SDW-14C-TP13F
CSE-E403IF-505 |
1
1 |
Super X11SDW-14C-TP13F Motherboard
Embedded Server Box |
|
Add-on Card / Module
|
AOM-SDW-B16X2-P |
1 |
AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS |
|
Cable 1
|
CBL-0082L |
1 |
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
|
Cable 2
|
CBL-0483L |
2 |
SATA,INT,ROUND,ST-ST,29CM,30AWG |
|
Cable 3
|
CBL-CDAT-0850 |
1 |
CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS |
|
Parts
|
MCP-260-00144-0B |
1 |
1U I/O Shield for X11SDW with EMI Gasket, Black |
|
Air Shroud
|
MCP-310-50502-0B |
1 |
Air shroud for SC505 + X10SDV-7TP8F |
|
Power Supply
|
PWS-601-1H |
1 |
1U 600/680W MULTI OUTPUT PWS 80+ GOLD |
Notes: - Parts with * are inside the chassis
- Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
|
