SuperServer 6049GP-TRT

  Products  Systems   GPU   [ 6049GP-TRT ]

4U Dual Processor System with 20 Single-Width NVIDIA T4 GPUs





Integrated Board

X11DPG-OT-CPU



X11DPG-21-PCIE

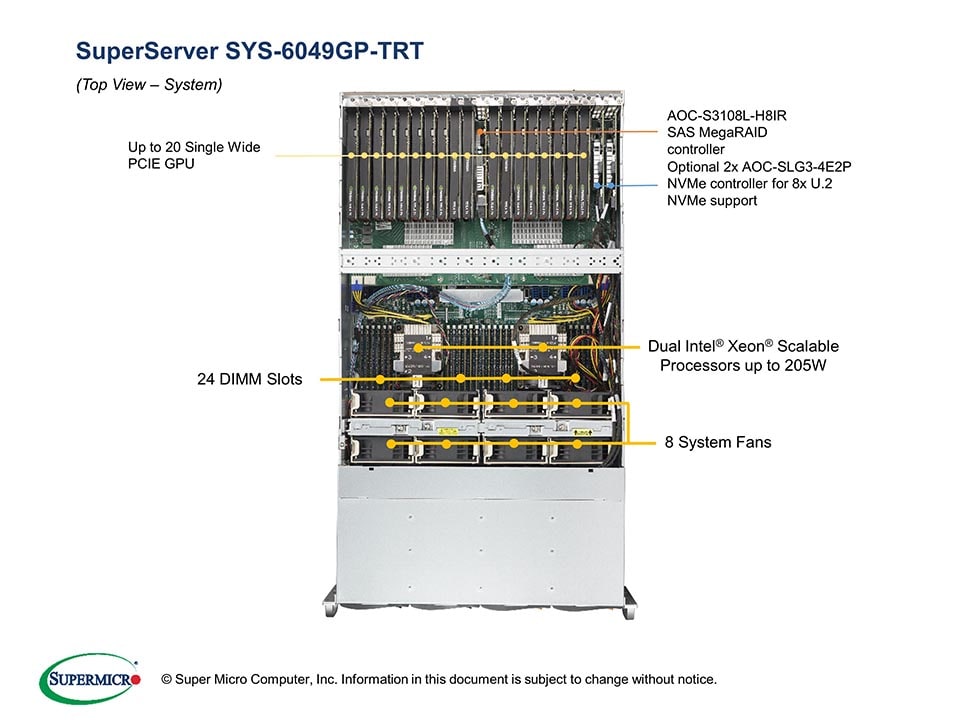

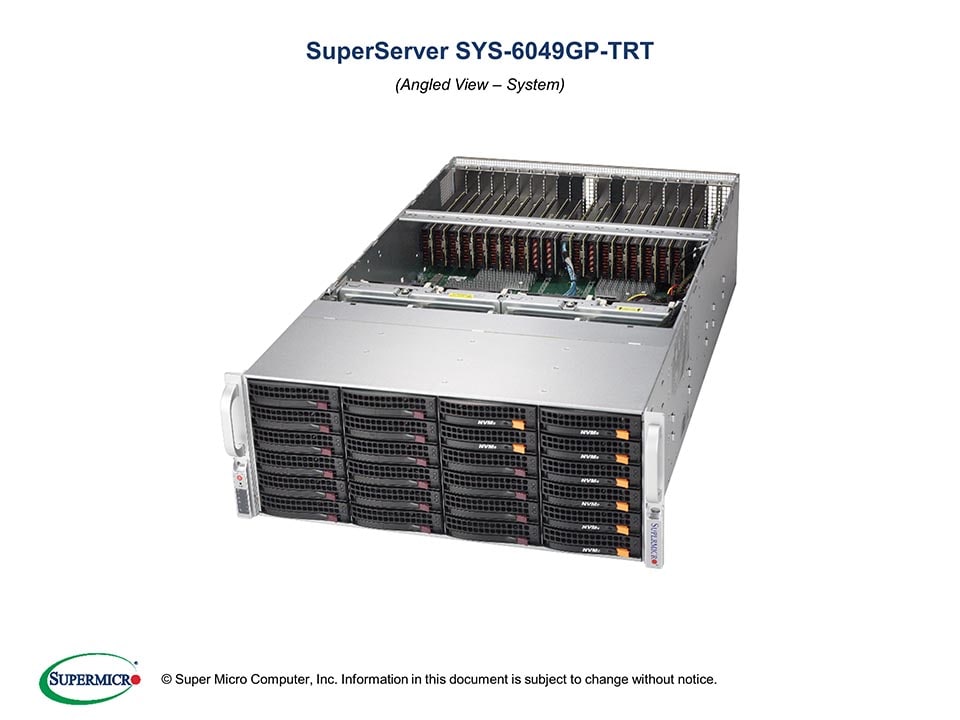

Views: | Angled View | Top View |

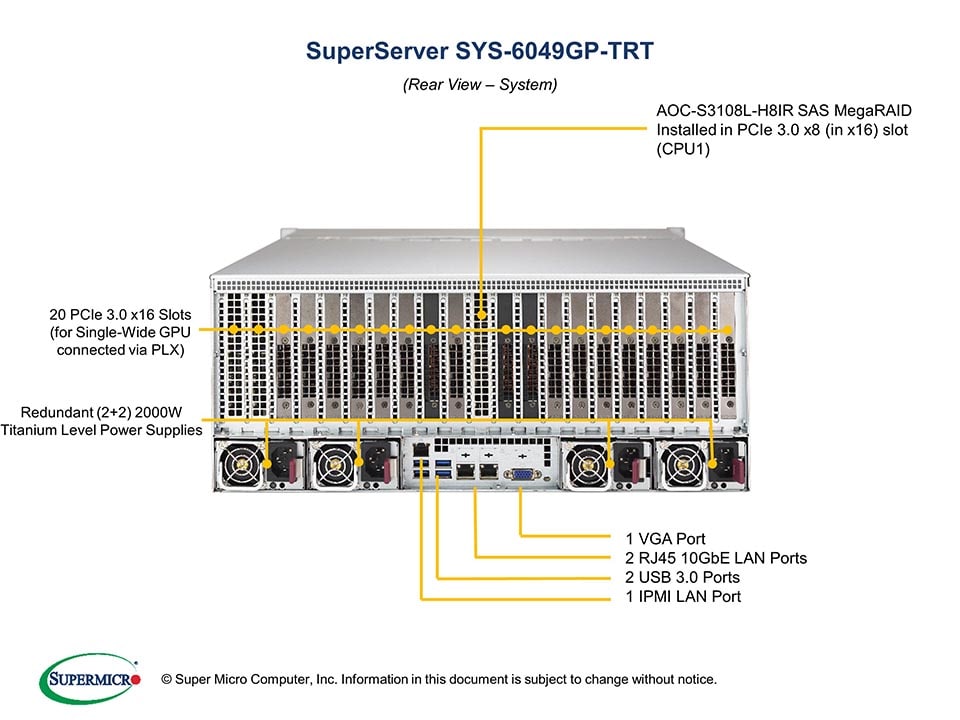

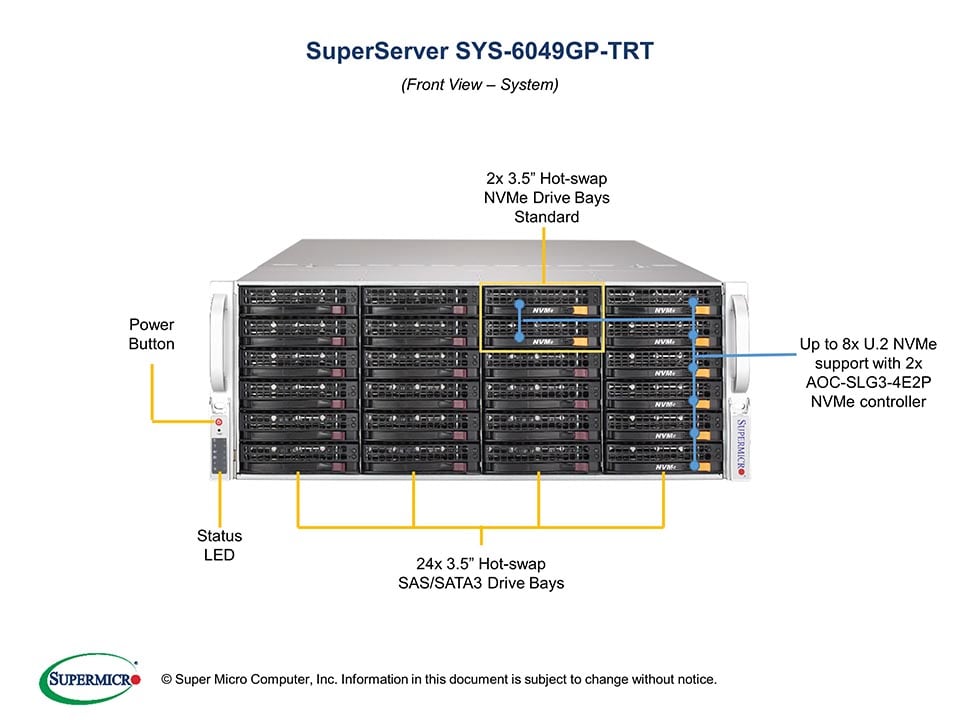

| Front View | Rear View |

Key Applications
  - AI/ML, Deep Learning Training and Inference
  - Big Data Analytics
  - High Performance Computing (HPC)
  - Research Laboratory/National Laboratory
  - Video Transcoding
  - High Performance Computing (HPC)
  - Video Transcoding


Key Features
1. Supports 20 NVIDIA® T4 PCI-E
    Single-Width GPUs
2. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
3. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 20 PCI-E 3.0 x16 support
    up to 20 single width GPU;
    1 PCI-E 3.0 x8 (FH, FL in x16 slot)
5. 24 Hot-swap 3.5" drive bays or
    22 Hot-swap 3.5" drive bays +
    2 U.2 NVMe 2.5" drives
6. 2x 10GBase-T LAN ports
7. 8 Hot-swap 92mm RPM cooling fans
8. 2000W (2+2) Redundant Power
    Supplies Titanium Level (96%+)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options   NVMe Options  Tested M.2 List   Manuals   OS Certification Matrix   Compatible GPU List

Product SKUs
SYS-6049GP-TRT
  • SuperServer 6049GP-TRT

Motherboard

Super X11DPG-OT-CPU

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU
Supported GPUs
  • 20 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
  • NVIDIA T4
  • Compatible GPU list
CPU-GPU Interconnect
  • PCI-E Gen 3 x16 Switch CPU-GPU Interconnect
GPU-GPU Interconnect
  • PCI-E, NVIDIA® NVLink™ Bridge (Optional)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Dual Port 10GbE from C622
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 24 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
COM Port
  • 1 COM port (header)

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-848GTS-R4000P

Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 32.1" (815mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Colors
  • Black

Drive Bays / Storage
Hot-swap
  • 24 Hot-swap 3.5" drive bays or 22 Hot-swap 3.5" drive bays + 2 U.2 NVMe 2.5" drives
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factors: 2280, 22110
  • Key: M-Key

Expansion Slots
PCI-Express
  • 20 PCI-E 3.0 x16 (FHHL) slots - supporting up to 20 NVIDIA T4 Single-Width GPUs
  • 1 PCI-E 3.0 x8 (FH, FL in x16) slot

System Cooling
Fans
  • 8x 92mm RPM Hot-Swappable Cooling Fans

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPG-OT-CPU
MBD-X11DPG-21-PCIE-P
CSE-848GTS-R4000P
1
1
1
Super X11DPG-OT-CPU motherboard
Super X11DPG-21-PCIE daughterboard
CSE-848GTS-R4000P Chassis
Add-on Card / Module AOC-S3108L-H8IR 1 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 240HDD - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
Backplane BPN-SAS3-846EL1-N8 1 24-Port 4U Expander Backplane Support up-to 16x 3.5" SAS3/SATA3 HDD/SSD and 8 x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0673-1 2 PWYCB,2X4F/P4.2 TO 2 1X4F/P5.08,65/70CM,16AWG,5/12V,RoHS
Cable 2 CBL-PWEX-1028 2 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 3 CBL-SAST-0531 2 MINI SAS HD,12G,INT,80CM,30AWG
Cable 4 CBL-SAST-0819 2 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Parts MCP-130-41802-0B 1 Black plastic palm cover for X10DRG-O-PCIE
Riser Card RSC-X9DRG-O 4 RSC-X9DRG-O
Heatsink / Retention SNK-P0068APS4 2 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
* Power Supply PWS-2K05A-1R 4 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
* Cable 5 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
* Cable 6 CBL-0174L 4 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
* FAN 1 FAN-0151L4 8 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF
* Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
* Drive Tray(s) MCP-220-00075-0B 24 Black gen 5.5 hot-swap 3.5"; HDD tray
* Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X
* Parts MCP-260-41801-0N 1 IO shield for X9DRG-O in SC418G
* Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
* Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
* Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
* Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
* Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
* FAN 2 MCP-340-00044-0N 1 92x92x38 mm, 11.5K RPM, 4-pin PWM Bare Fan
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays MCP-220-00118-0B
MCP-220-00043-0N
1-12 Tool-less black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab)
Black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab)
Hot-swap 3.5" to 2.5" NVMe Drive Tray MCP-220-00138-0B 1-4 Tool-less black hot-swap 3.5-to-2.5 converter NVMe drive tray (Orange tab)
Cables CBL-PWEX-1028 1 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cables CBL-PWEX-1040 1 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
