SuperServer 5039MS-H12TRF

  Products  Systems   MicroCloud   [ 5039MS-H12TRF ]





Integrated Board
Super X11SSE-F

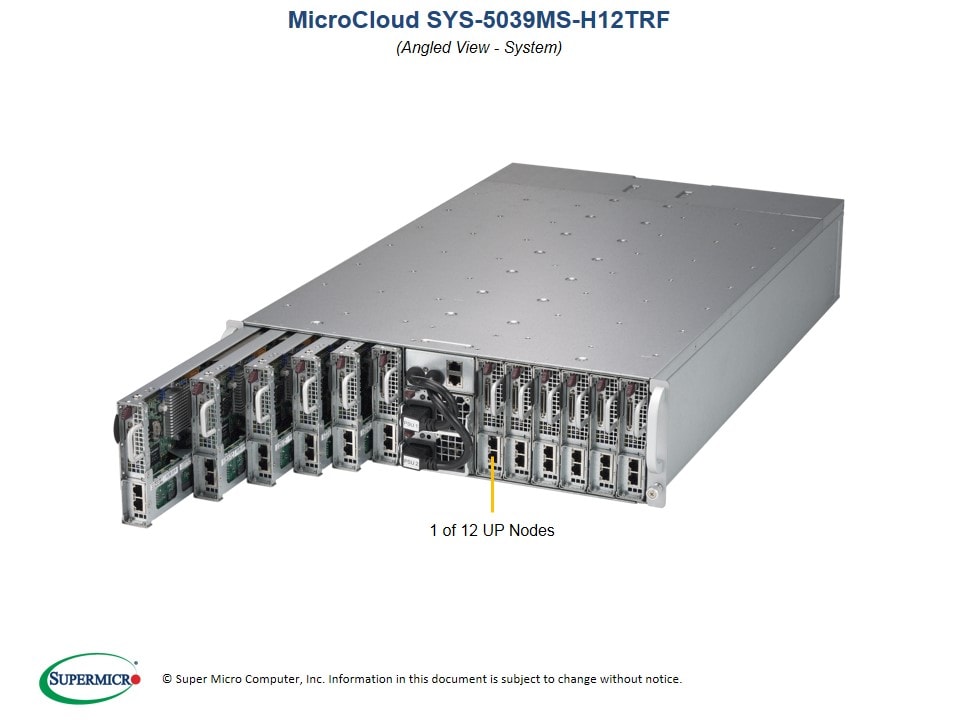

Views: | Angled View | Node View |

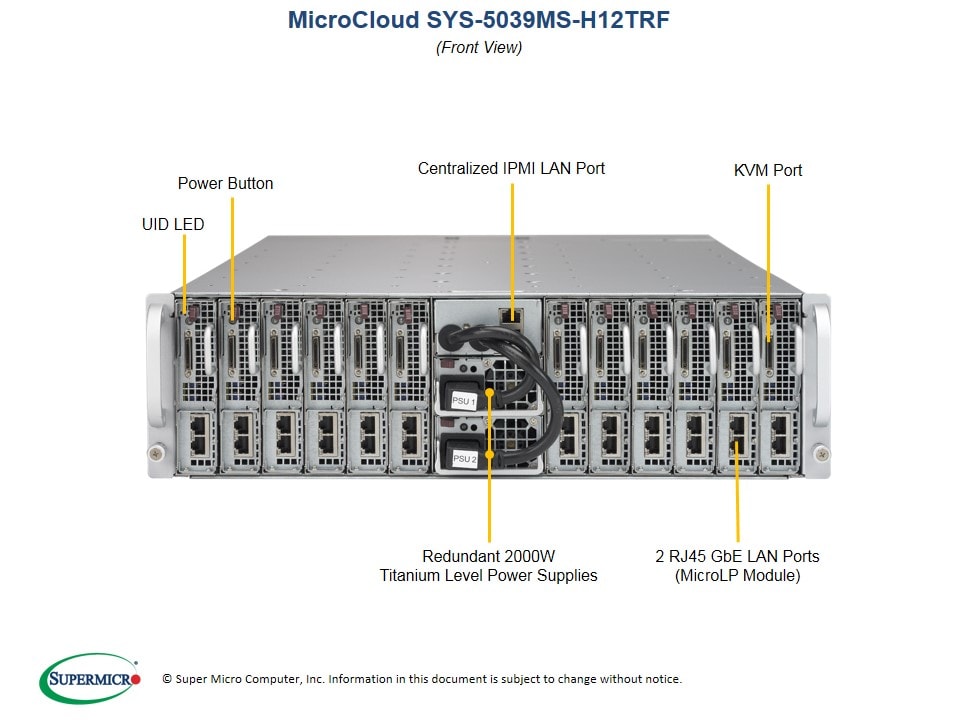

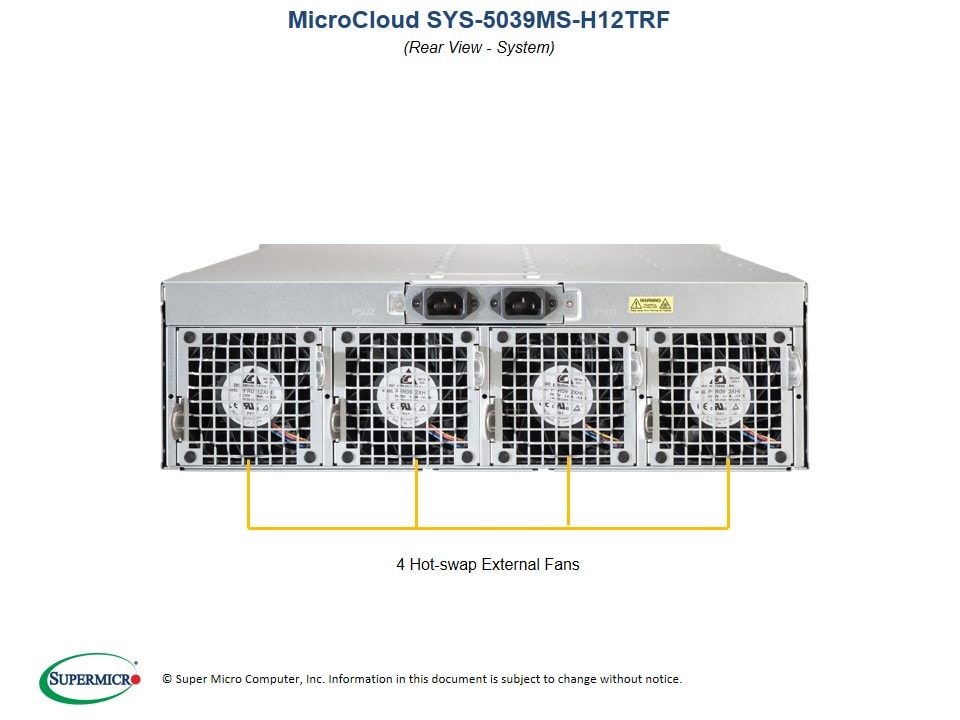

| Front View | Rear View |

Key Features (per node)
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking
• Corporate-WINS, DNS, Print, Login

1. Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen. Core™ i3 series,
    Intel® Celeron® and Intel® Pentium®
2. 2x 3.5" SATA3 or 4x 2.5" SATA3 or
    2x 2.5" NVMe + 2x 2.5" SATA3
    or 2x 2.5" NVMe + 1x 3.5" SATA3
3. Up to 64GB DDR4 VLP ECC UDIMM
    2400MHz support in 4 slots
4. 2 GbE LAN ports via Intel i350
5. 1 Centralized IPMI managemet port
6. 2 USB 2.0, 1 VGA, 1 COM port,
    (with KVM dongle)
7. 1 USB 3.0 (Type A), 1 SATA DOM
8. 4 heavy duty 9cm hot-swap fans with
    optimal cooling zone (per system)
9. 2000W Redundant power supplies
    Titanium Level Certified (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5039MS-H12TRF (Black)

Motherboard
Super X11SSE-F

Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen Core™ i3,
    Intel® Pentium®,
    Intel® Celeron® processors
  • CPU TDP up to 80W
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory (per node)
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Supports up to 64 GB DDR4 VLP ECC Un-Buffered memory (UDIMM)
Memory Type
  • 2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs
DIMM Sizes
  • 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset
  • Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Headers
  • 1 Type A USB 3.0
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Network Devices (per node)
Micro-LP NIC
  • Intel® i350 GbE controller
  • Dual RJ-45 connectors
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/O Acceleration Technology (I/O AT)
  • MicroLP Adapter Matrix (Networking options)

Input / Output (per node)
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
DOM
  • SATA DOM (Disk on Module) power connector support
KVM
  • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Front Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-939HS-R2K04B

Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.5" (444.5 mm)
Depth
  • 29.5" (749.3 mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 95lbs (43.09kg)
  • Net Weight w/ 2.5" HDDs: 115lbs (52.16kg)
  • Net Weight w/ 3.5" HDDs: 132lbs (59.87kg)
  • Gross Weight: 125lbs (56.70kg)
Color
  • Black

Drive Bays (per node)
Internal
  • 2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 1x 3.5" SATA3 OR 2x 2.5" NVMe + 2x 2.5" SATA3; up to 48x 2.5" drives total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4 Heavy duty 9cm fans with optimal cooling zone

Power Supply (76mm Width)
2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166.7A / Min: 0A (230Vac-240Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%    Titanium Level
    [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SSE-F
CSE-939HS-R2K04B
12
1
Super X11SSE-F Motherboard
3U Chassis
Add-on Card / Module AOM-PDB-MC12S-P 12 AOM-PDB-MC12S
Add-on Card / Module AOM-CGP-I2M-P 12 AOM-CGP-I2M-O-P
Add-on Card / Module AOM-GEM-001-P 1 [NR]AOM-GEM-001-O-P
Add-on Card / Module AOM-LAN-MC12S-P 1 [NR]AOM-LAN-MC12S-P
Add-on Card / Module AOM-BPN-MC12S-P 12 AOM-BPN-MC12S
Backplane BPN-SAS-939HS 1 12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Heatsink / Retention SNK-P0047PSR 12 LP CPU Heat Sink for 12-node Micro Cloud Series Servers
Heatsink / Retention SNK-P0047PSRK 12 Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server
Rail set MCP-290-41803-0N 1 set Rail set support 28.5" to 33.7" depth rail,RoHS/REACH,PBF
Power Supply PWS-2K04F-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, 360x76x40 mm,HF,RoHS/REACH


Optional Parts List
  Part Number Qty Description
Network Card(s) AOM-CTG-i2SM-12
AOM-C25G-m1SM
AOM-C25G-i2SM-12
AOM-CTGS-i2TM
AOM-CTG-i1SM
AOM-CIBF-m1M

-
-
-
-

MicroLP 2x 10GbE SFP+, PCI-E 3.0 x8, Intel 82599ES
MicroLP, 1x 25GbE SFP28, PCI-E 3.0 x8, Mellanox®
MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node
MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN, ver 1.21 only
MicroLP, 1 x 40GbE QSFP, PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR controller
TPM security module
(optional, not included)
AOM-TPM-9665H-C
AOM-TPM-9665H
AOM-TPM-9655H-C
AOM-TPM-9655H
-
-
Horizontal TPM 2.0 module with Infineon 9665 and TXT Ready
Horizontal TPM 2.0 module with Infineon 9665
Horizontal TPM 1.2 module with Infineon 9655 and TXT Ready
Horizontal TPM 1.2 module with Infineon 9655
Add-on Card / Module AOM-BPN-MC12S4-P 12 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS
Bracket MCP-240-93912-0N
MCP-290-93903-0N-PACK
12
1
Bracket for 4NVMe MB tray with NVMe standoff
SC939HN bracket with FAN
SATA DOM MEM-IDSAHM3A-016G
MEM-IDSAHM3A-032G
MEM-IDSAHM3A-064G
MEM-IDSAHM3A-128G
-
-
-
-
SATA3 DOM SH 3ME 16GB MLC 1ch Horizontal
SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal
SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal
SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
