SuperServer 5019A-FTN10P

  Products  Systems   [ 5019A-FTN10P ]





Integrated Board
A2SDV-8C-LN10PF

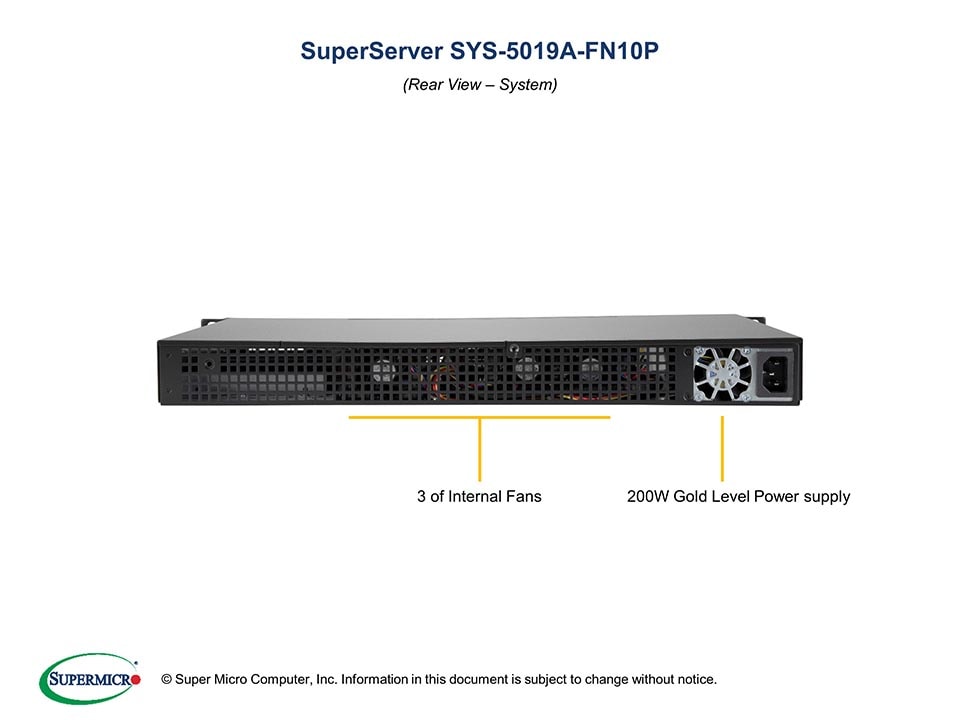

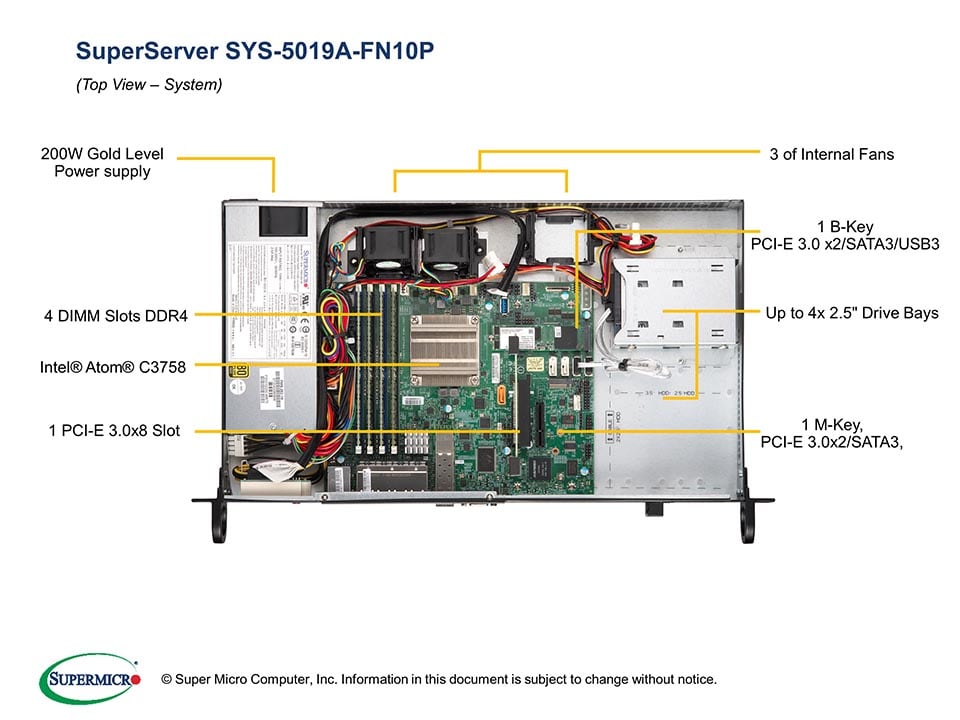

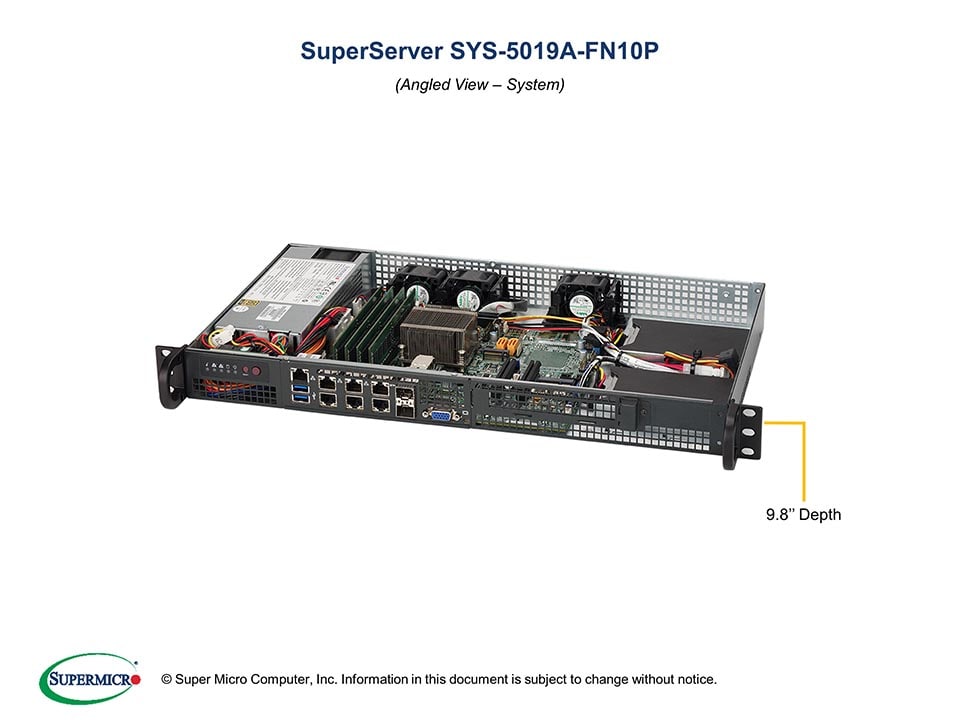

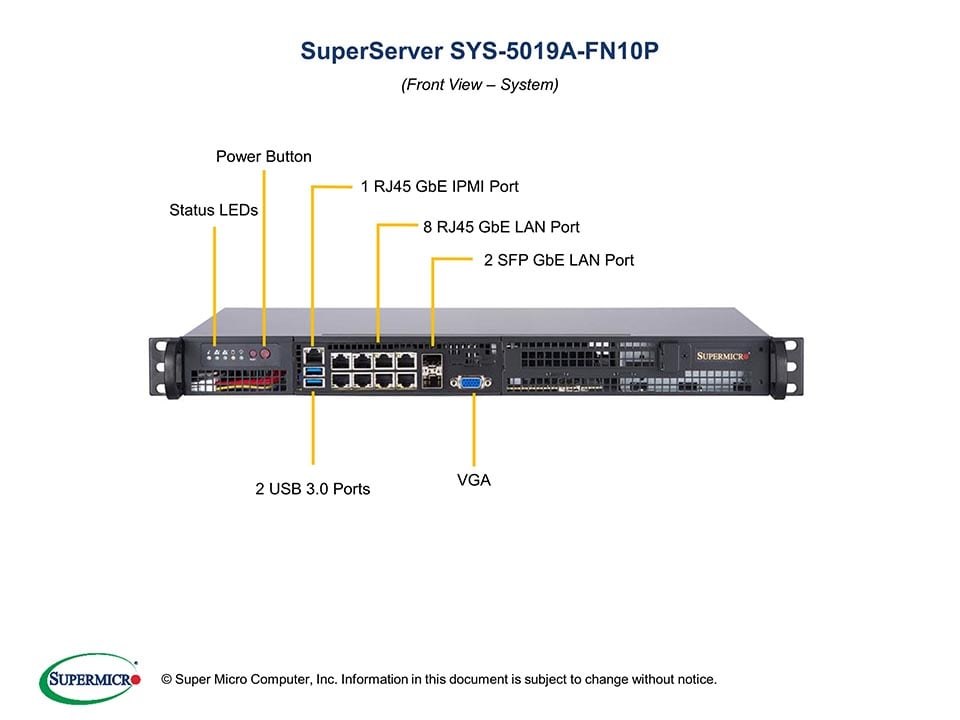

Views: | Angled View | Top View |
| Front View | Rear View |

Key Applications
• Network Security Appliance
• Edge Computing Server
• Virtualization Server


Key Features
1. Intel® Atom® processor C3758,
    Single socket FCBGA 1310;
    8-Core, TDP 25W
2. 1x 3.5" or 4x 2.5" internal drive bays
3. 1 PCI-E 3.0 x4, 1 M.2 (M-Key 2242/
    2280, SATA3/PCI-E 3.0 x2), 1 M.2 (B-Key
    3042/2280, SATA3/PCI-E 3.0 x2/USB 3.0)
4. Up to 256GB ECC RDIMM DDR4
    2400MHz or 64GB ECC/non-ECC
    UDIMM in 4 DIMM slots
5. 8 RJ45 GbE LAN, 2 SFP GbE LAN,
    1 dedicated IPMI RJ45 GbE LAN
6. 2 USB 3.0, 1 VGA, 1 SuperDOM, TPM
7. 3x 40x28mm 4-pin PWM fans
8. 200W Low-noise AC-DC power supply

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals   Drive Options

Product SKUs
SYS-5019A-FTN10P
  • SuperServer 5019A-FTN10P (Black)

Motherboard

Super A2SDV-8C-LN10PF

Processor
CPU
  • Intel® Atom® processor C3758
  • FCBGA 1310 supported
  • CPU TDP support 25W

System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 256GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
SATA
  • SoC controller for 5 SATA3 (6Gbps) ports
Network Controllers
  • Quad GbE LAN with Intel® C3000 SoC
  • Quad GbE LAN with Intel® Ethernet Controller I350-AM4
  • Dual SFP GbE LAN with Intel® Ethernet Controller I210-IS
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • BMC integrated ASPEED AST2400

Input / Output
SATA
  • 5 SATA3 (6Gbps) ports
LAN
  • 8 RJ45 Gigabit Ethernet LAN ports
  • 2 SFP Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Serial Port
  • 1 COM port (optional)
DOM
  • 1 SATA DOM (Disk on Module) power connector
VGA
  • 1 VGA Port
Others
  • TPM header
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 9.8" (249mm)
Weight
  • Net Weight: 8 lbs (3.62 kg)
  • Gross Weight: 12 lbs (5.44 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Information LED (temp., status)

Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x4 slot
  • 2 M.2 (1 M-Key 2242/2280 SATA3/PCI-E 3.0 x2 ,1 B-Key 3042/2280 SATA3/PCI-E 3.0 x2/USB 3.0)

Drive Bays
HDD
  • 1x 3.5" or 4x 2.5" internal hard drive bays (optional) *

System Cooling
Fans
  • 3x 40x28mm 4-PIN PWM fans

Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
  • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
  • 8.0 Amp (max.)
+5V standby
  • 2.0 Amp (max.)
+12V
  • 16 Amp (max.)
-12V
  • 0.5 Amp (max.)
+3.3V
  • 8.0 Amp (max.)
Certification Gold Level Certified
  Gold Certified


System BIOS
BIOS Type
  • AMI UEFI BIOS
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-A2SDV-8C-LN10PF
CSE-505-203B
1
1
Super A2SDV-8C-LN10PF Motherboard
1U Chassis
FAN 1 FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Rear Window MCP-240-00091-0N 2 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Parts MCP-260-00135-0B 1 1U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket
Fan Holder MCP-320-81302-0B 3 Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8
Power Supply PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS


Optional Parts List
  Part Number Qty Description
HDD Bracket MCP-220-00044-0N - Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
Rack Mount Kit MCP-290-50404-0N - Rack Mount Kit for CSE-504-203B
SuperDOM - - Supermicro SATA DOM Solutions [Details]
