SuperWorkstation 5038A-I

  Products  Systems  Mid-Tower   [ 5038A-I ]





Integrated Board
Super X10SRA

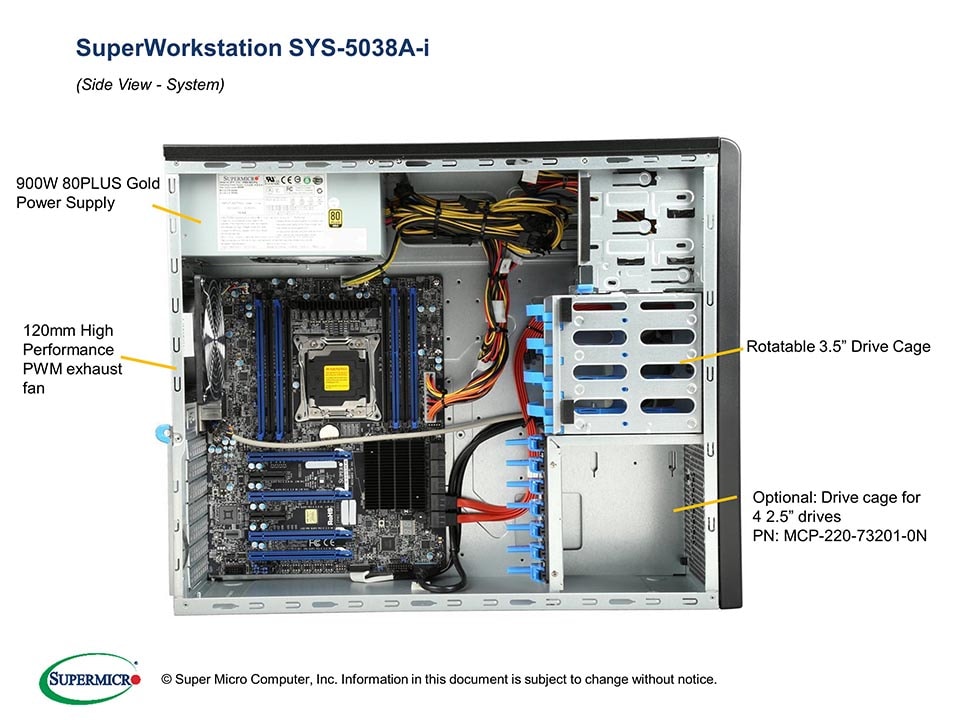

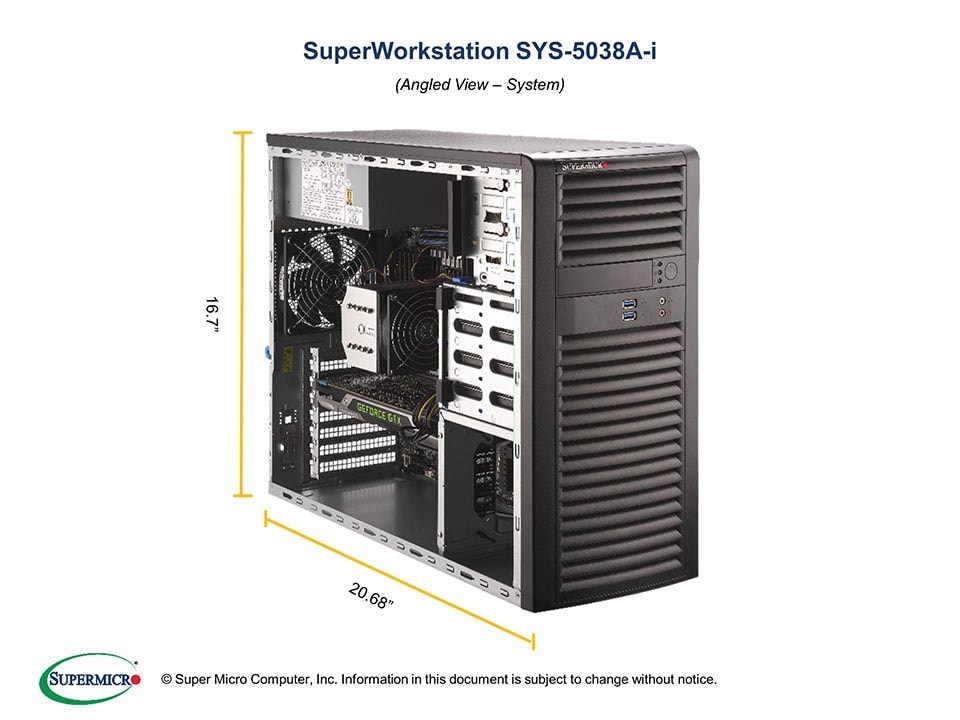

Views: | Angled View | Side View |

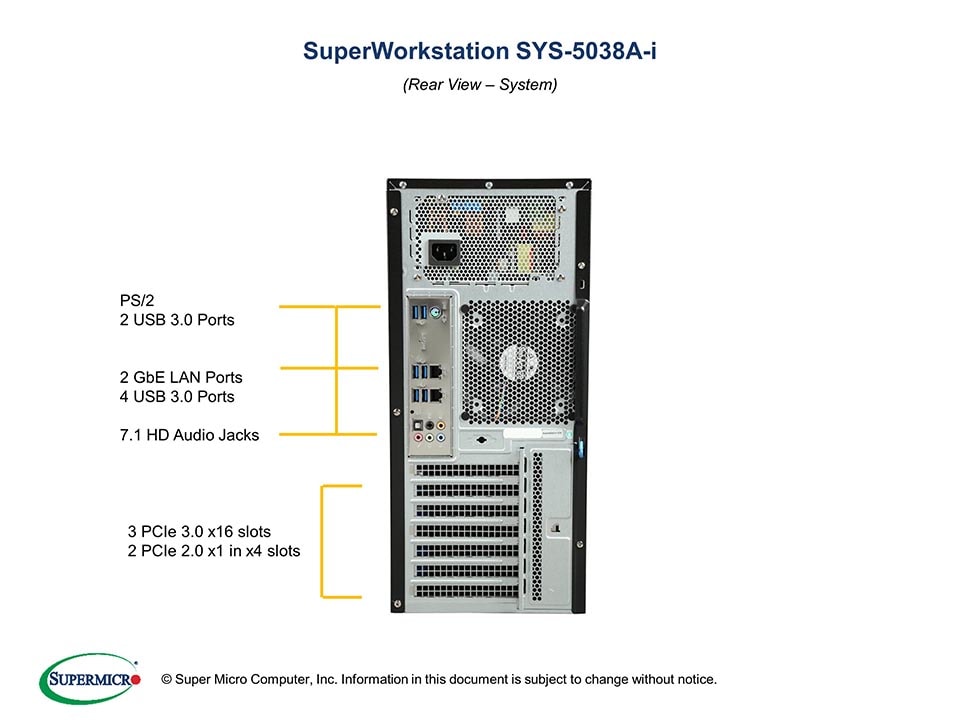

| Front View | Rear View |


Key Features
High Performance, Versatile Features & I/O Access
1. Single socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3, E5-1600 v4/ v3, 4th gen. Core i7
2. Intel® C612 chipset
3. Up to 512GB ECC DDR4 2400MHz
    LRDIMM or 128GB ECC/non-ECC
    UDIMM (available with Core i7 only);
    8x DIMM slots
4. 4x PCI-E 3.0 x16 slots (runs
    at 16/16/NA/8 or 16/8/8/8),
    2x PCI-E 2.0 x1 (in x4) slots
5. I/O Ports: 2 GbE, ALC 1150 HD Audio,
    6 USB 3.0 + 2 USB 3.0 (front), 1 COM,
    1 TPM, 1 PS/2 Keyboard/Mouse port
6. 4x 3.5" internal drive bays
7. 900W Multi-Output Power Supply

Available Colors: Black

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SuperWorkstation
  • SYS-5038A-I (Black)

Motherboard

Super X10SRA

Processor
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4/ v3 family or Intel® Core™ i7 series (up to 160W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache
  • Up to 22 Cores / Up to 55MB Cache
Note BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM
  • Up to 512GB ECC LRDIMM
  • Up to 256GB ECC RDIMM
  • Up to 128GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
Memory Type
  • 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • 3DS LRDIMM: 128GB
  • LRDIMM: 64GB, 32GB
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Intel® i210-AT Dual Port Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC1150 High Definition Audio

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports via PCH
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 8x USB 3.0 ports (2 front + 6 rear)
Audio
  • 7.1 HD Jacks
Keyboard/Mouse
  • 1x PS/2 Keyboard/Mouse port
Serial Port / Header
  • 1x header
TPM
  • 1x TPM 1.2 20-pin Header

Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
  • 2x PCI-E 2.0 x1 (in x4) slots

    PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when an Intel Core i7-5820K is installed

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Management
Software
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • Mid-Tower
Model

Dimensions and Weight
Height
  • 16.7" (424mm)
Width
  • 7.6" (193mm)
Depth
  • 20.68" (525.3mm)
Weight
  • Gross Weight: 35.5 lbs (16.1kg)
  • Net Weight: 29.5 lbs (13.4 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Information LED
Ports
  • 2x front USB 3.0 Ports
  • 2x front HD/AC97 Audio Ports

Drive Bays
Internal
  • 4x 3.5" fixed drive bays
  • Enterprise SATA HDD only recommended
Peripheral
  • 2x 5.25" peripheral drive bays
  • 1x card reader module

System Cooling
Fans
  • 1x 12cm front cooling fan

Power Supply
900W AC multi output power supply
AC Voltage
  • 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby
  • 3 Amp
+12V1
  • 25 Amp
+12V2
  • 25 Amp
+12V3
  • 25 Amp
+12V4
  • 25 Amp
+5V
  • 25 Amp
+3.3V
  • 25 Amp
-12V
  • 0.5 Amp
Certification Gold Level   Gold Level
Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • 5 fan headers with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X10SRA
CSE-732D3-903B
1
1
Super X10SRA Motherboard
3U Mid-Tower Chassis
Cable 1 CBL-0044L 4 SATA,INT,FLAT,57.7CM,26AWG
Optional Parts List
  Part Number Qty Description
Cable CBL-0179L - SATA CABLE 70CM FLAT S-S PBF
HDD Cage MCP-220-73201-0N - SC732 2.5" HDD Cage (4x Internal 2.5" HDD) - Single Pack
DVD-ROM DVM-LITE-DVDRW24-HBT1 - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Heat Sink SNK-P0050AP4 - 4U active CPU heat sink
Fan FAN-0124L4 - High performance 12cm (1850rpm) cooling fan
Hide Parts List
