SuperChassis 847E1C-R1K23JBODSuperChassis 847E1C-R1K23JBOD

Key Features

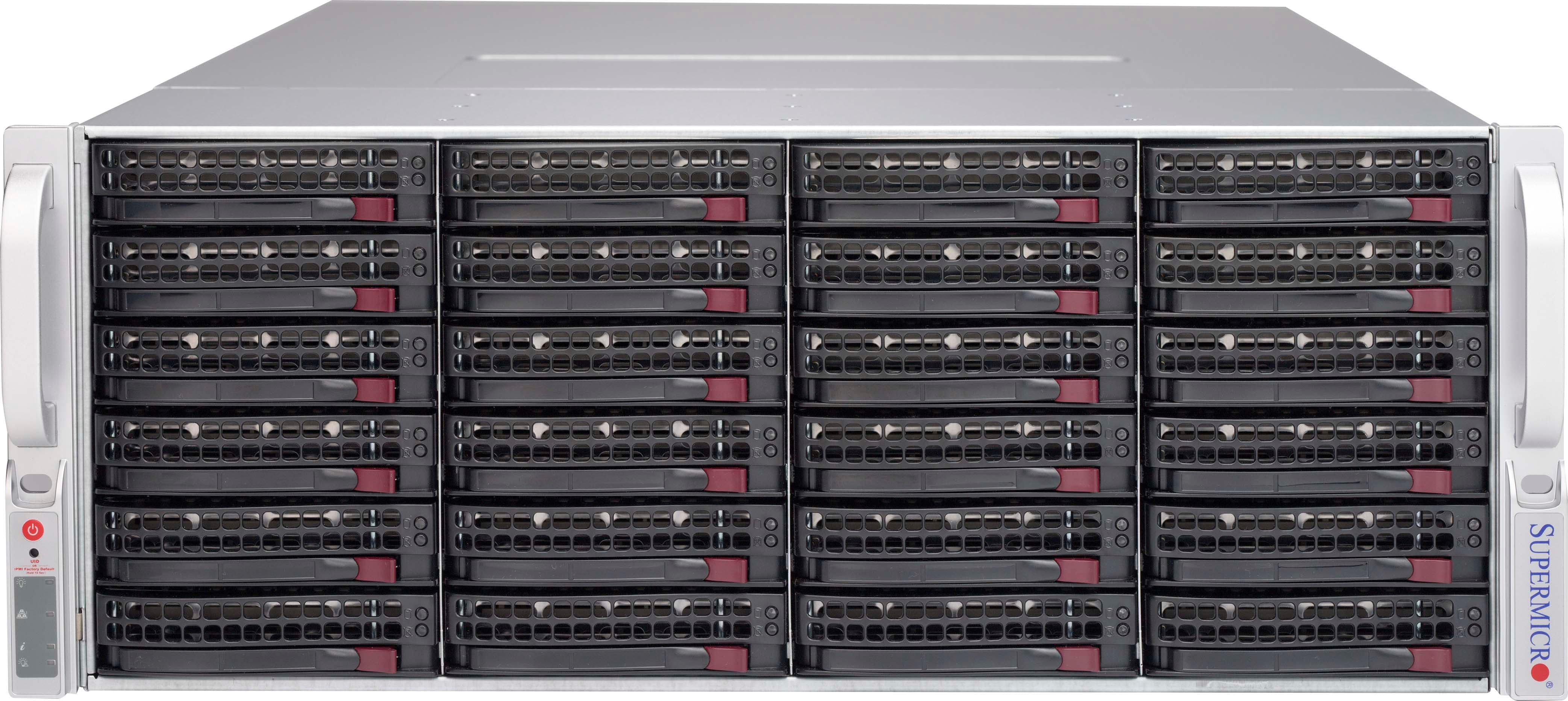

  • Double-sided High Density JBOD Storage Enclosure

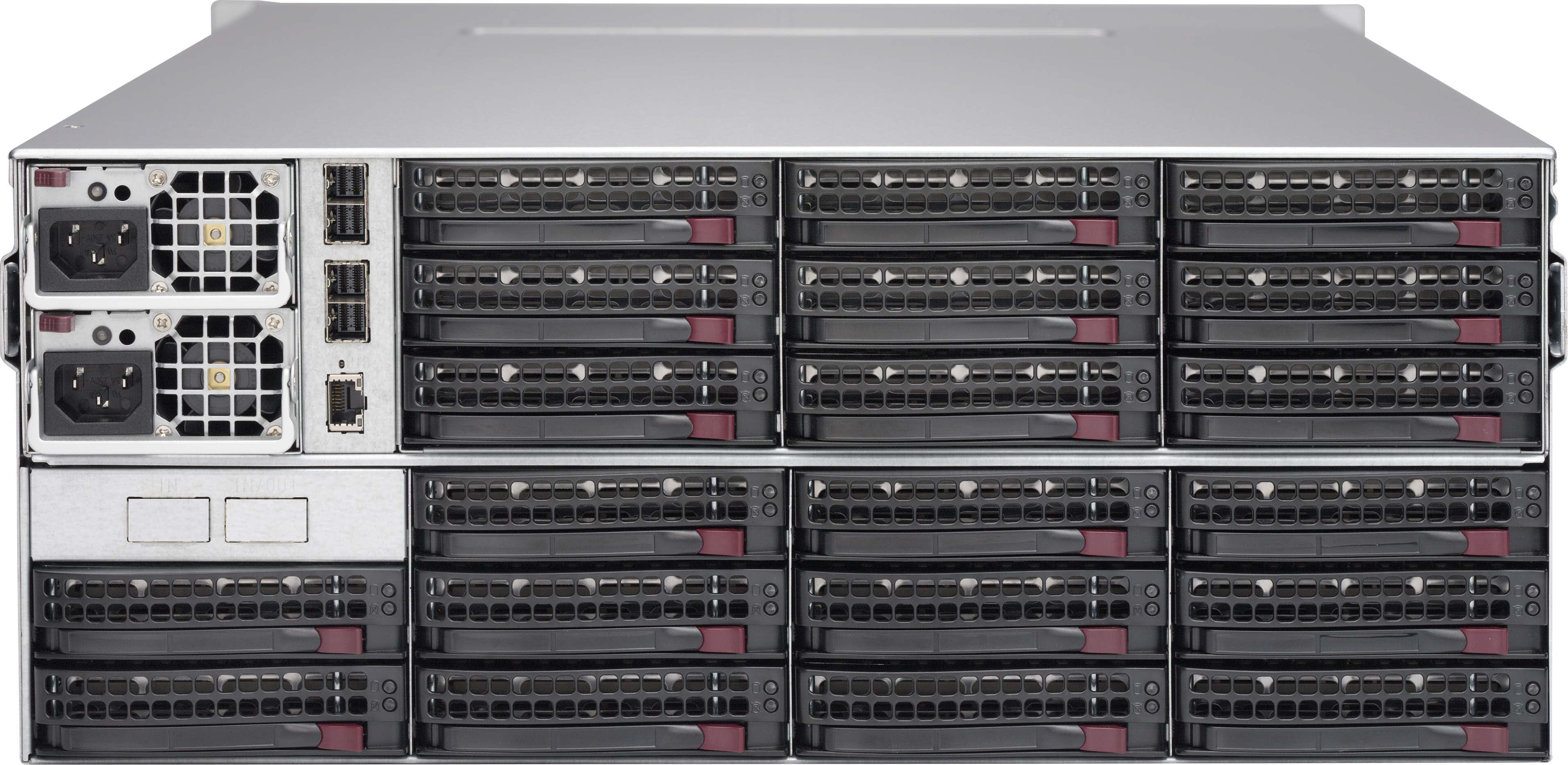

  1. 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
  2. Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
  3. 7x 8cm (middle) hot-swap redundant cooling fans
  4. SAS3 (12Gbps) backplane with single expander supports SAS3/SATA3 drives for capacity expansion
  5. JBOD Power Control Board with IPMI for remote monitor and power on-off
  6. 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
  7. Palletized packaging for easy shipping and handling
  8. Qualified SAS HBA / controller:
    AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
    AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller

For optimal performance and quality, Supermicro validated drives are recommended. Please contact your Supermicro sales rep for validated HDD.
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 847E1C-R1K23JBOD
Form Factor
  • 4U SAS3 JBOD storage chassis
Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 118 lbs (53.52 kg)
Net Weight
  • 86 lbs (39 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
  • Black
Drive Bays
  • 44x 3.5" hot-swap HDD bay for JBOD solution
Qualified SAS Controllers
  • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
  • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
  • AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
  • AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
  • AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller
Backplane
  • 24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
  • 20-Port 4U (SC847E1C JBOD) SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Power status LED
  • 1 Network activity LEDs
  • Power Fail LED
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 7x 8cm hot-swap redundant PWM cooling fan(s)
System Monitoring
  • IPMI
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT847-8824
  • O/P: 12V/135
  • +5V Max: 100A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Resources
Motherboard (for CSE-847E1C-R1K23JBOD)
Motherboard Name
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis ManualDrive OptionsFirmware
