SuperServer SYS-120C-TR (Complete System Only)

1U CloudDC with 8 SAS/SATA bays

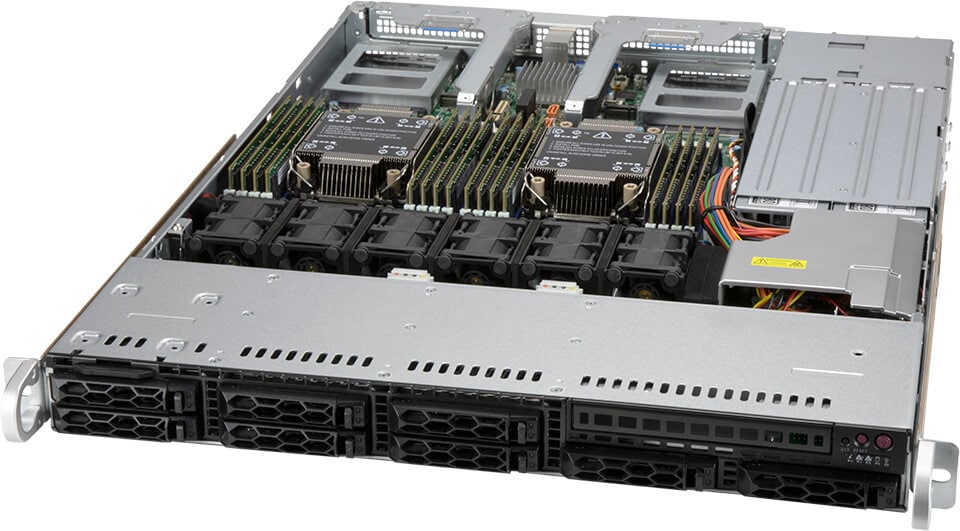

SYS-120C-TR Main SYS-120C-TR Angle SYS-120C-TR Top SYS-120C-TR Front SYS-120C-TR Rear
Integrated Board: X12DDW-A6
Learn more

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A Chipset

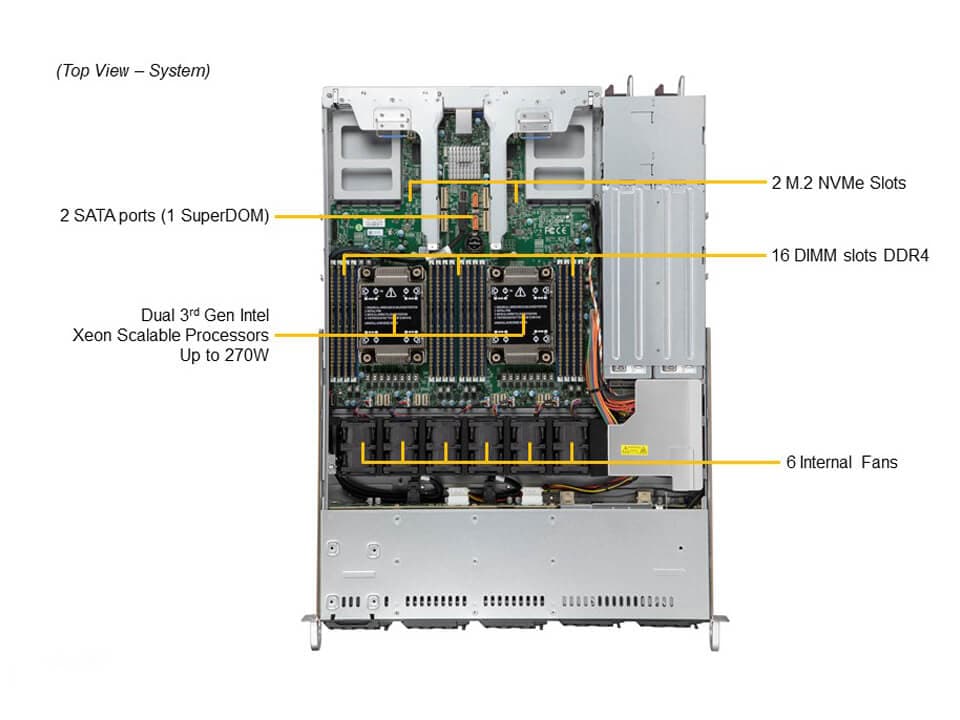

  3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
  4. 2 PCIe 4.0 x16 FHHL;
    2 PCIe 3.0 x2 NVMe M.2
  5. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

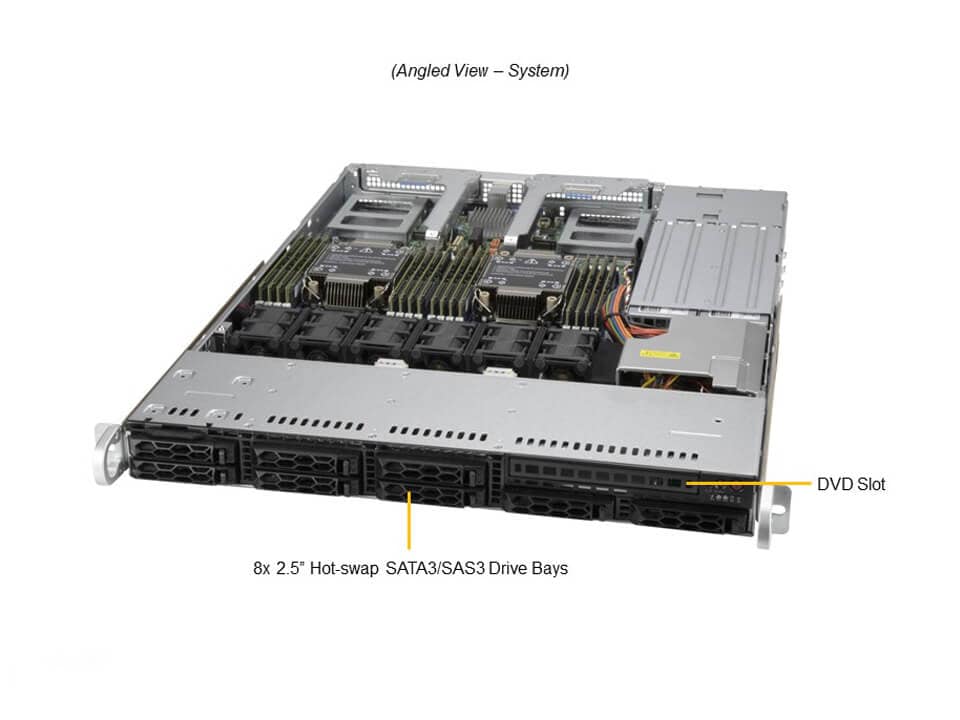

  6. 8x 2.5" hot-swap SATA/SAS drive bays
  7. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  8. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies

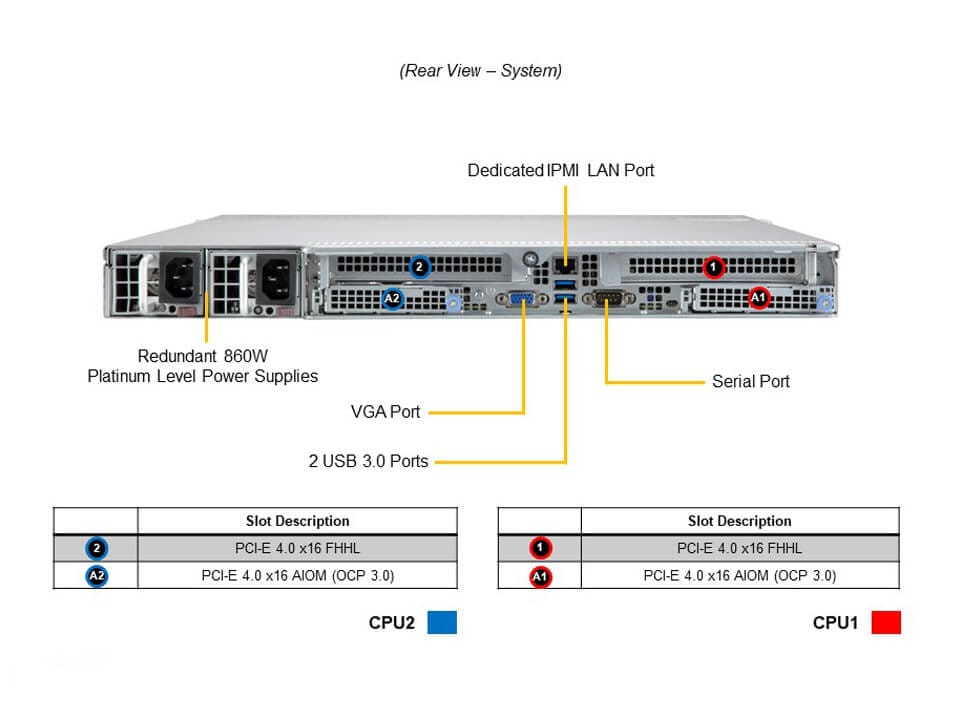

  9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
...
...
SYS-120C-TR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-120C-TR Standard version with PWS-860P-1R2 (Platinum Level)
SuperServer SYS-120C-TR-EU European version with PWS-861A-1R (Titanium Level)
Motherboard
Super X12DDW-A6
Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: L4, A2
  • Intel PCIe: Intel Data Center GPU Flex 140
  • View GPU Options
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
DOM
  • 1 SuperDOM (Disk on Module) port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB13TS-R860AWP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 23.5" (597 mm)
Package
  • 7.8" (H) x 23.8" (W) x 32.4" (D)
Weight
  • Gross Weight: 40 lbs (18.1 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information
Buttons
  • Power On/Off
  • Reset button
  • Unit Identifier (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x16 FHHL slots
  • Option A
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays

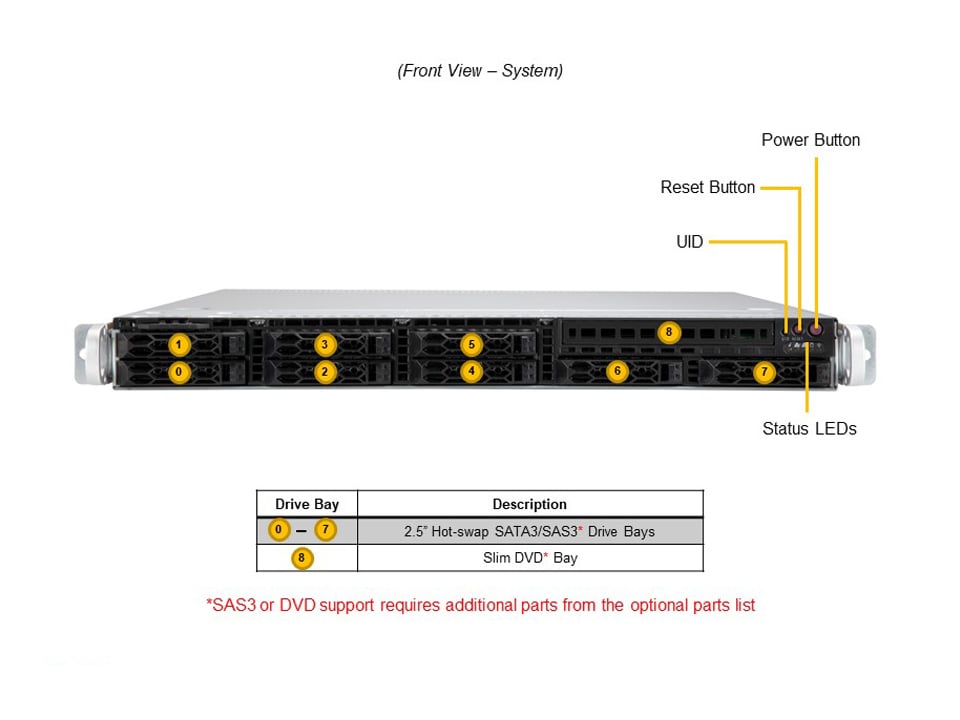

    • 8 front hot-swap 2.5" SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View Drive Options
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
2x 860W
2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12VMax: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
3108 CacheVault BTR-TFM8G-LSICVM02 1 CacheVault for Broadcom 3108 (requires a SuperCap mount)
BTR-CV3108-1U1 1 CacheVault for Broadcom 3108 with mount for 1U 40 cm fan slot. (Note: It will replace one fan and lower overall system cooling)
3108 RAID Card CBL-SAST-0593 • 2 Internal Mini-SAS HD to Mini-SAS HD 60cm
AOC-S3108L-H8IR-16DD • 1 Standard LP 8 internal ports (12Gb/s) Gen-3 16HDD RAID 0, 1, 5, 6, 10, 50, 60
3808 HBA Card CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4 65CM
AOC-S3808L-L8IT 1 Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4 65CM
3908/3916 CacheVault BTR-CVPM05 1 CacheVault for Broadcom 3908/3916 (requires a mount)
AIOM Network Card(s) AOC-AG-i2M - OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
AOC-ATGC-i2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
AOC-ATG-i4SM - OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
AOC-A100G-b2CM - OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
AOC-A25G-b2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2
AOC-A25G-i2SM - OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
AOC-A25G-i4SM - OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
AOC-A25G-m2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
AOC-AG-i4M - OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
AOC-AG-i4SM - OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4
AOC-AH25G-m2S2TM - OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2
AOC-ATG-b2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
AOC-ATG-i2SM - OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2
AOC-ATG-i2T2SM - OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4
AOC-ATG-i2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2
Cable Management Arm MCP-290-00152-0N • 1 1U Supermicro Cable Management Arm 2nd Gen
CacheVault Mount MCP-240-00127-0N 1 CacheVault mounting tray for 2.5" drive bay
MCP-240-00203-0N • 1 CacheVault mounting bracket for PCIe slot
MCP-240-21747-0N 1 CacheVault mounting card for AIOM slot
DVD MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
DVM-TEAC-DVDRW-SBT5 1 BLACK TEAC SLIM DVD-RW SATA DRIVE
CBL-0234L • 1 Big-4-pin M Y-split to two Big-4-pin F
CBL-0161L 1 15 cm power Y-split to 2x small 4-pins
Fan Upgrade FAN-0163L4 • 6 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
Front USB Kit MCP-220-00087-0B • 1 Black USB tray for slim DVD bay
Inlet Temp Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
License SFT-DCMS-SINGLE • 1 Supermicro System Managment Software License
SFT-SDDC-SINGLE 1 Supermicro Data Center Monitor License
M.2 Tray AOC-SLG4-2H8M2 - Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0,1
AOC-SLG3-2M2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules
AOC-SLG3-2NM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules RAID 0,1
AOC-SLG3-2SM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules RAID 0,1
NC-SI Cable CBL-PWEX-1099-34 1 FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
Power Supply Upgrade PWS-1K27A-1R • 2 1200W Redundant Titanium Level Power Supply
TPM AOM-TPM-9672V 1 SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor
AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor
AOM-TPM-9672V-FIPS 1 SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor
VROC HW Key AOC-VROCSTNMOD 1 Intel VROC Standard RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium RAID 0, 1, 5, 10
