SuperServer 2029U-TR25M (Complete System Only)

  Products  Systems   Ultra   [ 2029U-TR25M ]




Integrated Board
Super X11DPU

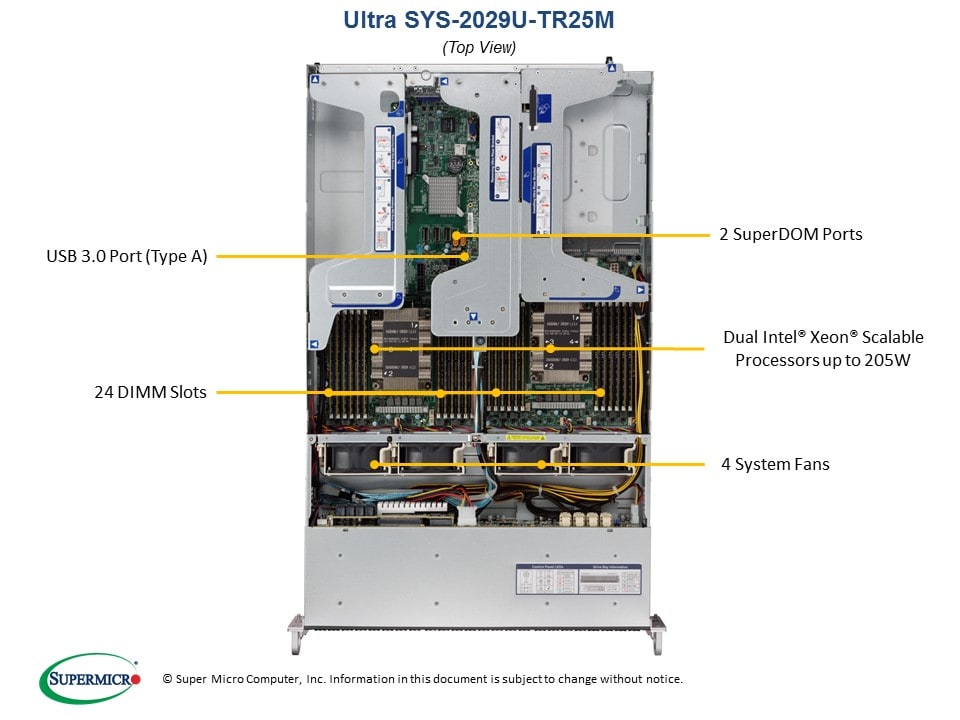

Views: | Angled View | Top View |

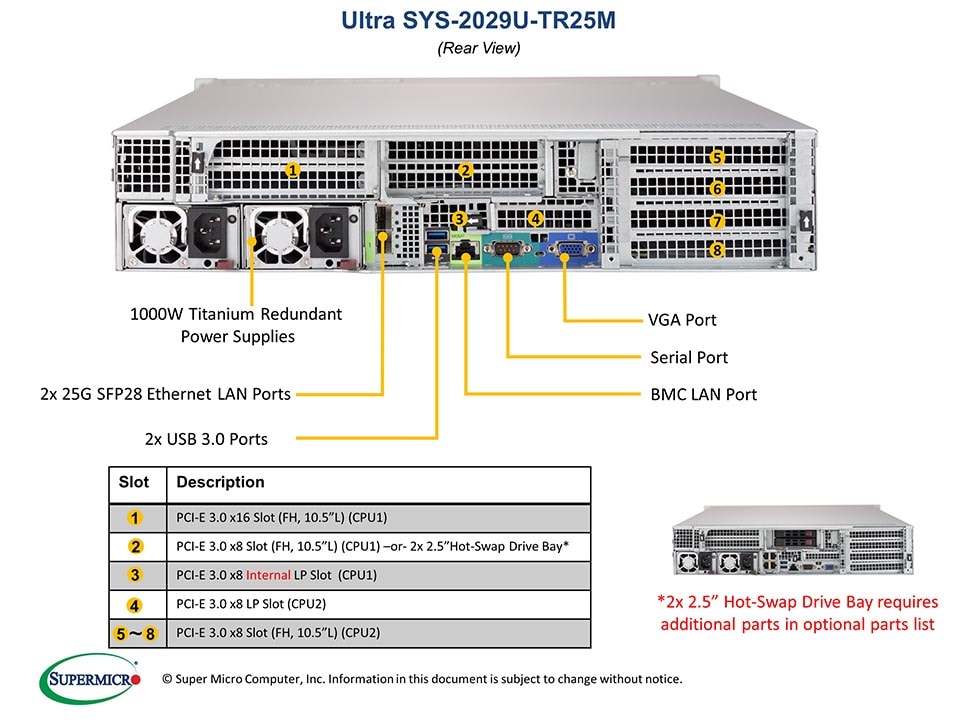

| Front View | Rear View |

 Key Features
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
    5 PCI-E 3.0 x8 slots (FH, 10.5" L),
    1 PCI-E 3.0 x8 slot (LP),
    1 PCI-E 3.0 x8 slot (internal LP)
4. 2 25GbE SFP28 Ethernet ports
5. 24 Hot-swap 2.5" drive bays; 14 SATA3
    (optional 20 SAS3 + 4 NVMe/SAS3),
    Optional 2 hot-swap 2.5" rear drive
    bays for SSDs;
    Optional M.2 NVMe and SATA3 ports
6. 4 Heavy duty 8cm PWM fans
7. 1000W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-2029U-TR25M
  • SuperServer 2029U-TR25M (Black)

Motherboard

Super X11DPU

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  • 2666 ECC DDR4 NVDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • 2 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 14 SATA3 (6Gbps) ports
LAN
  • 2 25GbE SFP28 ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1 VGA Connector
Serial Header
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219U2TS-R1K02P-T

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 27.76" (705.3mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 (FH, 10.5" L)
  • 5 PCI-E 3.0 x8 (FH, 10.5" L)
  • 1 PCI-E 3.0 x8 (LP)
  • 1 PCI-E 3.0 x8 (internal LP)


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / Storage
Hot-swap
  • 24 Hot-swap 2.5" drive bays;
    14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3)
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Backplane
2U SAS/SATA backplane

System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
  • 1000W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DPU
CSE-219U2TS-R1K02P-T 		1
1		 Super X11DPU Motherboard
2U Chassis
Add-on Card / Module AOC-2UR68-M2TS-P 1 2U Ultra 2-port 25G SFP28, 1x PCI-E 3.0 x8 (internal)
Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0673 3 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 2 CBL-SAST-0591 1 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG
Cable 3 CBL-SAST-0655 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
Cable 4 CBL-SAST-0656 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG
Cable 5 CBL-SAST-0657 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
Parts MCP-240-82914-0N 1 Ultra I/O bracket for SC829U, 219U (B2TS)
Air Shroud MCP-310-82921-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, left side)
Air Shroud MCP-310-82922-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, right side)
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x8 slots
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K02A-1R 2 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
FAN 1 FAN-0118L4 4 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot

Optional Parts List
  Part Number Qty Description
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
2U Cable Management Arm MCP-290-00128-0N &
MCP-290-00127-0N		 1 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth)
Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N
CBL-PWEX-0650
CBL-0080L
CBL-0484L Or
CBL-SAST-0654 Or
CBL-SAST-0948		 1
1
2
2
1
1		 Internal drive plate Supports Two 2.5" Drive, PCI slots
Power cable for Two internal 2.5" drives

SATA3 S-S Cable
miniSAS(iPass) to 4 SATA Cable
miniSAS HD to 4 SATA Cable
Cable for 4 NVMe Hybrid Drive Bays 2 CBL-SAST-0929 &
2 CBL-SAST-0972		 1 OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG
2.5" NVMe Drive Trays MCP-220-00167-0B
MCP-220-00127-0B		 1~4 Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)
Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock)
2 Internal M.2 slots (1 SATA, 1 NVMe) RSC-UMR-8 &
CBL-SAST-0538 &
MCP-120-82924-0N &
MCP-310-21902-0N		 1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8
2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only) MCP-240-82922-0N-OEM - Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less
Storage Control Card and Cable(s) AOC-S3008L-L8e &
2x CBL-SAST-0593
AOC-S3008L-L8i &
2x CBL-SAST-0593
AOC-S3108L-H8iR &
2x CBL-SAST-0593
AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593 		1~3 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Compatible Networking Cables and Transceivers for System default Networking (AOC-2UR68-m2TS) - 1~2 Networking Cables and Transceivers Compatibility Matrix
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STGF-i2S
AOC-STG-i4S
AOC-STG-b4S
AOC-STG-i2T
AOC-STGS-i1/2T
AOC-STG-i4T
AOC-STG-i2
AOC-S25G-m2S
AOC-S40G-i2Q
More		 -
-
-
-
-
-
-
-
-
-
-
-		 Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
TPM security module AOM-TPM-9670H-S
AOM-TPM-9671H-S		 1
1		 TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
TCG 1.2 compliant trusted platform module (TPM), Horizontal FF
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
