SuperServer 1029P-WT

  Products  Systems   WIO   [ 1029P-WT ]




Integrated Board
Super X11DDW-L

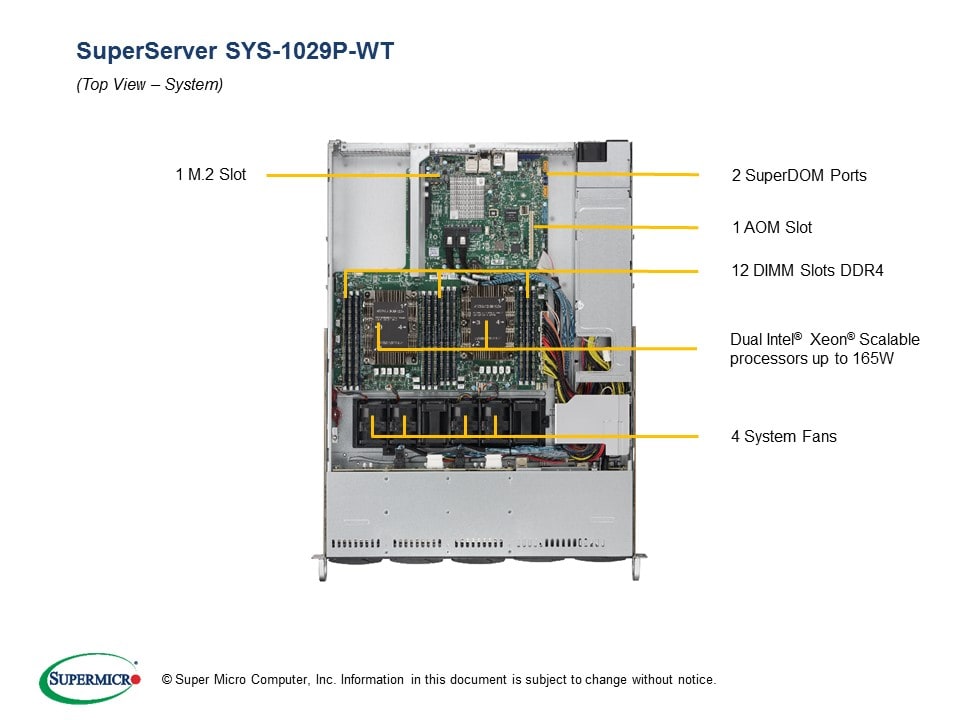

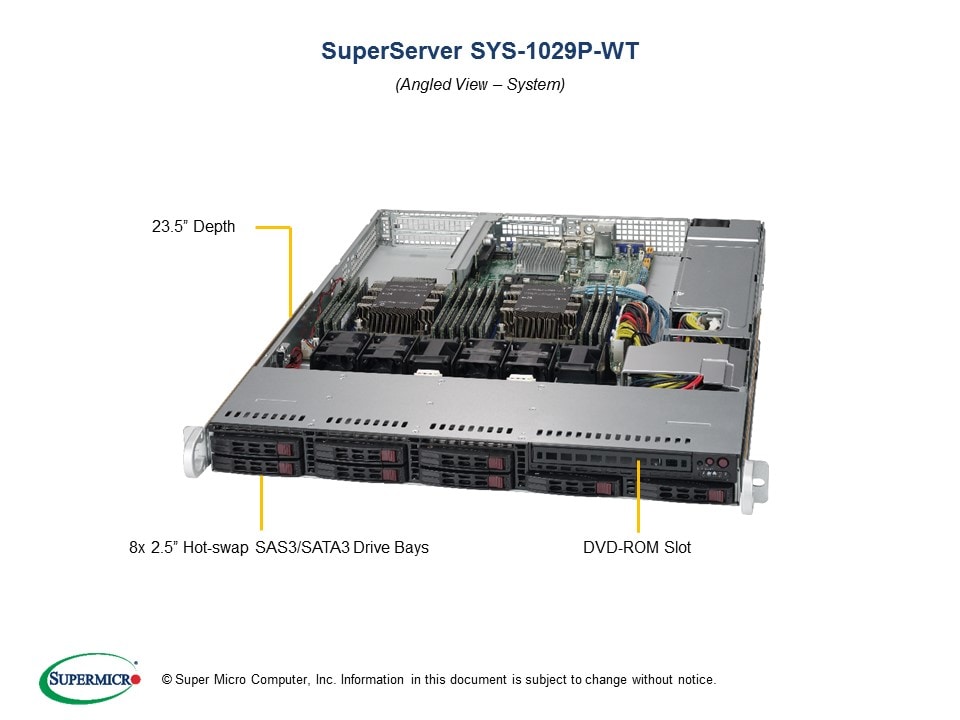

Views: | Angled View | Top View |

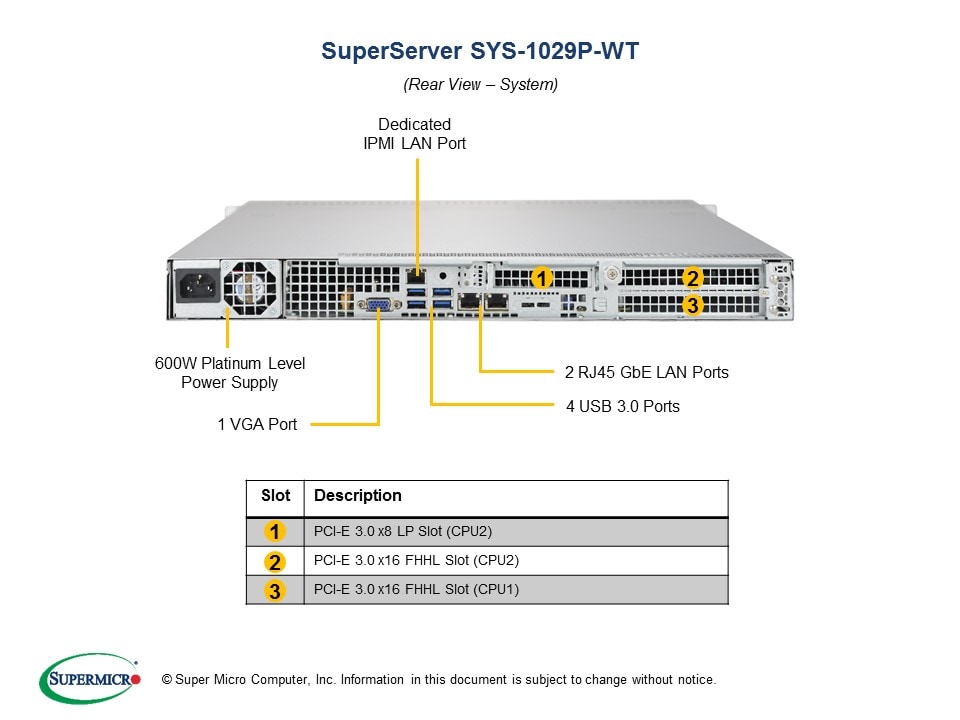

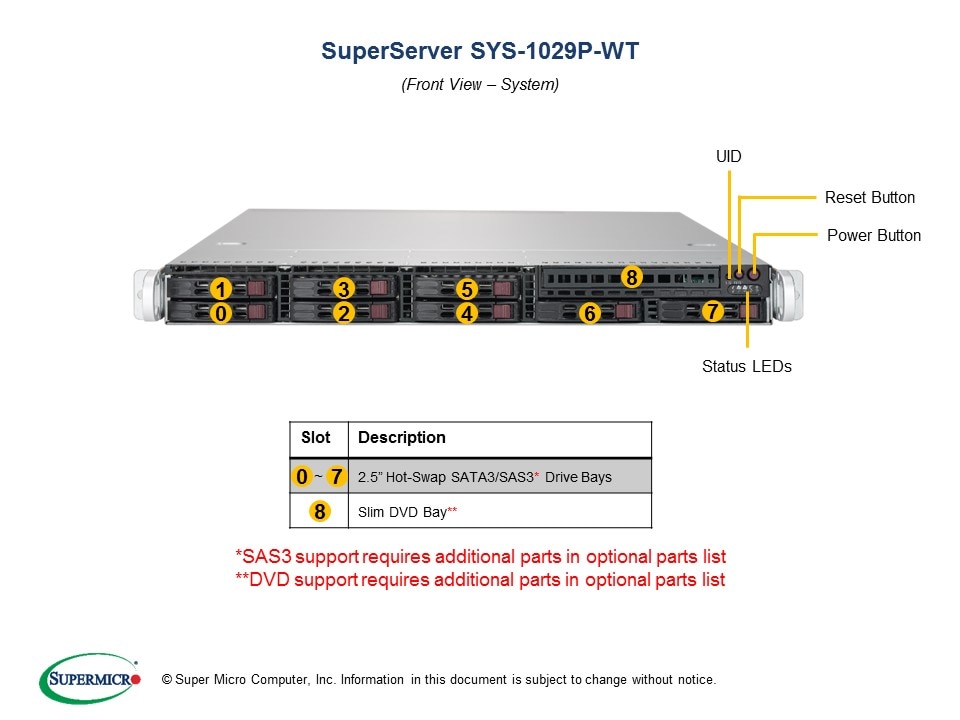

| Front View | Rear View |

 Key Applications
• Web Server, Firewall Apps.
• Corporate-Wins, DNS, Print, Login
• Gateway, provisioning servers
• Compact Network Appliance
• Cloud Computing


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16 (FHHL) slots,
    1 PCI-E 3.0 x8 (LP) slot,
    1 PCI-E 3.0 x16 for Add-on-Module,
    (Support SAS3 Storage controller),
    1 PCI-E 3.0 x4 NVMe M.2 slot
4. 8 Hot-swap 2.5" drive bays,
    1 slim DVD-ROM drive bay (optional)
5. 2x 1GbE LAN ports via Intel C621
6. 1 VGA, 4 USB 3.0 (rear)
7. 2 SuperDOM (Disk on Module) ports
8. 600W Multi Output Power Supply,
    Platinum Level High-efficiency

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Quick-References Guide  Compatible GPU List  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-1029P-WT
  • SuperServer 1029P-WT (Black)

Motherboard

Super X11DDW-L

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W*
Cores
  • Up to 28 Cores
Note * Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244, 6246, 6250 and 6256.
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual LAN with Gigabit Ethernet from C621
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 8 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHHL) slots
  • 1 PCI-E 3.0 x8 (LP) slot
  • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
  • 1 PCI-E 3.0 x4 NVMe M.2 slot


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS/SATA drive bays
Peripheral
  • 1 slim DVD-ROM drive bay (optional)

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC

Power Supply
600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching
AC Input
  • 100-240V, 50-60Hz
DC Output
  • +3.3V: 15A
  • +5V: 18A
  • +5V standby: 3A
  • +12V: 49A
  • -12V: 0.5A
Certification Platinum Level Certified
  Platinum Certified
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DDW-L
CSE-113AC2-605WB 		1
1		 Super X11DDW-L Motherboard
1U Chassis
Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Storage Cable CBL-SAST-0507-01 2 MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG
Rubber Pad MCP-150-00015-0B 2 Rubber pad, 3.0mm H, 10x10mm
Air Shroud MCP-310-19019-0B 2 SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
Air Block MCP-320-00061-0B 1 CR foam for air block in SC113/SC116/SC815
Manual MNL-1962-QRG 1 1029P-WT/WTR Quick Reference Guide
Riser Card (left) RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card (right) RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink w/ Retention SNK-P0067PSMB 2 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
* Power Supply PWS-605P-1H 1 1U 600W Multi Output Power Supply PMbus
* Power Cord CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* FAN FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
* Rail Set MCP-290-00063-0N 1 Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Notes:
  1. Parts with * come with the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
DVD-ROM / RW & Mounting Kit DVM-TEAC-DVD-SBT5
& MCP-220-81502-0N
DVM-TEAC-DVDRW-SBT5
& MCP-220-81502-0N		 1 BLACK TEAC SLIM DVD SATA DRIVE, HF, RoHS
Slim SATA DVD mounting kit
BLACK TEAC SLIM DVD-RW SATA DRIVE, HF, RoHS
Slim SATA DVD mounting kit
Add-on card for additional M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Additional Fan FAN-0156L4 - 40x40x56 mm 13K-11K RPM Counter-rotating Fan
Storage Controller
Card(s) & Cables(s)		 AOC-S3908L-H8IR-16DD &
1x CBL-SAST-1264-100

AOC-S3808L-L8iT &
1x CBL-SAST-1264-100

AOM-S3108M-H8 &
2x CBL-SAST-0531 &
1x FAN-0156L4

AOC-S3108L-H8IR-16DD
& 2x CBL-SAST-0593

AOC-S3008L-L8i &
2x CBL-SAST-0593

AOC-S3008L-L8e &
2x CBL-SAST-0593 		- Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD;
RAID 0, 1, 5, 6, 10, 50, 60; 65cm Slimline to MiniSAS HD Cable

Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD;
HBA; 65cm Slimline to MiniSAS HD Cable

Supermicro LP, 8 internal ports (12Gb/s) SAS Mezzanine;
RAID 0, 1, 5, 6, 10, 50, 60; 80cm MiniSAS HD Cable;
40x40x56 mm 13K-11K RPM Counter-rotating Fan

Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60; 60cm MiniSAS HD Cable

Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10; 60cm MiniSAS HD Cable

Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA; 60cm MiniSAS HD Cable
Alternative Storage Controller Cable CBL-SAST-0531 - Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, up to 4 drives per cable
CacheVault (for 3108) BTR-CV3108-1U1

BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 1 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location
CacheVault (for 3908/3916) BTR-CVPM05 & BKT-BBU-BRACKET-05/MCP-240-00127-0N
BTR-CVPM05 & MCP-240-00203-0N		 1 CacheVault for Broadcom 3908/3916; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3908/3916; SuperCap mounting bracket for 2.5" HDD location
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGS-i1T
AOC-STGS-i2T
AOC-STG-i4T
AOC-STGN-i1S
AOC-STGN-i2S
AOC-STG-i4S
AOC-S25G-i2S
AOC-MCX555A-ECAT

AOC-MCX556A-ECAT 		- Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350AM4
Standard LP, 1x 10GbE RJ45, PCI-E x4, Intel® X550-AT
Standard LP, 2x 10GbE RJ45, PCI-E x4, Intel® X550-AT2
Standard LP, 4x 10GBE RJ45, PCI-E x8, Intel® XL710-BM1
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel® XL710-BM1
Standard LP, 2x 25GbE SFP28, PCI-E x8, Intel® XXV710 + Marvell Unionville
Standard LP, 1x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
Standard LP, 2x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
Front Bezel MCP-210-11601-0B 1 Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support)
Cable Management Arm MCP-290-00085-0N 1 Supermicro Cable Management Arm for 1U Chassis
Inlet Thermal Sensor MCP-280-00033-0N - Universal Thermal sensor kit with 80cm I2C cable
TPM security module (optional, not included) AOM-TPM-9670V-S
AOM-TPM-9671V-S		 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
