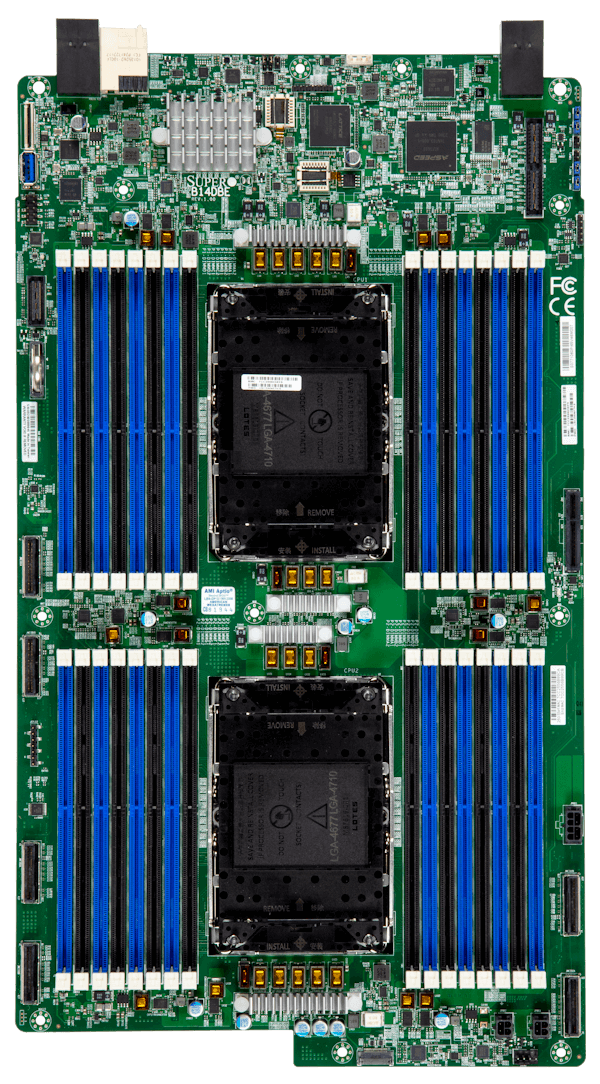

B14DBE

Key Features

Intel® Xeon® 6 processors, Dual Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
Total up to 8TB ECC RDIMM DDR5-6400MT/s in 32 DIMM slots
1 PCIe 4.0 x16 Mezzanine connector
6 PCIe 5.0 x8 via MCIO connectors
Dual 25G LAN with Intel®E810
Onboard TPM2.0
1 PCIe 5.0 x8 E1.S connector for dual M.2 support via adapter card

...

...

Optimized Servers

SBI-622B-1NE34 SBI-622B-5NE34 SBI-622B-1NE38 SBI-622B-5NE38

Specifications

Product SKUs
MBD-B14DBE

Physical Stats
Form Factor	Proprietary
Dimension	17.01" x 9.57" (43.22cm x 24.32cm)

Processor
CPU	Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core	Up to 144 (E) cores

System Memory
Memory Capacity	32 DIMM slots Up to 8TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Memory Type	6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Network Controllers	Dual LAN with Intel® Ethernet Controller E810-XXVAM2

Input / Output
USB	1 USB 3.1 Gen1 port(s) (1 type A)
TPM	1 TPM TPM 2.0 onboard

Expansion Slots
PCIe	6 PCIe 5.0 x8 MCIO connector
M.2	M.2 Interface: 2 PCIe 5.0 x4 Form Factor: 2280 Key: M-Key M.2 support requires an optional M.2 adapter card

System BIOS
BIOS Type	AMI 64MB AMI UEFI
BIOS Features	ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	Fan speed control
Other Features	UID Control of power-on for recovery from AC power loss Chassis intrusion detection ACPI power management
