 | | SuperServer |
|
| | |
| CPU |
-
Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP
- Single Socket H4 (LGA 1151)
|
| |
|
| Memory Capacity |
- 4x 288-pin DDR4 DIMM slots
- Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
|
| Memory Type |
- Frequency up to 3733MHz(OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
- Support overclocking up to 3733MHz*
* Please check the operation manual for supported components
|
| DIMM Sizes |
|
| Memory Voltage |
|
| |
|
| Chipset |
- Intel® Z270 Express Chipset
|
| SATA |
- SATA3 via PCH w/ RAID 0, 1, 5, 10
|
| Network Controllers |
- Intel® i219V Controller
- Intel® i210-AT Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Audio |
|
| |
|
| SATA |
|

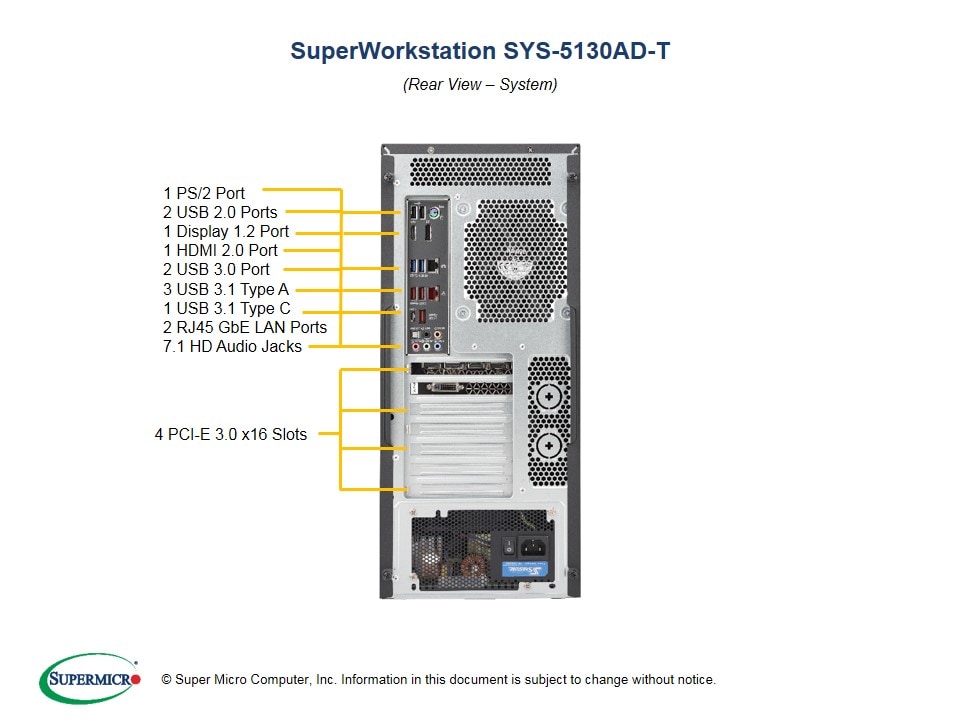

| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
|
| USB |
- 4 USB 3.0 ports (2 rear, 2 via headers)
- 8 USB 2.0 ports (2 rear, 6 via headers)
- 4 USB 3.1 ports (3 Type A, 1 Type C)
|
| Audio |
- 7.1 HD Jacks
- Support SPDIF-Out (rear)
|
| Display |
- 1 DP (Display Port), 1 HDMI
|
| Serial Port / Header |
|
| |
|

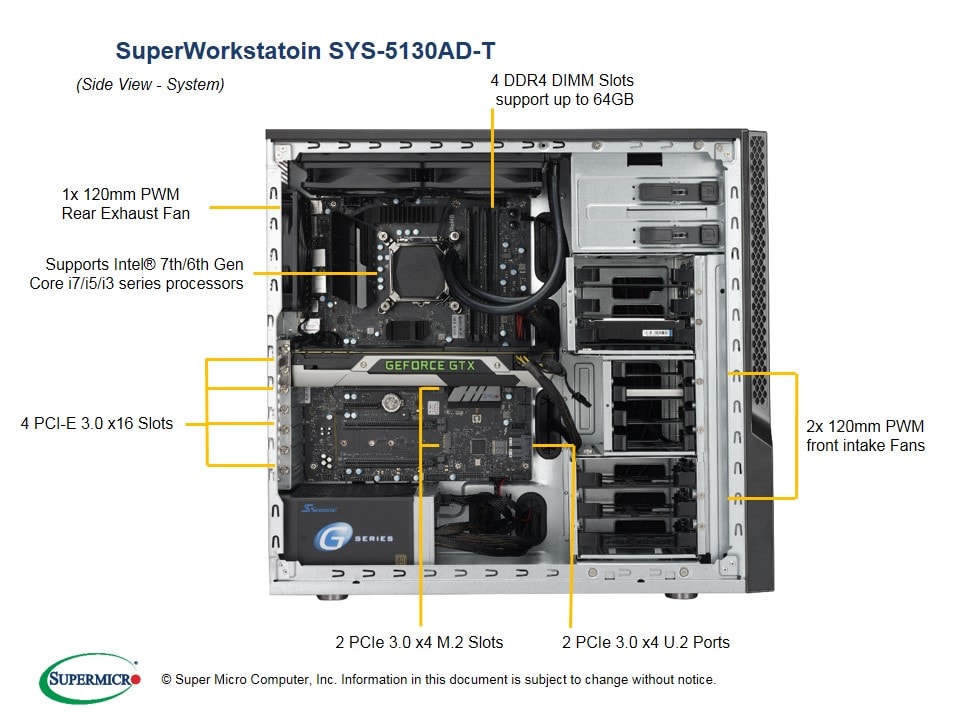

| PCI-Express |
- 4 PCI-E 3.0 x16 slots
(run at 16/NA/16/NA, 8/8/8/8, Auto Switch)
- 1 PCI-E 3.0 x4 slot
- 2 PCIe 3.0 x4 M.2
(support 22110, RAID 0, 1)
- 2 PCIe 3.0 x4 U.2
(1 share with M.2, RAID 0, 1 support)
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- DMI (SMBIOS) 2.7
- ACPI 5.0
- USB Keyboard support
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Height |
|
| Width |
|
| Depth |
|
| Package |

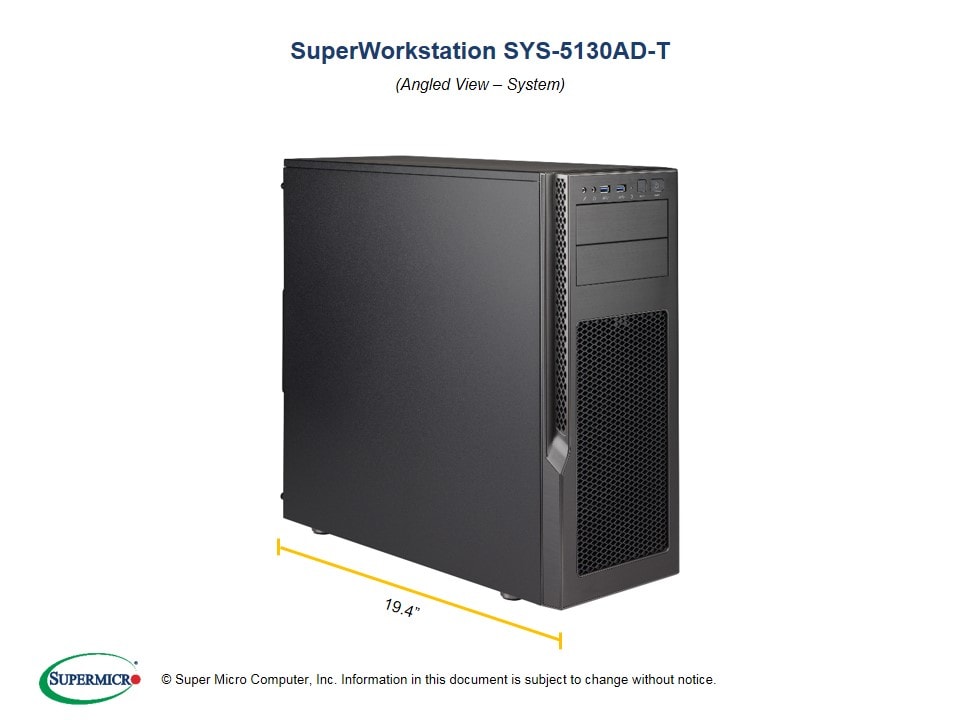

- 24.9" (H) x 14.2" (W) x 24.0" (D)
|
| Weight |
- Net Weight: 22.27 lbs (10.1 kg)
- Gross Weight: 28.22 lbs (12.8 kg)
|
| Available Colors |
|
| | |

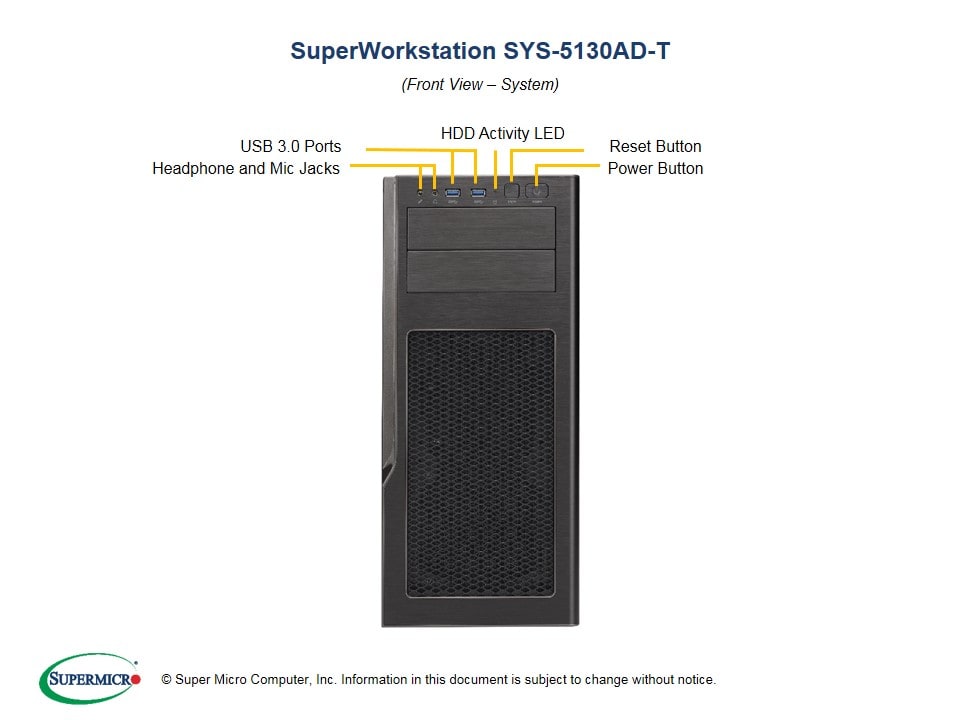

| | Buttons |
- Power On/Off Button
- Reset Button
|
| LEDs |
- Power LED
- Hard drive activity LED
|
| Ports |
- 2 USB 3.0 ports
- 1 Earphone, 1 Microphone port
|
| | |
| | Internal HDD/SSD |
- 4x 2.5" drive bays, and 6x combination bays that can house either 3.5" or 2.5" drives
|
| Peripheral |
- 2x 5.25" Peripheral Drive Bays
|
| | |
| | Fans |
- 3x 12cm PWM fans
- Compatible with 120mm and 240mm closed-loop water cooling kits
|
| | |
| | 750W Multi-output Power Supply for Desktop, semi-modular cable output |
| AC Input |
|
| +5V |
|
| +12V |
- Max: 62A & Min: 0.1A (100Vac-240Vac)
|
| +3.3V |
|
| +5V SB |
|
| -12V |
|
| Certification |
 Gold Certified
|
| |
|
| Voltage |
- Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
|
| FAN |
- Total of five 4-pin fan headers supporting up to 5 fans
- 5x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
