SuperServer E300-9C

  Products  Systems   Embedded/IoT   [ E300-9C ]




Integrated Board
Super X11SCV-Q

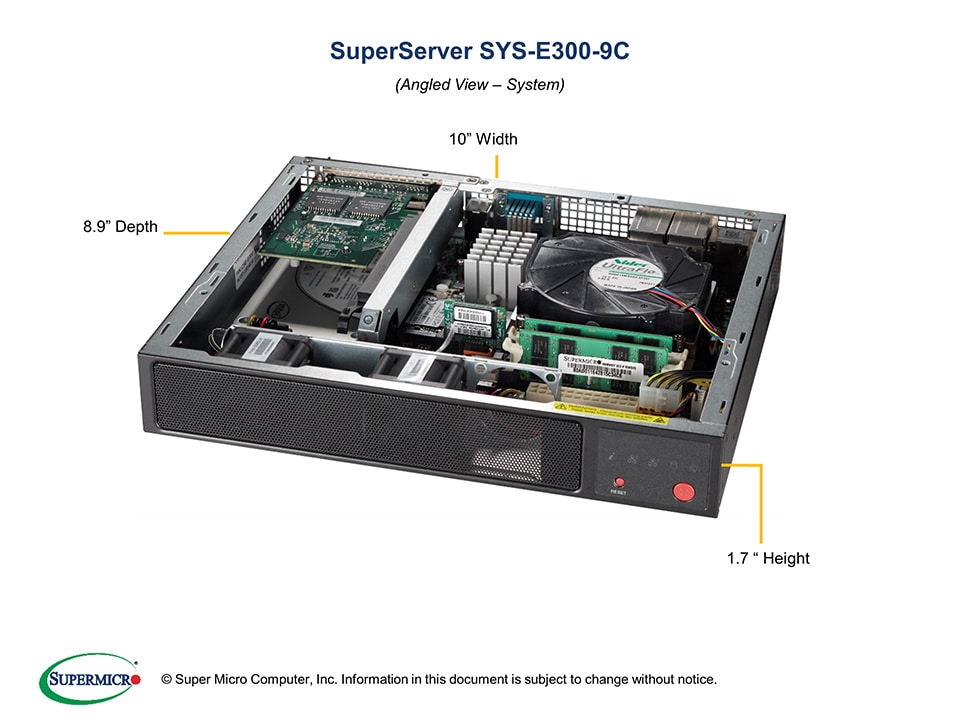

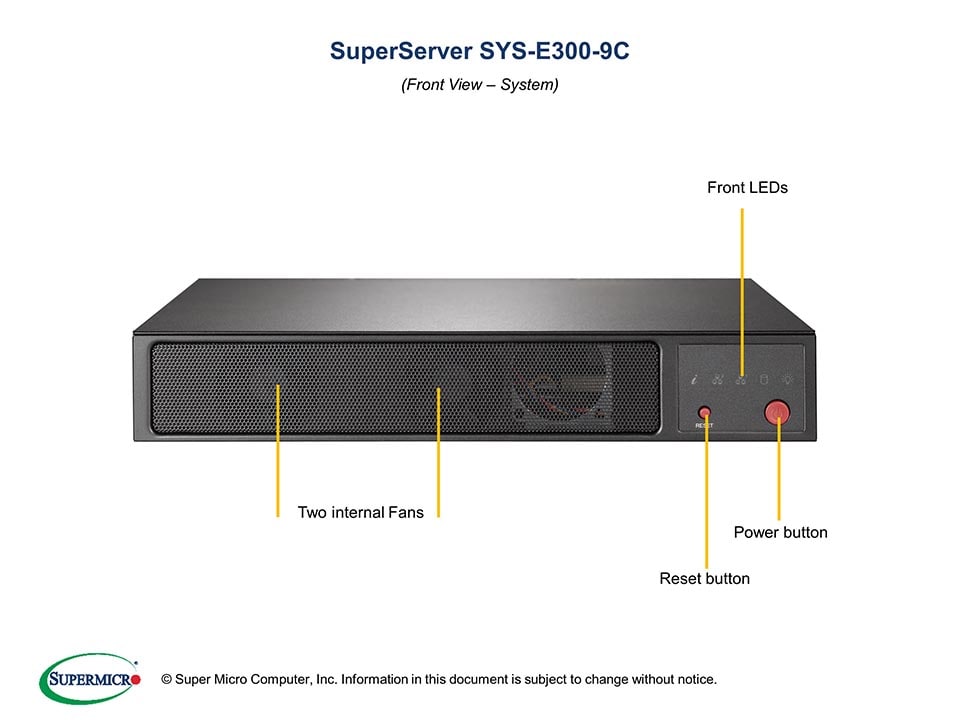

Views: | Angled View | Top View | Front View | Rear View |
| Rackmount Kit |
Key Features
  - IoT Edge Computing
  - DVR / NVR
  - Machine Automation
  - Digital Signage
  - Medical Applications
  - IoT Gateway

1. Single Socket H4 (LGA 1151) supports:
    8th/9th Gen Intel® Core™ i7/i5/i3
    / Pentium® / Celeron® processor
2. Intel® Q370 chipset
3. 2 Internal 2.5" drive bays (Top drive
    bay area can accommodate either an
    AOC with riser card and bracket or
    2.5" drive on the top bracket.)
4. Up to 32GB unbuf. non-ECC SO-DIMM,
    DDR4-2666Mz; in 2 DIMM slots
5. 1 PCI-E 3.0 x16 LP AOC slot, M.2 M key:
    PCI-E 3.0 x4, support 2242/2280;
    M.2 E KEY: PCI-E 3.0 x1, support 2230
6. 2x 1GbE LAN ports
7. 4 USB 3.1 (2 type A and 2 type C)
8. 1 HDMI, 1 DP, 1 DVI-D, HD Audio
9. 2x 4cm high performance PWM fans
10. DC Power Adapter


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-E300-9C
  • SuperServer E300-9C (Black)

Motherboard

Super X11SCV-Q

Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • 8th/9th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processor
  • CPU TDP support Up to 65W TDP

System Memory
Memory Capacity
  • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz
  • 2 DIMM slots
Memory Type
  • DDR4-2666MHz Unbuffered non-ECC SO-DIMM
DIMM Sizes
  • 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
Chipset
  • Intel® Q370
SATA
  • Q370 controller for 5 SATA3 ports; RAID 0, 1
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Intel® PHY I219LM LAN controller
Audio
  • ALC 888S HD Audio
Graphics
  • 3 Independent Displays

Input / Output
SATA
  • 5 SATA3 (6Gbps) ports via PCH
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 3.1 (2 type A and 2 type C in rear)
Display
  • 1 DVI - D port
  • 1 HDMI port
  • 1 DP (Display Port)
  • 1 eDP (Embedded Display Port)
  • 3 Independent Displays
Audio
  • HD Audio (Mic In / Line Out)
TPM
  • 1 TPM Header & Chip
Chassis
Form Factor
  • Compact
Model

Dimensions
Width
  • 10.43" (264.8mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16
M.2
  • M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length
  • M.2 E Key: PCI-E 3.0 x1, support 2230 length

Drive Bays
Internal
  • 2 Fixed 2.5" drive bays - one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)

System Cooling
Fans
  • 2x 4cm high performance PWM fan

Power Supply
150W DC Power Adapter

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0

Management
Software
  • AMT
  • NMI
  • vPro
  • Watch Dog
Power Configurations
  • ATX Power connector
  • +12V DC Power Input
Fan
  • Fans with tachometer status monitoring

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11SCV-Q
CSE-E300 		1
1		 Super X11SCV-Q Motherboard
Embedded Server BOX for Flex-ATX, Mini-ITX 1U height
Cable 1 CBL-0473L 1 SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 2 CBL-SAST-0886 1 SATA 15pin x2 to 4pin /P2.5,40CM,22AWG
FAN 1 FAN-0065L4 2 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply MCP-250-10128-0N 1 150W Lockable Power Adapter with US power cord
Parts MCP-260-10109-0B 1 CSE-101F, E300 Rear I/O for X11SCV-Q
Heatsink / Retention SNK-P0073A4 1 1U Enhanced Performance Active CPU Heat Sink for Intel Socket H Series Motherboards
Optional Parts List
  Part Number Qty Description
Fan FAN-0100L4 - 40X28MM 4-PIN PWM FAN FOR SC510 & SC511
Riser Card RSC-RR1U-E16 - RSC-RR1U-E16 with PIC-E x16 output
Rackmount kit MCP-290-30002-0B - CSE-E300 Rackmount kit (150W/180W adapter supported)
Hide Parts List
