SuperServer E300-9A

  Products  Systems   Embedded/IoT   [ E300-9A ]





Integrated Board
A2SDi-TP8F

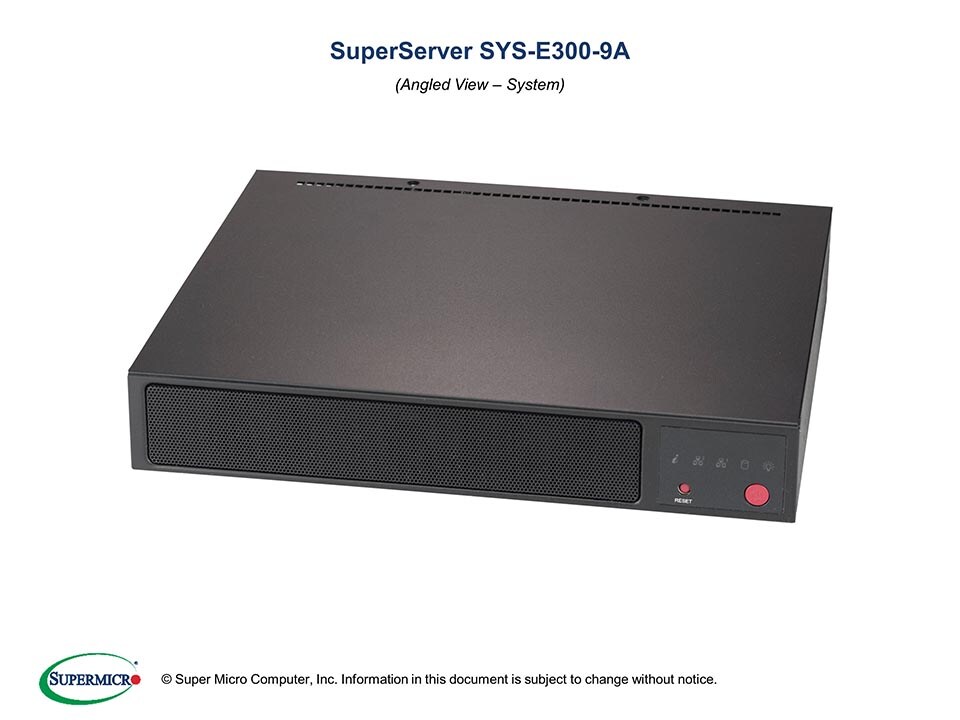

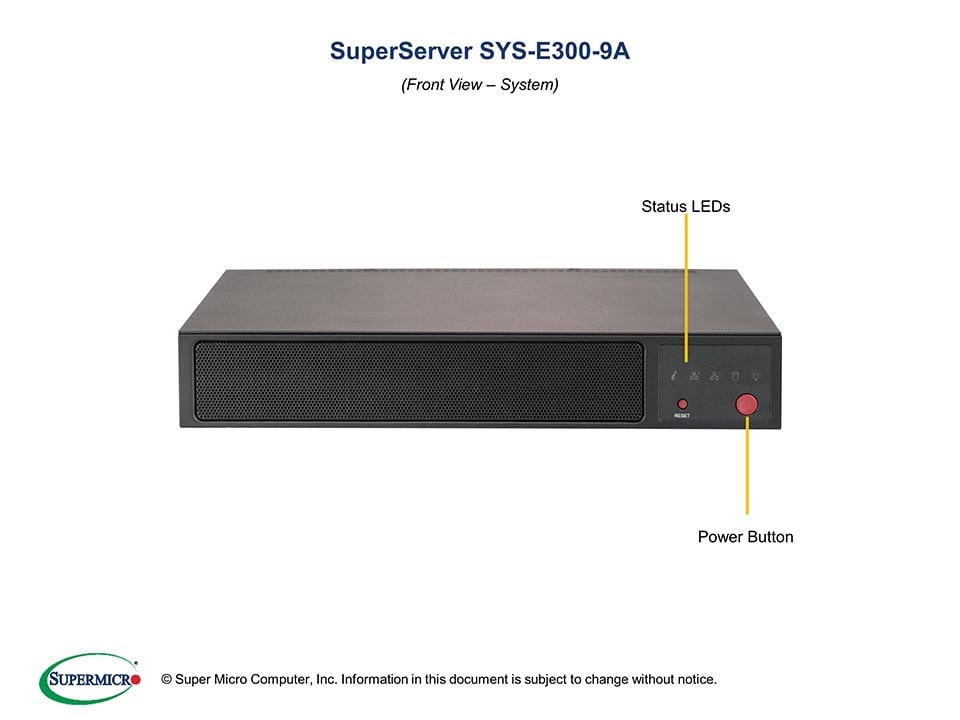

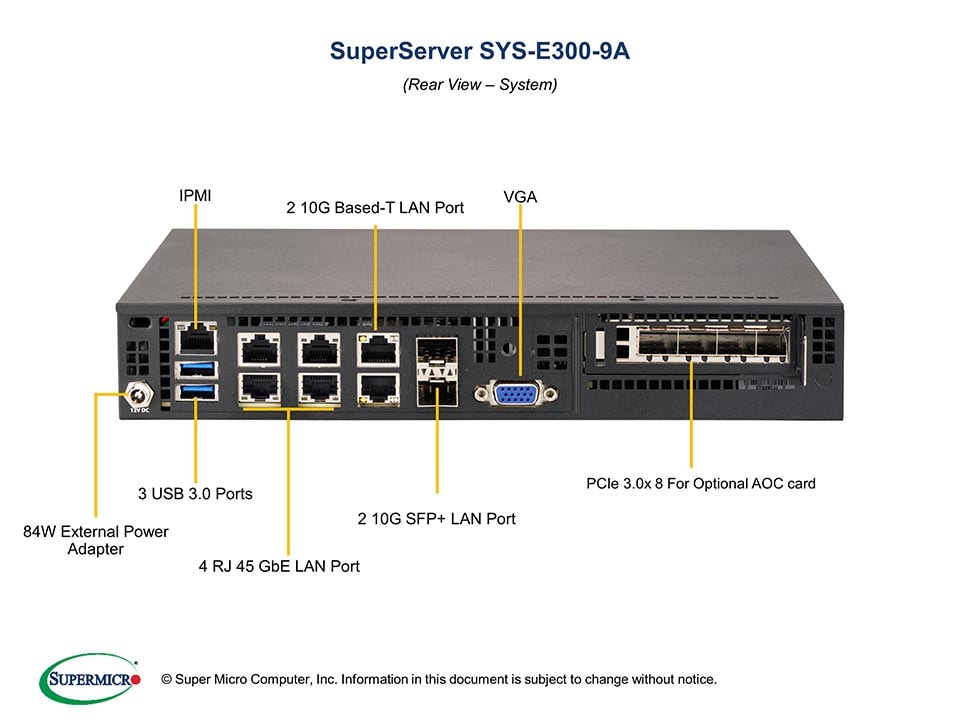

Views: | Angled View | Top View | Front View | Rear View |
| Rackmount Kit |

Key Features
  - Embedded Networking Applications
  - Network Security Appliance
  - FireWall Applications
  - Virtualization Server

1. Intel® Atom® processor C3858,
    Single socket FCBGA 1310
2. System on Chip
3. 2 fixed 2.5" drive bays (Top drive bay
    area is shared with AOC. Please
    remove riser card when installing
    2.5" drive on the top.)
4. Up to 64GB Unbuffered ECC/non-ECC
    SO-DIMM, up to DDR4-2400MHz,
    in 4 DIMM slots
5. 1 PCI-E 3.0 x4 AOC slot (LP)
6. 2x 10GBase-T, 2x 10G SFP+, and
    4x 1GbE LAN ports
7. VGA via BMC, 2 USB 3.0 ports
8. 2x 40mm chassis fans, passive
    CPU heat sink
9. 84W DC power adapter


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-E300-9A
  • SuperServer E300-9A (Black)

Motherboard

Super A2SDi-TP8F

Processor/Cache
CPU
  • Intel® Atom® processor C3858
  • FCBGA 1310
  • CPU TDP support 25W

System Memory
Memory Capacity
  • Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type
  • 2400/2133/1866/1600MHz
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
  • Quad LAN (2 10GBase-T, 2 10Gb SFP+) via Intel® C3000 SoC
  • Quad Gigabit Ethernet LAN via Intel® i350-AM4
Graphics
  • Aspeed AST2400

Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 10G SFP+ LAN ports
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) power connector
TPM
  • TPM 2.0 header
Chassis
Form Factor
  • Mini-1U
Model

Dimensions
Width
  • 10.43" (264.8mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Expansion Slots
M.2
  • Interface: PCI-E 3.0 x4 or SATA3
  • Form Factor: M Key 2242/2280

Drive Bays
Internal
  • 2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)

System Cooling
Fans
  • 2x 40mm chassis fans

Power Supply
84W DC power adapter

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
Fan
  • Fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-A2SDi-TP8F
CSE-E300
1
1
Super A2SDi-TP8F Motherboard
Embedded Server BOX for Mini-ITX 1U w/o PWS
Power Supply MCP-250-10137-0N 1 84W Lockable power adapter with US power cord, RoHS
Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8 (Rev 4.00)
Cooling Fan FAN-0065L4 2 40x28mm 13K RPM 4-PIN PWM FAN
Optional Parts List
  Part Number Qty Description
Chassis Parts MCP-290-30002-0B - CSE-E300 Rackmount kit (150W/180W adapter supported)
Cable CBL-CUSB-0975 - RJ45 SERIAL Cable for Console
Cable CBL-SAST-1034 - SATA Splitter Cable with Power for dual SATA HDD
