SuperServer E200-8D

  Products  Systems   Embedded/IoT   [ E200-8D ]









Integrated Board
Super X10SDV-6C-TLN4F


View: | Rackmount Kit | 1U Dual System Tray |
Key Features

  - Embedded Networking Applications

  - Network Security Appliance

  - FireWall Applications

  - Virtualization Server



1. Intel® Xeon® processor D-1528,

    Single socket FCBGA 1667;

    6-Core, 12 Threads, 35W
2. System on Chip
3. 2.5" fixed drive bay with bracket

    (Design for 9.5mm thickness HDD

    with Low Profile Memory)
4. Up to 128GB ECC RDIMM DDR4

    2133MHz or 64GB ECC/non-ECC

    UDIMM in 4 sockets
5. M.2 PCI-E 3.0 x4 (SATA support),

    M Key 2242/2280
6. 2 10GbE, 2 GbE LAN ports, and

    dedicated LAN for IPMI 2.0
7. VGA via BMC, 2 USB 3.0 ports
8. Passive CPU heat sink and

    2x 40mm chassis fans
9. DC power adapter




 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Drive Options


Product SKUs
SYS-E200-8D
  • SuperServer E200-8D (Black)

Motherboard


Super X10SDV-6C-TLN4F

Processor/Cache
CPU
  • Intel® Xeon® processor D-1528
  • FCBGA 1667
  • CPU TDP support 35W, 9MB, 6 Cores, 12 Threads, 1.9-2.2GHz

System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 128GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors

      (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 6 SATA3 (6Gbps) ports
Network Controllers
  • Dual LAN via Intel® i350-AM2 Gigabit Ethernet
  • Dual LAN via SoC 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • Aspeed AST2400

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) power connector
TPM
  • TPM 2.0 header
Chassis
Form Factor
  • Mini-1U
Model

Dimensions
Width
  • 7.6" (193mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 6.5 lbs (2.95 kg)
  • Net Weight: 3.0 lbs (1.36 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Expansion Slots
M.2
  • Interface: PCI-E 3.0 x4
  • Form Factor: M Key 2242/2280
  • Support SATA devices

Drive Bays
Internal
  • 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)

System Cooling
Fans
  • Passive CPU heat sink and 2x 40mm chassis fans

Power Supply
Lockable 12V DC 84W power adapter

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
Fan
  • Fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X10SDV-6C-TLN4F

CSE-101F
1

1
Super X10SDV-6C-TLN4F Motherboard

Embedded Mini-ITX Chassis
Power Adapter MCP-250-10137-0N 1 Lockable 12V DC 84W power adapter
Optional Parts List
  Part Number Qty Description
Chassis Parts MCP-290-10110-0B - CSE-101F Rackmount kit
Cable CBL-CUSB-0975 - RJ45 SERIAL Cable for Console
Fan FAN-0065L4 - 4028mm 13K RPM 4-PIN PWM FAN

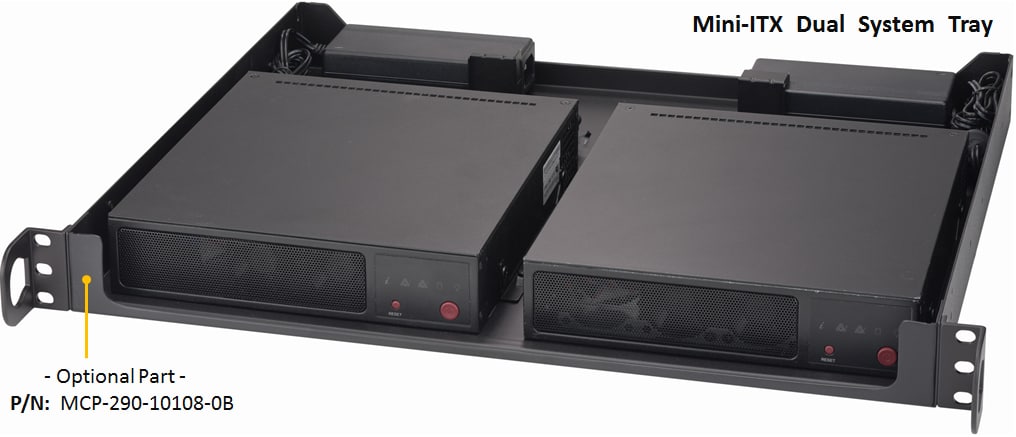

Dual System Tray MCP-290-10108-0B - Dual system tray for Mini-ITX system
Hide Parts List
