SuperServer 5029C-TN2

  Products  Systems  Mini-Tower   [ 5029C-TN2 ]





Integrated Board
X11SCV-Q

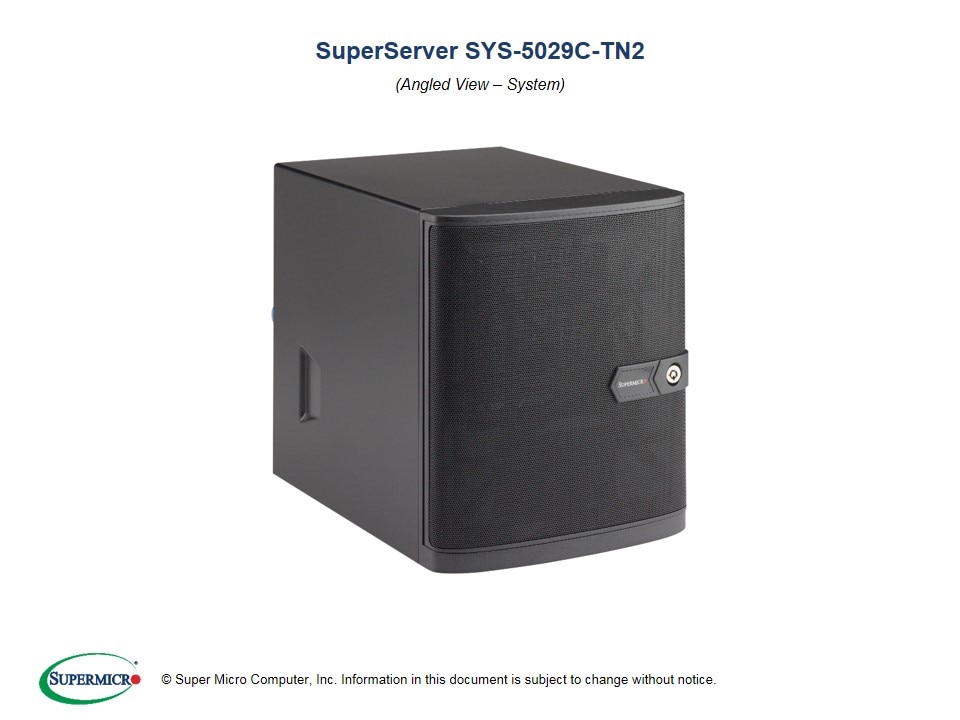

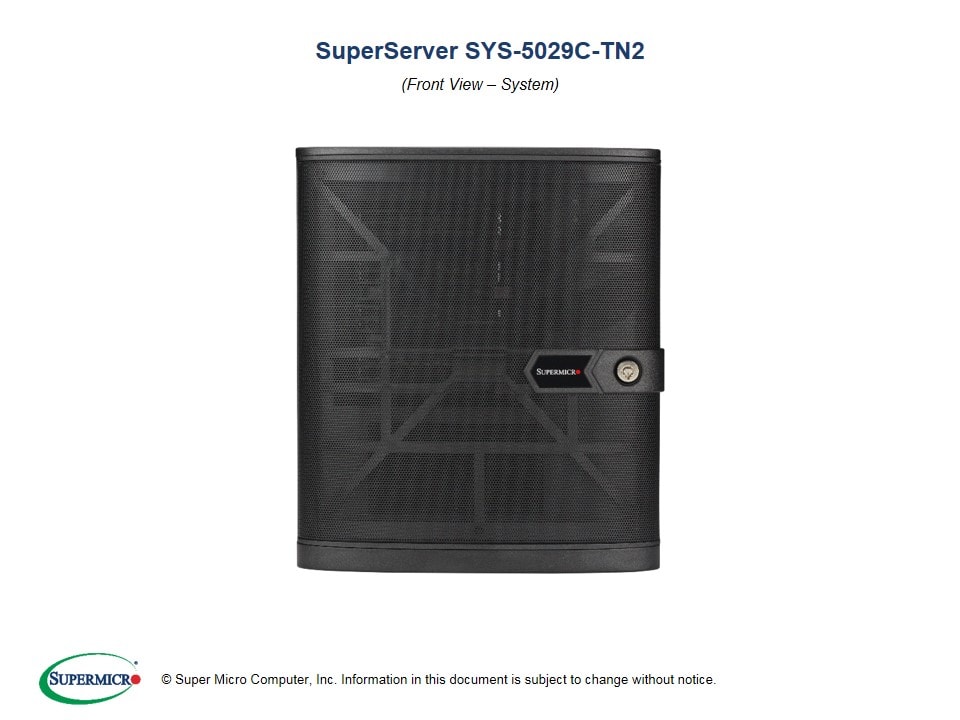

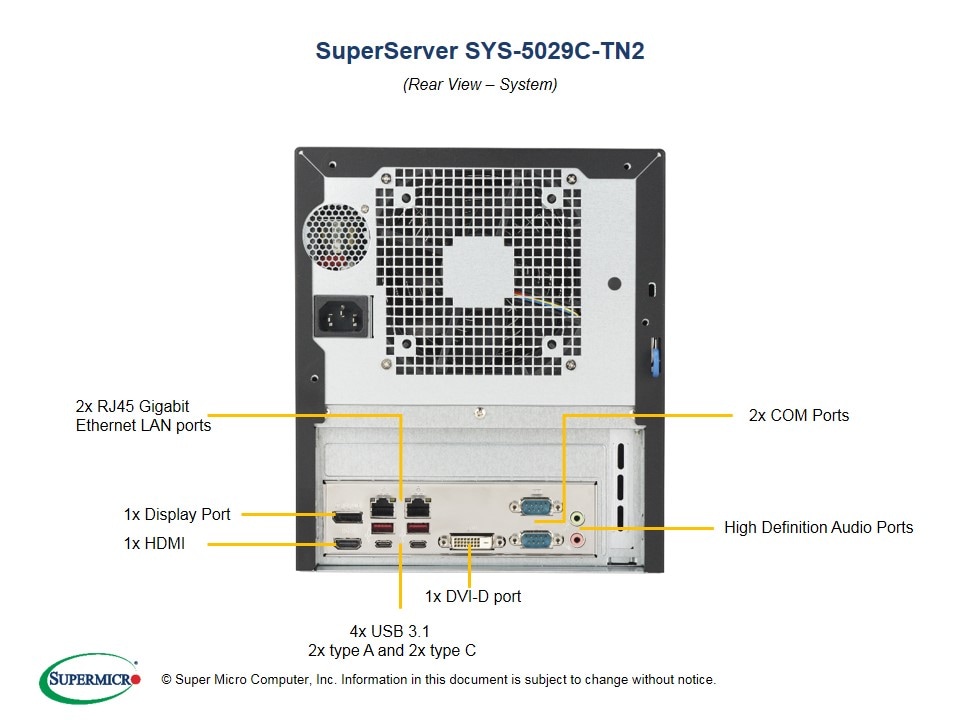

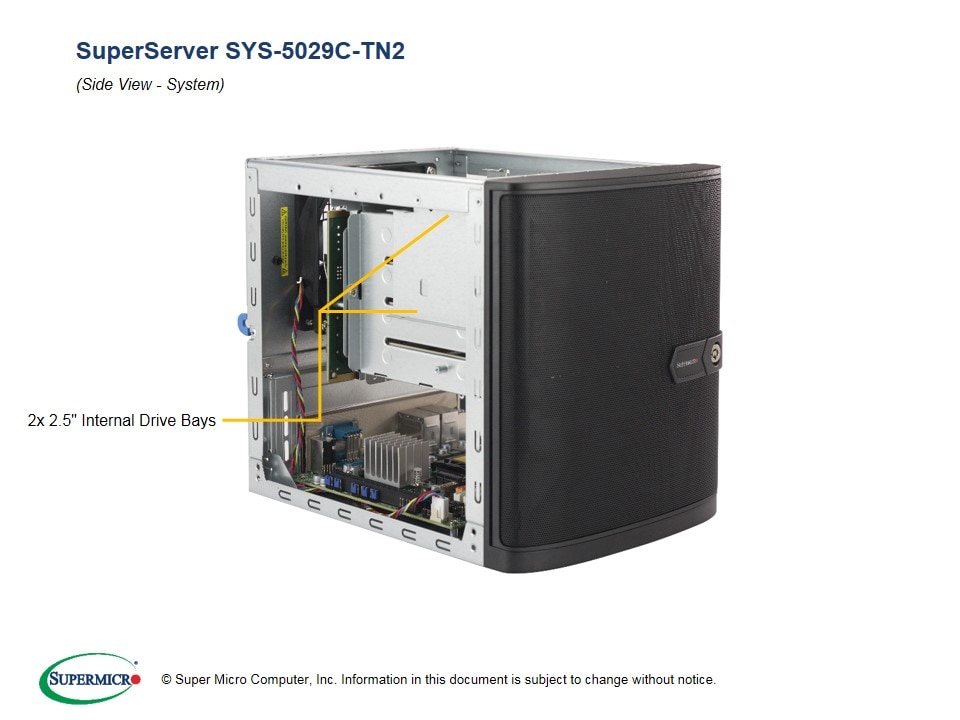

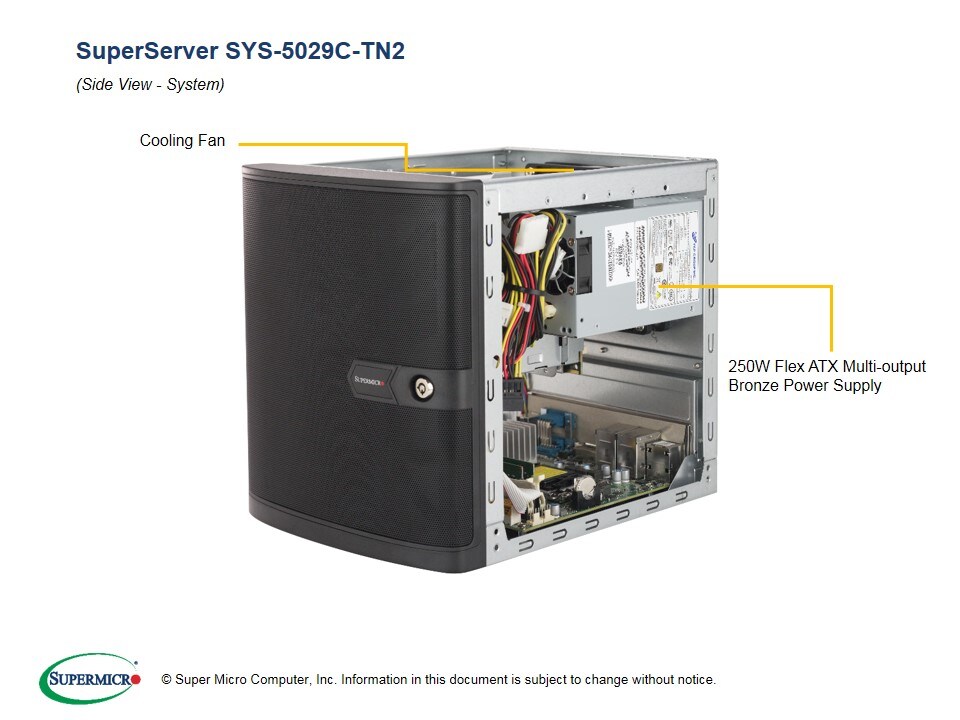

Views: | Front View | Rear View |
| Angled View | Side View | Side View |

Key Features
• Surveillance Security Server
• Compact Storage Appliance
• Video processing & streaming
• Small Medium Business Edge Server

1. Single Socket H4 (LGA 1151) supports:
    9th/8th Gen Intel® Core™ i9/i7/i5/i3
    / Pentium® / Celeron® processor
2. Intel® Q370 chipset
3. Up to 64GB unbuf. non-ECC SO-DIMM,
    DDR4-2666Mz; in 2 DIMM slots
4. 1 PCI-E 3.0 x16 LP AOC slot, M.2 M key:
    PCI-E 3.0 x4, support 2242/2280;
    M.2 E KEY: PCI-E 3.0 x1, support 2230
5. 4 Hot-swap 3.5" drive bays,
    2 internal 2.5" drive bays,
    1 slim DVD-ROM bay
6. 2x 1GbE LAN ports
7. 4 USB 3.1 (2 type A and 2 type C)
8. Intel® HD Graphics,
    ALC 888S HD Audio
9. 350W Flex ATX Multi-output Gold
    Power Supply

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals   Quick-References Guide  Drive Options

Product SKUs
SYS-5029C-TN2
  • SuperServer 5029C-TN2 (Black)

Motherboard

Super X11SCV-Q

Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • 9th/8th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processor
  • CPU TDP support Up to 65W TDP

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz
  • 2 DIMM slots
Memory Type
  • DDR4-2666MHz Unbuffered non-ECC SO-DIMM
DIMM Sizes
  • 32GB, 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
Chipset
  • Intel® Q370 chipset
SATA
  • Q370 controller for 5 SATA3 ports; RAID 0, 1, 5, 10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Intel® PHY I219LM LAN controller
Audio
  • ALC 888S HD Audio
Graphics
  • 3 Independent Displays

Input / Output
SATA
  • 5 SATA3 (6Gbps) ports via PCH
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 3.1 (2 type A and 2 type C in rear)
Display
  • 1 DVI - D port
  • 1 HDMI port
  • 1 DP (Display Port)
  • 1 eDP (Embedded Display Port)
  • 3 Independent Displays
  • 2 COM ports support RS-232/422/485
Audio
  • HD Audio (Mic In / Line Out)
TPM
  • 1 TPM Header & Chip

Management
Software
  • SuperDoctor® 5
  • Watch Dog
  • Non-maskable Interrupt (NMI)
  • Chassis intrusion detection
Chassis
Form Factor
  • Mini Tower
Model

Dimensions and Weight
Height
  • 9.45" (240mm)
Width
  • 8.27" (210mm)
Depth
  • 11" (279mm)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
Ports
  • 2 USB 3.1 Gen1 ports

Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16 (Low-profile)
M.2
  • M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length
  • M.2 E Key: PCI-E 3.0 x1, support 2230 length

Drive Bays
HDD
  • 4 Hot-swap 3.5" drive bays
  • 2 internal 2.5" drive bays
Peripheral
  • 1 slim DVD-ROM bay

Power Supply
350W Flex ATX Multi-output Power Supply
AC Voltage
  • 100 - 240V, 50 - 60Hz
+5V
  • Max:15 Amp; Min:0.2 Amp
+12V
  • Max:28 Amp; Min:0.1 Amp @100V-240V
-12V
  • Max: 0.3 Amp Min: 0.05 Amp
+3.3V
  • Max: 10 Amp Min: 0.1 Amp
5VSB
  • Max: 2 Amp Min: 0.05 Amp
Certification 80 PLUS   Gold Certified

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3+0 CPU switch phase voltage regulator
  • CPU thermal trip support
FAN
  • Low noise fan speedcontrol
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 4x 4-pin fan connectors
  • Platform Environmental Control Interface (PECI)

System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • PCI F/W 3.0

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       20% to 95% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SCV-Q
CSE-721TQ-350B
1
1
Super X11SCV-Q Motherboard
Mini Tower Chassis
Cable 1 CBL-0473L 4 SATA,INT,ROUND,ST-ST,21CM,30AWG
Backplane CSE-SAS-733TQ 1 4x3.5\" SAS2/SATA3 backplane w/SES-II
Parts MCP-260-00136-0N 1 Standard I/O Shield for X11SCV with EMI Gasket
* Power Supply PWS-353-1H 1 1U Flex ATX 350W Multi-output Gold Power Supply
* FAN 1 FAN-0124L4 1 12 CM x12 CM fan
* Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5"; HDD tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List

Part Number
Qty
Description
DVD-RW DVM-TEAC-DVDRW-SBT5 - BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS/REACH,PBF
DVD Kit MCP-220-81502-0N - Slim SATA DVD kit
CPU Heatsink Fan SNK-P0046A4 - 2U ACTIVE CPU HS FOR INTEL LGA1156
Power Cable CBL-PWEX-0645 - Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
