SuperServer SYS-E300-12D-8CN6P

Mini-1U Embedded System with Intel Ice Lake-D CPU with 8 cores Super Server

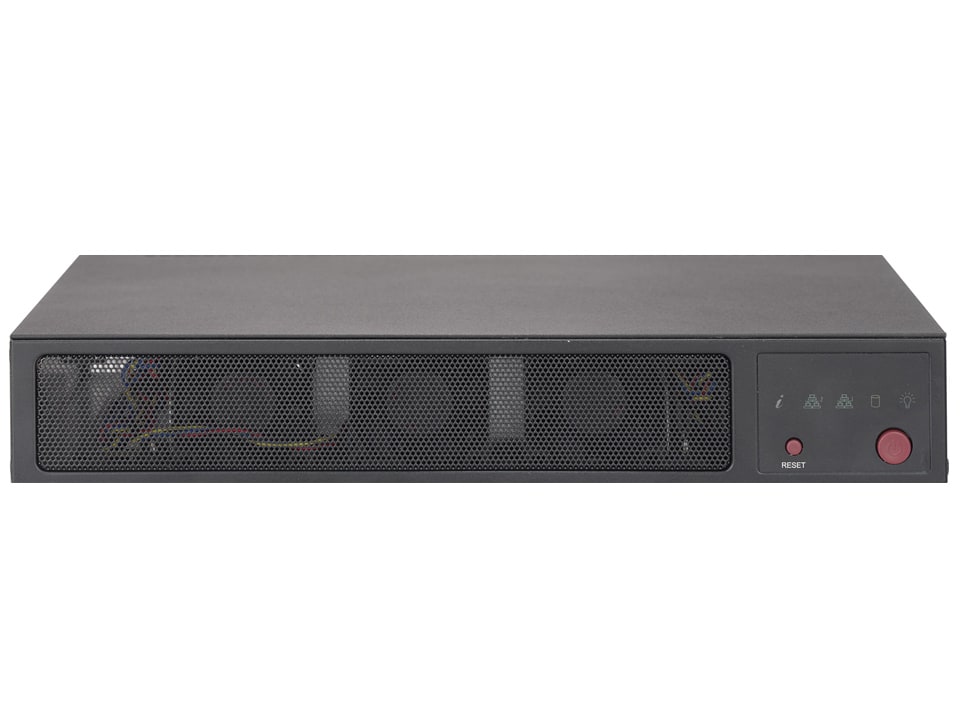

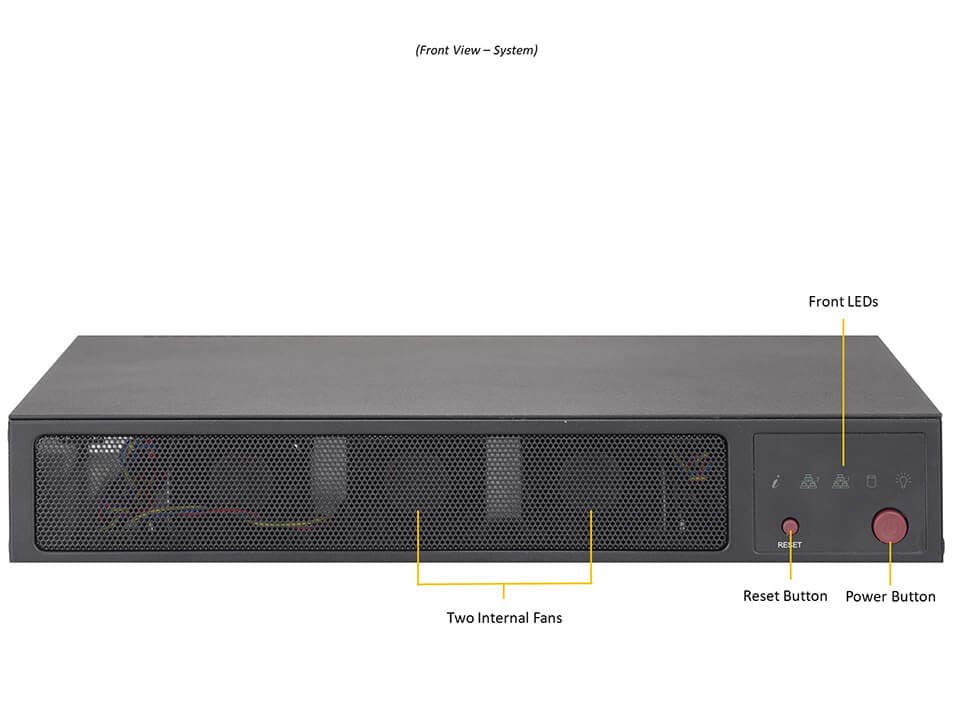

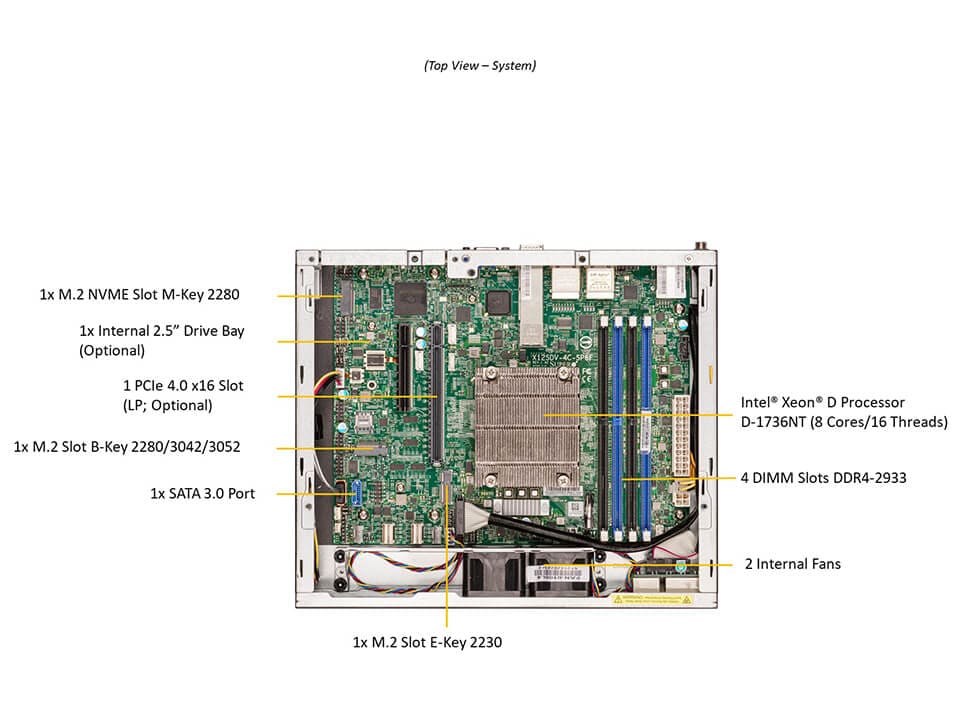

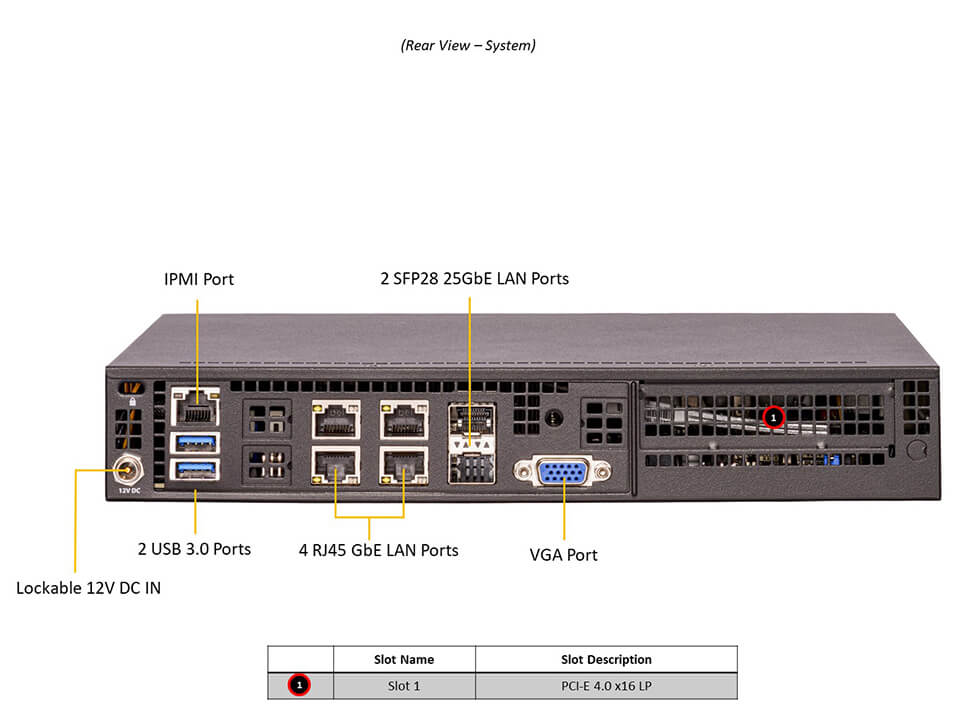

SYS-E300-12D-8CN6P Main SYS-E300-12D-8CN6P Top SYS-E300-12D-8CN6P Front SYS-E300-12D-8CN6P Rear
Integrated Board: X12SDV-8C-SP6F
Learn more

Key Applications

  • Universal Customer Premise Equipment (uCPE)
  • Network Security Appliance
  • Software Defined WAN (SD-WAN)
  • NFV Edge Computing Server
  • IoT Edge Computing / Gateway

Key Features

  1. Intel® Xeon® D Processor D-1736NT
  2. 4x DDR4-2933MHz R-DIMM max 256GB or U-DIMM 128GB
  3. Support M.2 M/B/E-Key with Nano SIM Card Slot
    Support PCIe 4.0 x16 Slot (Optional)
  4. 4x LAN 1GbE + 2x LAN SFP28 25GbE + IPMI
  5. Support 1x 2.5" drive bays (Optional)
...
...
SYS-E300-12D-8CN6P
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-E300-12D-8CN6P
Motherboard
Super X12SDV-8C-SP6F
Processor
CPU
  • Single FCBGA-2227
  • Intel® Xeon® Processor D-1736NT
Core Count
  • Up to 8C/16T; Up to 15MB Cache
Note
  • Supports up to 67W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM/UDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 2 SFP28 25GbE
  • 2 RJ45 1GbE with Intel® I210-IT
  • 2 RJ45 1GbE with Intel® I350-AM2
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 SFP28 25 GbE LAN ports
  • 2 RJ45 1 GbE LAN ports (Intel® I350-AM2)
  • 2 RJ45 1 GbE LAN ports (Intel® I210-IT)
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port(Rear)
System BIOS
BIOS Type
  • AMI 32MB UEFI
BIOS Features
  • ACPI 6.3
  • UEFI 2.7
  • SMBIOS 3.3
  • PCI FW 3.0
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
Chassis
Form Factor
  • Fan-based Embedded
Model
  • CSE-E300
Dimensions and Weight
Height
  • 1.69" (43 mm)
Width
  • 10.43" (264.8 mm)
Depth
  • 8.89" (225.8 mm)
Package
  • 10.87" (H) x 15" (W) x 5.59" (D)
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.7 lbs (1.6 kg)
Palletized Packing (W x H x L)
  • 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
Available Color
  • Black
Front Panel
LED
  • HDD Status
  • LAN1 activity
  • LAN2 activity
  • Power status
  • WIFI activity
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default*
    • 1 PCIe 4.0 x16 LP slot
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
M.2
  • 1 M.2 PCIe 3.0 x1 slot (E-key 2230(default); USB 2.0)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay
    • 1 internal fixed 2.5" SATA* drive bay
  • (*SATA support may require additional storage controller and/or cables)
  • View Drive Options
M.2
  • 1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0)
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280)
  • View M.2 Options
System Cooling
Fans
  • 3x 4-PIN PWM 40x40x28mm Fan(s)
Power Supply
1x 180W
1x 180W power supply
Dimension (WxHxL)
Input180W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SDV-8C-SP6F

CSE-E300 		1

1 		Super X12SDV-8C-SP6F Motherboard

Fan-based Embedded Chassis
Cable CBL-0473L 1 7pin SATA (STR to STR), 21cm, PBF
CBL-PWEX-0982 1 PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
Fan FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply MCP-250-10133-0N 1 180W DC power adapter with US power cord 18AWG 6ft
Manual MNL-2556-QRG 1 E300-12D-4/8/10CN6P Quick Reference Guide
Optional Parts List
Part Number Qty Description
Bracket for 3050/52 M.2 module MCP-410-00021-0N 1 Screw and Extension Bracket kit with bag for 5G M.2 3050/52
Expansion slot kits RSC-S-6G4 1 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF
Rackmount kits MCP-290-30002-0B • 1 CSE-E300 Rackmount kit with power adapter holder
