Part Number |
Qty |
Description |
|

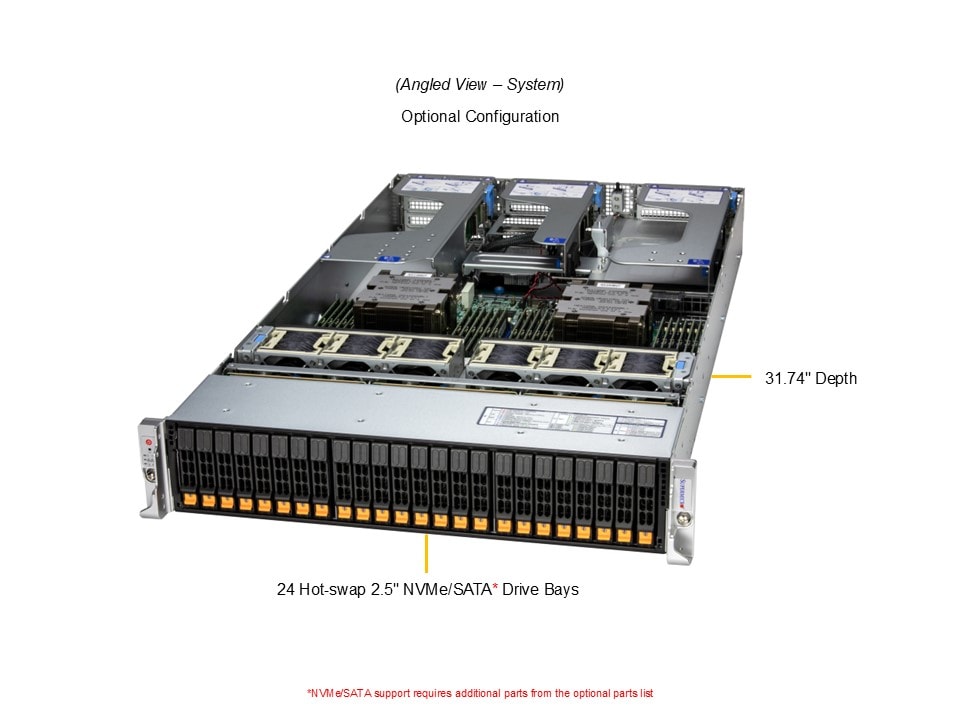

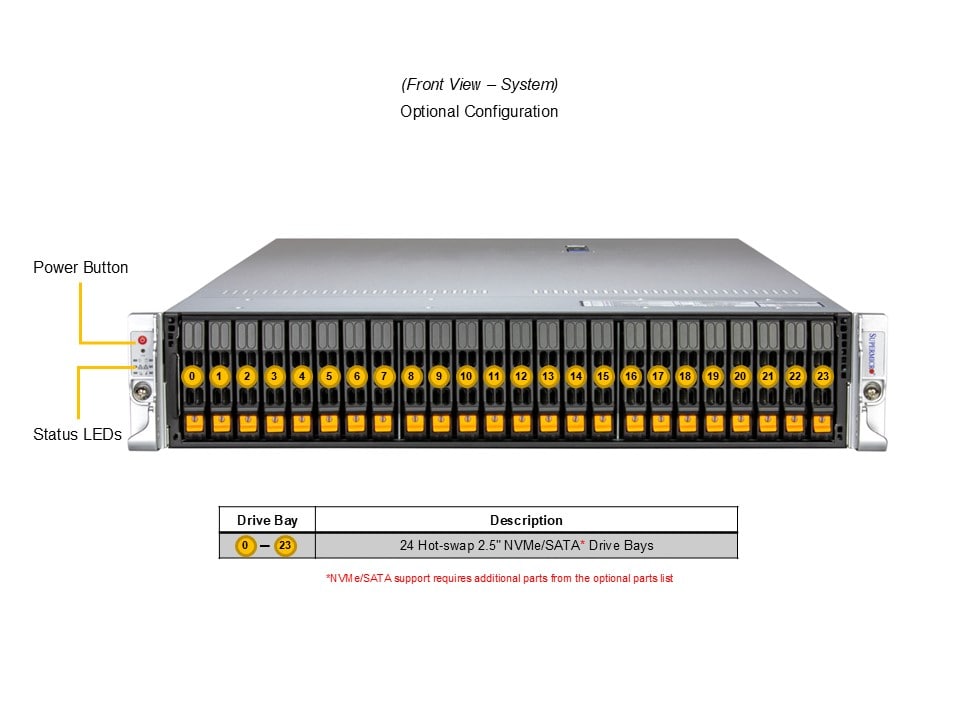

24 NVMe
|
BPN-NVME5-HS219N-S8 |
2 |
2U 8-port Hybrid backplane support up to 8x SAS3/SATA2/NVMe5 |
| CBL-GNZ4-1255M5Y |
1 |
GENZ 4C to 2 MCIO x8,STR,55/55cm,30AWG,RoHS |
| CBL-MCIO-1245M5-Z |
1 |
MCIO x8 (STR to STR),45cm,30AWG,RoHS |
| CBL-MCIO-1245M5L |
2 |
MCIO x8 (STR to LE),45cm,30#,85OHM,RoHS |
CBL-MCIO-1255M5 • |
1 |
MCIO x8 (STR to STR),55CM,30AWG,RoHS |
| CBL-MCIO-1260M5 • |
1 |
MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS |
| CBL-PWEX-1142B-20 |
2 |
MicroHi (2x4F to 2x4F), PH3.0, 20cm, 8.5A/p,18#,RoHS |
| MCP-220-00196-0B |
16 |
Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray |
| CBL-MCIO-1240M5 |
1 |
MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS |
| CBL-MCIO-1250M5-Z • |
4 |
MCIO x8 (STR to STR),50cm,30AWG,RoHS |
|
24 SATA
|
CBL-CDAT-1062T-62 |
1 |
PicoBlade (1 to 3) 1x4,PH1.25,48/62cm,26AWG,RoHS |
| CBL-PWEX-1142B-20 |
2 |
MicroHi (2x4F to 2x4F), PH3.0, 20cm, 8.5A/p,18#,RoHS |
| CBL-MCIO-1265AS4Y • |
2 |
MCIO x8 to 2 SlimSAS x4),STR,65cm,LNRV,30#,RoHS |
| CBL-MCIO-1255S4Y • |
1 |
MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG, RoHS |
| BPN-NVME5-HS219N-S8 |
2 |
2U 8-port Hybrid backplane support up to 8x SAS3/SATA2/NVMe5 |
| MCP-220-00196-0B |
16 |
Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray |
|

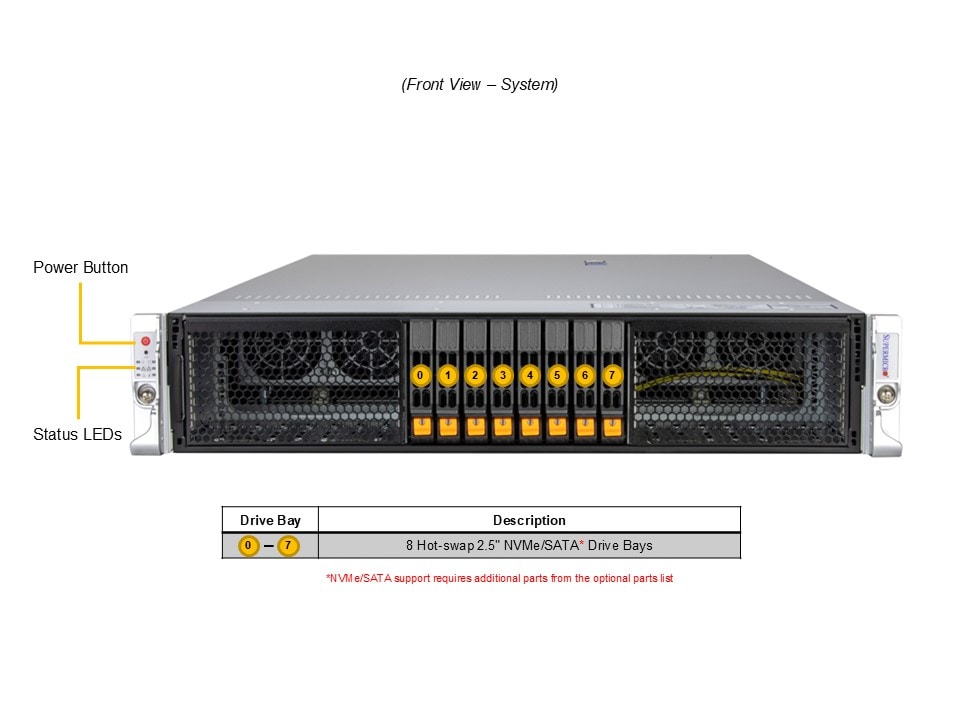

8 NVMe
|
MCP-220-21602-0B |
2 |
Black 2.5" HDD dummy cover |
| CBL-MCIO-1250M5-Z • |
2 |
MCIO x8 (STR to STR),50cm,30AWG,RoHS |
| CBL-MCIO-1240M5 |
1 |
MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS |
| CBL-MCIO-1255M5 • |
1 |
MCIO x8 (STR to STR),55CM,30AWG,RoHS |
|
8 SATA
|
MCP-220-21602-0B |
2 |
Black 2.5" HDD dummy cover |
| CBL-CDAT-1062T-62 |
1 |
PicoBlade (1 to 3) 1x4,PH1.25,48/62cm,26AWG,RoHS |
| CBL-MCIO-1265AS4Y • |
1 |
MCIO x8 to 2 SlimSAS x4),STR,65cm,LNRV,30#,RoHS |
|
Cable Management Arm
|
MCP-290-00168-0N ( ***Requires MCP-290-11901-0N ***) |
1 |
Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N *** |
| MCP-290-11901-0N |
1 |
41" ball-bearing rail set for Hyper servers |
|
PCIe Slot 1 (1x16)
|
RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
| MCP-240-21108-0N |
1 |
Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219 |
| CBL-MCIO-1233M5R |
1 |
MCIO x8 (STR to RA),33cm,85OHM,RoHS |
| CBL-MCIO-1226M5R |
1 |
MCIO x8 (STR to RA),26CM,85OHM,RoHS |
|
PCIe slot 1+2 (2x8)
|
CBL-MCIO-1232M5 |
1 |
MCIO x8 (STR to STR),32cm,85OHM,RoHS |
| RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
| MCP-240-21108-0N |
1 |
Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219 |
| CBL-MCIO-1233M5R |
1 |
MCIO x8 (STR to RA),33cm,85OHM,RoHS |
|
PCIe Slot 3 (1x16)
|
CBL-GNZ4-1227M5YRR16 |
1 |
GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm,30#,RoHS |
| MCP-120-20118-0N |
1 |
Middle riser support bracket for 2U Intel/AMD in CSE-HS201 |
| MCP-240-21108-0N |
1 |
Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219 |
| RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
|
PCIe slot 3+4 (2x8)
|
CBL-GNZ4-1227M5YR21 |
1 |
GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm,30#,RoHS |
| MCP-120-20118-0N |
1 |
Middle riser support bracket for 2U Intel/AMD in CSE-HS201 |
| MCP-240-21108-0N |
1 |
Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219 |
| RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
|
PCIe slot 5 (1x16)
|
RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
| MCP-240-21908-0N |
1 |
Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829 |
| CBL-MCIO-1340M5R |
1 |
MCIO x8 (STR to RA),40CM,32AWG,HF,RoHS |
| CBL-MCIO-1245M5R |
1 |
MCIO x8 (RA to STR),45cm,30AWG |
|
PCIe slot 5 (1x16) + slot 7+8 (2x8)
|
RSC-H2-6888G5L |
1 |
2U LHS Hyper Riser card with one PCIe 5.0 X16 and three |
| MCP-240-21908-0N |
1 |
Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829 |
| CBL-MCIO-1240M5 |
2 |
MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS |
|
PCIe slot 5+6 (2x8)
|
CBL-MCIO-1240M5 |
1 |
MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS |
| CBL-MCIO-1340M5R |
1 |
MCIO x8 (STR to RA),40CM,32AWG,HF,RoHS |
| MCP-240-21908-0N |
1 |
Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829 |
| RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
|
PCIe slot 5+7 (2x16)
|
CBL-MCIO-1245M5R |
1 |
MCIO x8 (RA to STR),45cm,30AWG |
| CBL-MCIO-1340M5R |
1 |
MCIO x8 (STR to RA),40CM,32AWG,HF,RoHS |
| MCP-240-21908-0N |
1 |
Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829 |
| RSC-H-68G5 |
1 |
1U LHS Hyper Riser card with one PCIe 5.0 X16 |
| RSC-H-A6G5H |
1 |
1U Active LHS Hyper riser card with one PCIe 5.0 X16 slo |
|
PCIe slot 5-8 (4x8)
|
CBL-MCIO-1240M5 |
1 |
MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS |
| CBL-MCIO-1245M5-Z |
1 |
MCIO x8 (STR to STR),45cm,30AWG,RoHS |
| MCP-240-21908-0N |
1 |
Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829 |
| RSC-H2-6888G5L |
1 |
2U LHS Hyper Riser card with one PCIe 5.0 X16 and three |
|
PCIe slot 7 (1x16)
|
MCP-240-21908-0N |
1 |
Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829 |
| RSC-H-A6G5H |
1 |
1U Active LHS Hyper riser card with one PCIe 5.0 X16 slo |
|
Power Supply Options & Accessories
|
PWS-1K63A-1R • |
2 |
1U 1000W/1600W Redundant Titanium power supply |
| PWS-1K24A-1R • |
2 |
1U 800W/1200W Redundant Titanium power supply |
| PWS-2K04D-1R |
2 |
1U 2000W -48Vdc single output power supply |
| PWS-2K07A-1R • |
2 |
1U 2000W Redundant Titanium power supply |
| PWS-1K31D-1R |
2 |
1U 1300W -48Vdc single output power supply |
| CBL-PWEX-1058 |
1 |
48VDC input power cable for PWS-2K04D-1R |
| CBL-PWEX-0710-JP • |
1 |
48VDC input power cable for PWS-1K30D-1R |
| PWS-2K63A-1R • |
2 |
1U 2600W Redundant Titanium power supply |
|
Rail Set
|
MCP-290-11902-0N (included in the system ) |
1 |
35.25" ball-bearing rail set,without auto latch |
| MCP-290-11901-0N |
1 |
41" Long ball-bearing rail set, without auto latch |
|
TPM security module (optional, not included)
|
AOM-TPM-9670V |
1 |
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| AOM-TPM-9671V |
1 |
SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
