SuperServer SYS-512AR-N4T (Complete System Only)

1U Compact Edge Server with 2 NVMe/SATA bays

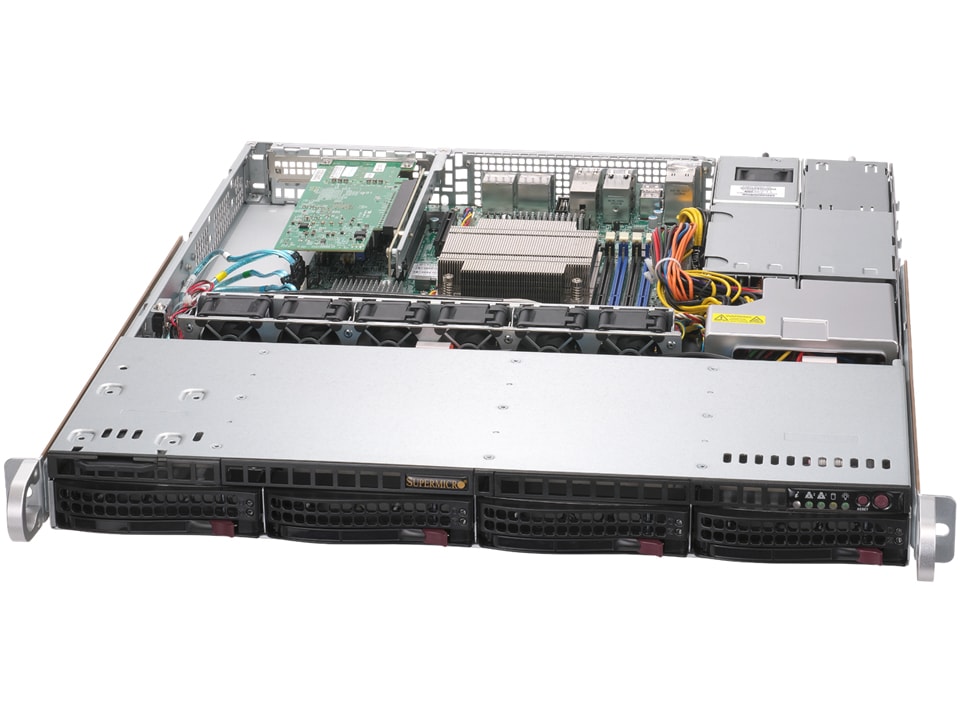

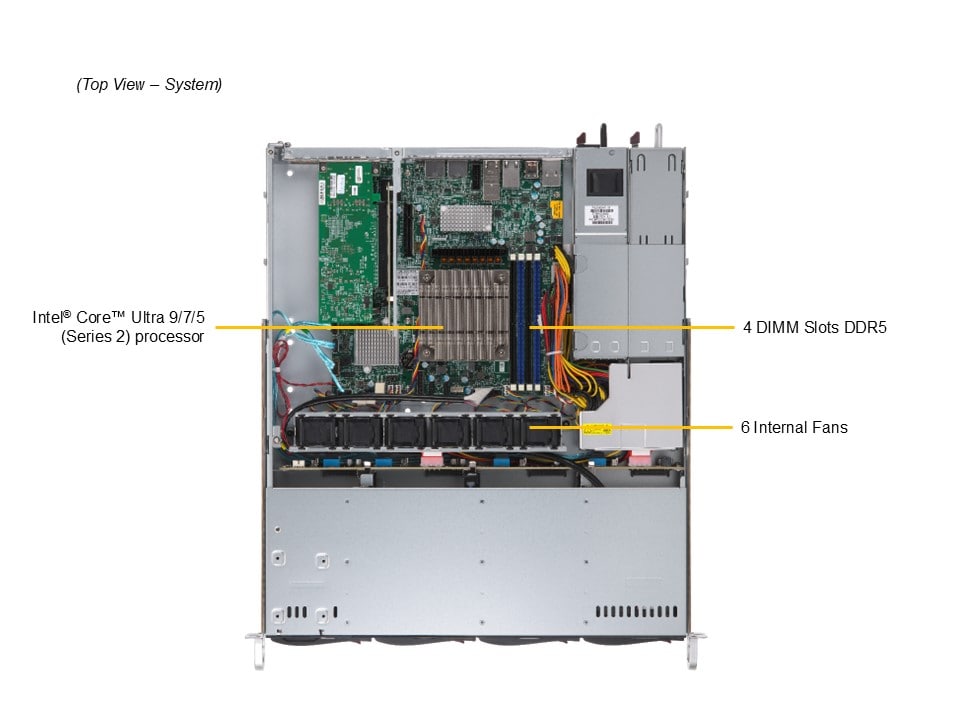

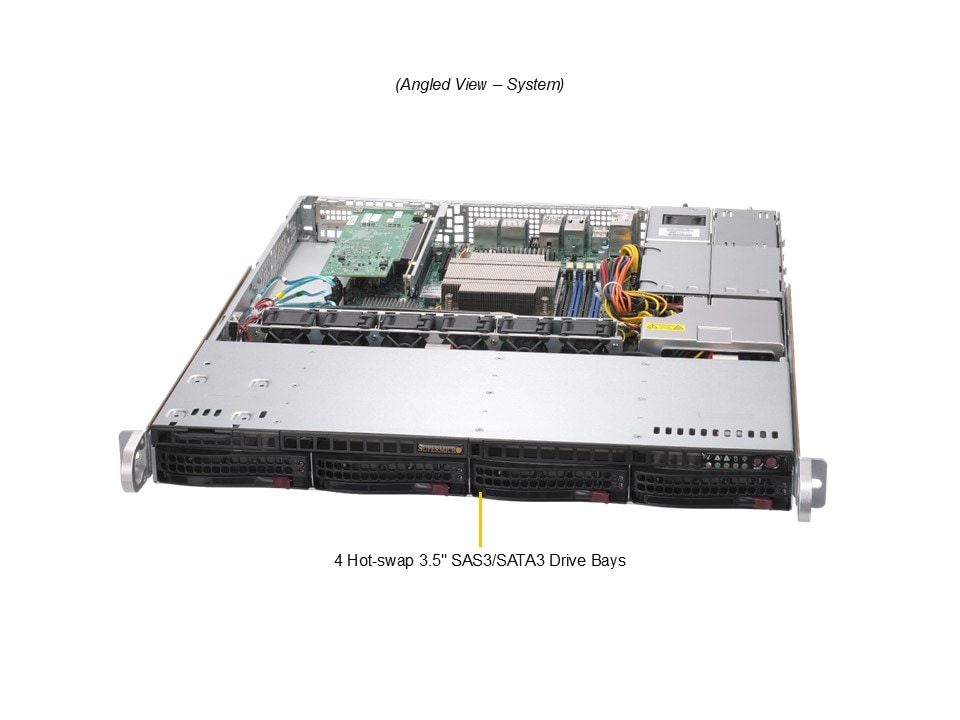

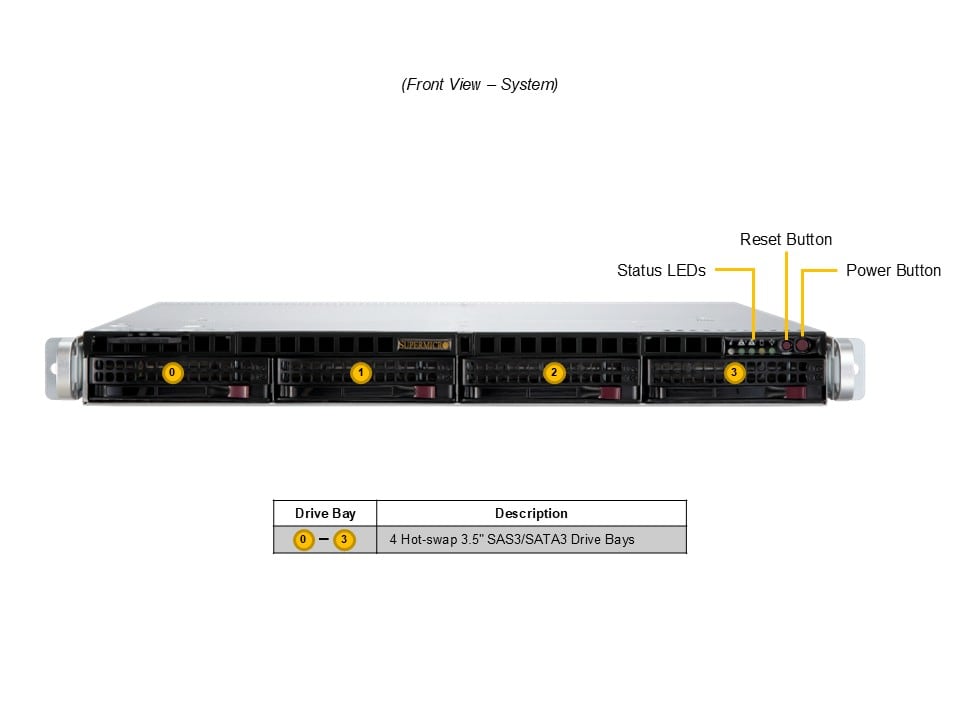

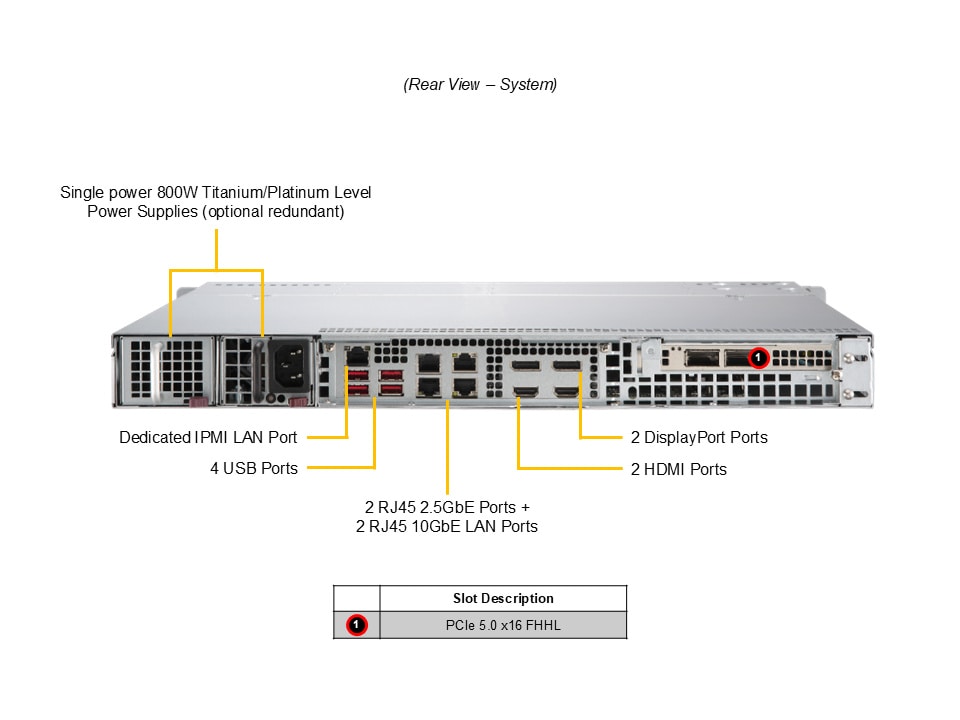

SYS-512AR-N4T Main SYS-512AR-N4T Angle SYS-512AR-N4T Top SYS-512AR-N4T Front SYS-512AR-N4T Rear
Integrated Board: X14SAZ-TLN4F
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Retail
  • Artificial Intelligence (AI) on Edge
  • AI Inference

Key Features

  1. Intel® Arrow Lake-S, 15th Gen Core Ultra 5/7/9 Processor, 95W
  2. Support for up to 1 single-width PCIe GPU accelerator cards
  3. DDR5 5600MHz, 4 slots ECC/Non-ECC UDIMM, up to 192GB
  4. 2x 2.5GbE and 2x 10GbE LAN
  5. 1 PCIe 5.0 x16 FHHL slot
  6. 4x SATA3 3.5” Drive Bays
  7. 800W 100-240Vac Titanium/Platinum Single Power Supply (can be upgraded to redundant power supply)
...
...
SYS-512AR-N4T
Specifications Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-512AR-N4T
Motherboard
Super X14SAZ-TLN4F
Processor
CPU
  • Single LGA-1851
  • Intel® Core™ Ultra 9/7/5 (Series 2) processors
Core Count
  • 24C/24T; 36MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
  • NVIDIA PCIe: A2
System Memory
Memory
  • Slot Count: 4 DIMM slots/2 Channels
  • Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
  • Max Memory (2DPC): 192GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
  • 2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB
  • 4 USB 3.2 Gen2 Type-A ports(Rear)
Video
  • 2 DisplayPort 1.4 ports(Rear)
  • 2 HDMI 2.1 ports(Rear)
TPM
  • 1 TPM header
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
Voltage
  • Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-R000CNBP-2
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.98" (507 mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot
M.2
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SATA drive bays
M.2
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280/22110)
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
1x 800W
1x 800W Redundant Platinum Level (94%) power supply
Dimension (WxHxL)54.5 x 40.25 x 220 mm
Input100-127Vac
750W: 100-127Vac / 50-60Hz
200-240Vac
800W: 200-240Vac / 50-60Hz
230-240Vdc
800W: 230-240Vdc / 50-60Hz
+12VMax: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 62.5A / Min: 0A (100Vac-127Vac)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
1x 800W
1x 800W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)54.5 x 40.25 x 220 mm
Input800W: 100-127Vac / 50-60Hz
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12VMax: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
