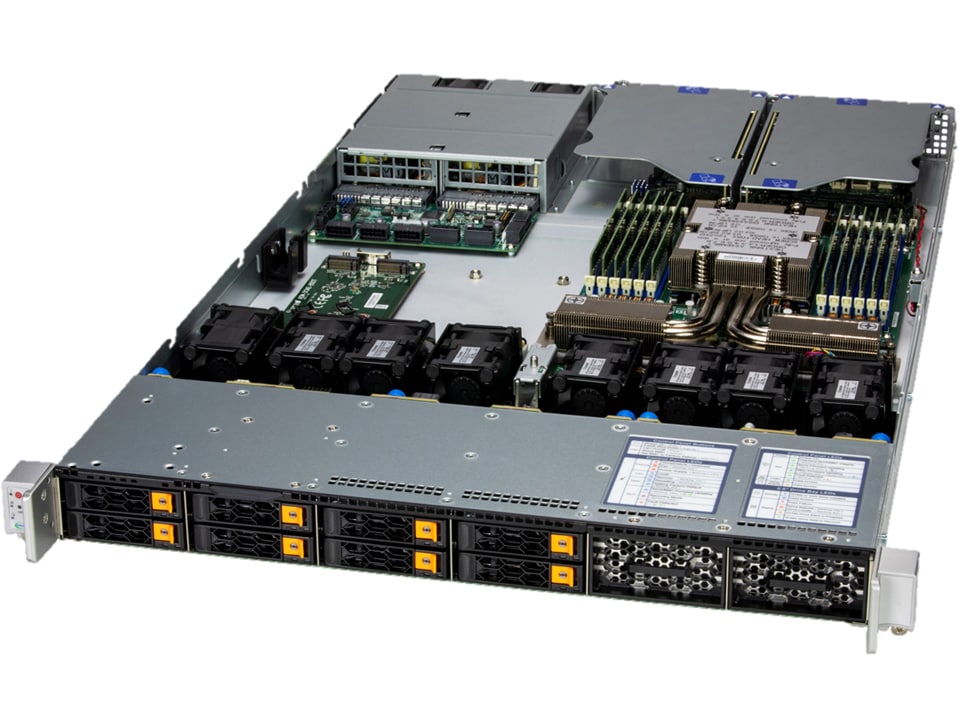

SuperServer AS -1116CS-TN

Datasheet

Key Applications

Virtualization
HPC
CDN, Edge Nodes
Cloud Computing
Data Center Optimized
Storage Headnode

Key Features

All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
Based on Modular DeNsity Optimized HPM Form Factor (M-DNO)
Support DC-SCM module with OpenBMC
Single AMD EPYC™ 9005/9004 Series Processor
Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
2 PCIe 5.0 x16 FHHL slots
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)
8 Hot-swap 2.5" NVMe/SATA/SAS drive bays
Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive bays
Optional RAID support via storage add-on card
Support up to 2 FHHL GPU accelerator cards

...

Get Pricing

Compare

Specifications

Product SKUs
A+ Server AS -1116CS-TN

Motherboard
Super H14SHM

Processor
CPU	Single processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 192C/384T
Note	Supports up to 500W TDP CPUs

GPU
Max GPU Count	Up to 2 single-width GPUs
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory
Memory	Slot Count: 12 DIMM slots/12 Channels Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 2.0 Type-A port(Rear) 1 USB 3.2 Gen1 Type-A port(Rear)
Video	1 VGA port(Rear)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support ACPI 6.5

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! IPMIView
Power configurations	ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Chassis
Form Factor	1U Rackmount
Model	CSE-MD101TS-R000NDP

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	29.4" (747 mm)
Package	8.1" (H) x 23.8" (W) x 40.6" (D)
Weight	Gross Weight: 49 lbs (22.2 kg) Net Weight: 34 lbs (15.4 kg)
Available Color	Black

Front Panel
LED	HDD activity LAN1 activity LAN2 activity Power Failed LED Power status System information
Buttons	Power On/Off button UID button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) View AOC Options
CXL Support	Up to 4 CXL 2.0 x16 devices

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 NVMe/SAS/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" PCIe 5.0 NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options
M.2	2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110) View M.2 Options

System Cooling
Fans	8 Counter-Rotating PWM 40x40x56mm Fan(s)
Air Shroud	1 Air Shroud

Power Supply

2x 1000W
2x 2000W

2x 1000W

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V	Max: 66.7A (100Vac-127Vac) Max: A (100Vdc-240Vdc) Max: 83A (200Vac-240Vac)
12V SB	Max: 2.1A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

2x 2000W

2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

Resources & Downloads

BIOS Downloads

Click the button to download the latest BIOS for this product. If you are looking for an older-revision BIOS, please contact our technical support.

* Please do not download / upgrade the BIOS/Firmware UNLESS your system has a BIOS/Firmware-related issue. Flashing the wrong BIOS/Firmware can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS/Firmware update.

BMC Firmware Downloads

Click the button to download the latest BMC firmware for this product. If you are looking for an older-revision BIOS, please contact our technical support.

* Please do not download / upgrade the BMC/Firmware UNLESS your system has a BMC/Firmware-related issue. Flashing the wrong BMC/Firmware can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BMC/Firmware update.

Drivers & Utilities

In order to locate a driver/utility, please select your Operating System and Device Type below: (for OS supported, please refer to OS Compatibility)

User’s Manuals

Download the latest manuals for AS -1116CS-TN.

Type: User's Manual

Revision: 1.0a

Quick-References

Download the latest Quick References for AS -1116CS-TN.

Type: PDF

Revision: 1.0a

Product Specifications

Check out the specifications webpage for AS -1116CS-TN.

Go to Spec

OS Certification

Check out the certification webpage for AS -1116CS-TN.

Go to Page

Parts List

Optional Parts List
	Part Number	Qty	Description
12 NVMe (Drives 0-11)	CBL-PWEX-1136-70	1	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
	CBL-MCIO-1339M5R	1	MCIO x8 (STR to RA),39CM,32AWG,RoHS
	MCP-220-00178-0B	4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
	CBL-MCIO-1340M5-1	1	MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
	BPN-NVME5-HS119N-S4R	1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
	CBL-MCIO-1226M5	1	MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS
	CBL-MCIO-1245M5RE	1	[NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS
	CBL-MCIO-1330M5	2	MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
12 SATA (Drives 0-11)	CBL-CDAT-1062Y-45	1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS
	CBL-MCIO-1255L4Y •	2	(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
	MCP-220-00178-0B	4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
	CBL-PWEX-1136-70	1	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
	BPN-NVME5-HS119N-S4R	1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
4 NVMe (Drives 8-11)	BPN-NVME5-HS119N-S4R	1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
	CBL-MCIO-1226M5	1	MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS
	CBL-MCIO-1340M5-1	1	MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
	MCP-220-00178-0B	4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
	CBL-PWEX-1136-70	1	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
4 SATA (Drives 8-11)	BPN-NVME5-HS119N-S4R	1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
	CBL-CDAT-1062Y-45	1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS
	CBL-MCIO-1255L4Y •	1	(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
	MCP-220-00178-0B	4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
	CBL-PWEX-1136-70	1	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
8 NVMe (Drives 0-7)	CBL-MCIO-1245M5RE	1	[NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS
	MCP-220-11902-0B	2	HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS
	CBL-MCIO-1339M5R	1	MCIO x8 (STR to RA),39CM,32AWG,RoHS
	CBL-MCIO-1330M5	2	MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
8 SATA (Drives 0-7)	MCP-220-11902-0B	2	HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS
	CBL-CDAT-1062Y-45	1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS
	CBL-MCIO-1255L4Y •	1	(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
CacheVault for Broadcom 3916/3908	BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)	1	SuperCap mounting bracket for PCIe location
CacheVault for Broadcom 3916/3908	BTR-CVPM05 + MCP-240-21747-0N (For S3908/S3916)	1	SuperCap mounting bracket for AIOM location
Heat Sink Options	SNK-P2082PV-2	1	1U Passive EVAC CPU Heat Sink for AS -1116CS-TN
Heat Sink Options	SNK-P0082V	1	1U Passive CPU VC Heat Sink for AMD Socket SP5 Processors
M.2 Control Card	AOC-SLG4-2H8M2	1	2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP
M.2 Option	CBL-NSKS-1240K5-E	1	M-PIC, KickStart 50p to 50p,40cm,G5,30AWG,RoHS
M.2 Option	AOM-DCM2-BOOT-P	1	DC-MHS M.2 Boot Board,2x 22110/2280 M.2 slots (M-key),P
Power Supply Options	PWS-1K04A-1R	2	CRPS: 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
	PWS-2K09A-1R	2	CRPS: AC-DC 1U 2000W 80 Plus Titanium CRPS, forward airflow, W73.5
	PWS-1K21A-1R	2	M-CRPS: 1200W, Titanium efficiency, Redundant W73.5xH40xL185 mm PWS
	PWS-1K61A-1R	2	M-CRPS: 1600W, Titanium efficiency, W73.5xH39/40xL185 mm, C-14 inlet
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Storage Control Card and Cable(s)	AOC-S3908L-H8iR-16DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100	1	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s)	AOC-S3916L-H16iR-32DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-100	1	Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA)	AOC-S3808L-L8IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100	1	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
Storage Control Card and Cable(s) (HBA)	AOC-S3816L-L16IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-100	1	Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM security module	AOM-TPM-9672SCM-P	1	TPM 2.0 with Infineon SLB 9672 For SCM module,HF,RoHS

Optional Parts List

12 NVMe (Drives 0-11)

Part Number	CBL-PWEX-1136-70	CBL-MCIO-1339M5R	MCP-220-00178-0B	CBL-MCIO-1340M5-1	BPN-NVME5-HS119N-S4R	CBL-MCIO-1226M5	CBL-MCIO-1245M5RE	CBL-MCIO-1330M5
Qty	1	1	4	1	1	1	1	2
Description	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS	MCIO x8 (STR to RA),39CM,32AWG,RoHS	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH	MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,	MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS	[NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS	MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS

12 SATA (Drives 0-11)

Part Number	CBL-CDAT-1062Y-45	CBL-MCIO-1255L4Y •	MCP-220-00178-0B	CBL-PWEX-1136-70	BPN-NVME5-HS119N-S4R
Qty	1	2	4	1	1
Description	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS	(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,

4 NVMe (Drives 8-11)

Part Number	BPN-NVME5-HS119N-S4R	CBL-MCIO-1226M5	CBL-MCIO-1340M5-1	MCP-220-00178-0B	CBL-PWEX-1136-70
Qty	1	1	1	4	1
Description	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,	MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS	MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS

4 SATA (Drives 8-11)

Part Number	BPN-NVME5-HS119N-S4R	CBL-CDAT-1062Y-45	CBL-MCIO-1255L4Y •	MCP-220-00178-0B	CBL-PWEX-1136-70
Qty	1	1	1	4	1
Description	1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS	(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH	MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS

8 NVMe (Drives 0-7)

Part Number	CBL-MCIO-1245M5RE	MCP-220-11902-0B	CBL-MCIO-1339M5R	CBL-MCIO-1330M5
Qty	1	2	1	2
Description	[NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS	HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS	MCIO x8 (STR to RA),39CM,32AWG,RoHS	MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS

8 SATA (Drives 0-7)

Part Number	MCP-220-11902-0B	CBL-CDAT-1062Y-45	CBL-MCIO-1255L4Y •
Qty	2	1	1
Description	HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS	(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS

CacheVault for Broadcom 3916/3908

Part Number	BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)	BTR-CVPM05 + MCP-240-21747-0N (For S3908/S3916)
Qty	1	1
Description	SuperCap mounting bracket for PCIe location	SuperCap mounting bracket for AIOM location

Heat Sink Options

Part Number	SNK-P2082PV-2	SNK-P0082V
Qty	1	1
Description	1U Passive EVAC CPU Heat Sink for AS -1116CS-TN	1U Passive CPU VC Heat Sink for AMD Socket SP5 Processors

M.2 Control Card

Part Number	AOC-SLG4-2H8M2
Qty	1
Description	2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP

M.2 Option

Part Number	CBL-NSKS-1240K5-E	AOM-DCM2-BOOT-P
Qty	1	1
Description	M-PIC, KickStart 50p to 50p,40cm,G5,30AWG,RoHS	DC-MHS M.2 Boot Board,2x 22110/2280 M.2 slots (M-key),P

Power Supply Options

Part Number	PWS-1K04A-1R	PWS-2K09A-1R	PWS-1K21A-1R	PWS-1K61A-1R
Qty	2	2	2	2
Description	CRPS: 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)	CRPS: AC-DC 1U 2000W 80 Plus Titanium CRPS, forward airflow, W73.5	M-CRPS: 1200W, Titanium efficiency, Redundant W73.5xH40xL185 mm PWS	M-CRPS: 1600W, Titanium efficiency, W73.5xH39/40xL185 mm, C-14 inlet

Software

Part Number	SFT-DCMS-Single
Qty	1
Description	DataCenter Management Package (per node license)

Storage Control Card and Cable(s)

Part Number	AOC-S3908L-H8iR-16DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100	AOC-S3916L-H16iR-32DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-100
Qty	1	1
Description	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60	Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60

Storage Control Card and Cable(s) (HBA)

Part Number	AOC-S3808L-L8IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100	AOC-S3816L-L16IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-100
Qty	1	1
Description	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA	Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA

TPM security module

Part Number	AOM-TPM-9672SCM-P
Qty	1
Description	TPM 2.0 with Infineon SLB 9672 For SCM module,HF,RoHS

CloudDC A+ Server AS -1116CS-TN New

Rackmount Servers

1U Dual Processor

2U Dual Processor

Single Processor

Multi Processor

Product Families

GPU Servers

8U/10U GPU Lines

4U/5U GPU Lines

2U GPU Lines

1U GPU Lines

Twin Servers

FlexTwin™

BigTwin®

GrandTwin®

TwinPro®

Twin

FatTwin®

Blade Servers

SuperBlade®

MicroBlade®

MicroCloud

Storage Servers

All Storage Systems

All-Flash NVMe

Top-Loading Storage

JBOF

Petascale Grace Storage

Enterprise-Optimized Storage

JBOD Storage Enclosures

Motherboards

Server Boards

Workstation Boards

Embedded / IoT Boards

Desktop / Gaming Boards

Previous Gen.

Motherboard Matrix

Global SKUs

Chassis

1U Chassis

2U Chassis

3U Chassis

4U / Tower Chassis

Mid / Mini-Tower

Embedded / IoT Chassis

Mobile Racks / Drive Kits

JBOD Storage Enclosures

Global SKUs

SuperRack®

Data Center Solution Engineering (DCSE)

Rack Integration Service

Accessories

Cable Matrix

Riser Card Matrix

Storage AOC Matrix

Power Supply Matrix

Heatsink Matrix

System Fan Matrix

Mobile Racks / Drive Kits

Front Chassis Bezels

Storage, I/O, Security

Edge & Telecom Servers

Fanless Edge Systems

Compact Edge Systems

Edge GPU Systems

Outdoor Edge Systems

1U Edge Network Systems

5G/Telecom Systems

Embedded Components

Embedded Motherboards

Embedded Chassis

Switches

Adapters

SuperWorkstations

Liquid-Cooled AI Development Platform

Single-Processor

Dual-Processor

Supero™ Gaming Solutions

AI Infrastructure

AI SuperCluster
