SuperServer AS -C531i-11102U

UP mid-tower workstation for SMB and content creation

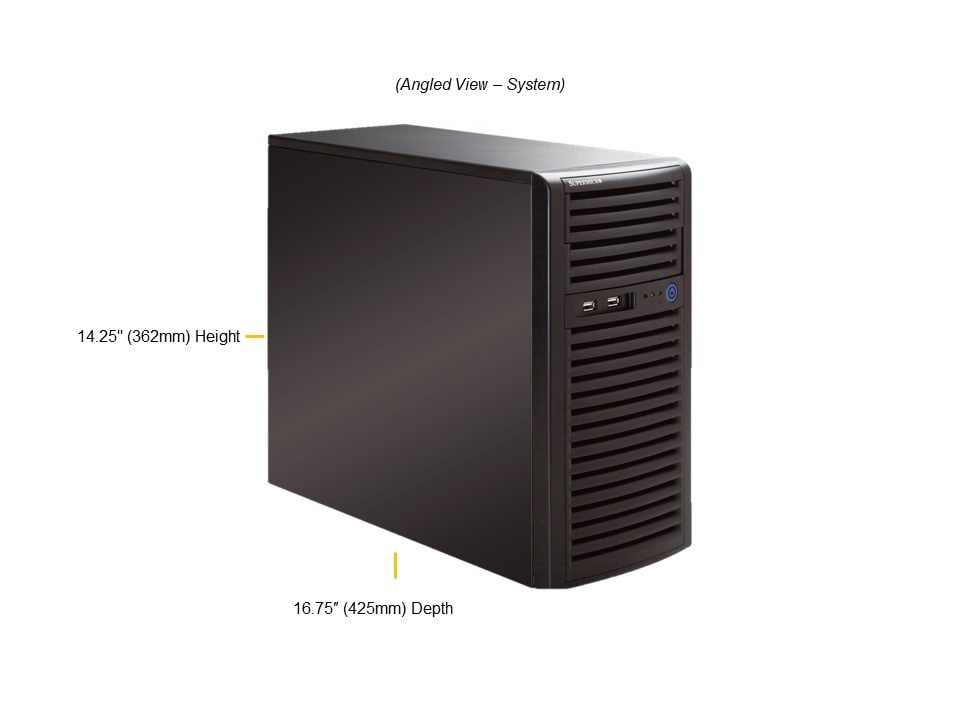

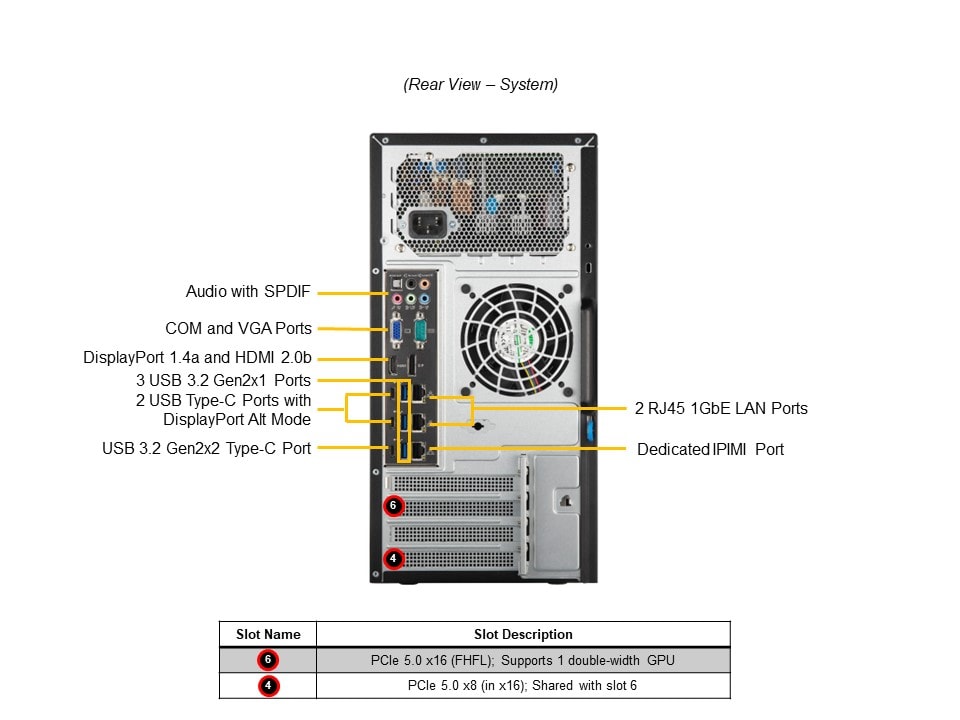

AS -C531i-11102U Main AS -C531i-11102U Top AS -C531i-11102U Front AS -C531i-11102U Rear
Integrated Board: H13SAE-MF
Learn more

Key Applications

  • Artificial Intelligence (AI)
  • 3D Graphics / Workstation
  • Visualization / Simulation
  • 2D/3D Content Creation

Key Features

  1. Single Socket AM5 (LGA-1718) AMD Ryzen™ 7 8700G, 8 cores/16 threads, 4.2/5.1GHz Turbo 65W Ryzen AI at 16 TOPS Processor
  2. AMD Radeon 780M, 12 core, 2900 MHz
  3. 32GB DDR5 4800 Non-ECC UDIMM (Max 4 DIMM up to 192GB)
  4. 1 RJ45 1GbE + 2 RJ45 1GbE
  5. 2 PCIe 5.0 x16 for double-width GPU cards or 1 triple-width GPU & 1 PCIe 4.0 x4
  6. 2 PCIe 4.0 NVMe M.2 slots (1 slot used by 1.92TB SSD) 4 fixed 3.5” drive bays (optional 4 fixed 2.5” drive bays)
  7. 1 668W Platinum Level power supply
  8. Mini-Tower chassis with 16.75" (425mm) depth
...
...
AS-C531i-11102U
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -C531i-11102U
Motherboard
Super H13SAE-MF
Processor
CPU
  • Single processor(s)
  • AMD Ryzen 7 8700G
Core Count
  • 8C/16T; 16MB Cache
Note
  • Supports up to 65W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 triple-width or 1 double-width or 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX 4070, RTX A4000, RTX A2000, RTX 4000
  • AMD PCIe: Radeon Pro W7800
  • View GPU Options
System Memory
Memory
  • Slot Count: 4 DIMM slots/4 Channels
  • Max Memory (1DPC): 192GB 5200MT/s non-ECC DDR5 UDIMM
  • View Memory Options
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • AMD B650
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210-AT
  • View AOC Options
Input / Output
Video
  • 1 VGA port(s)
  • 1 HDMI 2.0b port(s)
  • 1 DisplayPort 1.4a port(s)
Audio
  • Rear Audio
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mini-Tower
Model
  • CSE-731i-668B
Dimensions and Weight
Height
  • 14.25" (362 mm)
Width
  • 7.25" (184 mm)
Depth
  • 16.75" (425 mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 28 lbs (12.7 kg)
Available Color
  • Black

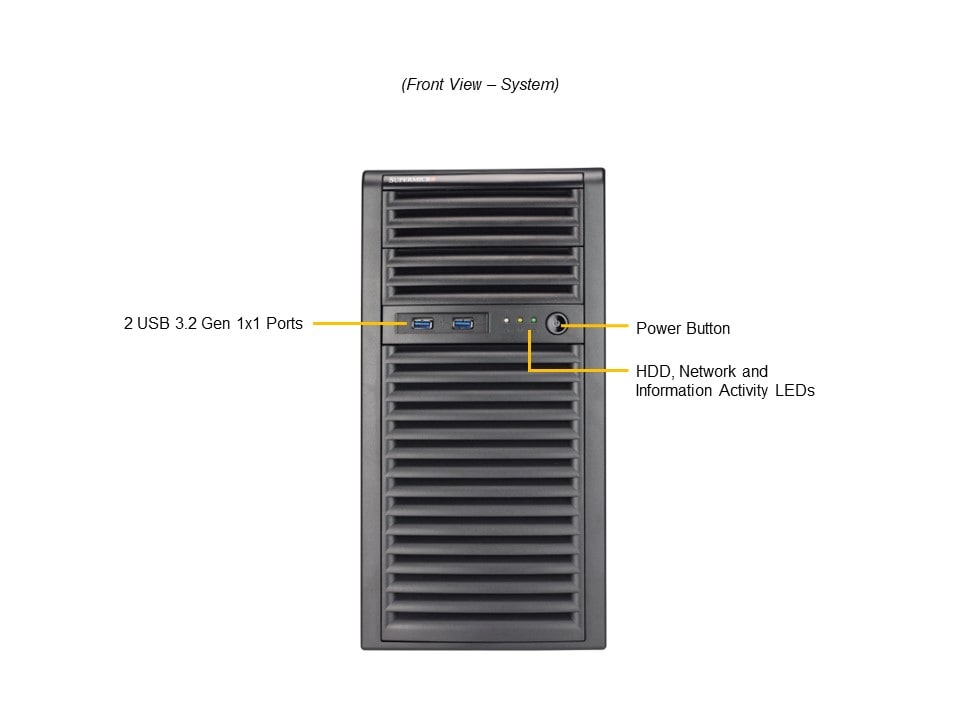

Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Buttons
  • Power On/Off button
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHFL slot(s)
  • Option A
    • 2 PCIe 5.0 x8 FHFL slot(s)
  • View AOC Options
M.2
  • 2 M.2 PCIe 4.0 x1 NVMe slot(s) (M-key 2280(default))
PCI
  • 1 PCI 5V 32-bit slot(s)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 3.5" SATA drive bay(s)
  • Option A: Total 4 bay(s)
    • 4 front hot-swap 2.5" SATA drive bay(s)
  • View Drive Options
M.2
Peripheral Bays
  • 2 5.25" peripheral bay(s)
System Cooling
Fans
  • 1x 12mm Fan(s) (optional)
  • 1 Fan(s)
Power Supply
1x 668W
1x 668W Platinum Level (92%) power supply
Dimension (WxHxL)150 x 86 x 185 mm
AC Input668W: 100-240Vac / 50-60Hz
+12VMax: 54A / Min: 0.2A (100Vac-240Vac)
5V SBMax: 2A / Min: 0A
Output Type24pin ATX
CertificationPlatinum Level Certified  Platinum Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
DVD Kit CBL-SAST-0624 • 1 70cm SATA Cable S-S 30AWG
CBL-0082L • 1 Y SPLIT SATA POWER ADAPTER
DVM-TEAC-DVDRW24-HBT1 1 BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0093AP4 • 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
TPM AOM-TPM-9670V 1 SPI TPM 2.0
