SuperServer E403-9D-4C-FRDN13+

  Products  Systems   [ E403-9D-4C-FRDN13+ ]

SYS-E403-9D-4C-FRDN13+



Integrated Board
Super X11SDW-4C-TP13F+

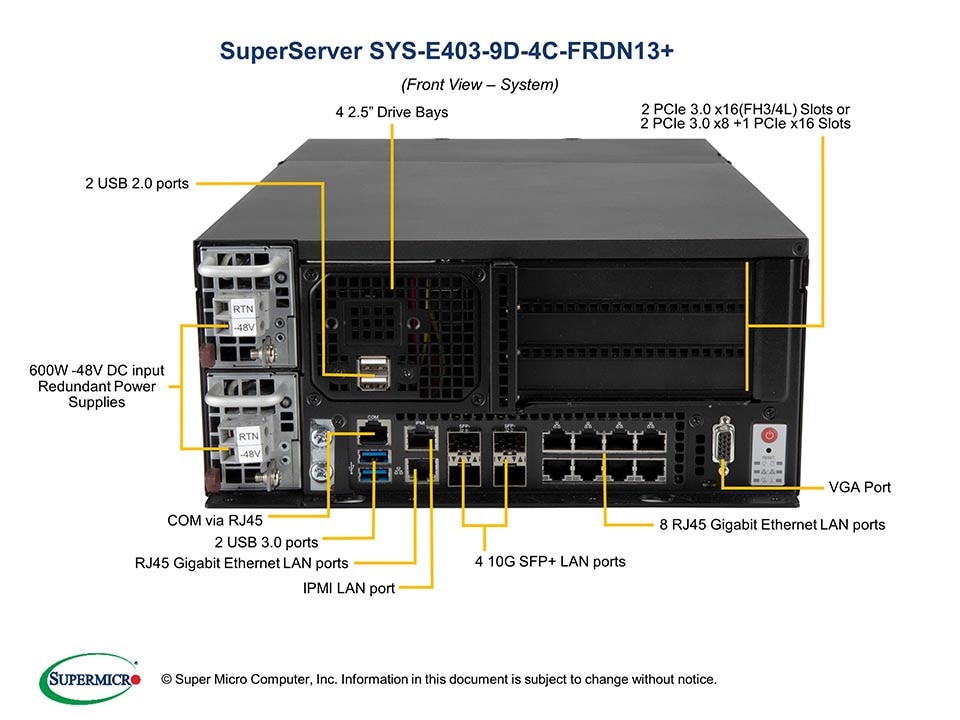

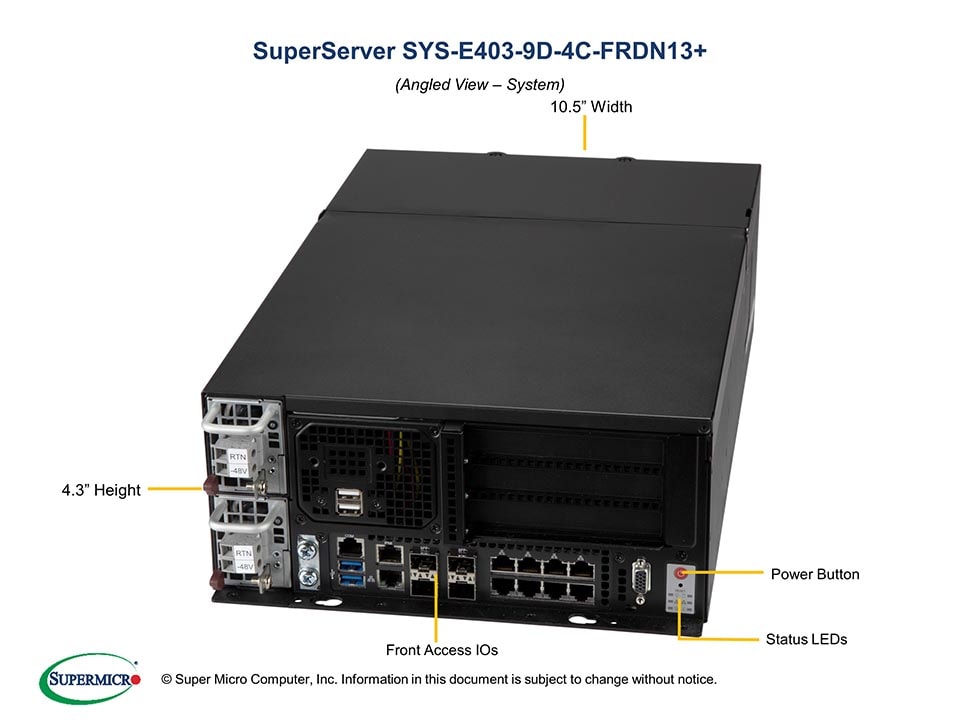

Views: | Angled View | Top View |

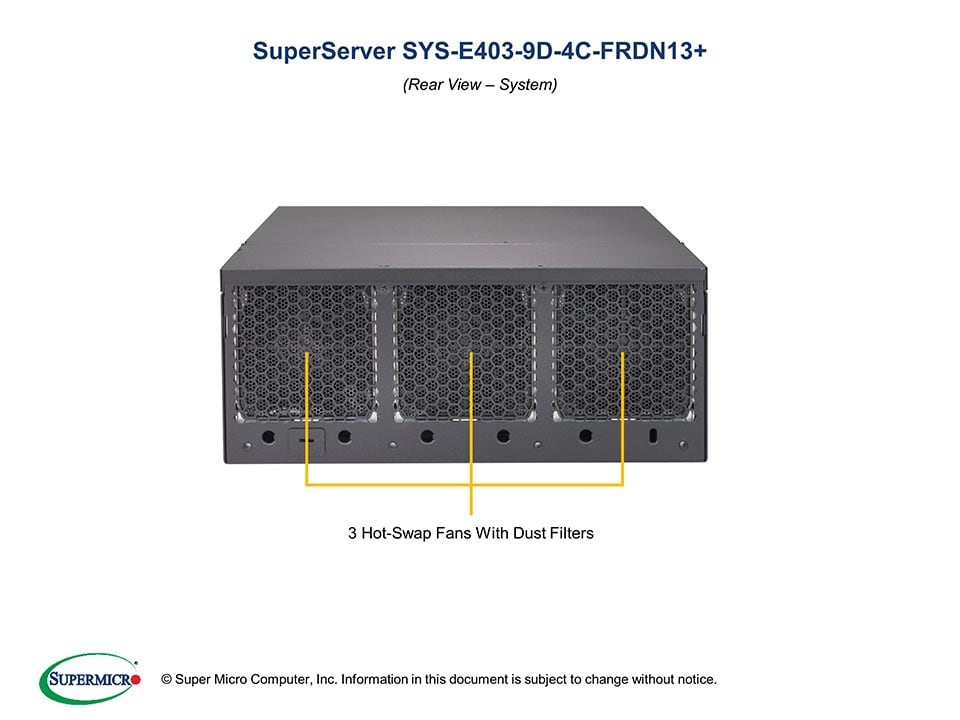

| Front View | Rear View |

Key Applications
• Multi-Access Edge Computing (MEC)
• Universal Customer Premise
   Equipment (uCPE)
• Network Function Virtualization (NFV)
• Edge Computing, Vehicle to
   Everything Application (C-V2X / V2X)


Key Features
1. Intel® Xeon® D-2123IT Processor,
    4 Cores, 8 Threads, 2.2 GHz, 60W
2. Up to 512GB ECC LRDIMM,
    up to 256GB reg. ECC RDIMM
    DDR4-2400Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 or
    2 PCI-E 3.0 x8 +
    1 PCI-E 3.0 x16 (FHFL) slots
4. 4 Internal 2.5" drive bays
5. M.2: 1 M-Key 2280/22110,
    1 E-Key 2230, 1 B-Key, 3042
6. 9 GbE (one for Ethernet management),
    4x 10G SFP+, 1 Dedicated IPMI LAN port
7. 2 USB 3.0, 2 USB 2.0, 1 COM
    via RJ45, VGA via BMC
8. 600W -48V DC input Redundant Power Supplies


 Drivers & Utilities   BIOS   Tested Memory  Tested M.2 List   Drive Options   Manuals  Quick-References Guide

Product SKUs
SYS-E403-9D-4C-FRDN13+
  • SuperServer E403-9D-4C-FRDN13+ (Black)

Motherboard

Super X11SDW-4C-TP13F+

Processor
CPU
  • Intel® Xeon® processor D-2123IT,
    CPU TDP support 60W
Cores / Cache
  • 4 Cores, 8 Threads

System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 L/RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • 4x 10G SFP+ via SoC
  • 8x 1GbE with Intel I350-AM4
  • Single 1GbE with Intel I210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • VGA via Aspeed AST2500 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
  • 9 RJ45 Gigabit Ethernet LAN ports
  • 4 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
  • 2 USB 2.0 ports (front)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM via RJ45

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS

Management
Software
Chassis
Form Factor
  • Box PC
Model
  • CSE-E403iF-000NDBP2

Dimensions and Weight
Height
  • 4.62" (117mm)
Width
  • 10.5" (267mm)
Depth
  • 16" (406mm)
Weight
  • Gross Weight: 23 lbs (10.43 kg)
  • Net Weight: 17 lbs (7.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHFL) slots or
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FHFL) slots
M.2
  • 1 M.2 M-Key , 2280/22110
  • 1 M.2 E-Key , 2230
  • 1 M.2 B-Key , 3042

Drive Bays
Internal
  • 4 Internal 2.5" drive bays

System Cooling
Fans
  • 3x 80x80mm PWM redundant fans

600W -48V DC input Redundant Power Supplies
Total Output Power
  • 600W: -44Vdc to -65Vdc
Dimension
(W x H x L)
  • 54.5 x 40 x 220 mm
DC Input
  • -44Vdc to -65Vdc / 18 - 10A
+12V
  • Max: 50A / Min: 0A
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
DC option for: (AC Counter- part)
  • PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R, PWS-804P-1R

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C ~ 50°C (32°F ~ 122°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SDW-4C-TP13F+
CSE-E403iF-000NDBP2
1
1
Super X11SDW-4C-TP13F+ Motherboard
Black 2.5U Embedded redundant BOX for FlexATX MB, W/O PWS
Add-on Card / Module AOM-SDW-B16X2-P 1 AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
Cable 1 CBL-0082L 2 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
Cable 3 CBL-CUSB-0831 1 [NR] USB2.0, 2 PORT,2x TYPE-A to 2X5/P2.54,63cm,26AWG,RoHS
Cable 4 CBL-SAST-0641 4 45cm SATA Cable S-RA 30AWG,RoHS/REACH
FAN FAN-0201L4 3 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan
Parts MCP-260-00153-0B 1 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black
Air Shroud MCP-310-40302-0B 1 Mylar air shroud for X11SDW in CSE-E403iF, RoHS,Black
Power Supply PWS-601D-1R 2 -48V DC input, 12V and 5Vsb 600W output for 1U redundancy
Power Distributor PDB-PT403-8824 1 PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Hide Parts List
