SuperServer E100-9W-E

  Products  Systems   Embedded/IoT   [ E100-9W-E ]






Integrated Board
Super X11SWN-E-WOHS

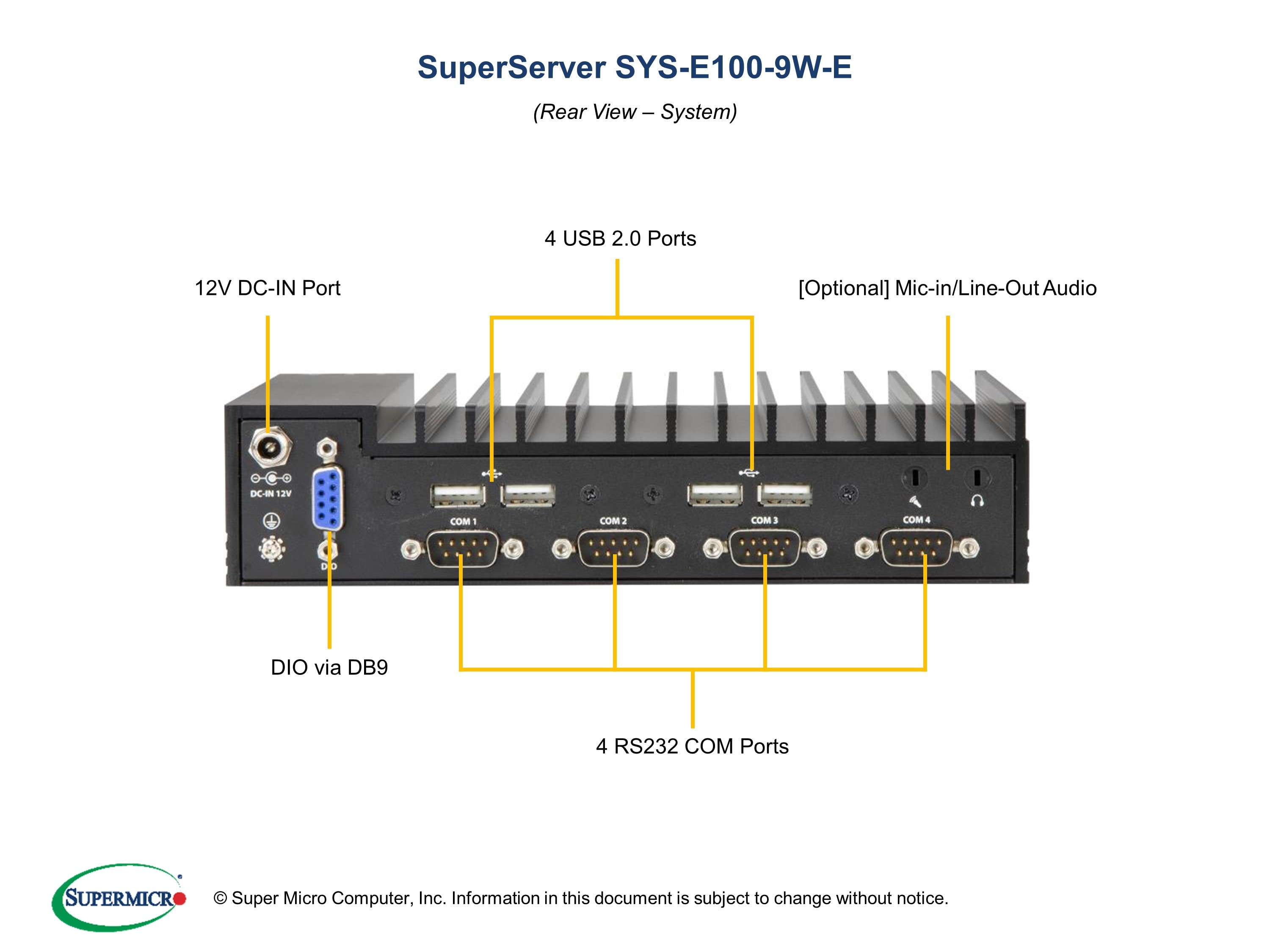

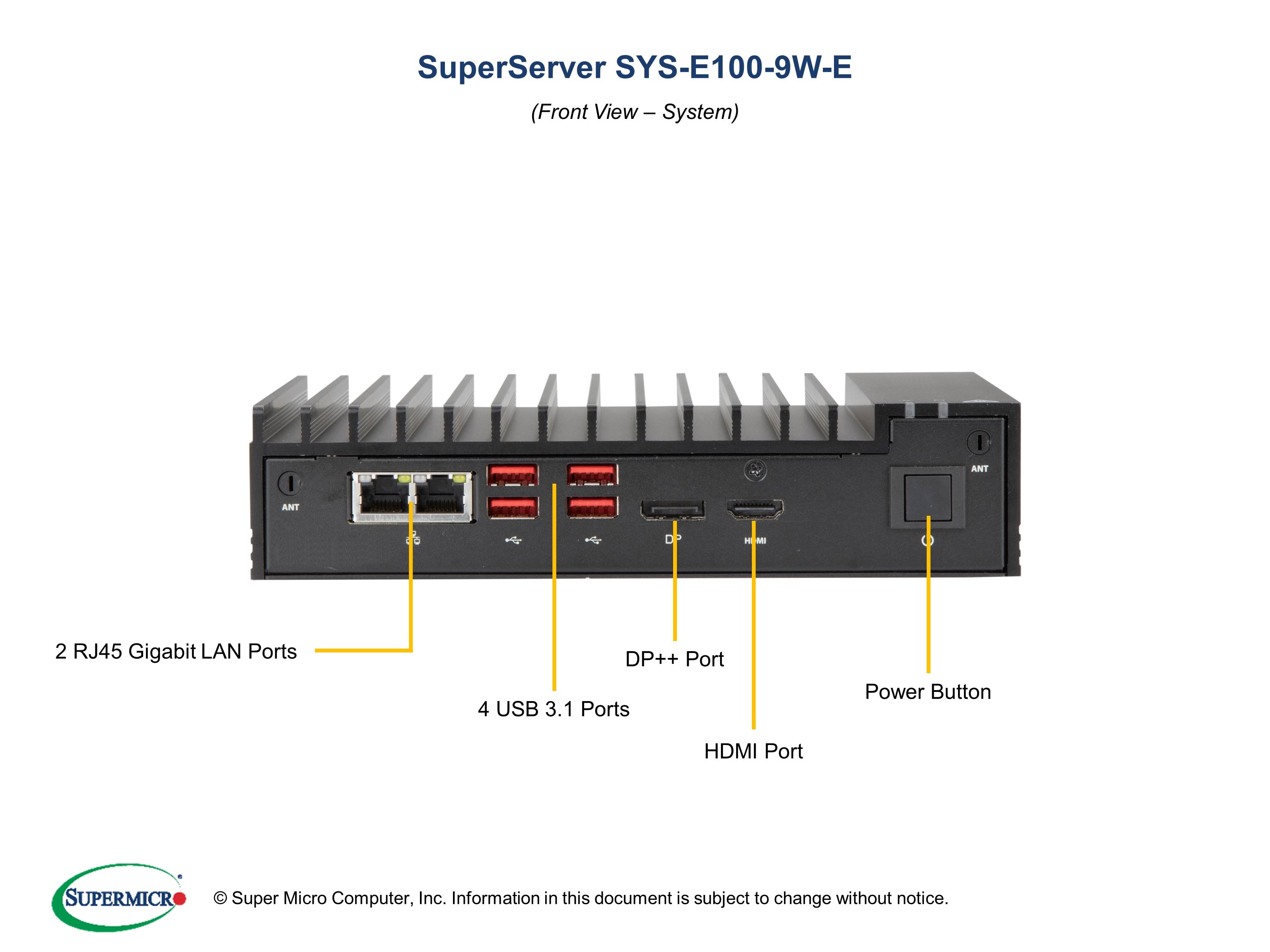

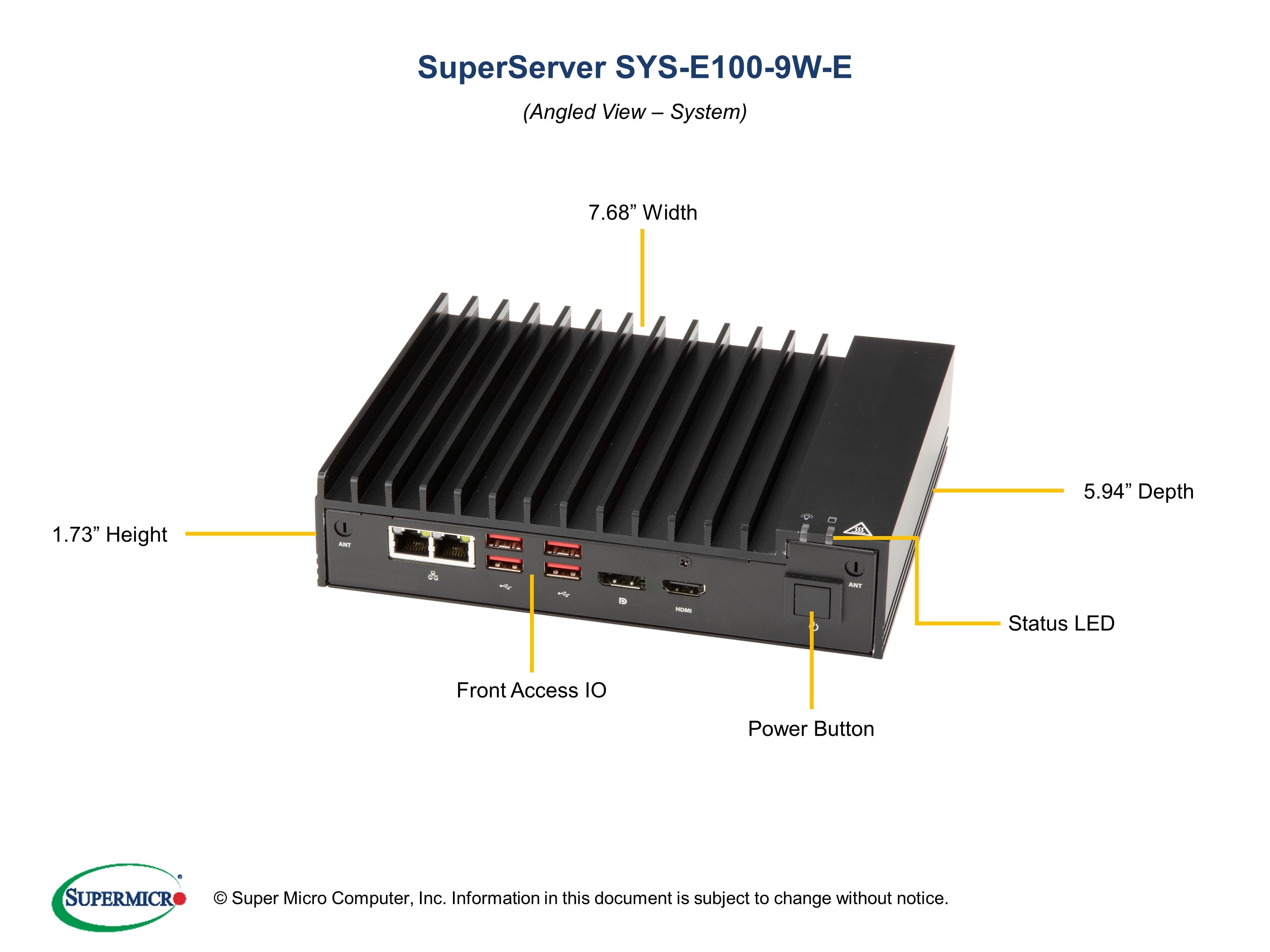

Views: | Angled View | Front View | Rear View |

Key Features
  - Industrial Automation, Retail
  - Smart Medical Expert Systems
  - Kiosk, Interactive info system
  - Digital Signage

1. 8th Generation Intel® Core™ i5-8365UE
    Processor; Single Socket FCBGA-1528
2. System-on-Chip
3. M.2: M-Key 2242/2280, E-Key
    2230, B-Key 2242/2280
4. Up to 64GB Unbuffered Non-ECC
    SO-DIMM DDR4 2400MHz; 2 DIMM slots
5. Dual GbE LAN w/ Intel i219LM + i210IT
6. 4 COM (RS-232/422/485), 4 USB 3.1,
    1 DIO via DB9
7. 1 HDMI and 1 Display Port
8. Fanless design
9. Lockable 12V DC 60W power adapter

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals   OS Certification Matrix   Quick-References Guide

Product SKUs
SYS-E100-9W-E
  • SuperServer E100-9W-E (Black)

Motherboard

Super X11SWN-E-WOHS

Processor/Cache
CPU
  • 8th Generation Intel® Core™ i5-8365UE Processor
  • Single Socket FCBGA-1528
  • System-on-Chip
  • CPU TDP support 15W
Note BIOS version 2.0 or above is required

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
Memory Type
  • DDR4 up to 2400MHz
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • Single LAN with Intel® I210IT
  • Single LAN with Intel® PHY I219LM
Audio
  • ALC 888S HD Audio
Video
  • Intel® UHD Graphics 620

Input / Output
USB
  • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
Video Output
  • 1 HDMI and 1 Display Port
COM Port
  • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Audio
  • 1 HD Audio header
    (Mic-in/Line-Out) (option)
Others
  • 8-bit configurable GPIO via DB9
Chassis
Form Factor
  • 3.5" SBC
Model
  • CSE-E101-02

Dimensions
Width
  • 7.68" (195mm) / 11.81" (300mm) - pkg.
Height
  • 1.73" (44mm) / 5.12" (130mm) - pkg.
Depth
  • 5.94" (151mm) / 11" (279mm) - pkg.
Weight
  • Gross Weight: 4.5 lbs (2.04 kg)
  • Net Weight: 2.65 lbs (1.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED and Hard drive activity LED

Expansion Slots
M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280
  • B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder

System Cooling
Fans
  • Fan-less design

Power Supply
Lockable 12V DC 60W power adapter

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
Power Configurations
  • +12V ~ +24V DC Wide power range input
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper
  • CPU thermal trip support for processor protection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
  • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
  • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms

    The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
See Parts List

Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11SWN-E-WOHS
CSE-E101-02
1
1
Super X11SWN-E-WOHS Motherboard
Fanless Enclosure for 3.5" motherboard
Power Adapter MCP-250-10134-0N 1 60W DC power adapter with US power cord 18AWG 6ft (0-40°C)
