SuperServer 8049U-E1CR4T(Complete System Only)

Products Systems [ 8049U-E1CR4T ]





Integrated Board
Super X11QPH+

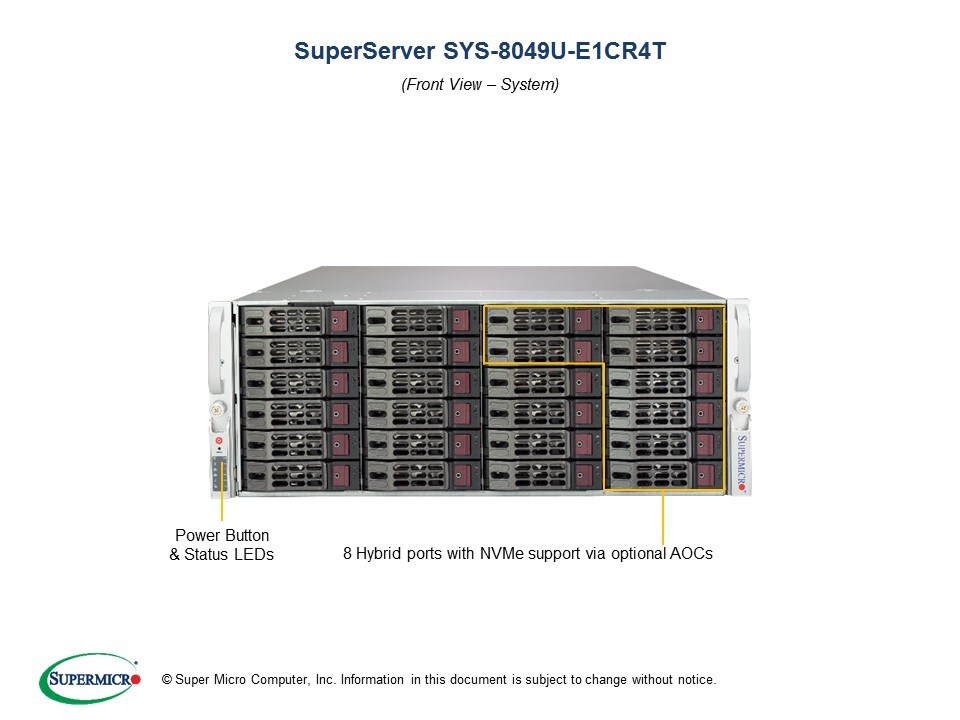

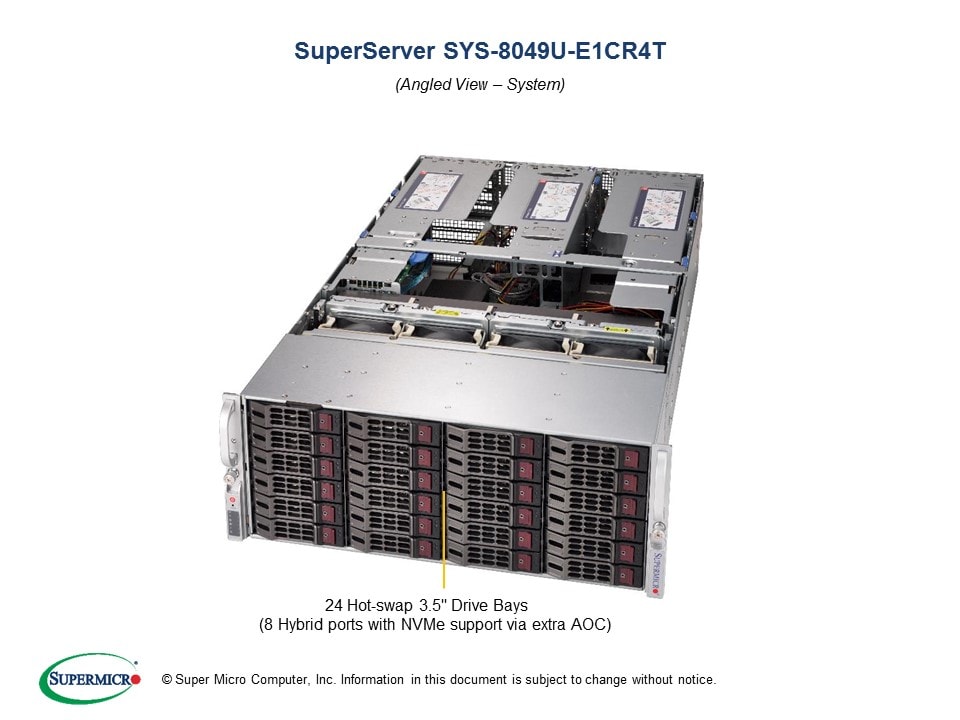

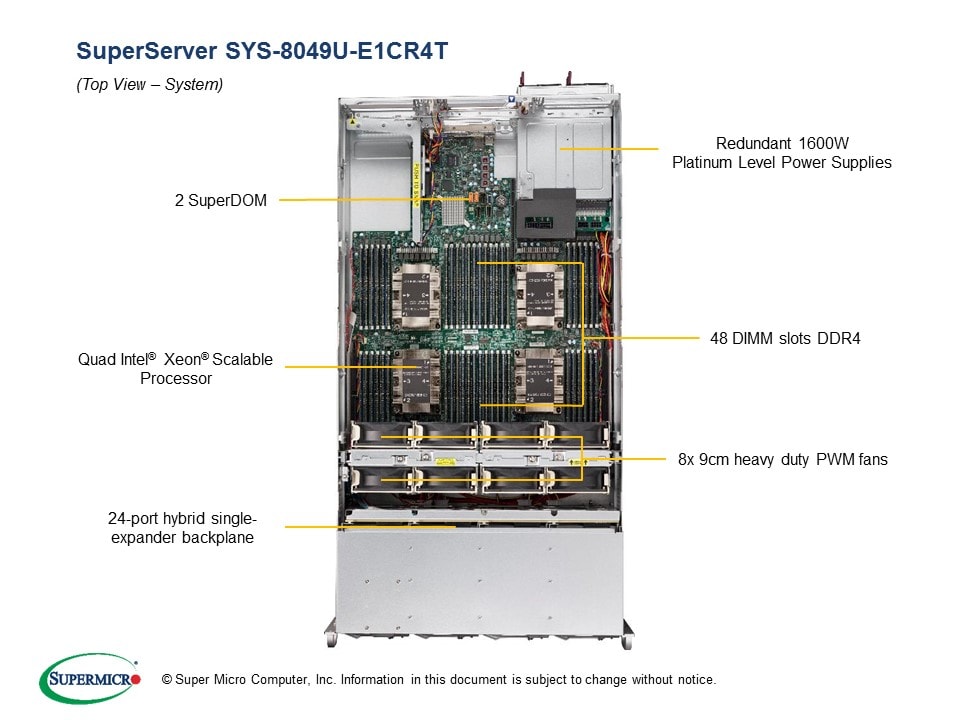

Views: | Angled View | Top View |
| Front View | Rear View |

Key Features
• 4-Way MP
• Up to 112 cores per system
• In-Memory Database Application
• ERP, CRM
• Business Intelligence
• Scientific Computing
• Scale-up HPC
• Cloud and Virtualization needs

1. Quad Socket P (LGA 3647) support
2nd Gen. Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)
2. 48 DIMMs; up to 12TB 3DS ECC
DDR4-2933MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
3. 6 PCI-E 3.0 x16 slots,
10 PCI-E 3.0 x8 slots
Up to 6 double width passive GPUs
4. 4x 10GBase-T LAN ports via
AOC-4UR66-I4XTF-P
5. 24 Hot-swap 3.5" SAS3/SATA3 drive
bays supported via optional Add-on
RAID controller card; 8 Hybrid ports
with NVMe support via optional AOC
6. 8x 9cm heavy duty fans
7. 1600W (3+1) Redundant Power
Supplies, Platinum Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 1 HDD recommended). Please contact your Supermicro sales rep for special 2 CPUs with 2 DIMMs requirements with fees.

Drivers & Utilities BIOS IPMI Tested Memory NVMe Options Manuals   OS Certification Matrix   Drive Options

Product SKUs
SYS-8049U-E1CR4T
  • SuperServer 8049U-E1CR4T (Black)
Motherboard

Super X11QPH+
Processor/Cache
CPU
  • Quad Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.0a or above is required to support 2nd Gen Intel® Xeon® Scalable processors
System Memory
Memory Capacity
  • 48 DIMM slots
  • Up to 12TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (SSD only) via Intel C621; RAID 0, 1
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 2 SATA3 (SSD only) (6Gbps) ports at rear
SAS
  • 24 SAS3 ports support via optional Add-on Cards
NVMe
  • 8 Hybrid ports with NVMe support via AOC
LAN
  • 4x 10GBase-T RJ45 LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
Serial Port / Header
  • 1 COM port (rear)
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-848UTS-R4800P
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 6.9" (177mm)
Depth
  • 34.5" (876mm)
Weight
  • Net Weight: 74.5 lbs (33.79 kg)
  • Gross Weight: 115 lbs (52.16 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
Expansion Slots
PCI-Express
  • 6 PCI-E 3.0 x16 slots
  • 10 PCI-E 3.0 x8 slots

    (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)
Drive Bays
Hot-swap
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays
  • Optional 24 SAS3 ports via AOC
  • Optional 16 SAS3 ports via AOC + 8 NVMe ports via AOC
System Cooling
Fans
  • 8x 9cm heavy duty fans with speed control
AC/DC240V Input Redundant Power Supply
1000 / 1600W 1U Redundant Power Supply
Total Output Power
  • 1000W: 100 – 127Vac
  • 1600W: 200 – 240Vac
  • 1600W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 185 mm
Input
  • 100 -- 127Vac / 13.8A / 47-63Hz
  • 200 -- 240Vac / 9.6A / 47-63Hz
  • 200 -- 240Vdc / 8.5A (CCC Only)
+12V
  • Max: 83A / Min: 0A (1000W)
  • Max: 132A / Min: 0A (1600W)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Platinum Level Certified Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11QPH+
CSE-848UTS-R4800P
1
1
Super X11QPH+ Motherboard
4U Chassis
Add-on Card / Module AOC-4UR66-I4XTF-P 1 4U Ultra Riser 4-port 10GbE RJ45, based on Intel XL710-BM1 and Intel X557-AT4 (PHY), 2 PCI-E 3.0 x16 slot.,RoHS
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-846EL1-N8 1 24-Port 4U Expander Backplane Support up-to 16x 3.5" SAS3/SATA3 HDD/SSD and 8 x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0118L-03 1 MINI SAS-4 SATA,INT,23CM,25.5CM SB,30AWG
Cable 2 CBL-0449L 1 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
Cable 3 CBL-PWEX-0673 2 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 4 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x4 slots
Riser Card RSC-S4-A6688 1 2U RHS Active Standard Riser Card with 2 PCI-E x8 Slots
Riser Card RSC-S4R-A66888 1 2U RHS Active Standard Riser Card with Three PCI-E x8 Slot
Heatsink / Retention SNK-P0068PS 4 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K69P-1R 4 AC-DC 1600W at high and 1000W at low line, Platinum Level

Optional Parts List

Part Number
Qty
Description
TPM security module (optional, not included) AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
2.5" Converter Trays MCP-220-00166-0B 1~24 Gen-5.5 hot-swap tool-less 3.5-to-2.5 converter tray
Intel VROC HW Key AOC-VROCPREMOD

AOC-VROCSTNMOD

AOC-VROCINTMOD
1

1

1
Intel VROC HW Key (RSTe) - Premium, RAID 0, 1, 5, 10

Intel VROC HW key (RSTe) - standard upgrade module

Intel VROC HW key (RSTe), Intel SSD only
Active Cooling GPU GPU-NVQRTX8000

GPU-NVQRTX6000

GPU-NVQRTX5000

GPU-NVQRTX4000

GPU-NVQM6000

GPU-NVQM6000-24

GPU-NVQGV100
-

-

-

-

-

-

-
NVIDIA PNY Quadro RTX8000 48 GB GDDR6 PCIe 3.0

NVIDIA PNY Quadro RTX6000 24GB GDDR6 PCIe 3.0

NVIDIA PNY Quadro RTX5000 16GB GDDR6 PCIe 3.0

NVIDIA PNY QuadroRTX4000 8 GB GDDR6 PCIe 3.0

NVIDIA PNY Quadro M6000 12GB GDDR5 PCIe 3.0

NVIDIA PNY Quadro M6000 24GB GDDR5 PCIe3.0-ActiveCooling

NVIDIA PNY Quadro GV100 32GB HBM2 PCIe 3.0- Active Cooling
Passive Cooling GPU GPU-NVTV100-16

GPU-NVTV100-32

GPU-NVTT4
-

-

-
NVIDIA Tesla V100 16GB HBM2 PCIe 3.0 -- Passive Cooling

NVIDIA Tesla V100 32GB CoWoS HBM2 PCIe 3.0--Passive Cooling

NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0-- Passive Cooling 70
GPU Power Cable CBL-PWEX-1042

CBL-PWEX-1040

CBL-PWEX-0665
1/GPU

1/GPU

1/GPU
GPU power cable - CPU 8 pin female to CPU 8 pin female, 50cm

GPU power cable adapter - CPU 8 pin female to two PCIe 6+2 pin female, 5CM

GPU power cable - PCIe 8 pin female (black) to CPU 8 pin female (white), 30cm
GPU Air Shroud MCP-310-84808-0B 1/GPUx2 GPU Mylar air shroud in SC848U,HF,RoHS/REACH
GPU Rear Fan Kit MCP-240-84807-0N 1/GPUx2 GPU Rear Fan Assembly Kit (for passive GPU only)
PCIe I/O bracket MCP-120-00110-0N 1-2 PCIe I/O bracket w/o hole (solid)
CacheVault(s) BTR-TFM8G-LSICVM02 &

BKT-BBU-BRACKET-05
1 CacheVault for Broadcom 3108;

Supercap mounting bracket for PCI-E location
Network Card(s) AOC-MCX556A-ECAT


AOC-S40G-i2Q

AOC-S25G-m2S

AOC-SGP-i2

AOC-SGP-i4

AOC-STG-b4S

AOC-STGN-i2S

AOC-STGN-i1S

AOC-STG-i2T
-


-

-

-

-

-

-

-

-
Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS

Standard LP 2-port 40GbE controller, based on Intel Fortville XL710

Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN

Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2

Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES

Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Cable ARM Kits MCP-290-00127-0N

MCP-290-00128-0N
1

1
39" rail set, quick/quick, 17.2"W, for Gen2 cable arm

Gen2 cable arm for Ultra
Global Services & Support OS4HR3/2/1


OSNBD3/2/1
-


-
3/2/1-year onsite 24x7x4 service


3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)

Storage Options List
Cases
AOC
Cable
Connection
For 24 SAS3 HDD AOC-S3008L-L8i x1 or

AOC-S3108L-H8iR x1
CBL-SAST-0593 x2 PCI-E slot 16
For 16 SAS3/SATA HDD

+

8 U.2 NVMe SSD
AOC-S3008L-L8i x1 or

AOC-S3108L-H8iR x1 or

AOC-S3108L-H8iR-16DD x1

AOC-SLG3-4E4T x2 or

(*)AOC-SLG3-8E2P x1
CBL-SAST-0593 x2





CBL-SAST-0848 x2 &

CBL-SAST-0820 x6 &

CBL-CDAT-0728 x1
PCI-E slot 16





PCI-E slot 12 & 14

PCI-E slot 14


(*) AOC-SLG3-8E2P x1 can replace AOC-SLG3-4E4T x2, but only half bandwidth support
Hide Parts List
