| SYS-8048B-C0R3FT |
- SuperServer 8048B-C0R3FT (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor
E7-8800 v4/v3*, E7-4800 v4/v3*
family
(up to 24 Cores and 165W TDP)
- Quad Socket R1 (LGA 2011)
|
| Cache |
|
| System Bus |
|
| Note: |
- E7-48XX/88XX v4/v3 family or above requires Rev. 2.0x or above motherboard w/ Jordan Creek II
|
| |
|
| Memory Capacity |
- 32x 240-pin DDR3 DIMM slots
- Supports up to 2TB DDR3, ECC Registered memory (RDIMM/LRDIMM) in 32 DIMM slots
|
| Memory Type |
- 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
- 64GB, 32GB, 16GB, 8GB, 4GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SAS |
- SAS2 (6Gbps) via Broadcom 3008 controller
|
| SATA |
- SATA2 (3Gbps) with RAID 0, 1, 5, 10
- SATA3 (6Gbps) with RAID 0, 1
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201F PHY (dedicated IPMI)
|
| Graphics |
|
| |
|
| SAS |
|
| LAN |
- 2x RJ45 10GBase-T ports
- 1x dedicated LAN port for IPMI on AOM
|
| USB |
|
| Serial Port / Header |
- 2x Fast UART 16550 ports: 1 rear and 1 header
|
| DOM |
- 2x DOM (Disk on Module) power connectors
|
| |
|
| BIOS Type |
- 16MB SPI Flash EEPROM with AMI® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support
|
|
|
| |
| | Form Factor |
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Weight |
- Net Weight: 65.5 lbs (29.7 kg)
- Gross Weight: 86.0 lbs (39.0 kg)
|
| Available Colors |
|
| |
|
| Hot-swap |

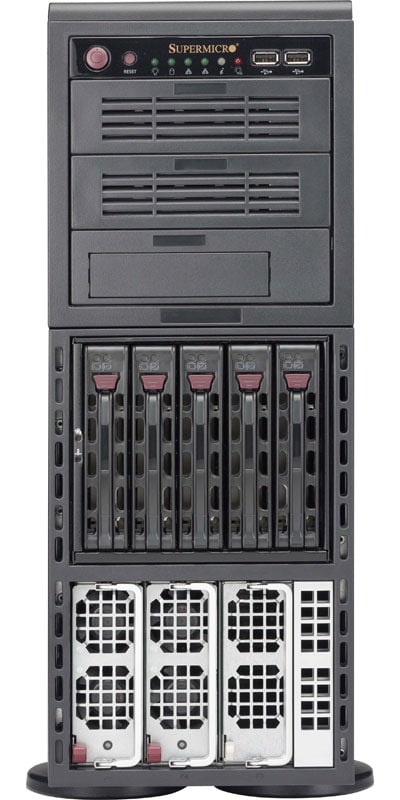

- 5x 3.5" Hot-swap Drive Bays
|
| |
|
| PCI-Express |
- 2x PCI-E 3.0 x16 Full-heigh slot
- 2x PCI-E 3.0 x8 Full-heigh slot
|
| |
|
| SAS/SATA HDD Backplane
|
| |
|
| Fans |
- 3x 9cm Heavy Duty fans with speed controlCooling Fans
- 3x 8cm Heavy Duty fans with speed controlCooling Fans
|
| Shrouds |
- 1x Air Shroud (MCP-310-74806-0B)
|
| | |
| |
Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
| AC Voltage |
- 100-240 V, 50-60 Hz, 15 Amp max
|
| +12V |
- 100 Amp/115 Vac
- 117 Amp/230 Vac
|
| With Power Distributor |
- +5V: 30 Amp
- +3.3V: 25 Amp
- -12V: 0.6 Amp
|
| Certification |
Platinum Certified
|
| |
|
| CPU |
- Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
- 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
|
| FAN |
- 4-pin fan headers with tachometer status monitoring
- Low noise fan speed control mode
|
| Temperature |
- Monitoring for CPU and system environment
- Thermal Control for 9x fan connectors
|
| Other Features |
- Chassis intrusion detection
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
