SuperServer 4029GP-TRT3

  Products  Systems   GPU   [ 4029GP-TRT3 ]

4U Dual Processor (Intel), Single-Root Cascade GPU System with Up to 8 PCI-E GPUs





Integrated Board

X11DPG-OT-CPU



X11DPG-O-PCIE

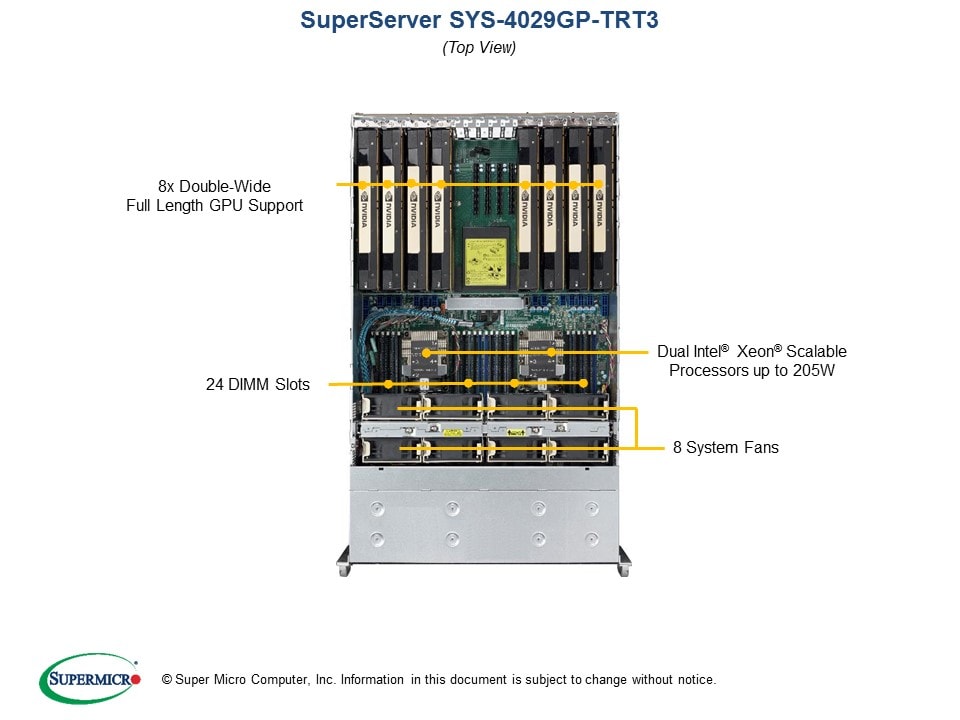

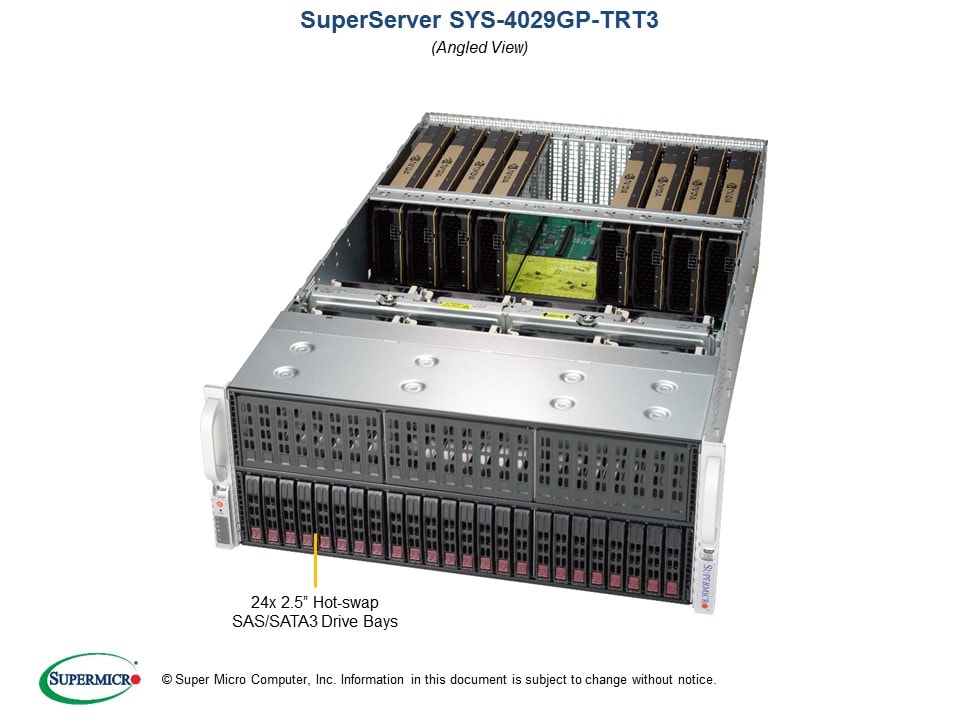

Views: | Angled View | Top View |

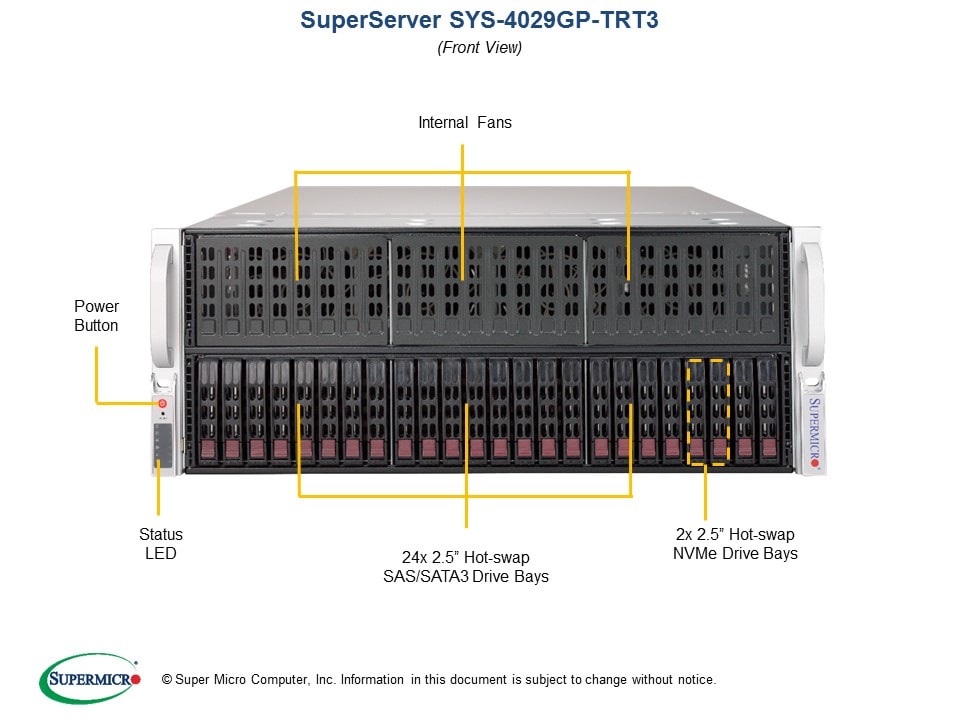

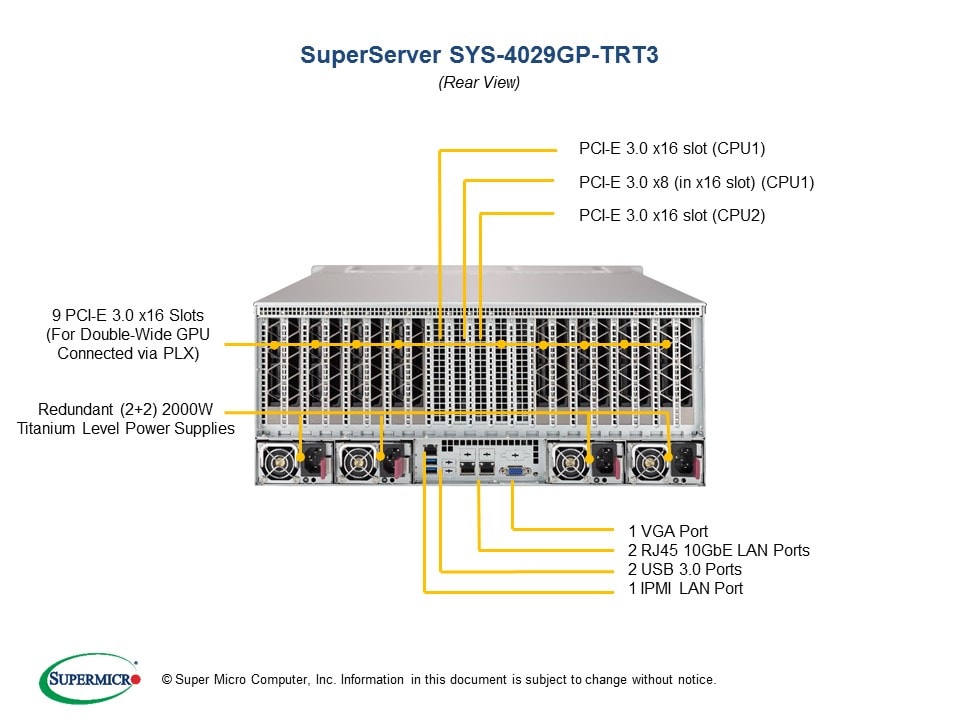

| Front View | Rear View |

Key Applications
  - AI/ML, Deep Learning Training and Inference
  - High Performance Computing (HPC)
  - Big Data Analytics
  - Astrophysics Simulation
  - Chemistry Simulation
  - Research Laboratory/National Laboratory


Key Features
1. Single Root System, Cascade Mode
    for maximum GPU peer to peer
    communication
2. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
3. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 11 PCI-E 3.0 x16 (FH, FL) slots,
    1 PCI-E 3.0 x8 (FH, FL in x16 slot)
5. Up to 24 Hot-swap 2.5" drive bays
    8x 2.5" SATA drives supported
    with included H/W, 2x 2.5" NVMe
    drives supported with included H/W
6. 2x 10GBase-T LAN ports via Intel C622
7. 8 Hot-swap 92mm RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies
    Titanium Level (96%+)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options   NVMe Options   Tested M.2 List   Manuals   OS Certification Matrix   Compatible GPU List  4U PCIe Root Architectures

Product SKUs
SYS-4029GP-TRT3
  • SuperServer 4029GP-TRT3

Motherboard

Super X11DPG-OT-CPU

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU
Supported GPUs
  • 8 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
  • 9 Single-Width GPUs
  • NVIDIA V100, T4, Quadro RTX
  • Supports both active and passive cooled GPUs
  • Compatible GPU list
CPU-GPU Interconnect
GPU-GPU Interconnect
  • PCI-E, NVIDIA® NVLink™ Bridge (Optional)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Dual Port 10GbE from C622
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
COM Port
  • 1 COM port (header)

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-418GTS-R4000BP2

Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Colors
  • Black

Drive Bays / Storage
Hot-swap
  • Up to 24x 2.5" SAS/SATA drive bays
  • 8x 2.5" SATA supported natively
  • 2x 2.5" NVMe supported natively
M.2
  • 1 NVMe based M.2 SSD
  • Form Factors: 2260, 2280, 22110

Expansion Slots
PCI-Express
  • 11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 9 GPUs
  • 1 PCI-E 3.0 x8 (FH, FL, in x16) slot

System Cooling
Fans
  • 8x 92mm heavy duty counter-rotating fans

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPG-OT-CPU
MBD-X11DPG-O-PCIE
CSE-418GTS-R4000BP2
1
1
1
Super X11DPG-OT-CPU Motherboard
Super X11DPG-O-PCIE Motherboard
CSE-418GTS-R4000BP2 Chassis
Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0449L 2 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
Cable 2 CBL-PWEX-1028 8 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 3 CBL-SAST-0507-01 2 MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG
Cable 4 CBL-SAST-0972 2 OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH
Parts MCP-130-41802-0B 1 Black plastic palm cover for X10DRG-O-PCIE
Riser Card RSC-X9DRG-O 4 RSC-X9DRG-O
Heatsink / Retention SNK-P0068APS4 2 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
* Power Supply PWS-2K05A-1R 4 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
* Cable 5 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
* Cable 6 CBL-0174L 4 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
* FAN 1 FAN-0199L4 8 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF
* Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray
* Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X
* Parts MCP-260-41801-0N 1 IO shield for X9DRG-O in SC418G
* Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
* Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
* Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
* Drive Tray(s) MCP-290-21301-0B 3 Black 2.5\" HDD dummy cover for SC213,216 (Cover 8 HDD)
* Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
* Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
0.5U LID MCP-230-41803-0N 1 Top cover for GTX card support
1U LID MCP-230-41806-0N 1 Top cover for NVLINK BRIDGE support
2.5" NVMe Drive Trays MCP-220-00121-0B
MCP-220-00167-0B

1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock
Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less
GPU Dummy Tray MCP-240-00096-0N 1 GPU / Add-on Card Dummy Assembly (2 Slots)
GPU Cables CBL-PWEX-0665 1 per GPU*** GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG.
CBL-PWEX-1017 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG.
CBL-PWEX-1040* 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG.
CBL-PWEX-1028** 1 per GPU GPU power cable (for NVIDIA TESLA V100). 8pin FEMALE CPU BLUE to 8pin FEMALE CPU BLUE. 30cm 20AWG/16AWG.
Note: * Use with CBL-PWEX-1028
** 8 qty. included with each system
*** 2 qty. required for each MI25
Storage Control Cards and Cables AOC-S3008L-L8I2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10
AOC-S3008L-L8E2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only
AOC-S3108-H8IR2, 4, 8 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60
AOC-S3108L-H8IR-16DD4, 8 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane
AOC-SAS3-9361-16I3, 5 1 Broadcom 9361 STD LP 16 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60.
AOC-SAS3-9361-24I5, 6 1 Broadcom 9361 STD LP 24 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60.
CBL-SAST-0531 2 n/a
BTR-TFM4G-LSI004187 1 LSI Remote CVKit with DVFlash Module CVFM04 for 9361 and 9380 Controller Series
BTR-TFM8G-LSICVM02 1 LSI Supercap w/ 8GB CV + 24" cable for LSI S3108-H8IR.
Optional installation kit:
- MCP-240-00127-0N
- BKT-BBU-BRACKET-05
MCP-240-00127-0N 1 Remote Mounting Bracket for Supercap. Installs in 2.5" drive tray.
BKT-BBU-BRACKET-05 1 Remote Mounting Board for Supercap. Full Height mounting bracket. Low Profile mounting bracket also included.
BPN-SAS3-216EL1 1 SAS3 12Gb/s Single Expander Backplane with x24 2.5" SATA/SAS HDD/SSD.
Note: 2. Requires x2 CBL-SAST-0531
3. Requires x4 CBL-SAST-0531
4. Use BTR-TFM8G-LSICVM02 for Supercap
5. Use BTR-TFM4G-LSI00418 for Cache Vault
6. Requires x6 CBL-SAST-0531
7. Requires BKT-BBU-BRACKET-05
8. Optional BPN-SAS3-216EL1 Expander Backplane support. Will lose x2 U.2 NVMe support
Network and Cables AOC-STG-i4S 1 4 Port 10G SFP+ PCI-E x8 Ethernet card. Based on Intel X710-AMI
AOC-STG-i2T 1 2 Port 10G RJ45 PCI-E x8 Ethernet card. Based on Intel X540
AOC-S25G-B2S 1 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Broadcom BCM57414
AOC-S25G-M2S 1 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
AOC-MCX4121A-ACAT 1 2 Port 25G SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
AOC-S40G-I1Q 1 1 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710
AOC-S40G-I2Q 1 2 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710
AOC-MCX456A-ECAT 1 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-4 VPI
AOC-MCX556A-ECAT 1 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-5 VPI
CBL-NTWK-0944-MS28C30M 1 Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,3M,Mellanox
CBL-NTWK-0944-MS28C20M 1 Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,2M,Mellanox
AOC-E10GSFPSR 1 Ethernet Transceiver, SFP+ 1000Base-SX / 10GBase-SR
CBL-NTWK-0446-01 1 Ethernet Cable, QSFP, 40GbE, PASSIVE, 28 AWG, 3M
CBL-NTWK-0942-MQ28E20M 1 IB Cable, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
