SuperServer 6029P-WTRT

  Products  Systems   WIO   [ 6029P-WTRT ]





Integrated Board
Super X11DDW-NT

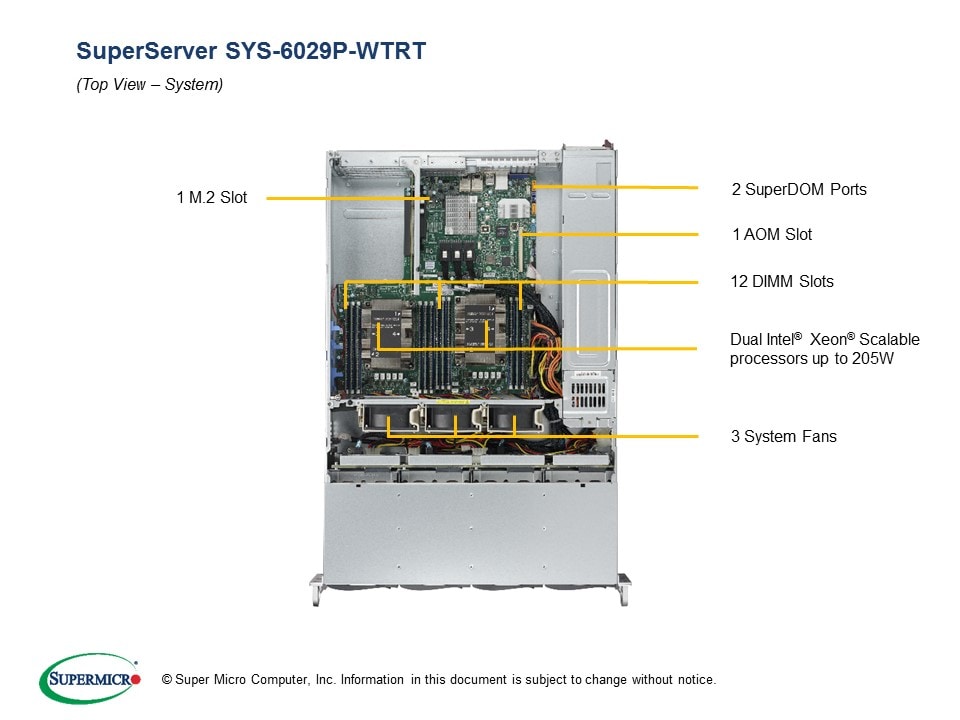

Views: | Angled View | Top View |

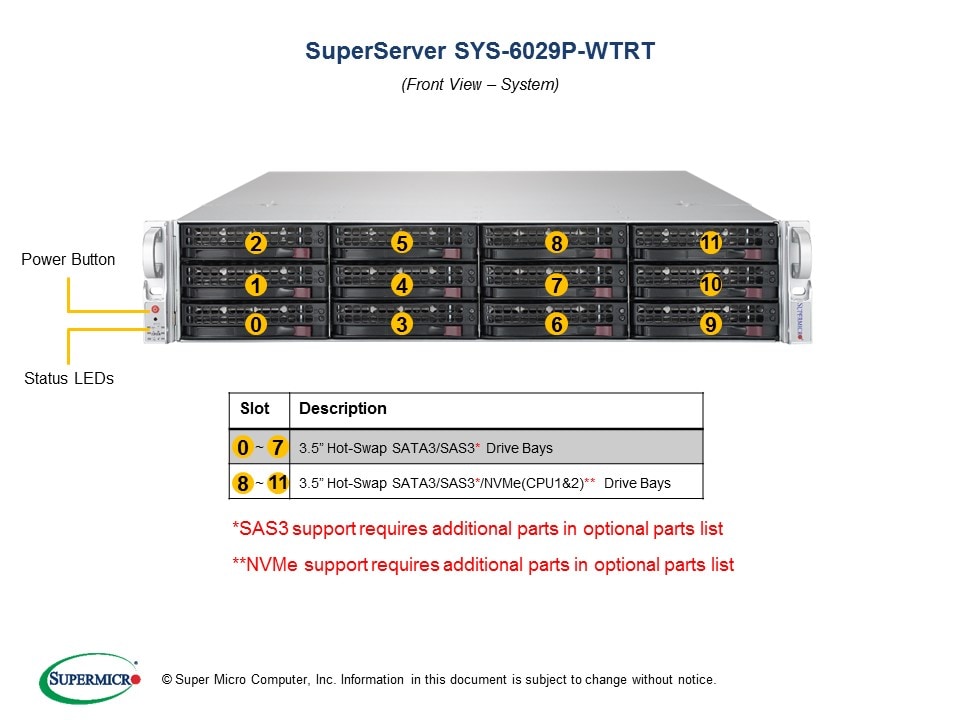

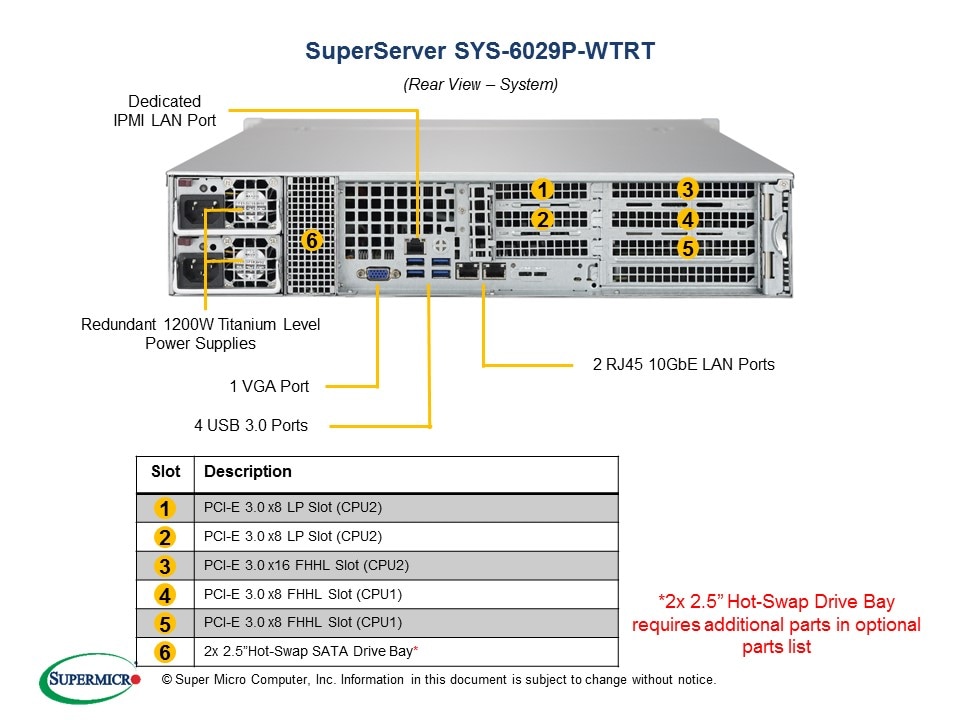

| Front View | Rear View |

Key Applications
• Web Server, Firewall Apps.
• Corporate-Wins, DNS, Print, Login
• Gateway, provisioning servers
• Compact Network Appliance
• Cloud Computing


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16 (FHHL) slots,
    2 PCI-E 3.0 x8 (FHHL) slots,
    2 PCI-E 3.0 x8 (LP) slots,
    1 PCI-E 3.0 x16 for Add-on-Module
    (Support SAS3 Storage controller),
    1 PCI-E 3.0 x4 NVMe M.2 slot
4. 12 Hot-swap 3.5" SAS/SATA drive
    bays (4 NVMe/SAS3/SATA3
    hybrid drive bays)
5. 2x 10GBase-T ports via Intel C622
6. 1 VGA, 4 USB 3.0 (rear)
7. 1200W Redundant Power Supplies
    Titanium Level (96% Efficiency)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Compatible GPU List  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6029P-WTRT
  • SuperServer 6029P-WTRT (Black)

Motherboard

Super X11DDW-NT

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 10Gbase-T LAN with Intel C622
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 12 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 64 lbs (29.0 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 (FHHL) slot
  • 2 PCI-E 3.0 x8 (FHHL) slots
  • 2 PCI-E 3.0 x8 (LP) slots
  • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
  • 1 PCI-E 3.0 x4 NVMe M.2 slot


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 12 Hot-swap 3.5" SAS/SATA drive bays with SES2 and Mini-i-Pass (SFF 8087) connectivity

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 3 High-performance 8cm PWM fans

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DDW-NT
CSE-826BAC4-R1K23WB
1
1
Super X11DDW-NT Motherboard
2U Chassis
Backplane BPN-SAS3-826A-N4 1 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Storage Cable CBL-SAST-0507-01 3 MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG
Rubber Pads MCP-150-00017-0B 2 Rubber pad, 6.5mm H, 10x10mm
Chassis Part MCP-240-00146-0N 1 2U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH
Air Block MCP-160-82603-0B 1 Air Blocker X11DDW
Air Shroud MCP-310-82602-0B 1 air shroud X11DDW + CSE-826B
Manual MNL-2033-QRG 1 6029P-WTRT Quick Reference Guide
Riser Card (right) RSC-R2UW-2E8R 1 2U RHS WIO Riser card with two PCI-E x8 slots
Riser Card (left) RSC-R2UW-2E8E16+ 1 2U LHS WIO Riser card with one PCI-E x16 slot and two PCI-E x8 slots
Heatsink w/ Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
* Power Cord CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* FAN FAN-0158L4 3 80x80x38 mm, 10.5K RPM Cooling Fan
* Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
Notes:
  1. Parts with * come with the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Optional Upgrade for 2U LHS WIO Riser RSC-W2-66 1 2U LHS WIO Riser card with 2 PCI-E x16 double width slots
NVMe Drive Tray with Lock & NVMe Cable MCP-220-00138-0B & CBL-SAST-0929 - Tool-less Black gen-5 3.5"-to-2.5" NVMe drive tray, Orange tab
OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
Rear Window HDD Kit
(SATA only)
MCP-220-82616-0N 1 Rear Window 12G 2x 2.5" HDD Module for 826B Series Chassis
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Storage Controller
Card(s) & Cables(s)
AOC-S3908L-H8IR-16DD &
1x CBL-SAST-1264-100

AOC-S3916L-H16IR-32DD &
2x CBL-SAST-1264-100

AOC-S3808L-L8iT &
1x CBL-SAST-1264-100

AOC-S3816L-L16iT &
2x CBL-SAST-1264-100

AOC-S3216L-L16IT &
3x CBL-SAST-0531

AOM-S3108M-H8 &
2x CBL-SAST-0531

AOC-S3108L-H8IR-16DD &
2x CBL-SAST-0531

AOC-S3008L-L8i &
2x CBL-SAST-0531

AOC-S3008L-L8e &
2x CBL-SAST-0531
- Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD;
RAID 0, 1, 5, 6, 10, 50, 60; 65cm Slimline to MiniSAS HD Cable

Standard LP, 16 internal ports (12Gb/s) Gen-4, 32HDD;
RAID 0, 1, 5, 6, 10, 50, 60; 65cm Slimline to MiniSAS HD Cable

Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD;
HBA; 65cm Slimline to MiniSAS HD Cable

Standard LP, 16 internal ports (12Gb/s) Gen-4, 122HDD;
HBA; 65cm Slimline to MiniSAS HD Cable

Standard LP, 16 internal ports (12Gb/s) Gen-3, 240HDD;
HBA

Supermicro LP, 8 internal ports (12Gb/s) SAS Mezzanine;
RAID 0, 1, 5, 6, 10, 50, 60

Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60

Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10

Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
CacheVault (for 3108) BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N & MCP-220-00043-0N
- CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location; Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
CacheVault (for 3908/3916) BTR-CVPM05 & BKT-BBU-BRACKET-05/MCP-240-00127-0N
BTR-CVPM05 & MCP-240-00203-0N
1 CacheVault for Broadcom 3908/3916; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3908/3916; SuperCap mounting bracket for 2.5" HDD location
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGS-i1T
AOC-STGS-i2T
AOC-STG-i4T
AOC-STGN-i1S
AOC-STGN-i2S
AOC-STG-i4S
AOC-S25G-i2S
AOC-MCX555A-ECAT

AOC-MCX556A-ECAT
- Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350AM4
Standard LP, 1x 10GbE RJ45, PCI-E x4, Intel® X550-AT
Standard LP, 2x 10GbE RJ45, PCI-E x4, Intel® X550-AT2
Standard LP, 4x 10GBE RJ45, PCI-E x8, Intel® XL710-BM1
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel® XL710-BM1
Standard LP, 2x 25GbE SFP28, PCI-E x8, Intel® XXV710 + Marvell Unionville
Standard LP, 1x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
Standard LP, 2x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
Front Bezel MCP-210-82601-0B 1 Black Front Bezel for 826 chassis
Cable Management Arm MCP-290-00073-0N & MCP-120-82503-0N 1 Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
TPM security module (optional, not included) AOM-TPM-9670V-S
AOM-TPM-9671V-S
1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
- 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
