SuperServer 6028TP-HC1FR

  Products  Systems   2U TwinPro™   [ 6028TP-HC1FR ]





Integrated Board
Super X10DRT-PIBF

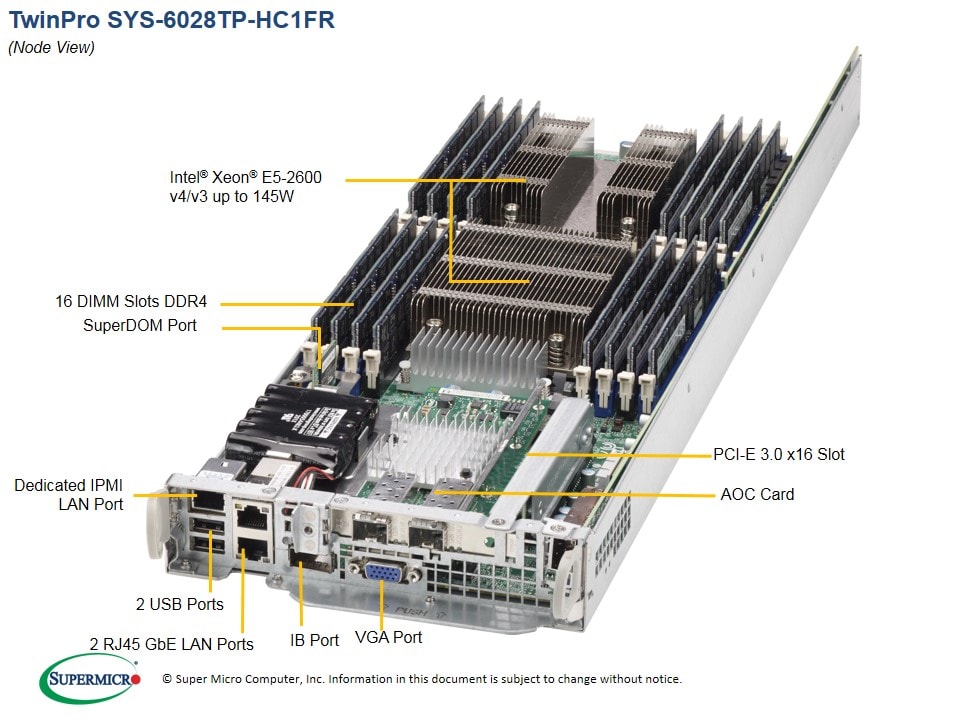

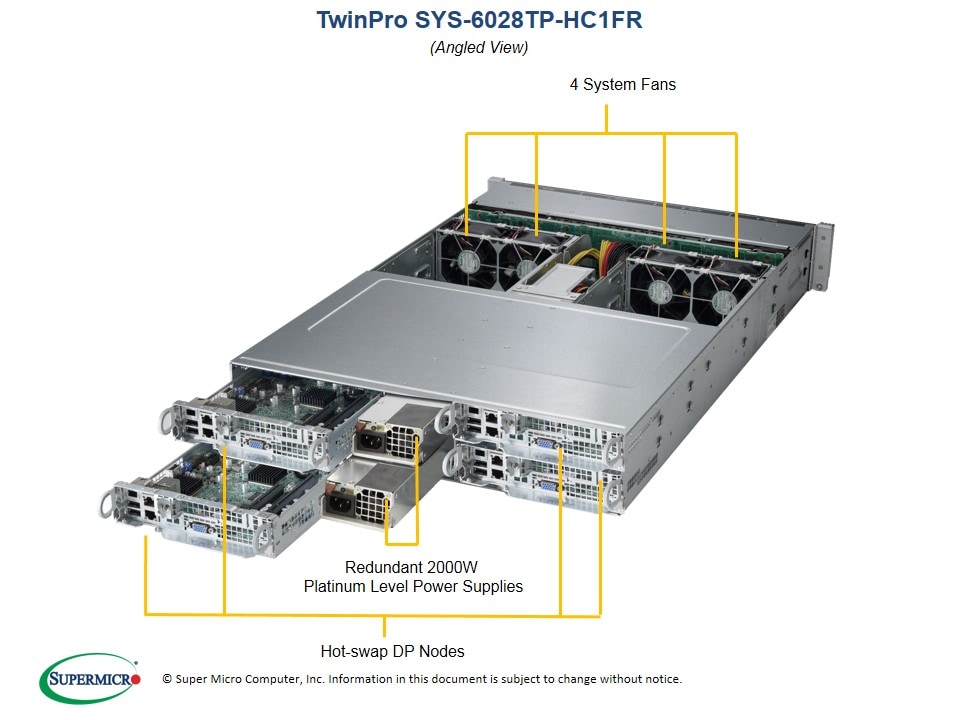

Views: | Angled View | Node View |

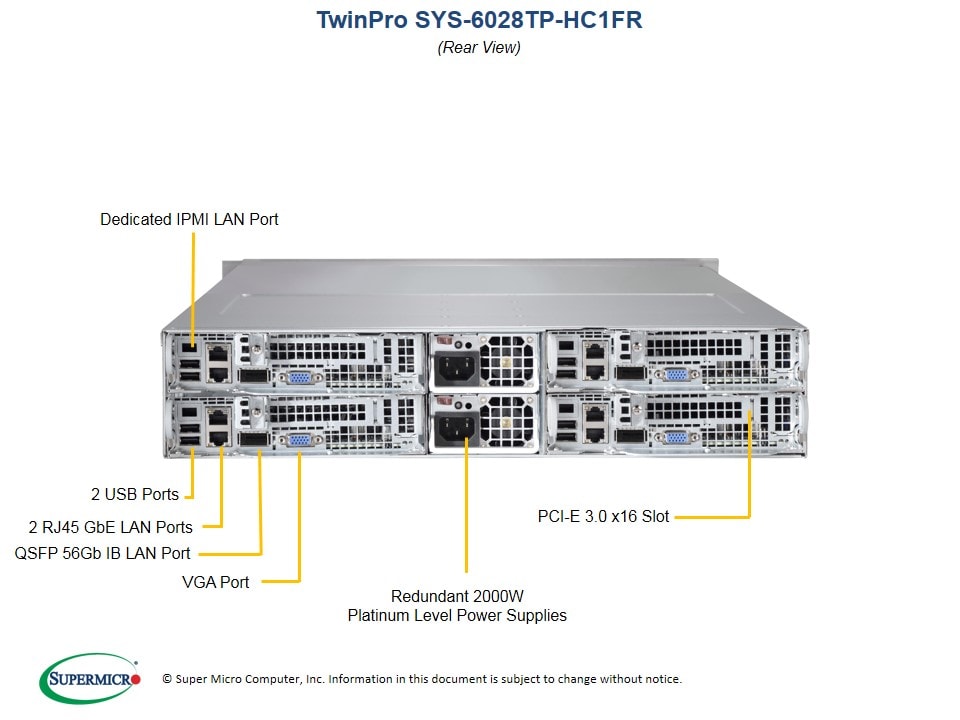

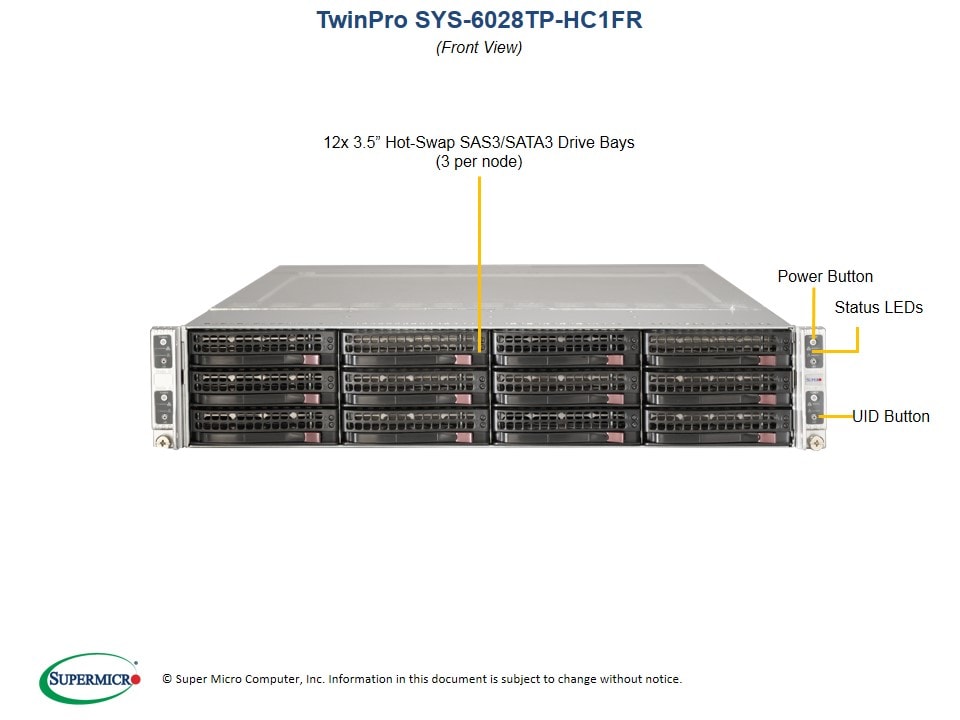

| Front View | Rear View |

Key Features
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 1x PCI-E 3.0 x16 Low-profile slot
4. Single port IB (FDR, 56Gbps),
    w/ QSFP connector
5. Intel® i350-AM2 Dual port GbE LAN
6. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
7. 3x 3.5" Hot-swap SAS/SATA HDD
    Bays
8. Broadcom 3108 SAS3 controller (3 ports);
    RAID 0, 1, 5, 10
9. 2000W Redundant Power Supplies

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6028TP-HC1FR
  • SuperServer 6028TP-HC1FR (Black)

Motherboard (Four per System)

Super X10DRT-PIBF

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
Infiniband
  • Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller
SAS
  • Broadcom 3108 SAS3 (12Gbps) controller;
       RAID 0, 1, 5, 10 support
  • Optional SuperCap
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per Node)
SAS
  • 3x SAS3 (12Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
Infiniband
  • 1x external QSFP Infiniband connector
USB
  • 2x USB 3.0 ports total (2x rear)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header (internal)
Others
  • 1x SATADOM support on the motherboard
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827HQ+-R2K04B

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 30.5" (774mm)
Weight
  • Gross Weight: 90 lbs (40.9kg)
  • Net Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 1x PCI-E 3.0 x16 Low-profile slot

Drive Bays (per Node)
Hot-swap
  • 3x 3.5" Hot-swap SAS/SATA HDD trays

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vdc (UL/cUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRT-PIBF
CSE-827HQ+-R2K04B
4
1
Super X10DRT-PIBF Motherboard
2U Chassis
Backplane BPN-ADP-S3108L-H6IRP 4 LSI 3108, SAS 12Gbps (x6 internal)
Backplane BPN-SAS3-827HQ 1 12-port 2U TwinPro^2 SAS3 CSE-827HQ (3 drives per node) backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1664-QRG 1 6028TP-HC1R/HC1TR/HC1FR, QRG
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0057PS 4 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention SNK-P0047PSM 4 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
Air Shroud MCP-310-21703-0B
or
MCP-310-21702-0B
4 TwinPro 217HQ+/827HQ+ X10 plastic air shroud
or
TwinPro 217HQ+/827HQ+ X10 mylay air shroud
Power Supply PWS-2K04A-1R
or
PWS-2K02P-1R
2 2000W Redundant Titanium Level Power Supplies
or
2000W Redundant Platinum Level Power Supplies


Optional Parts List
  Part Number Qty Description
SuperCap Kit BTR-CV3108-TP1 - Broadcom 3108 CacheVault kit for TwinPro
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black Hot-swap gen 4 3.5" to 2.5" HDD tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
