SuperServer 5019S-MR-G1585L

  Products  Systems  1U   [ 5019S-MR-G1585L ]

SYS-5019S-MR-G1585L



Integrated Board
Super X11SSH-GF-1585L

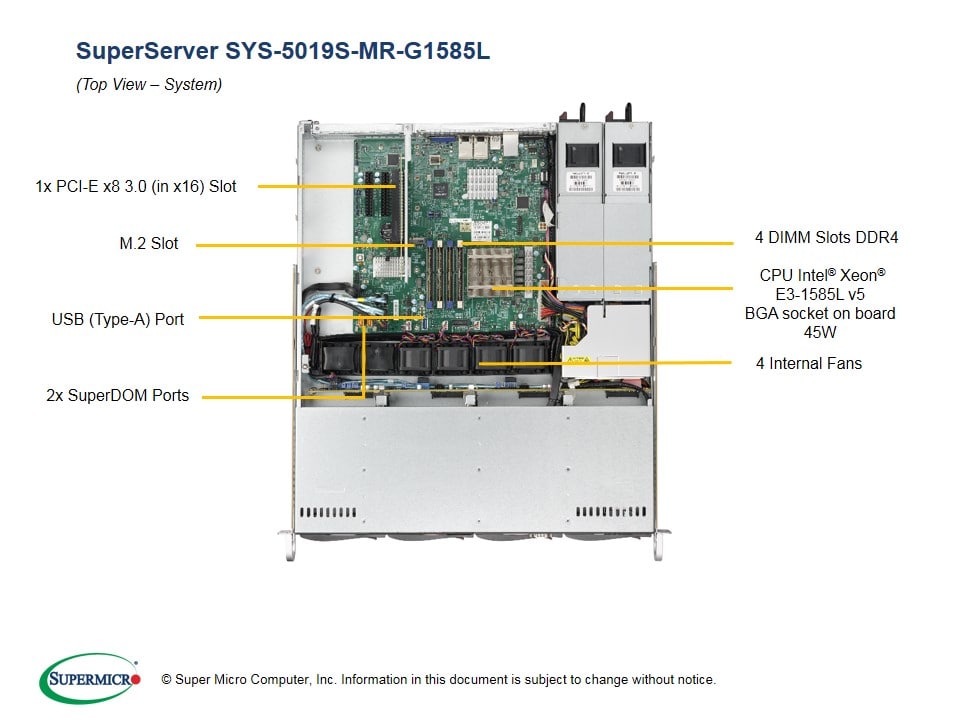

Views: | Angled View | Top View |

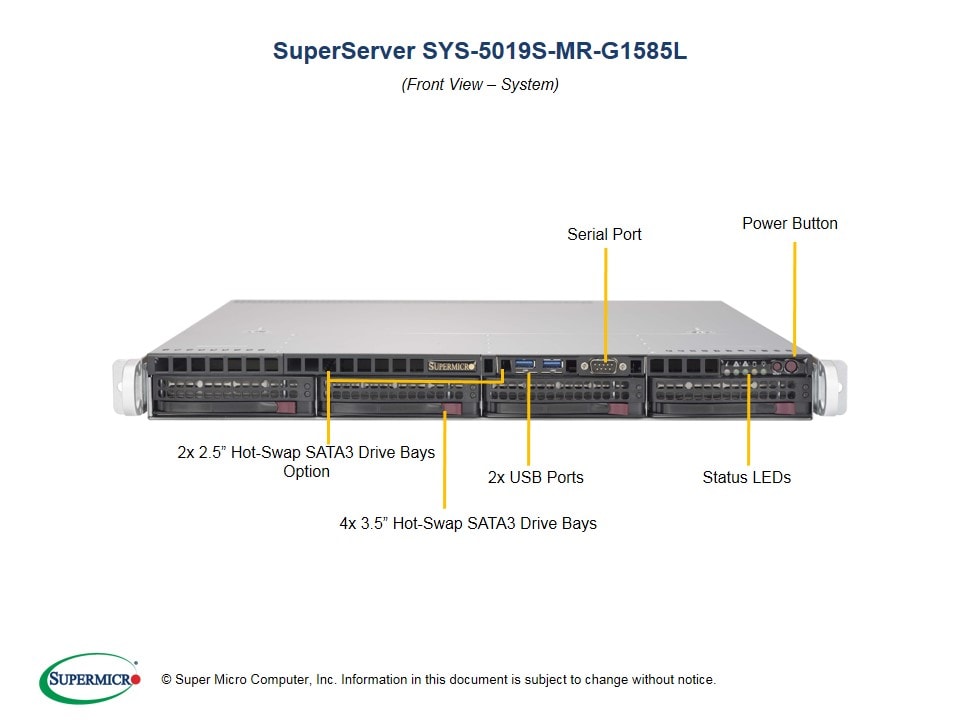

| Front View | Rear View |

Key Features
• Support VHD & Quick Sync Video
• Iris Pro Optimizations GT4e Build-in

1. Single Socket FCBGA 1440 supports
    Intel® Xeon® processor E3-1585L v5,
    4-Core, 8 Threads, 45W
2. Intel® C236 chipset
3. 4x 3.5" Hot-swap SATA3 bays w/ RAID
4. Up to 64GB Unbuffered ECC SO-DIMM
    DDR4-2133MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x8 (in x16) AOC slot
6. 2x 1GbE ports with Intel® i350
7. Integrated IPMI 2.0 and KVM with
    Dedicated LAN
8. I/O ports: 1 VGA, 2 COM,
    4 USB 3.0 (front/rear), 2 USB 2.0
9. 400W Redundant Platinum Power
    Supplies w/ BBP® option


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals   Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-5019S-MR-G1585L
  • SuperServer 5019S-MR-G1585L (Black)

Motherboard

Super X11SSH-GF-1585L
Processor
CPU
  • Single socket FCBGA1440
  • Intel® Xeon® processor E3-1585L v5
  • 4-Core, 8 Threads, CPU TDP support 45W

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB Unbuffered ECC SO-DIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® i350 Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • 8 USB 2.0 ports (2 rear + 6 headers)
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 front)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS, Halogen Free
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 33 lbs (15.0 kg)
  • Net Weight: 20 lbs (9.1 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 (in x16) AOC slot
M.2
  • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2242, 2280, 22110
  • Key: M-Key
  • Double Height Connector

Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap SATA3 drive bays

Peripheral Drives
Optional
  • Optional 2.5" drive adapter
  • Optional slim DVD drive

System Cooling
Fans
  • 4x 40x28mm 4-pin PWM Cooling Fans
  • Optional 1x 40x28mm PWM Fan

AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
  • 400W
Dimension
(W x H x L)
  • 54.5 x 40 x 220 mm
Input
  • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
  • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
  • Max: 33A / Min: 0.5A
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
Platinum Level Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 8MB SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SSH-GF-1585L
CSE-813MFTQC-R407CB
1
1
Super X11SSH-GF-1585L Motherboard
1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1 CBL-0186L 1 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Parts MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M
Drive Tray(s) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD bay
Air Shroud MCP-310-00079-0B 1 Mylar Air Shroud for SYS-5019S-MR-G1585L
Manual MNL-1919-QRG 1 5019S-M/MR-G1585L, QRG,HF,RoHS/REACH
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Power Supply PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Optional Parts List

Part Number
Qty
Description
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
DVM-PLDS-DVDRW-SBT5
1
1
TEAC slim DVD-ROM SATA drive
PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
Internal 2.5" HDD Tray (FDD slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray (DVD slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
Cable for internal HDD CBL-0484L
CBl-0289L
2
1
55cm 30AWG SATA straight to straigh cable
Y split, big 4 pin to two RA SATA power estenstion 30cm
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Cooling Fan FAN-0154L4 - 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
Storage Controller card & cable AOC-S3108L-H8iR
& 1x CBL-SAST-0811
AOC-S3108L-H8iR-16DD
& 1x CBL-SAST-0811
AOC-S3008L-L8i
& 1x CBL-SAST-0811
AOC-S3008L-L8e
& 1x CBL-SAST-0811
- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
63HDD, RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
122HDD HBA
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S
-
-
-
-
-
-
-
-
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
Front Bezels CSE-PTFB-813LB
CSE-PTFB-813-02B
-
-
Black front bezels
Black Front Bezel w/ Round Venting Holes
TPM security module AOM-TPM-9665V
AOM-TPM-9655V
1
1
TPM 2.0, vertical form factor
TPM 1.2, vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
