SuperServer 5019S-M2

  Products  Systems  1U   [ 5019S-M2 ]
SYS-5019S-M2


Integrated Board
Super X11SSZ-F

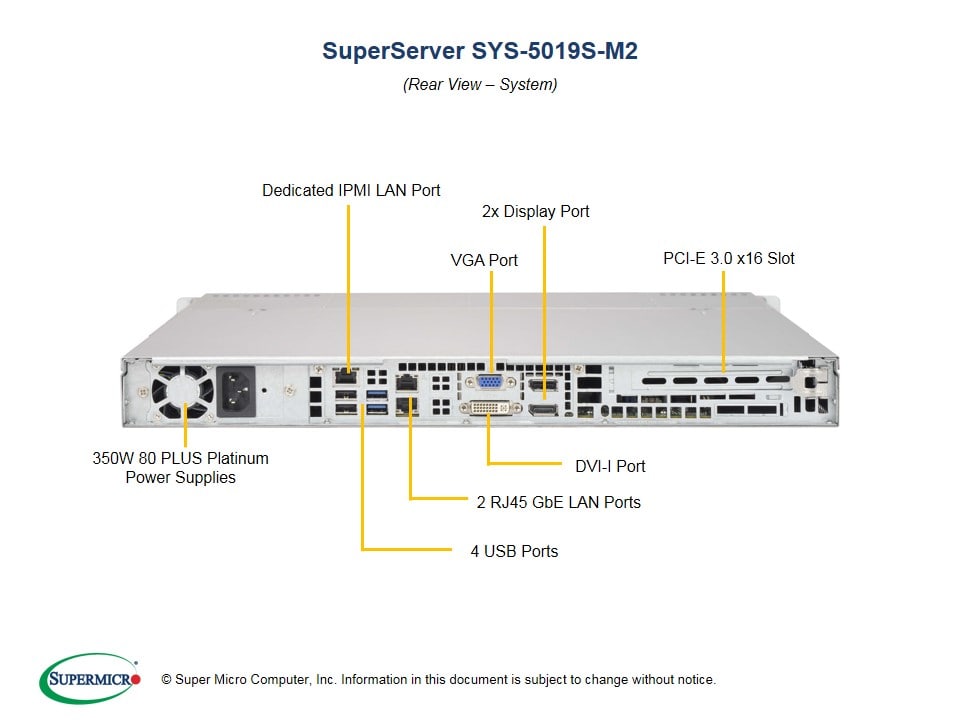

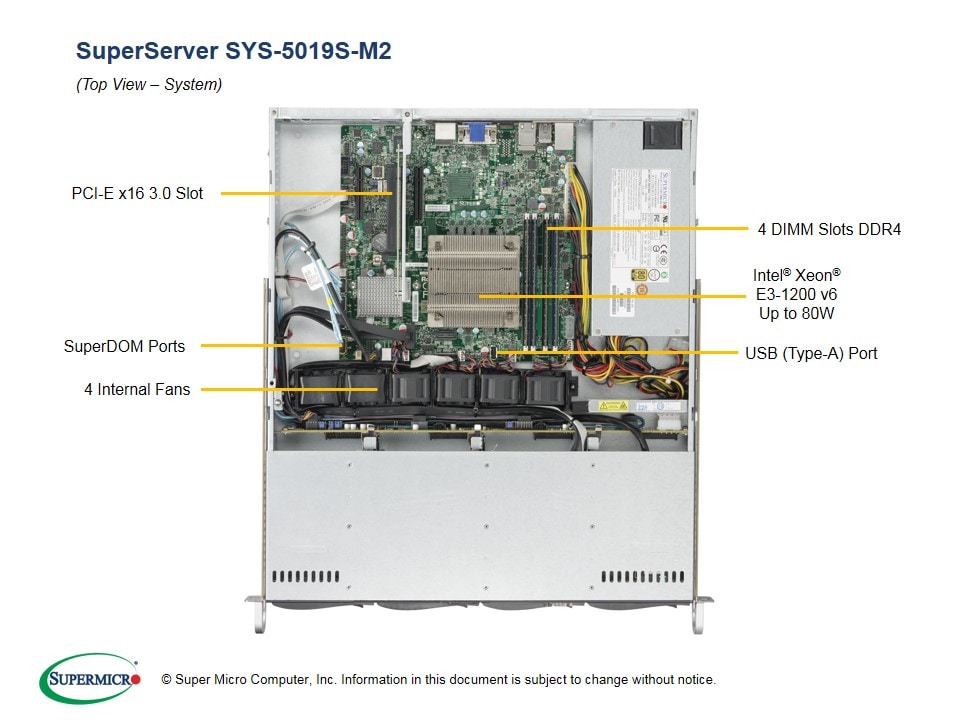

Views: | Angled View | Top View |

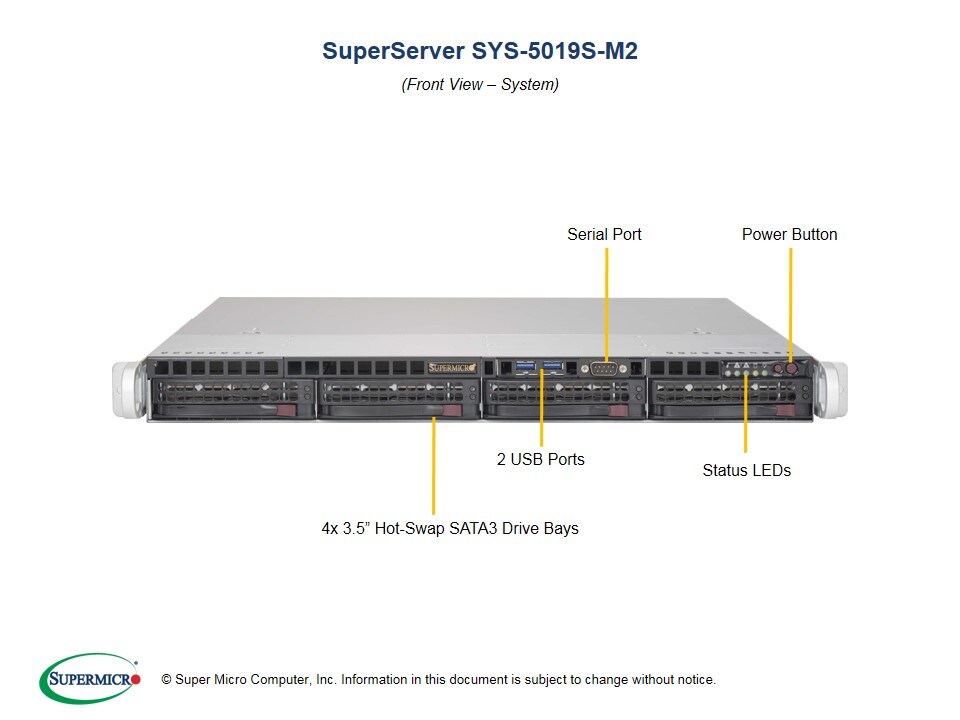

| Front View | Rear View |

 Key Applications
• Embedded
• Security and Surveillance
• Appliance Server, Secure Storage
• Rack Workstation

Key Features
1. Single Socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen. Core™ i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. 4 Hot-swap 3.5" SATA3 bays, Intel RST
4. Up to 64GB Unbuffered
    ECC/Non-ECC UDIMM DDR4 2400MHz;
    4 DIMM slots
5. 1 PCI-E 3.0 x16 slot
6. 1 GbE LAN w/ Intel® i210-AT,
    1 GbE LAN w/ Intel® PHY i219LM
7. Integrated IPMI 2.0 and KVM with
    Dedicated LAN
8. 1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
9. 350W Platinum Level Power Supply


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-5019S-M2
  • SuperServer 5019S-M2 (Black)

Motherboard

Super X11SSZ-F

Processor
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen Core™ i7/i5/i3,
    Intel® Pentium®,
    Intel® Celeron® processors
  • CPU TDP up to 80W
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • Intel® C236 chipset
SATA
  • 4x SATA3 (6Gbps) via Intel® C236 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC 888S High Definition Audio
Video
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (2 rear + 2 headers)
  • 9 USB 2.0 ports (2 rear + 6 headers + 1 Type A)
Audio
  • Front panel header
Video/Display
  • 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
  • 3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port / Header
  • 2 COM ports (1 front, 1 header)

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 6 fan headers supporting up to 6 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS, Halogen Free
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503mm)
Package
  • 8.5" (H) x 24" (W) x 29.7" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot

Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" SATA3 drive bays

Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
  • 4x 4cm internal fans

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V
  • Max.: 15 Amp
  • Min.: 0.2 Amp
+5V standby
  • Max.: 3 Amp
  • Min.: 0 Amp
+12V
  • Max.: 29 Amp
  • Min.: 0.5 Amp
-12V
  • Max.: 0.2 Amp
  • Min.: 0 Amp
+3.3V
  • Max.: 12 Amp
  • Min.: 0.2 Amp
Certification Platinum Level Certified     Platinum Level Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 8MB SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11SSZ-F
CSE-813MFTQC-350CB 		1
1		 Super X11SSZ-F Motherboard
1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1 CBL-0186L 1 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Parts MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M
Drive Tray(s) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD bay
Parts MCP-260-00094-0N 1 1U I/O Shield for X11SSZ with EMI Gasket,RoHS/REACH
Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
Manual MNL-1821-QRG 1 5019S-M2 QRG
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
FAN 1 FAN-0147L4 4 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
Optional Parts List

 Part Number
 Qty
 Description
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
DVM-PLDS-DVDRW-SBT5		 1
1		 TEAC slim DVD-ROM SATA drive
PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory CDM-USATA-G
CBL-0341L		 1
1		 Mini-SATA to USB adapter for slim DVD
70CM, INTERNAL USB CABLE FOR SLIM USB DVD ROM
Cooling Fan FAN0147L4 - 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
Storage Controller card & cable AOC-S3108L-H8iR
& 1x CBL-SAST-0811
AOC-S3108L-H8iR-16DD
& 1x CBL-SAST-0811
AOC-S3008L-L8i
& 1x CBL-SAST-0811
AOC-S3008L-L8e
& 1x CBL-SAST-0811 		- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
63HDD, RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
122HDD HBA
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S		 -
-
-
-
-
-
-		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
Front Bezels CSE-PTFB-813LB
CSE-PTFB-813-02B		 -
-		 Black front bezels
Black Front Bezel w/ Round Venting Holes
TPM security module AOM-TPM-9665V
AOM-TPM-9655V		 1
1		 TPM 2.0, vertical form factor
TPM 1.2, vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Hide Parts List
