SuperServer 1028UX-LL1-B8 (Complete System Only)

  Products  Systems   Hyper-Speed (Low-latency)   [ 1028UX-LL1-B8 ]





Integrated Board
X10DRU-XLL

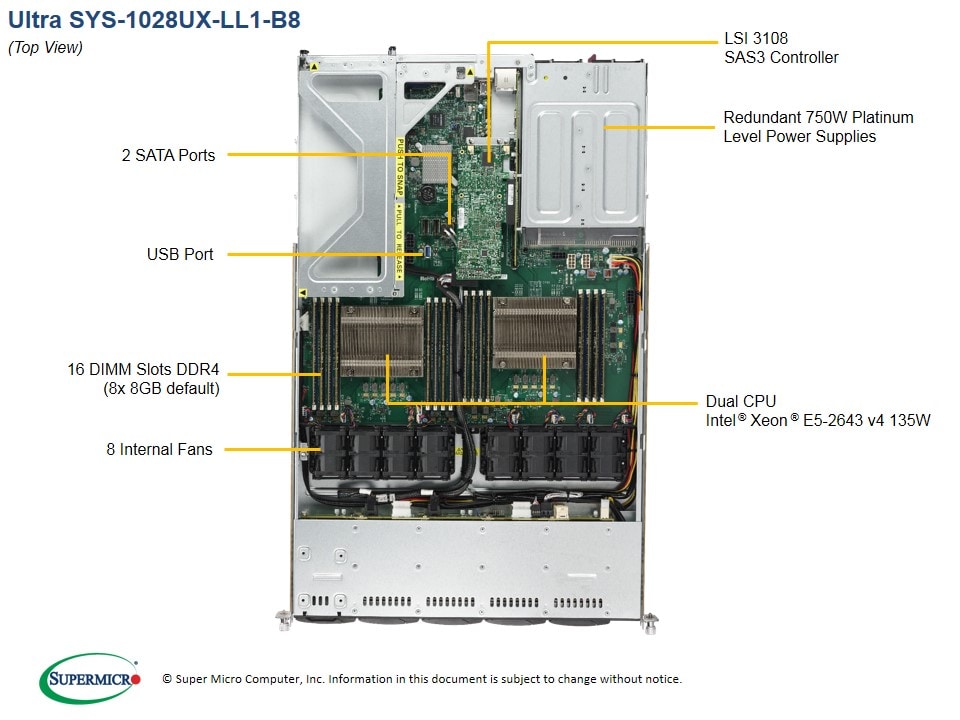

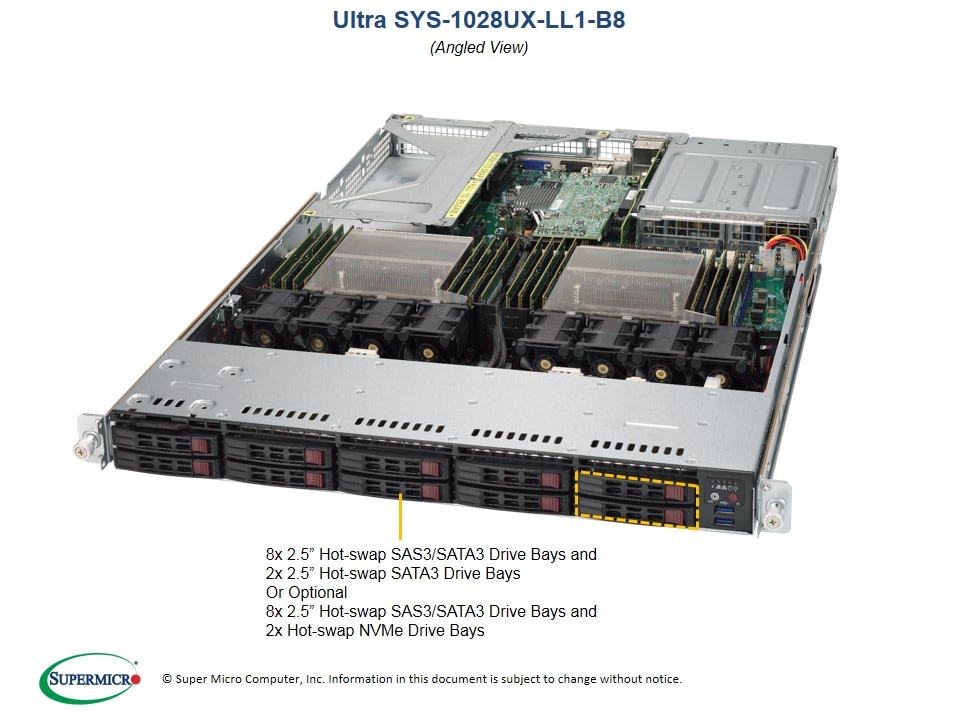

Views: | Angled View | Top View |

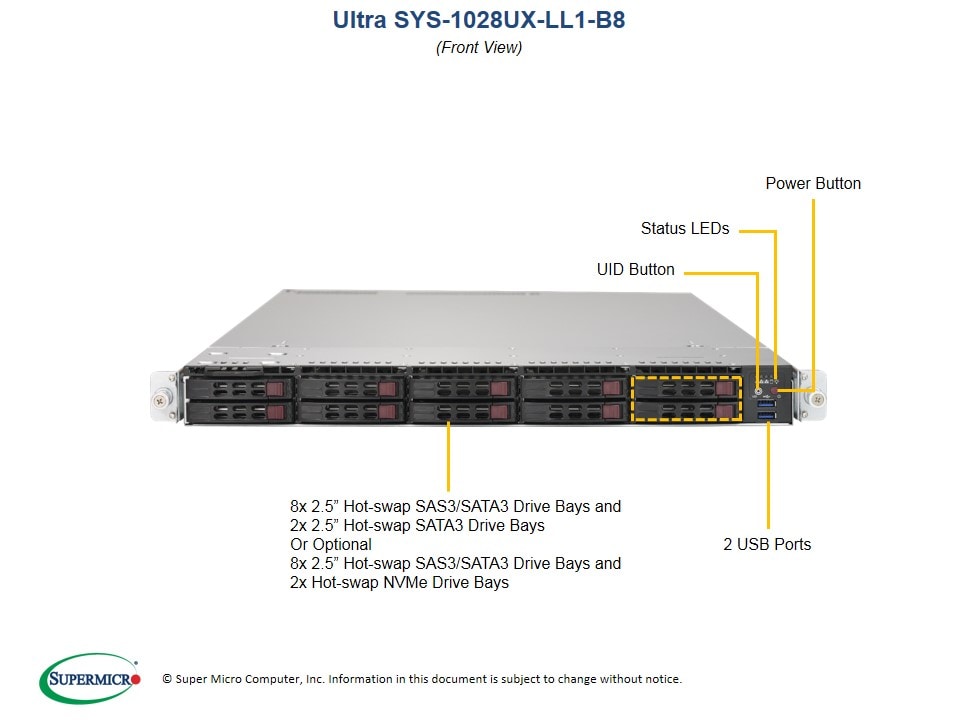

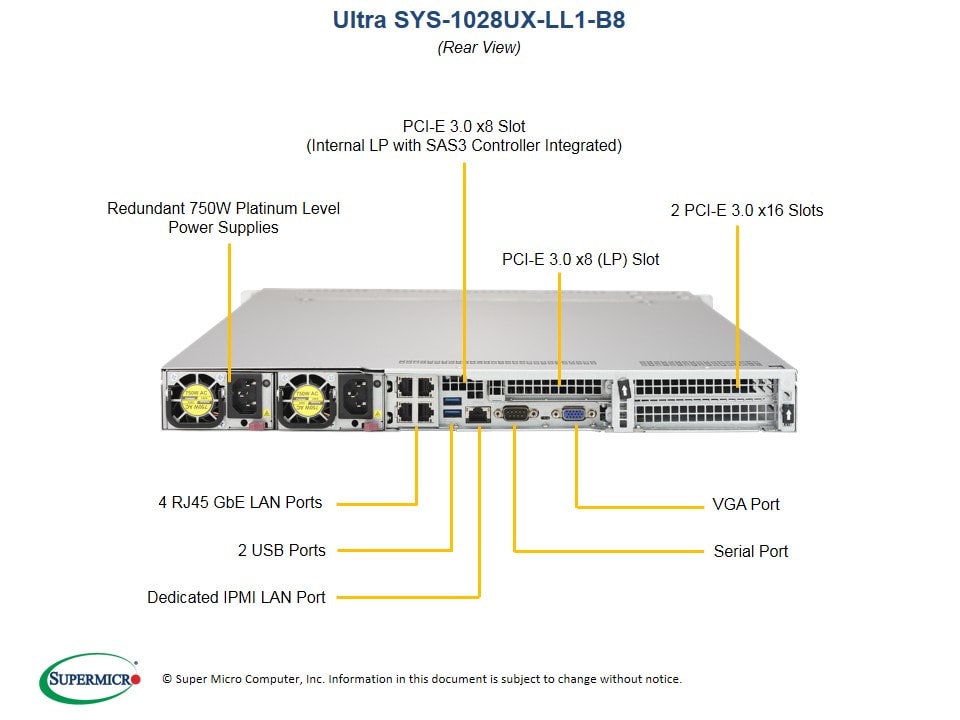

| Front View | Rear View |

• Qualified low latency NICs here


Key Features
• Support Hyper-Speed
1. Dual Intel® Xeon® processor
    E5-2643 v4
2. 8x 8GB DDR4-2400MHz (Default), up to
    DDR4- 2400MHz ; 16 DIMM slots
3. Expansion slots via riser card:
    2 PCI-E 3.0 x16, Full-height, 10.5" Length
    1 PCI-E 3.0 x8, Low-profile
    1 PCI-E 3.0 x8 SAS3 integrated
4. 4 Gigabit Ethernet LAN ports
5. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
6. 10 Hot-swap 2.5" Drive Bays:
    8 SAS3 (Broadcom 3108), 2 SATA3,
    2 NVMe ports support via
    optional AOC-URN2-I2XT
    (with 2x 10GBase-T ports)
7. 8 heavy duty fans w/ optimal
    fan speed control
8. 750W Redundant Power Supplies
    Platinum Level (94%+)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs). At least one low-latency NIC from this list must be selected and installed into the system.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-1028UX-LL1-B8
  • SuperServer 1028UX-LL1-B8 (Black)

Motherboard

Super X10DRU-XLL

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2643 v4 (Included) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 6 Cores / Up to 20MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 8x 8GB DDR4-2400MHz (Default)
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • Broadcom 3108 SAS3 (12Gbps) controllers; RAID 0, 1, 5, 6, 10, 50 support
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC

Input / Output
SAS
  • 8 SAS3 (12Gbps) ports
SATA
  • 2 SATA3 (6Gbps) ports
NVMe
  • 2 NVMe ports support via optional Ultra Riser card (AOC-URN2-i2XT)
LAN
  • 4 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear, 2 via header, 1 Type A)
Video
  • 1 VGA Connector
Serial Port / Header
  • 1 Fast UART 16550 serial
  • 1 COM port (rear)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UTS-R751P-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
    Expansion slots via riser card:
  • 2 PCI-E 3.0 x16, Full-height, 10.5" Length
  • 1 PCI-E 3.0 x8, Low-profile
  • 1 PCI-E 3.0 x8 SAS3 integrated

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS3 drive bays
  • 2 Hot-swap 2.5" SATA3 drive bays
  • Optional NVMe support: 2 NVMe via AOC-URN2-I2XT (w/ 2x 10GBase-T ports)

System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud

Power Supply
750W Redundant Power Supplies with PMBus
Total Output Power
  • 750W: 100 – 127Vac
  • 750W: 200 – 240Vac
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.5A Max / 50-60Hz
  • 200-240Vac / 4.5A Max / 50-60Hz
+12V
  • Max: 62.5A / Min: 0A
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level


  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • CPU Core 6-Phase-switching voltage regulator
FAN
  • Total of eight 4-pin PWM fans
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRU-XLL
CSE-119UTS-R751P-T
1
1
Super X10DRU-XLL Motherboard
CSE-119UTS-R751P-T Chassis
Fan FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Air Shroud MCP-310-81907-0N 2 SC819UT PLASTIC AIR SHROUD 16 DIMM
Add-on Card AOC-S3108L-H8IR-16DD 1 SAS-3, GEN-3 RAID card. Supports 12Gb and R0,1,5,6,10,50 and 60. Includes 2GB memory
Add-on Card AOC-UR-I4G-O-P 1 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot
CPU P4X-DPE52643V4-SR2P4 2 BDW-EP 6C/12T E5-2643 v4 3.4G 20M 9.6GT 135W R3 2011 R0
Memory MEM-DR480L-SL02-ER24 8 8GB DDR4-2400 1Rx4 LP ECC REG DIMM
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH


Optional Parts List
  Part Number Qty Description
CacheVault(s) BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N
-
-
-

CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
