SuperServer 1019S-M2

  Products  Systems  1U   [ 1019S-M2 ]

SYS-1019S-M2



Integrated Board
Super X11SSZ-QF

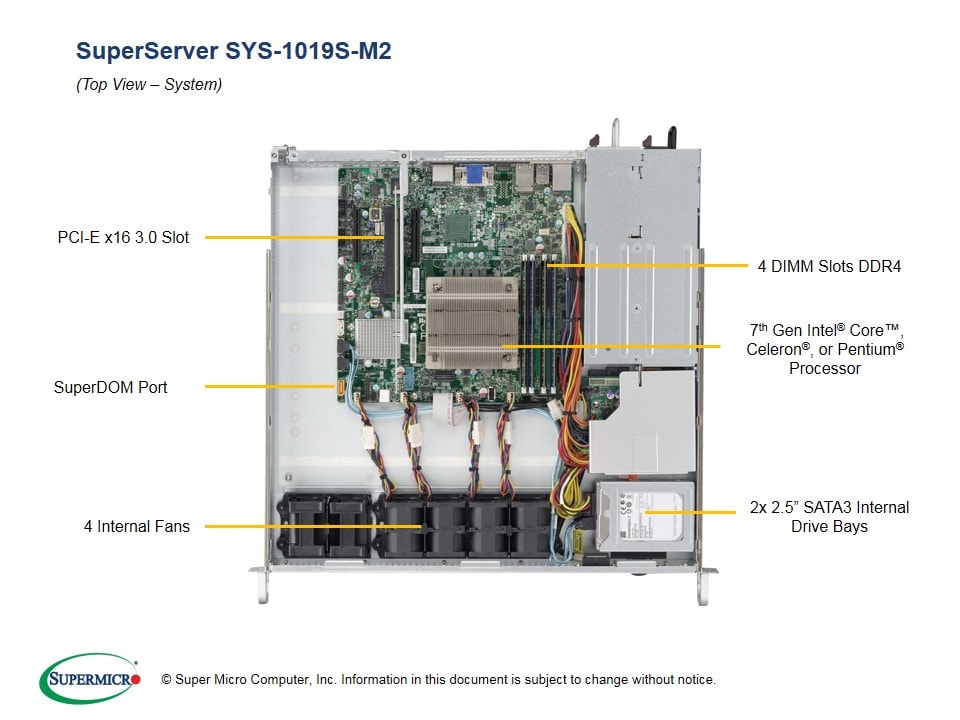

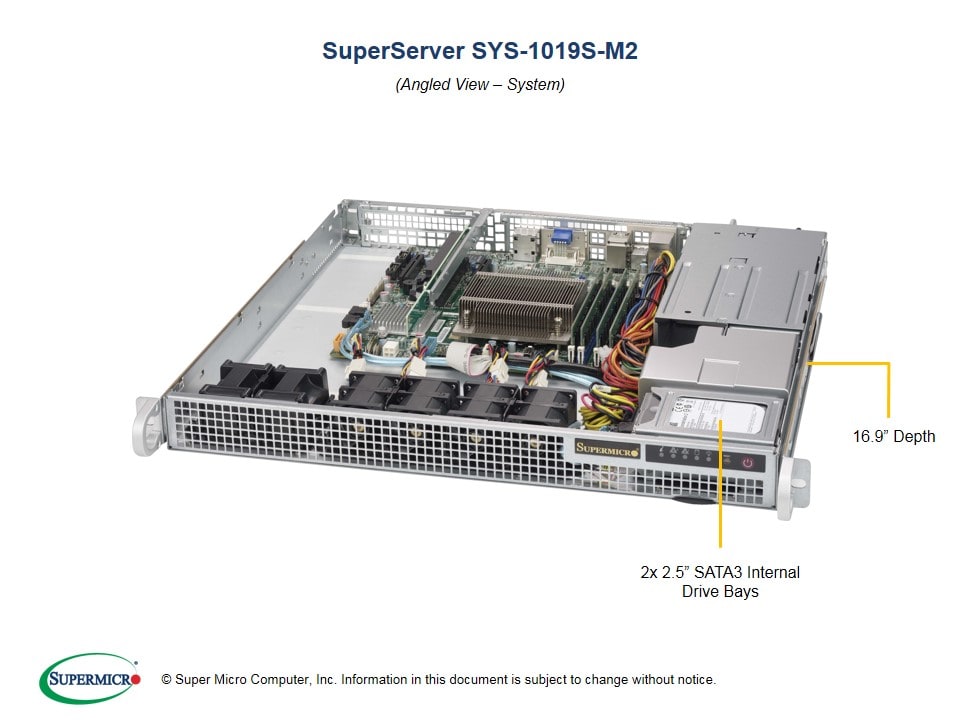

Views: | Angled View | Top View |

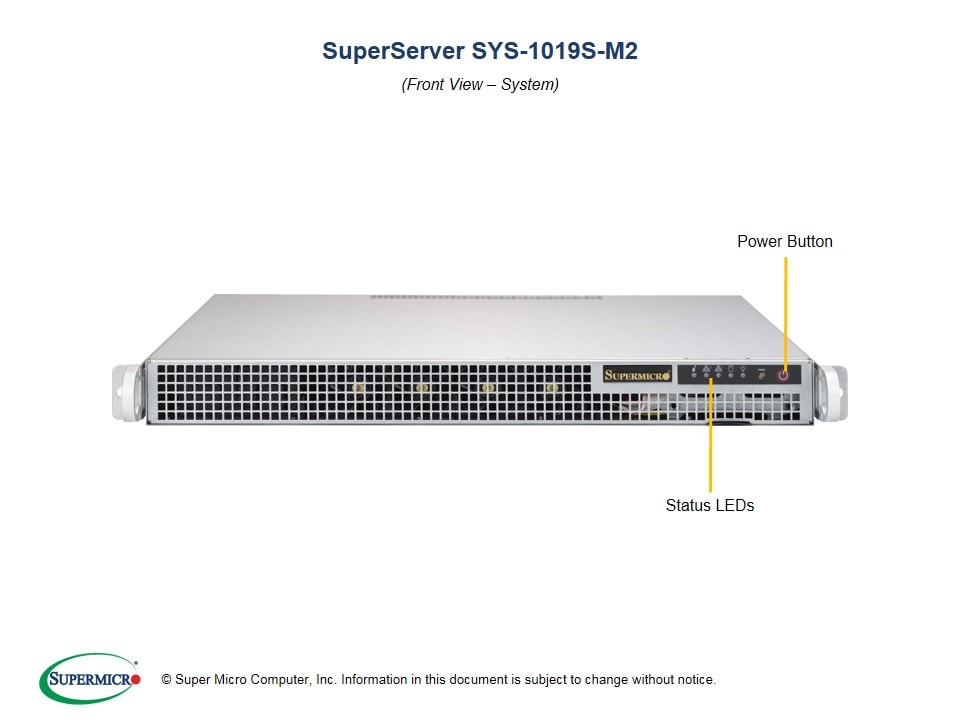

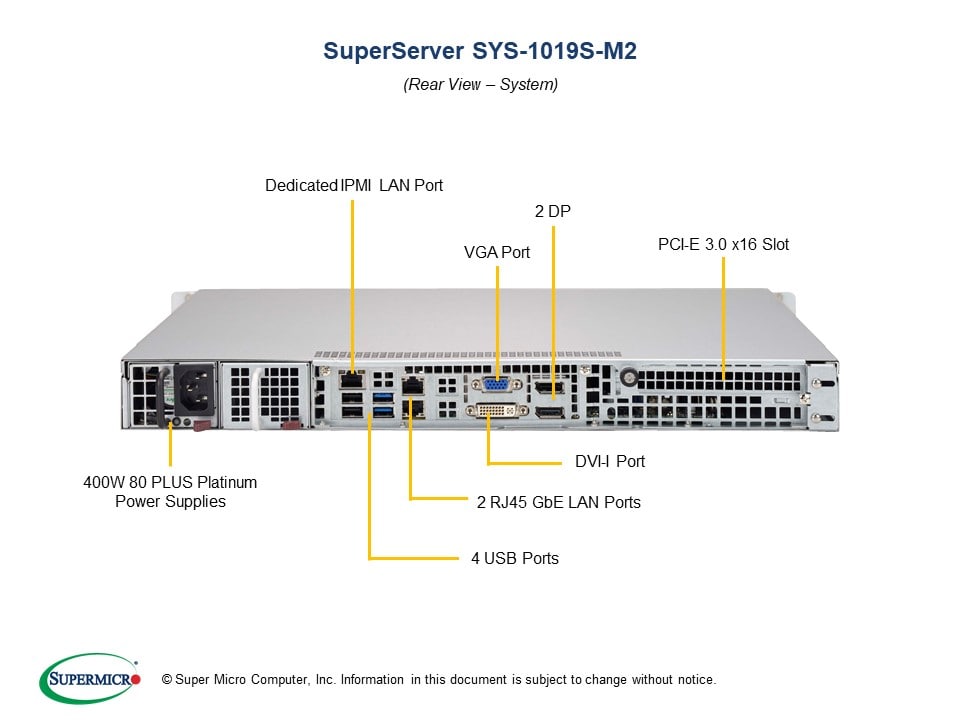

| Front View | Rear View |

Key Applications
• Embedded, 7-year life cycle
• Industrial Automation & Control
• Military Compact Server
• VOIP and Network Appliances
• Medical Applications


Key Features
1. Single Socket H4 (LGA 1151) supports
    Intel® 7th/6th Gen. Core i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
    processors
2. Intel® Q170 Express chipset
3. 2 Fixed 2.5" drive bays
4. Up to 64GB Unbuffered Non-ECC
    UDIMM DDR4 2400MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x16 (in x16 slot)
6. 1 GbE LAN w/ Intel® i210-AT,
    1 GbE LAN w/ Intel® PHY i219LM
7. Integrated IPMI 2.0 and KVM with
    Dedicated LAN, vPro supported
8. 2 DP, 1 DVI-I, Intel HD Graphics,
    with 3 independent displays,
    VGA for BMC AST2400
9. 400W Platinum Level Power Supply
    + Optional 2nd redundant 400W
    Power supply or Battery Backup Unit


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix

Product SKUs
SYS-1019S-M2
  • SuperServer 1019S-M2 (Black)

Motherboard

Super X11SSZ-QF

Processor/Cache
CPU
  • Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 80W TDP
  • Single Socket H4 (LGA 1151)
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 Non-ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • Intel® Q170 Express chipset
SATA
  • SATA3 (6Gbps) via Intel® Q170 Express controller
  • RAID 0, 1 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC 888S High Definition Audio
Video
  • ASPEED AST2400 BMC and Intel HD Graphics 530

Input / Output
SATA
  • 2 SATA3 (6Gbps) ports; RAID 0, 1
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (2 rear)
  • 3 USB 2.0 ports (2 rear + 1 Type A)
Video/Display
  • 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
  • 3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port / Header
  • 2 serial headers
SuperDOM
  • 1 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 3.0
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Management
Software
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Package
  • 8" (H) x 24" (W) x 24" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 (in x16 slot)

Drive Bays
Internal
  • 2 Fixed 2.5" SATA3 drive bays

System Cooling
Fans
  • 4x 40x56mm PWM fan; 2x fans for AOC cooling

Power Supply
400W Platinum level power supply with PMBus and I2C
AC Input
  • 400W: 100-240 V, 50-60 Hz
DC Output
+5V standby
  • 3 Amp
DC Output
+12V
  • 33 Amp
Certification Platinum Level Certified     Platinum Level


PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 6 fan headers supporting up to 6 fans
  • 6 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS, Halogen Free

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SSZ-QF
CSE-514-407C-1P
1
1
Super X11SSZ-QF Motherboard
1U Chassis
Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2 CBL-0227L 2 SATA,INT,ROUND,ST-RA,48CM,26AWG
Cable 3 CBL-0296L 4 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 4 CBL-0062L 1 PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,20CM,18AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Parts MCP-260-00094-0N 1 1U I/O Shield for X11SSZ with EMI Gasket,RoHS/REACH
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
Power Supply PWS-407P-1R 1 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Optional Parts List

Part Number
Qty
Description
Power Supply PWS-407P-1R - AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Power Supply PWS-206B-1R - Battery Backup Unit
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
