| SYS-1019GP-TT |
|
|
|
CPU |
- Single Socket P (LGA 3647)
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
- Support CPU TDP 70-205W
|
Cores |
|
Note |
‡
BIOS version 3.2
or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
|
|
Supported GPUs |
- 2 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
- NVIDIA V100, M10, P40, T4, Quadro RTX
- Supports both active and passive cooled GPUs
- Compatible GPU list
|
CPU-GPU Interconnect |
- PCI-E Gen 3 x16 Switch CPU-GPU Interconnect
|
|
|
Memory Capacity |
- 6 DIMM slots
- Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
- Supports Intel® Optane™ DCPMM††
|
Memory Type |
- 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
|
Note |
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.
|
| |
| Chipset |
|
SATA |
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
|
Network Connectivity |
- Intel® X550 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
Graphics |
|
| |
| SATA |
|
LAN |

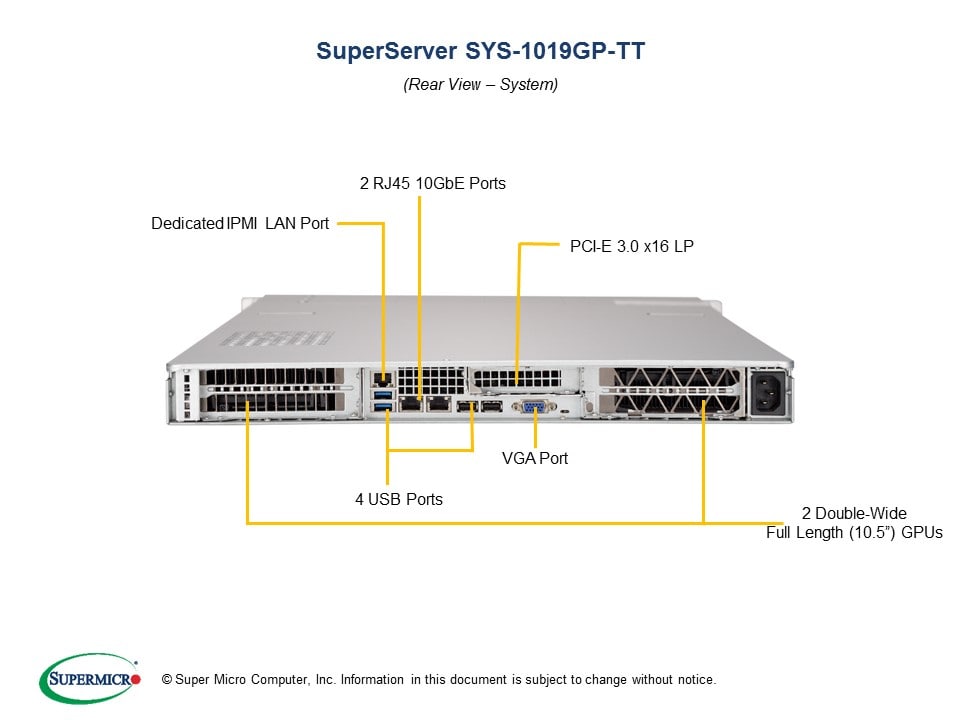

- 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
|
USB |
- 2 USB 3.0 ports (rear)
- 2 USB 2.0 ports (rear)
|
Video |
|
Serial Port |
|
DOM |
- 2 DOM (Disk on Module) power connectors
|
|
|
BIOS Type |
|
|
|
Software |
|
Power Configurations |
- ACPI / APM Power Management
|
|
|
CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
|
| |
| Form Factor |
|
Model |
|
| |
| Height |
|
Width |
|
Depth |
|
Weight |
- Net Weight: 28 lbs (12.70 kg)
- Gross Weight: 36 lbs (16.33 kg)
|
Available Color |
|
| |
| Buttons |
- Power On/Off button
- System Reset button
|
LEDs |
- Power LED
- Hard drive activity LED
- Network activity LEDs
- System Overheat LED / Fan fail LED
|
|
|
PCI-Express |

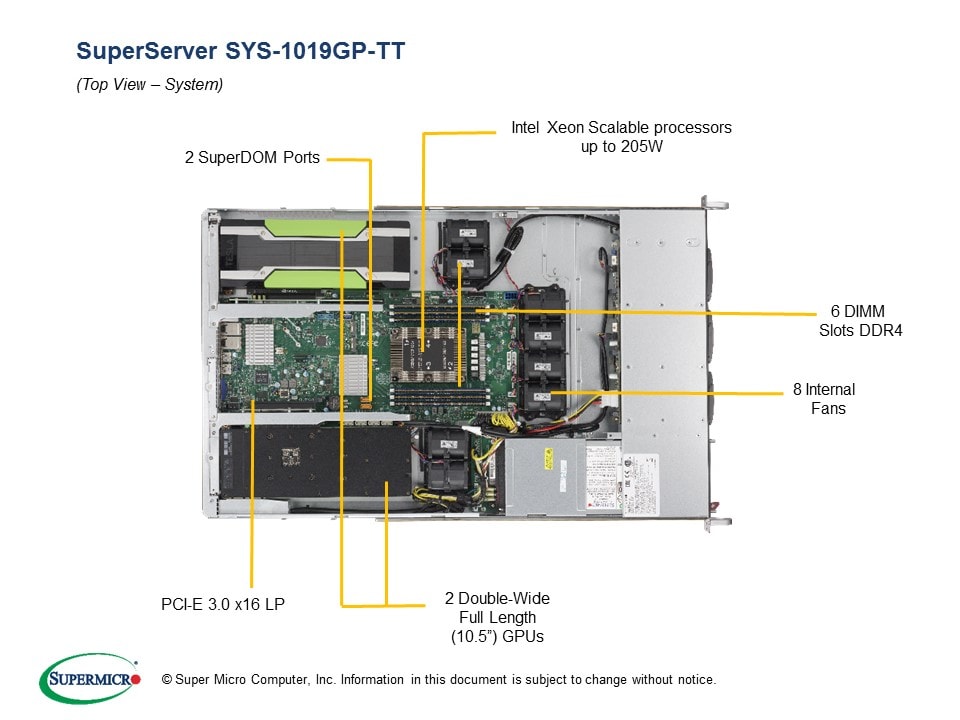

- 2 PCI-E 3.0 x16 (FHFL) slots - supporting up to 2 GPUs
- 1 PCI-E 3.0 x16 slot (left riser)
|
| |
| Hot-swap |

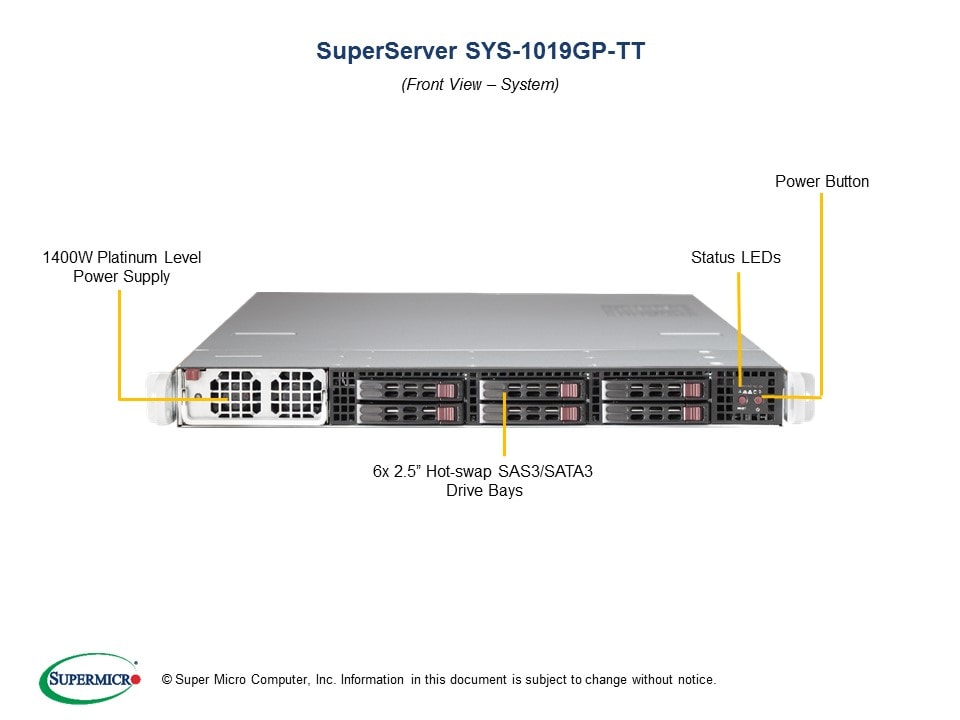

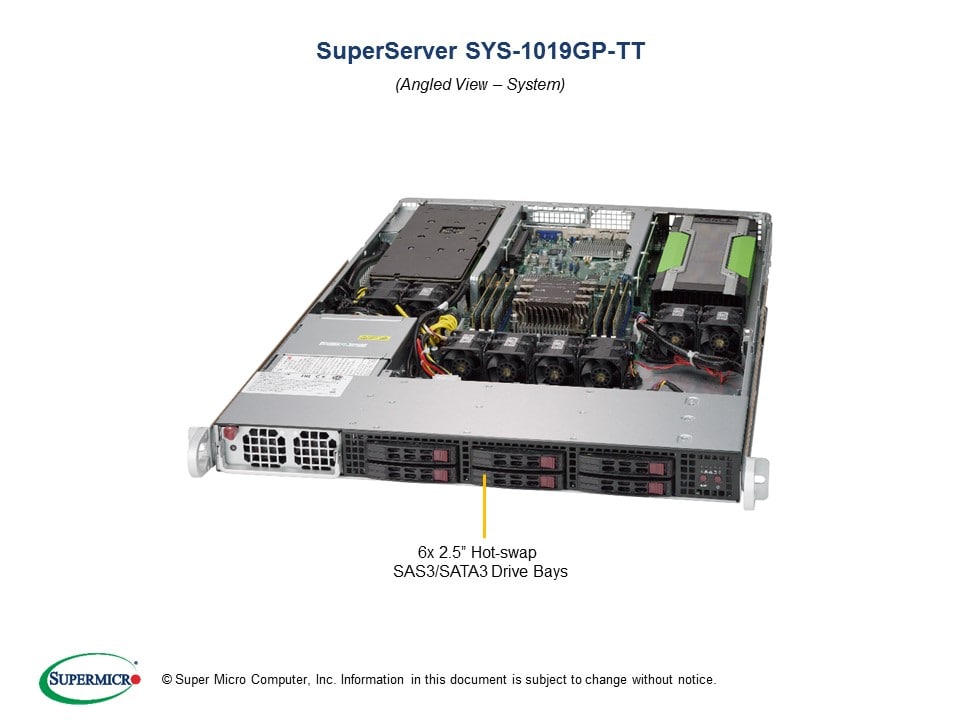

- 6 Hot-swap 2.5" SAS/SATA drive bays
|
M.2 |
- Supports 2 M.2 form factor 2280
- Supports both M.2 NVMe and SATA SSD
|
| | |
| Fans |
- 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control
|
| |
|
1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
AC Voltage |
- 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
- 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
|
+5V standby |
|
+12V |
- 100 Amp/115 Vac
- 117 Amp/230 Vac
|
With Power Distributor |
|
Certification |
Platinum Certified
|
| |
| RoHS |
|
Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
| |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
Motherboard / Chassis |
MBD-X11SPG-TF
CSE-118GTS-1K43BP2 |
1 1 |
Super X11SPG-TF Motherboard
1U SC118G Chassis |
Backplane
|
BPN-SAS-118TQ |
1
|
6-port 1U TQ (W/ AMI 9072) backplane, support up to 6x 2.5-inch SAS/SATA HDD/SSD |
Cable 1
|
CBL-0484L |
4
|
SATA,INT,ROUND,ST-ST,55CM,30AWG |
Cable 2
|
CBL-CDAT-0662 |
2
|
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
Cable 3
|
CBL-PWEX-0663 |
1
|
PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH |
Cable 4
|
CBL-PWEX-1028 |
1
|
Tesla family GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C |
Cable 5
|
CBL-SAST-0624 |
2
|
SATA,INT,ROUND,ST-ST,70CM,30AWG |
Riser Card
|
RSC-R1U-E16R |
1
|
RSC-R1U-E16R |
Riser Card
|
RSC-R1UG-E16-UP |
1
|
1U LHS Riser Card with one PCI-E x16 for UP GPU MBs |
Riser Card
|
RSC-R1UG-E16R-UP |
1
|
1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB |
Heatsink / Retention
|
SNK-P0067PS |
1
|
1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
Power Supply
|
PWS-1K43F-1R |
1
|
1400W redundant digital power supply |
|
|
|
| |
| |
Part Number |
Qty |
Description |
Other GPUs Cables |
CBL-PWEX-1059 |
1 |
Quadro family GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG,8A/pin(17AWG), 6A/pin(20AWG), -25~80C, RoHS |
AOC-S3008L-L8i (SAS3) |
CBL-SAST-0699 |
2 |
Mini SAS HD-4 SATA, 12G |
AOC-S3108L-H8IR-16DD (SAS3) |
CBL-SAST-0699 |
2 |
Mini SAS HD-4 SATA, 12G |
AOC-S3108L-H8IR (SAS3) |
CBL-SAST-0699 |
2 |
Mini SAS HD-4 SATA, 12G |
Super Cap for LSI 3108 |
BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 |
1 1 |
Mounting Bracket for LSI BBUs LSI Super Cap |
Network Cards |
AOC-S100G-m2C |
- |
Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16,
based on Mellanox ConnectX-4 EN chipset |
AOC-MCX516A-CCAT |
- |
Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3x16 CX-5 EN. RoHS |
AOC-S40G-i2Q |
- |
Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports |
AOC-MCX512A-ACAT |
- |
Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS |
AOC-MCX4121A-ACAT |
- |
Mellanox MCX4121A-ACAT 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket Lx EN, HF, RoHS |
AOC-S25G-b2S |
- |
Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports,
based on Broadcom BCM57414 |
AOC-S25G-m2S |
- |
Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset |
AOC-STG-b4S |
- |
Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports |
AOC-STG-i4S |
- |
Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports |
AOC-STGN-i2S |
- |
Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports |
AOC-STGN-i1S |
- |
Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port |
AOC-STG-i2T |
- |
Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports |
AOC-SGP-i4 |
- |
Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports |
AOC-SGP-i2 |
- |
Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports |
GPUs Air Shroud Kit |
MCP-310-81806-0B |
- |
Nvidia Fermi GPU Air shroud for 818G/118G |
Global Services & Support |
OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
Software |
SFT-OOB-LIC • |
1 |
OOB Management Package (per node license) |
Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
Hide Parts List
|
|
|
|
|
|
|
