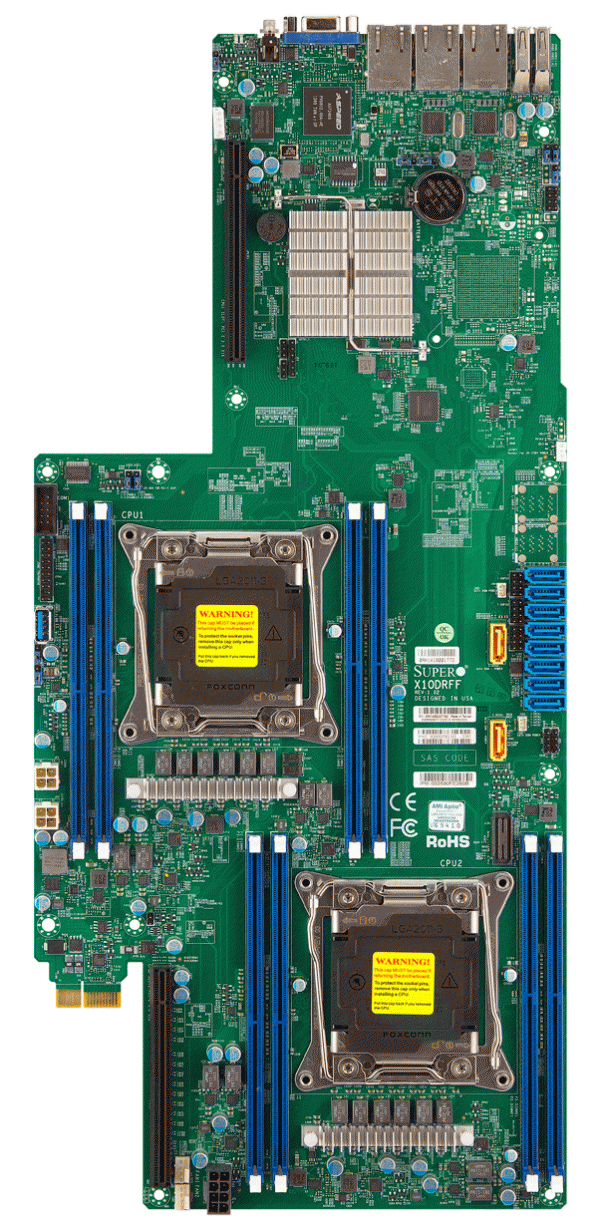

Supermicro Motherboard Xeon Boards X10DRFF

2400MHz DDR4
6Gbps SATA3

Key Features

  1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
  2. Intel® C612 chipset
  3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
  4. Expansion slots: 2 PCI-E 3.0 x16
  5. 2 Intel® i210 Single port GbE LAN
  6. 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
  7. Integrated IPMI 2.0 and KVM with Dedicated LAN
  8. 2 USB 3.0 ports (rear), 1 Type A

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10DRFF
  • X10DRFF

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 18.72" x 8.54" (47.55cm x 21.69cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots ,
  • Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210
    Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 10 SATA2 (3Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 3.0 x16

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
  • IPMI2.0, NMI, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +1.1V, +1.5V, +12V, +3.3V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT
FAN
  • 2x 4-pin fan headers (up to 2 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
  • Suspend static indicator LED, UID/Remote UID
Other Features
  • RoHS

Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
MotherboardMBD-X10DRFF1X10DRFF Motherboard (only comes with server)


Optional Parts List
Name Part Number Qty Description
Heat Sink (optional, not included)--CPU Heat Sink reference
TPM security module (optional, not included)AOM-TPM-9655V
AOM-TPM-9655H
--TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server
TPM security module (optional, not included)AOM-TPM-9655V-S
AOM-TPM-9655H-S
--TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT
TPM security module (optional, not included)AOM-TPM-9665V-S
AOM-TPM-9665H-S
--TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server
TPM security module (optional, not included)AOM-TPM-9665V-S
AOM-TPM-9665H-S
--TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT
SuperDOM --Supermicro SATA DOM Solutions [Details]
Chassis (Optimized for

X10DRFF

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for X10DRFF)
Server Name
SYS-F618R2-FT
SYS-F618R3-FT
SYS-F628R3-FT
SYS-F618R3-FTL
X10DRFF
