Part Number |
Qty |
Description |
|
Bracket
|
MCP-240-00197-0N |
1 |
Non-C Riser Card Bracket (butterfly) for SC813MF2/SC113MF_RCB |
|
HD Backplane
|
BPN-SAS3-815TQ |
1 |
1U 4-Port 12Gbps Backplane Supports 4x3.5" SAS/SATA HDD/SSD |
|
Cable(s)
|
CBL-0071L |
1 |
ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
|
Cable(s)
|
CBL-PWCD-0160-IS |
1 |
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
|
Part(s)
|
MCP-120-00115-0N |
1 |
Blank LP L-bracket with 4x4 vent holes |
|
Part(s)
|
MCP-120-00116-0N |
1 |
Blank FH L-bracket with 4x4 vent holes |
|
Part(s)
|
MCP-230-81305-0N |
1 |
Top cover for SC813M, extend (19.98";), Single PWS |
|
Part(s)
|
MCP-270-81308-0N |
1 |
Chassis base for SC813M, extend (19.98"), Single PWS |
|
Part(s)
|
MCP-290-00088-0N |
1 |
SC119 Intrusion assembly |
|
CD-ROM & Accessory
|
CSE-PT93L-B |
1 |
Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
|
Fan(s)
|
FAN-0154L4 |
4 |
40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
|
Front Panel
|
FPB-FP813-D |
1 |
Front control board dual color for SC815,SC813M (C) |
|
Cooling Fan & Accessory
|
MCP-320-00060-0N |
1 |
Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15") |
|
Drive Tray(s)
|
MCP-220-00075-0B |
4 |
Black gen 5.5 hot-swap 3.5" HDD tray |
|
Part(s)
|
MCP-340-00001-01 |
2 |
Dummy fan 40x28mm |
|
Power Supply & Accessory
|
PWS-350-1H |
1 |
1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) |
|
Mounting Rail(s)
|
MCP-290-00102-0N |
1set |
Outer rail, quick-release type, 25.6 |
|
Mounting Rail(s)
|
MCP-290-00108-0N |
1set |
Inner rail, front, short, quick-release type |
|
Mounting Rail(s)
|
MCP-290-00110-0N |
1set |
Inner rail, extension (quick) for 1U 17.2 |
|

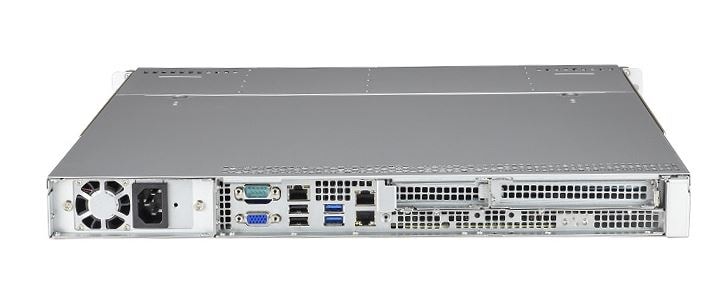

Rear Window
|
MCP-240-00196-0N |
1 |
Non-C Rear window Assy for SC813MF2_RCB Single PWS |
= Most optimized Chassis for SuperServer Configuration
